Proximity Distance Sensor using DRV5053 Hall effect Sensor

  • Rajkumar Sharma
  • 769
    Views
  • moderate
  • Tested

This is a hall sensor proximity sensor that can detect magnetic targets approaching the sensor, without physical contact with the target. This sensor also can be used to detect the distance range 0-4cm (0-40mm). The target distance can be adjusted using the onboard trimmer potentiometer. The project is built around DRV5053 magnetic field sensor and LM393 comparator.  Relay provides normally open and normally closed operations and relay can drive AC and DC load, AC 230V/5Amps and DC 30V/5Amps. LED D1 indicates sensor operation, LED D2 is a power LED.

Features

  • Supply 12V DC
  • Current 60mA (when Relay is on)
  • Sensing Distance adjustable 0-40mm
  • On-Board Power LED
  • On board Sensor LED
  • PCB Dimensions 50.19mm X 27.08mm

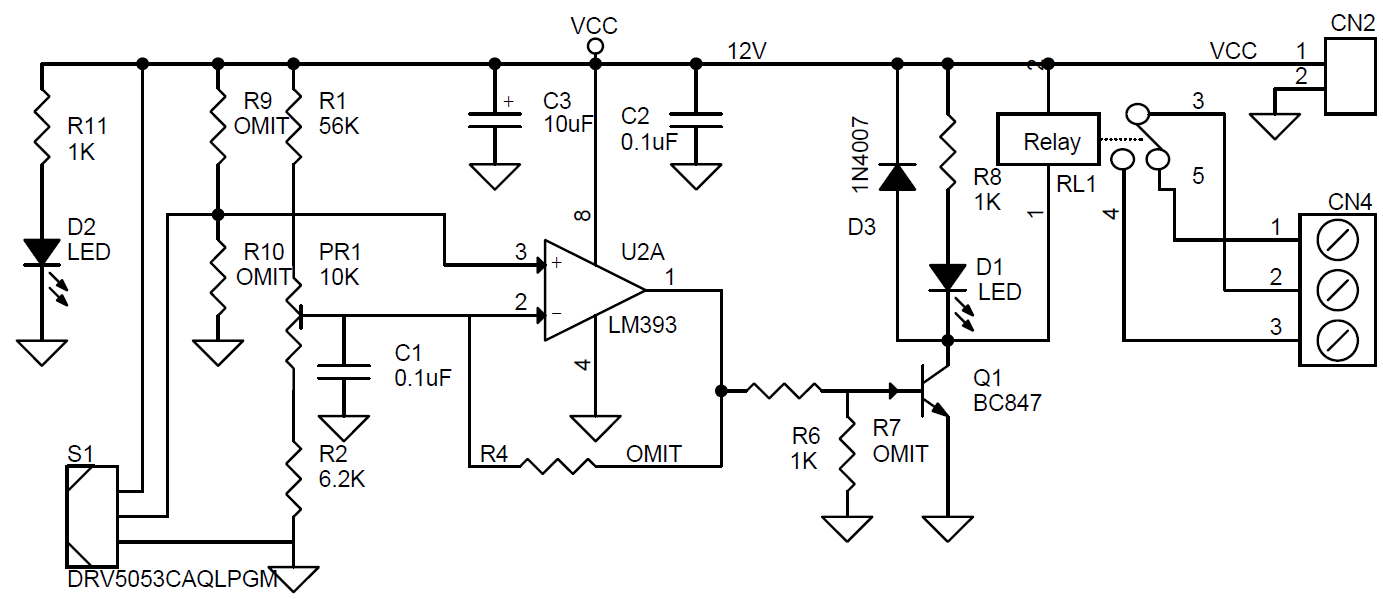

Schematic

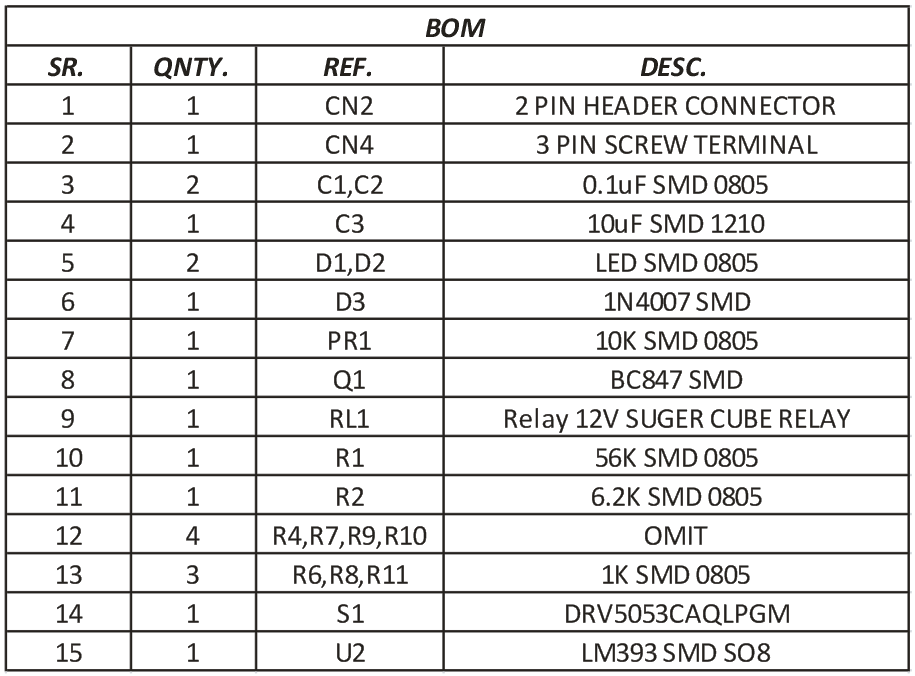

Parts List

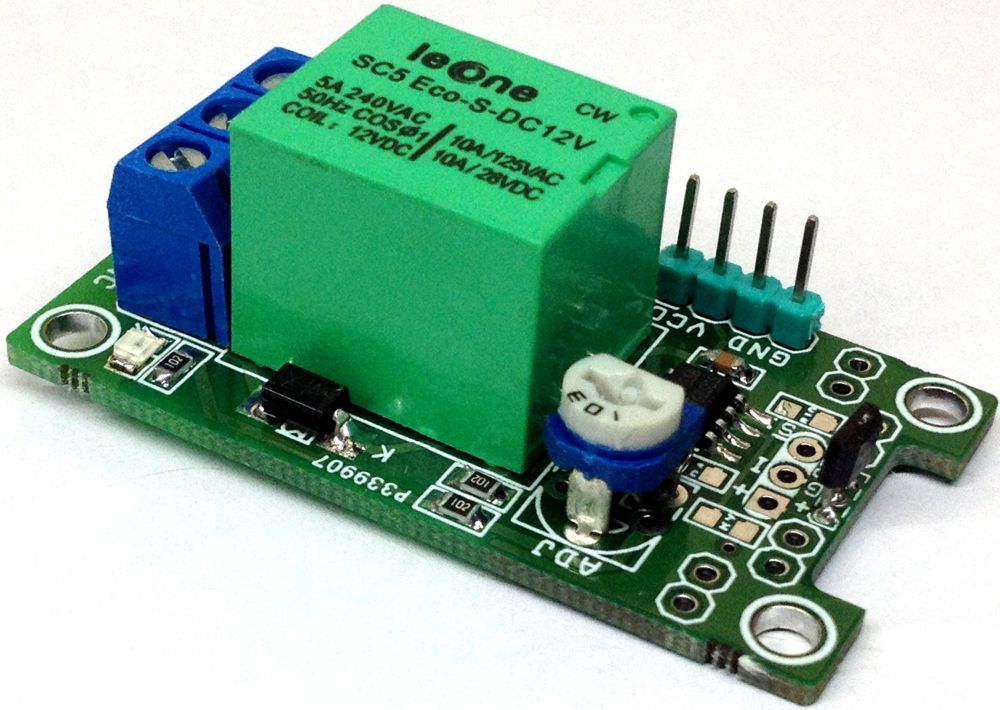

Photos

Video

DRV5053 Datasheet

drv5053

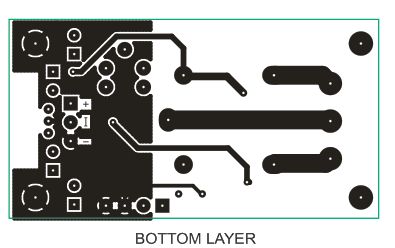

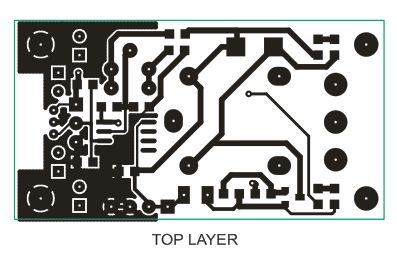

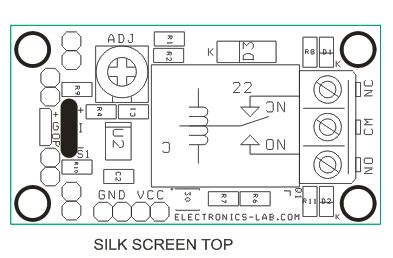

PCB
