TINY DC-DC Power Module – Input 8-28V DC – Output 5V DC 1A

  • Rajkumar Sharma
  • 223
    Views
  • easy
  • Tested

This tiny power module is an easy-to-use integrated power solution that combines a 3A DC/DC converter chip with inbuilt power MOSFETs, an inductor, and passives into a 3-pin, through-hole package. The standard TO-220 pin-out allows a much-improved replacement of linear regulators packaged in this industry-standard footprint. The circuit provides much higher efficiency and output current without the need for a heatsink. This is an easy replacement of the LM7805 linear regulator with higher input voltage and output current than LM7805. Operating supply 8-28V DC, output 5V DC at 1A. The project is built using the TPS54302 chip from Texas instruments.

The TPS54302 is a 4.5-V to 28-V input voltage range, 3-A synchronous buck converter. The device includes two integrated switching FETs, internal loop compensation and 5-ms internal soft start to reduce component count. By integrating the MOSFETs and employing the SOT- 23 package, the TPS54302 achieves the high-power density and offers a small footprint on the PCB. Advanced Eco-mode implementation maximizes the light load efficiency and reduces power loss. In the TPS54302, the frequency spread-spectrum operation is introduced for EMI reduction. Cycle-by-cycle current limit in both high-side MOSFET protects the converter in an overload condition and is enhanced by a low-side MOSFET freewheeling current limit which prevents current runaway. Hiccup mode protection is triggered if the overcurrent condition has persisted for longer than the present time.

Output

The circuit provides a fixed 5V DC and this can be changed. The output voltage is set with a resistor divider from the output node to the FB pin. It is recommended to use divider resistors with 1% tolerance or better. Start with 100 kΩ for the upper resistor divider and use Equation 3 to calculate the output voltage. To improve efficiency at light loads consider using large value resistors but keep in mind that if the values are too high the regulator is more susceptible to noise and voltage errors from the FB input current are noticeable.

Features

  • Direct Replacement to linear regulator LM7805
  • Input Supply 8-28V DC
  • Output 5V @ 1A Maximum
  • More Than 90% Efficiency
  • 400Khz Switching Frequency
  • Over Current Protection
  • Over Voltage Protection
  • Thermal Shutdown
  • Frequency Spread Spectrum to Reduce EMI
  • PCB Dimension’s 16.03  x 15.40 mm

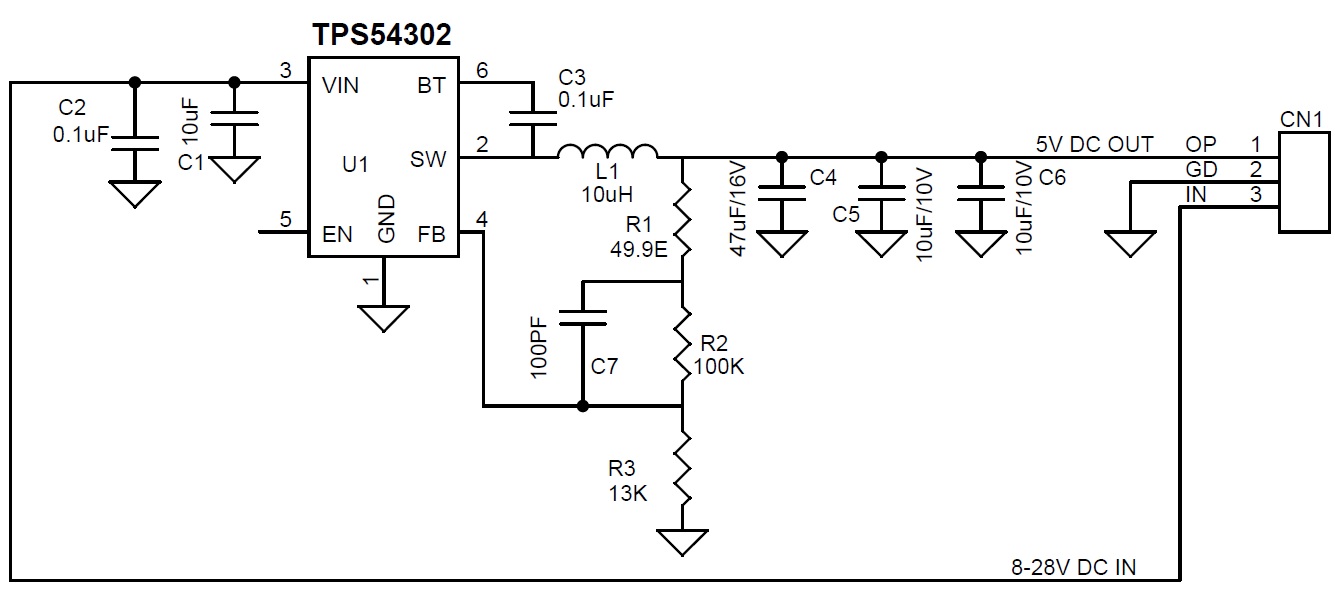

Schematic

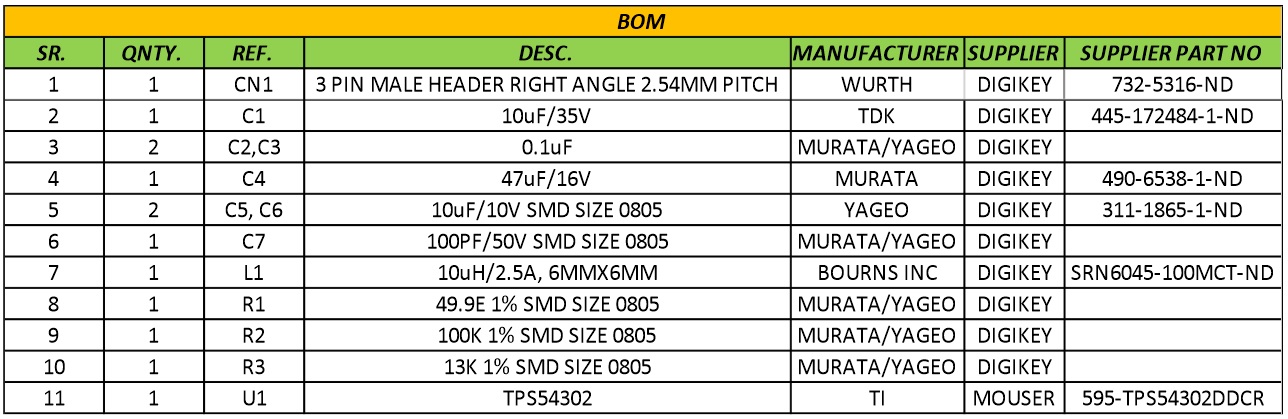

Parts List

SR.QNTY.REF.DESC.MANUFACTURERSUPPLIERSUPPLIER PART NO
11CN13 PIN MALE HEADER RIGHT ANGLE 2.54MM PITCHWURTHDIGIKEY732-5316-ND
21C110uF/35VTDKDIGIKEY445-172484-1-ND
32C2,C30.1uFMURATA/YAGEODIGIKEY
41C447uF/16VMURATADIGIKEY490-6538-1-ND
52C5, C610uF/10V SMD SIZE 0805YAGEODIGIKEY311-1865-1-ND
61C7100PF/50V SMD SIZE 0805MURATA/YAGEODIGIKEY
71L110uH/2.5A, 6MMX6MMBOURNS INCDIGIKEYSRN6045-100MCT-ND
81R149.9E 1% SMD SIZE 0805MURATA/YAGEODIGIKEY
91R2100K 1% SMD SIZE 0805MURATA/YAGEODIGIKEY
101R313K 1% SMD SIZE 0805MURATA/YAGEODIGIKEY
111U1TPS54302TIMOUSER595-TPS54302DDCR

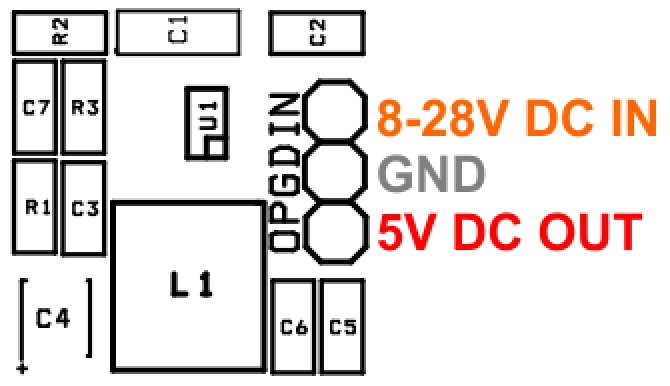

Connections

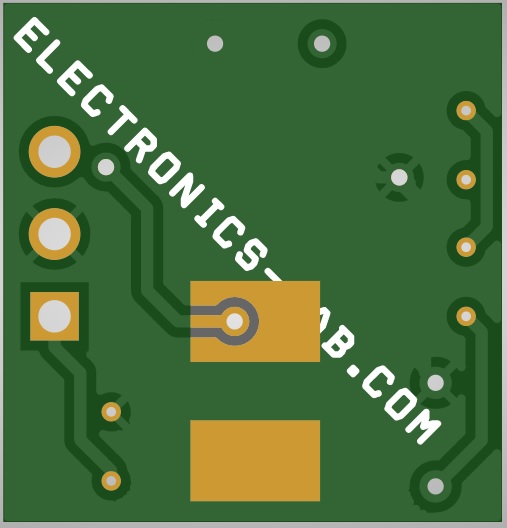

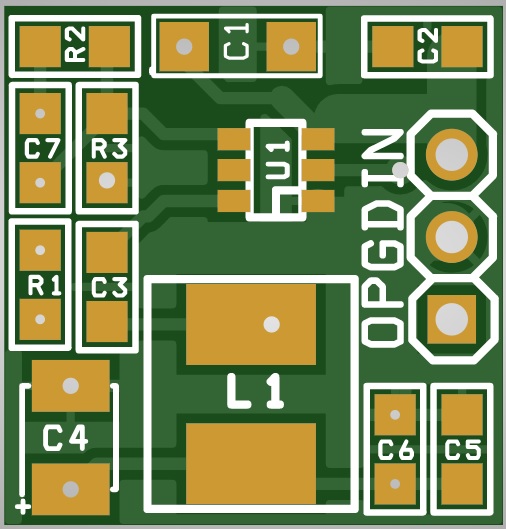

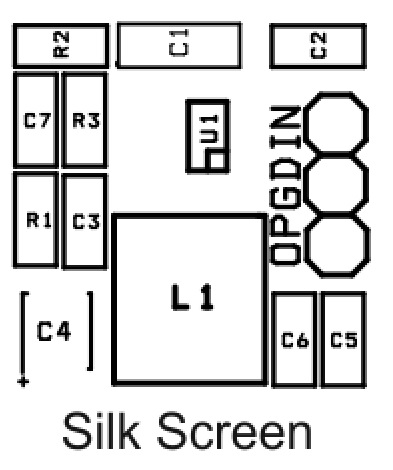

Gerber View

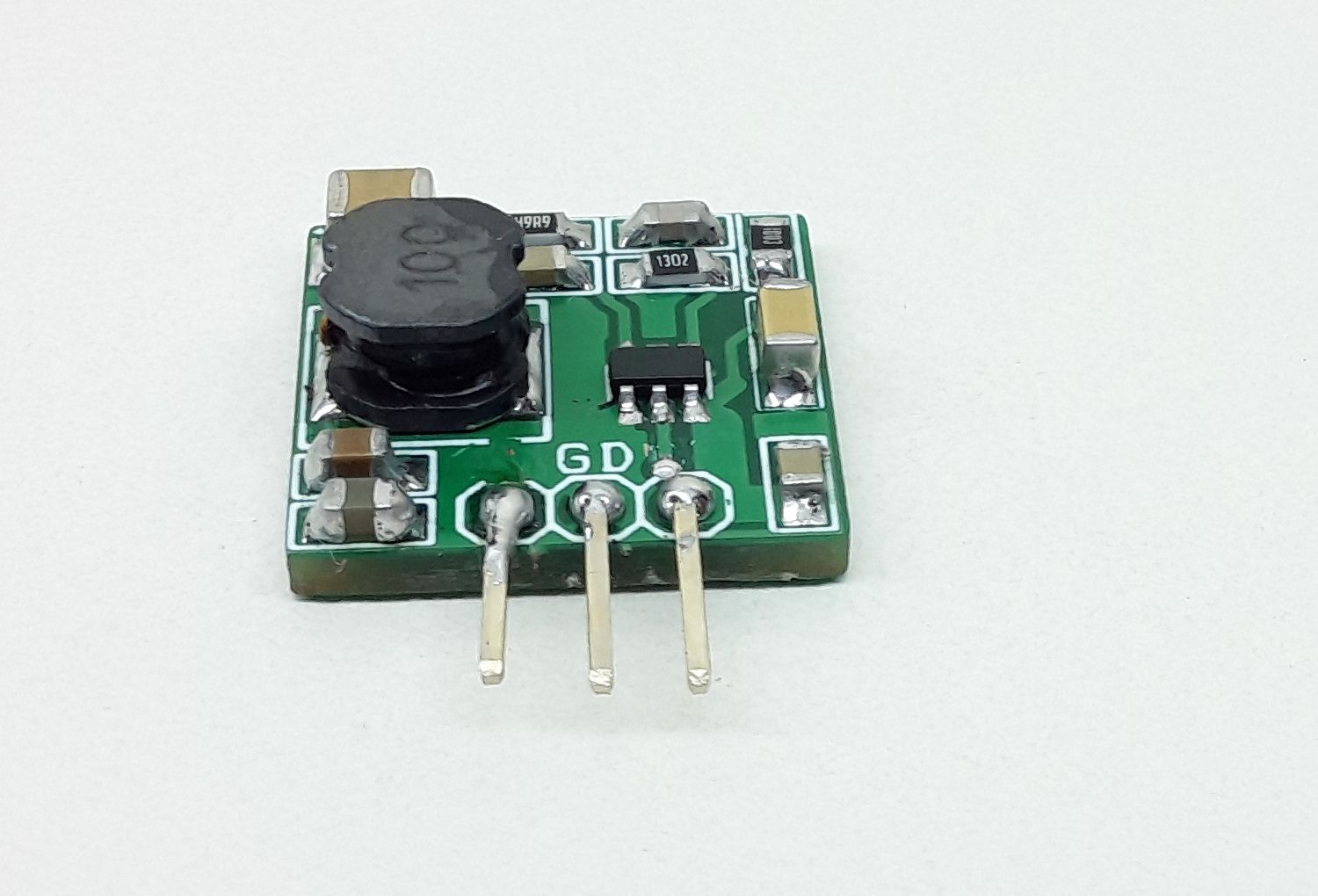

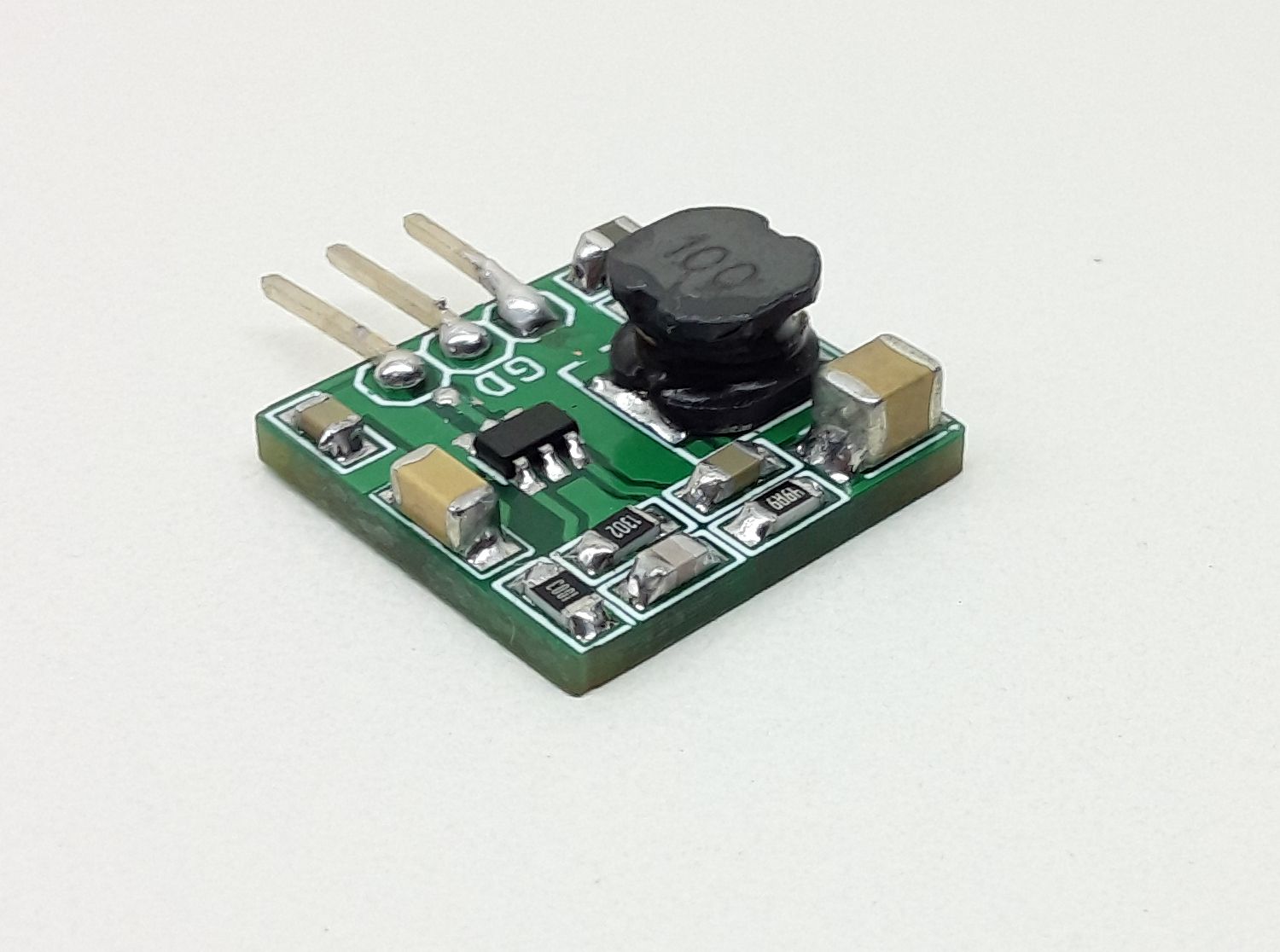

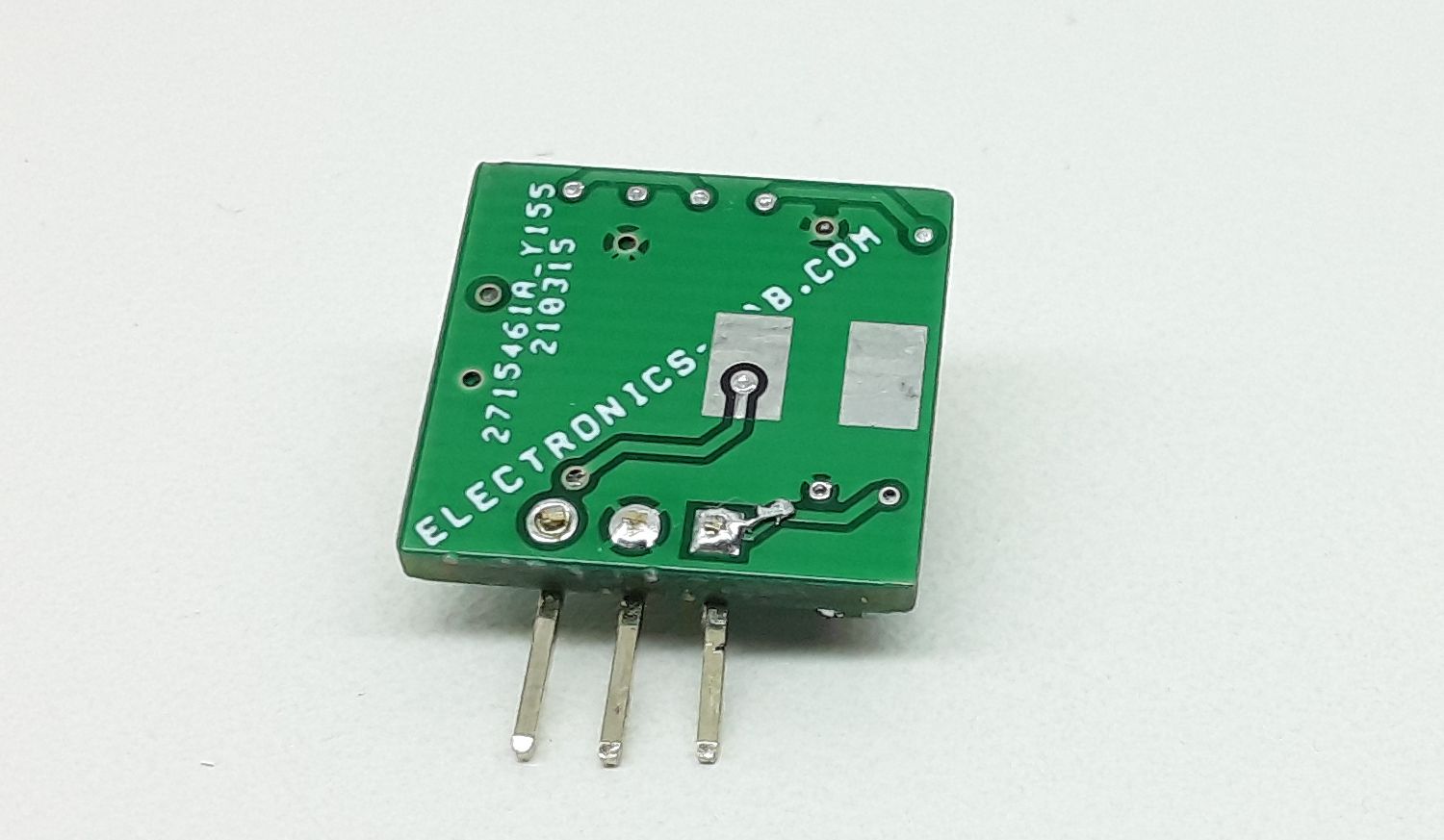

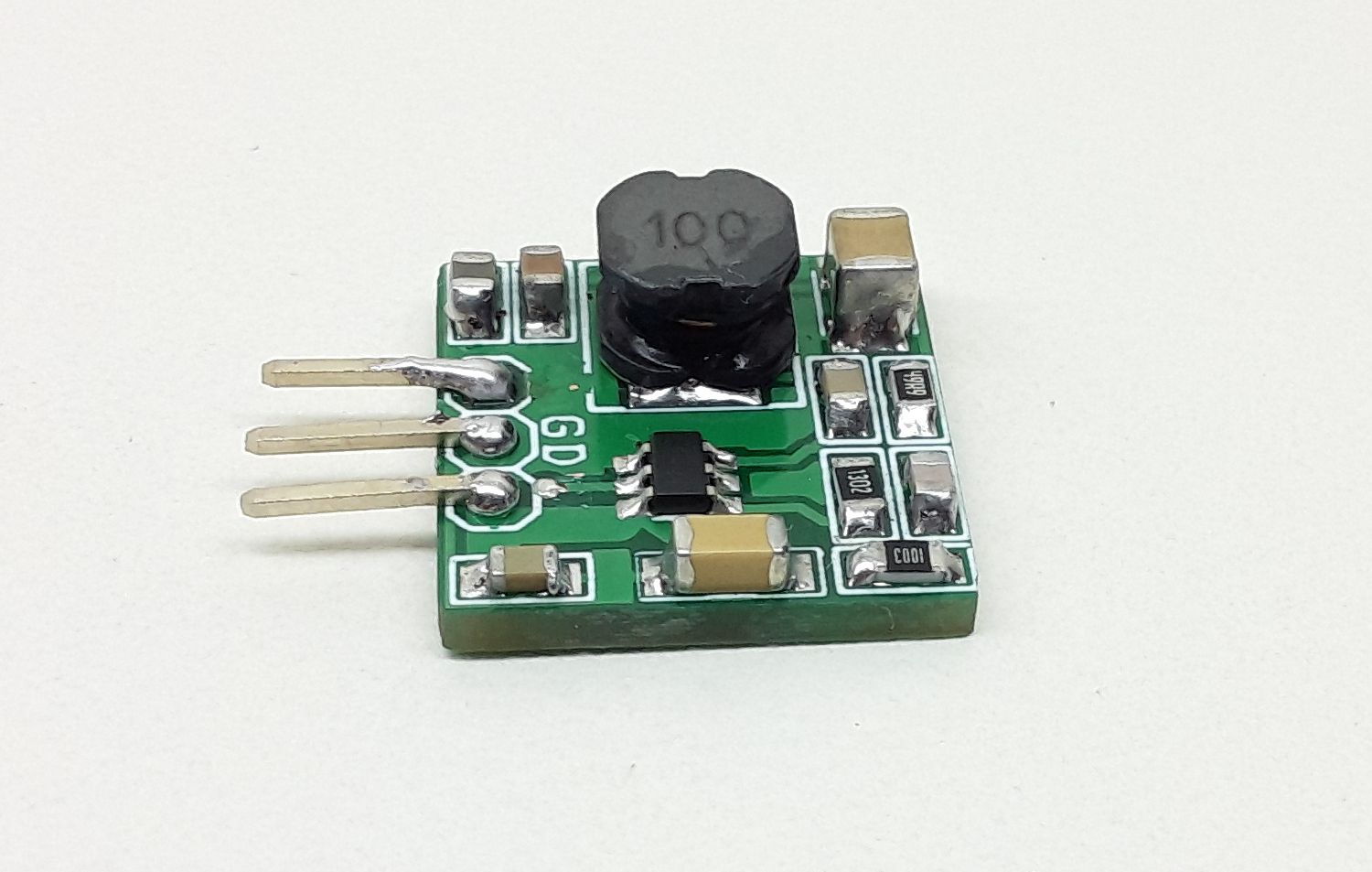

Photos



Video

TPS54302 Datasheet

tps54302

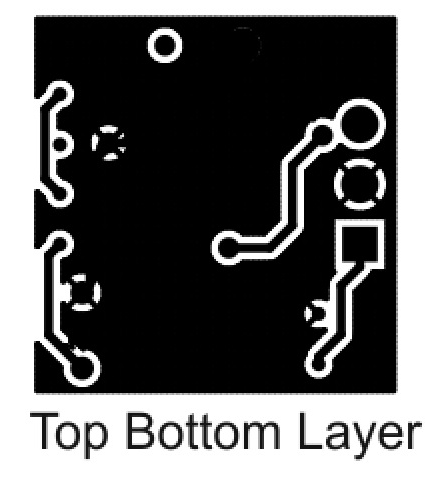

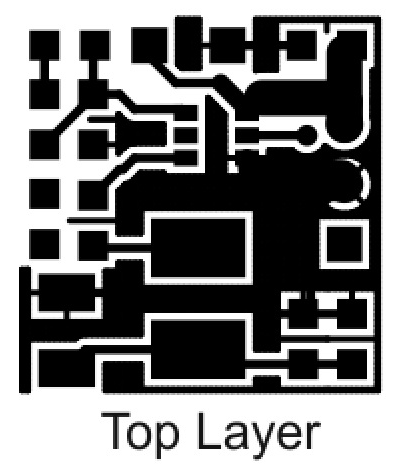

PCB
