VM2152 Adaptive SoC Supports 400G Connectivity and LPDDR5

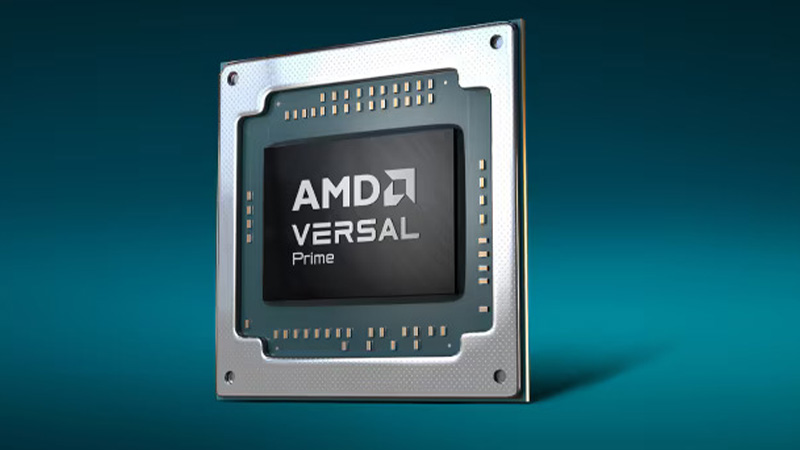

AMD Versal Prime Series

The AMD Versal Prime VM2152 adaptive SoC is positioned as a mid-range device aimed at high-speed connectivity, offering a 400G interface with four 112G (or eight 56G) gigabit transceivers (GTs) and 600 GbE networking in a power-efficient package. It achieves a balance of programmable logic and hardened IP blocks to ease the design of high-throughput systems used in wired communications, aerospace and test and measurement, without the higher power and complexity associated with high-end FPGAs.

The VM2152 emphasizes I/O performance over raw logic density when contrasted with the AMD Versal Prime VP1902. The VM2152 adds support for LPDDR5 memory up to 6400 Mb/s and includes a 400 Gbps High-Speed Crypto engine, allowing for faster and more secure data processing than Agilex 7.

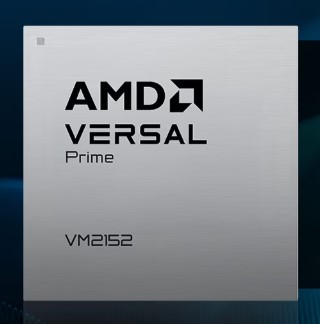

AMD Versal Prime VM2152

AMD Versal Prime VM2152 Specifications:

• Processor Subsystem:
  • Dual-core Arm Cortex-A72 Application Processing Unit (APU)
    • 48 KB / 32 KB L1 cache with parity and ECC
    • 1 MB L2 cache with ECC
  • Dual-core Arm Cortex-R5F Real-time Processing Unit (RPU)
    • 32 KB / 32 KB L1 cache
    • 256 KB TCM with ECC
  • 256 KB on-chip memory with ECC protection
• Programmable Logic and AI Acceleration:
  • 757K system logic cells
  • 346,112 LUTs
  • 1,704 DSP engines
  • Up to 11.8 TOPS INT8 AI performance
• Memory Support:
  • 4x DDR5 memory controllers
  • Supports:
    • LPDDR5 up to 6400 Mb/s
    • DDR5 up to 5600 Mb/s
  • Memory resources:
    • 27 Mbit Block RAM
    • 54 Mbit UltraRAM
    • 92 Mbit programmable logic memory
• Display and Camera Interfaces:
  • MIPI C-PHY support up to 10 Gb/s
  • MIPI D-PHY support up to 4.5 Gb/s
  • Designed for advanced sensor and camera testing applications
• Networking and Connectivity:
  • 2x Gigabit Ethernet ports
  • 2x 100 Gb/s multi-rate Ethernet MACs
  • 1x 600 Gb/s Ethernet MAC
  • 1x USB 2.0 interface
  • Integrated 400 Gb/s High-Speed Crypto (HSC) Hard IP with full-duplex operation
• Expansion Interfaces:
  • 2x PCIe Gen5 x8 with CPM5 DMA
  • 2x PCIe Gen5 x4 programmable logic interfaces
  • Peripheral interfaces:
    • 2x UART
    • 2x SPI
    • 2x I2C
    • 2x CAN-FD
  • High-speed transceivers:
    • 8x GTYP
    • 8x GTM transceivers at 58 Gb/s
    • Supports up to 4x 112 Gb/s links when combined
• Package Options:
  • NFVD1024: 31 × 31 mm, 0.92 mm pitch
  • NFVM1369: 35 × 35 mm, 0.92 mm pitch
  • VSVD1760: 40 × 40 mm, 0.92 mm pitch
  • VSVA2197: 45 × 45 mm, 0.92 mm pitch
• Operating Temperature:
  • Industrial grade:
    • -40°C to +100°C
    • Available in multiple industrial speed grades
  • Extended temperature grade:
    • 0°C to +100°C
    • Multiple extended-range variants available

Versal Prime Block Diagram

The AMD Vivado Design Suite supports hardware design, and the AMD Vitis unified software platform supports software development.

The AMD Versal Prime VM2152 adaptive SoC is now available on DigiKey for $6,000 to $8,500+ (price depends on speed grade, package, and volume). For more information, visit the product page and blog section.

Images used courtesy of AMD.
