Waveshare AR0144 Stereo USB Camera Features Synchronized Global Shutter Output

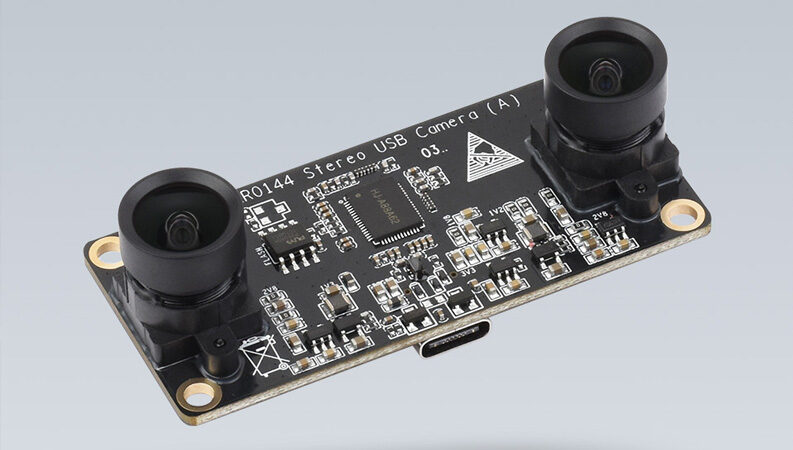

Waveshare AR0144 – 2MP Stereo USB Camera with Global Shutter

The Waveshare AR0144 is a 2MP Stereo USB Camera module with Global Shutter designed for depth perception and stereo vision applications. The device features a global-shutter AR0144 sensor pair with hardware frame synchronization over a single USB 2.0 connection.

The module integrates two AR0144 global-shutter sensors with a fixed 52 mm baseline and distortion-free lenses (<0.2%), delivering synchronized same-frame stereo output suitable for depth mapping and 3D vision. It supports MJPG and YUY2 formats with combined resolutions up to 2560×720 at 30 FPS and high-speed modes up to 120 FPS at reduced resolutions. Optical characteristics include a 1/4-inch sensor, F2.2 aperture, 2.88 mm focal length, and a 74° diagonal field of view. The camera connects via USB Type-C, operates at 5 V, and is driver-free, making it compatible with PCs and embedded Linux systems for robotics, machine vision, SLAM, and stereo measurement tasks.

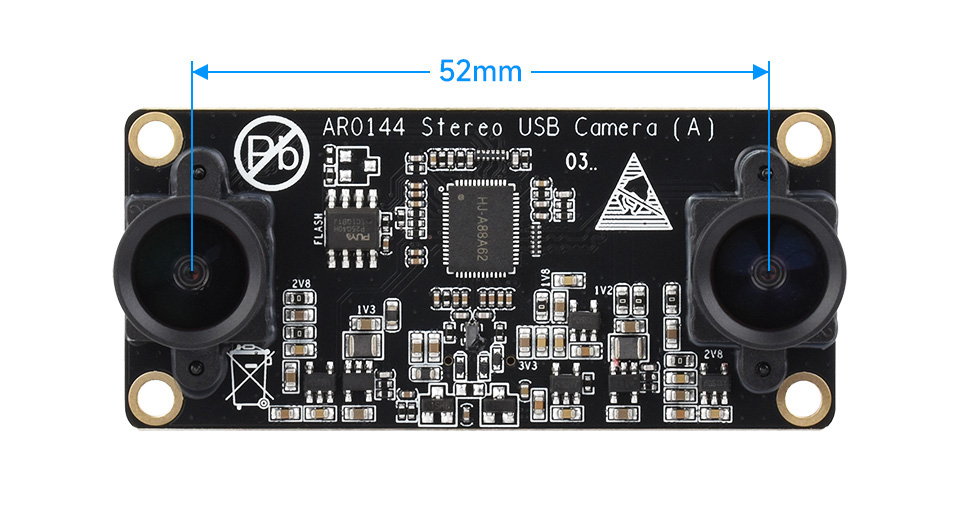

AR0144 Baseline length (52 mm)

Waveshare AR0144 Specifications:

• Image Sensors:
  • Dual ON Semiconductor AR0144 CMOS sensors
  • Global shutter on both sensors for motion-accurate capture
  • 2MP effective stereo output
    • 2560 × 720 combined
    • 1280 × 720 per sensor
  • 1/4-inch optical format per sensor
• Optical System:
  • Dual fixed-focus lenses
  • F2.2 aperture
  • 2.88 mm focal length (EFL)
  • Distortion < 0.2%, suitable for stereo calibration
  • 650 nm IR-cut filter on both sensors
• Field of View:
  • 74° diagonal
  • 65° horizontal
  • 43° vertical
• Video & Image Output:
  • USB Video Class (UVC) compliant
  • Supported pixel formats:
    • MJPEG (compressed)
      • 2560 × 720 @ 30 FPS
      • 1600 × 600 @ 60 FPS
      • 1280 × 720 @ 60 FPS
      • 800 × 600 @ 60 FPS
      • 640 × 480 @ 60 FPS
      • 640 × 352 / 640 × 360 @ 120 FPS
    • YUY2 (uncompressed)
      • 2560 × 720 @ 5 FPS
      • 1280 × 720 @ 10 FPS
      • 800 × 600 @ 20 FPS
      • 640 × 480 / 640 × 360 @ 30 FPS
• USB: 1x USB2.0 Type-C port for power and data
• Power: 5 V power supply via USB (±5%)
• Dimensions: 66.0 × 30.0 × 17.72 mm

The AR0144 Camera is USB Video Class (UVC) compliant and operates as a driver-free device on Linux, Windows, and other UVC-supported platforms. It exposes MJPEG and YUY2 video streams and is supported through standard Linux V4L2 interfaces, enabling direct use with tools and frameworks such as OpenCV, GStreamer, ROS camera drivers, and stereo vision pipelines without requiring vendor-specific SDKs or proprietary drivers. More information should be available on the Waveshare wiki, but at the time of writign its still in work.

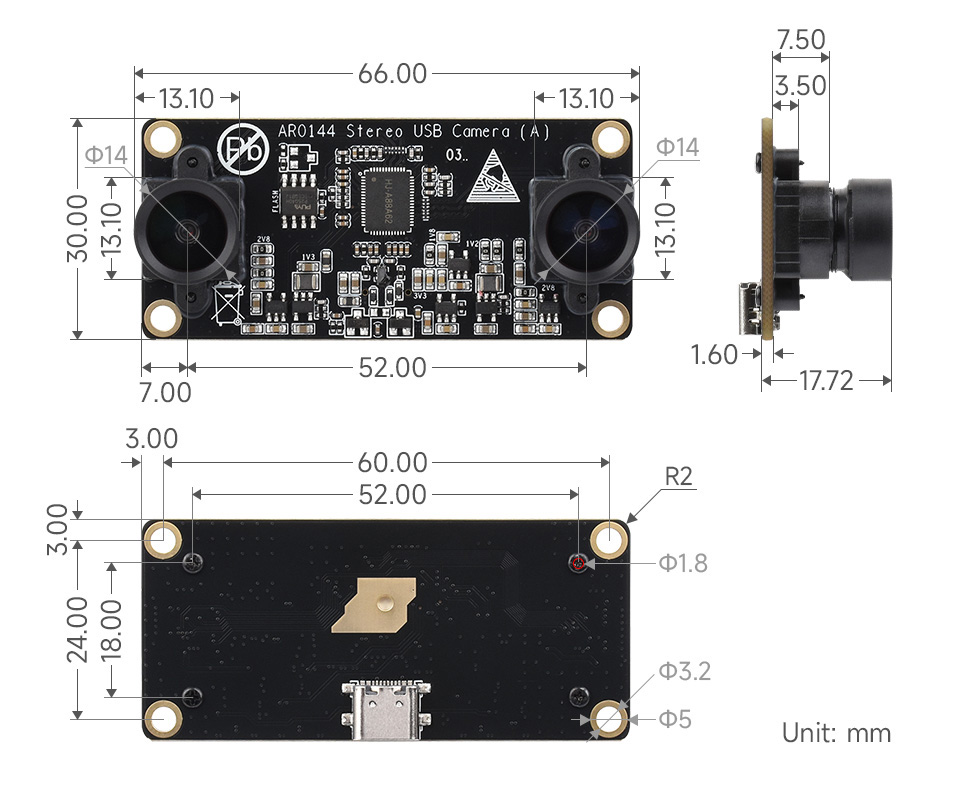

Waveshare AR0144 Dimensions

The AR0144 Camera can pe purchsed form Waveshare Store for $62.99. Its alos avialbe on AliExpress for $67.90.

Images used courtesy of Waveshare.
