LILYGO T-Beam BPF ESP32-S3 Dev Board with LoRa, OLED, GPS, and AXP2101 PMU
The LILYGO T-Beam BPF is an ESP32-S3 board with SX1278 LoRa (144–148 MHz), OLED, GPS, Wi-Fi, BT 5, and AXP2101 PMU, ideal for IoT, tracking, mesh networks, and portable wireless projects.
LILYGO T-Beam BPF
The LILYGO T-Beam BPF is a compact development board designed for LoRa projects in the 144–148 MHz band, powered by the Semtech SX1278 transceiver. At its core, it integrates an ESP32 dual-core LX7 microprocessor, providing 2.4 GHz Wi-Fi and Bluetooth 5 (LE) for modern IoT, telemetry, and LoRa-based communication applications.
Aimed at makers, students, and engineers, the T-Beam BPF includes a 0.96-inch SSD1306 OLED display, the AXP2101 power management unit, and versatile I/O through the ESP32. Its portable, battery-powered design makes it suitable for building remote sensors, portable trackers, or experimental mesh networks — offering a practical toolkit for a wide range of wireless projects.
We previously covered the LILYGO SoftRF T-BeamSUPREME, co-designed with SoftRF for compatibility testing. It features an ESP32-S3 dual-core LX7, SX1262 LoRa, GPS options (U-Blox MAX-M10S-00B/L76K), and 8MB Flash for versatile applications. Feel free to check if you are interested on this.

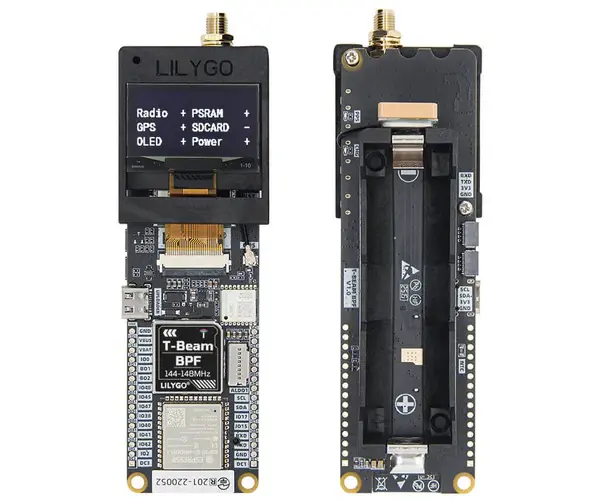

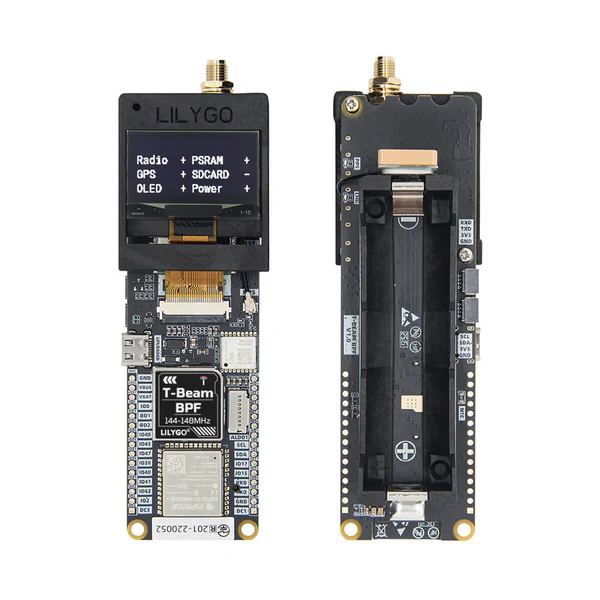

LILYGO T-Beam BPF front and back side
LILYGO T-Beam BPF Specifications:
- Processor: Espressif ESP32-53FN8, dual-core Xtensa LX7 MCU
- Memory: 16MB Flash and 8MB PSRAM
- Storage: microSD card slot (SPI: CS–IO10, SCK–IO12, MOSI–IO11, MISO–IO13)
- Wireless:
- 2.4GHz Wi-Fi and Bluetooth 5 (LE)
- LoRa Radio: Semtech SX1278 transceiver with band-pass filter (144–148 MHz)
- Display: 0.96-inch OLED (128×64, SSD1306, I²C interface)
- On-board Controls: Boot, Reset, Power, and IO03 buttons
- Expansion: Dual Qwiic connectors for external modules
- GPS Support: L76K GNSS module (TX–IO06, RX–IO05, PPS–IO07)
- Connectivity Interfaces: Multiple GPIOs, I²C, SPI, UART
- Power supply:
- USB Supply: 5V / 500mA input
- Battery Support: 18650 lithium-ion cell via holder or USB charging
- Power Management: AXP2101 PMU with battery charging and regulation
- Dimensions: 128 x 38 x 31 mm

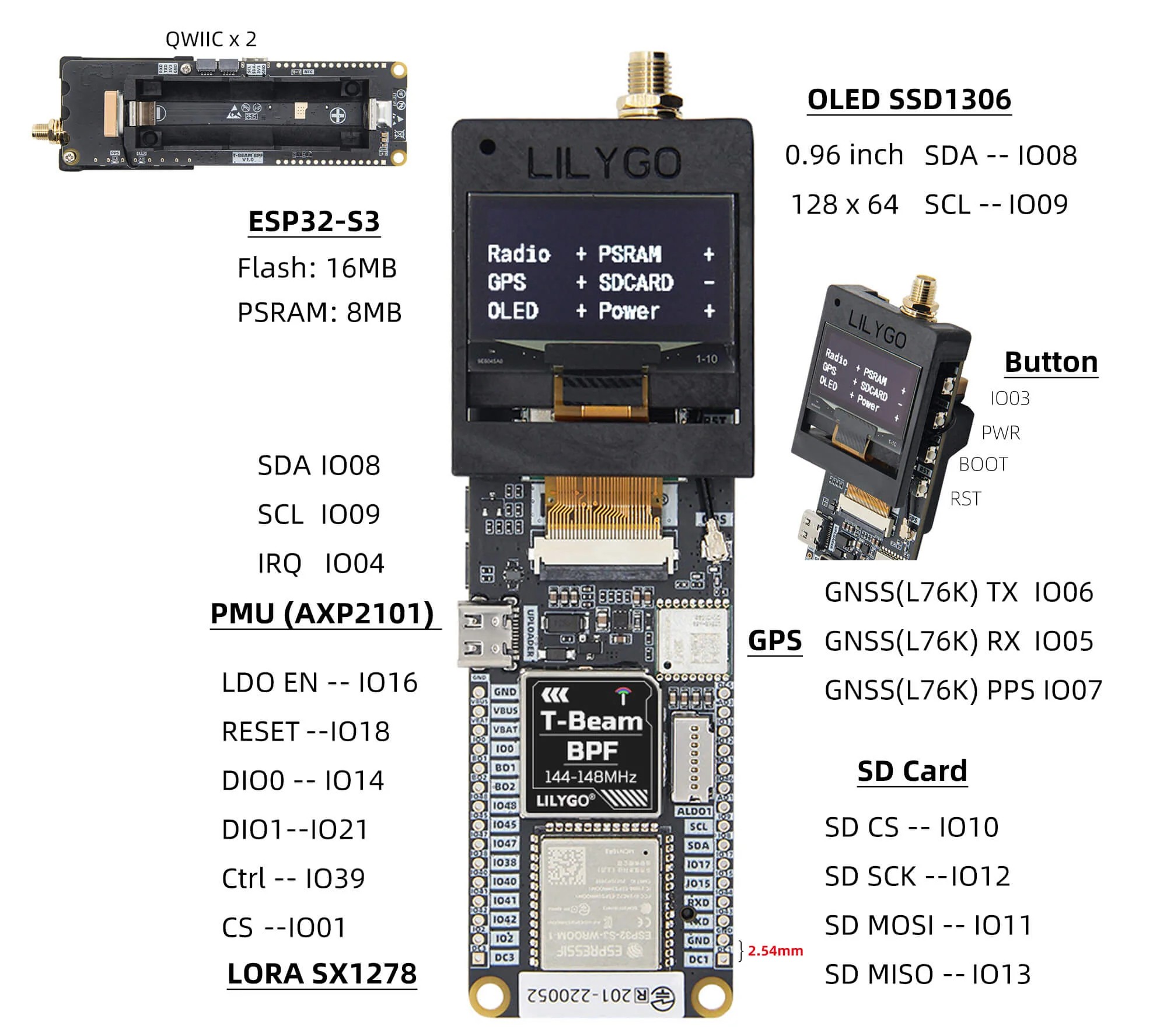

LILYGO T-Beam BPF Pinmap
Getting started with the T-Beam BPF is straightforward thanks to the LILYGO LoRa Series GitHub repository, which provides example projects, schematics, and quick-start documentation tailored for this board. From display rendering and LoRa communication to GPS integration and power management with the PMU, developers can access ready-to-use Arduino sketches and code samples to speed up prototyping and development.
LILYGO-T-BEAM function diagram
The T-Beam BPF is currently available from the official LILYGO store for US $56.34. It will also be offered through the LILYGO stores on Amazon and AliExpress in the future.
Image used courtesy of LILYGO.
