AAEON Unveils MIX-PTLWV1 Mini-ITX with Intel Core Ultra Series 3 SoC

The AAEON MIX-PTLWV1 is a Mini-ITX industrial motherboard built around Intel Core Ultra Series 3 processors, designed for edge AI, industrial automation, networking, transportation, digital signage, and other embedded computing applications. It combines modern Intel processing, high-speed networking, and multiple expansion interfaces in a compact 170 × 170 mm form factor.

The motherboard supports Intel Core Ultra Series 3 processors with a 15–25W TDP, up to 128GB of DDR5-6400 memory, and Intel Arc graphics capable of driving four 4K DisplayPort outputs, with optional LVDS/eDP display support. It offers a PCIe Gen5 x8 expansion slot, M.2 M-Key, E-Key, and B-Key slots with Nano SIM support, dual 2.5GbE LAN ports with optional dual 10GbE Ethernet, TPM 2.0, six serial ports including RS-232/422/485, programmable DIO, USB 3.2 Gen1 connectivity, watchdog timer, smart fan control, and 12V–24V DC input. These features make it suitable for industrial control, AI edge systems, machine vision, networking appliances, and embedded deployments.

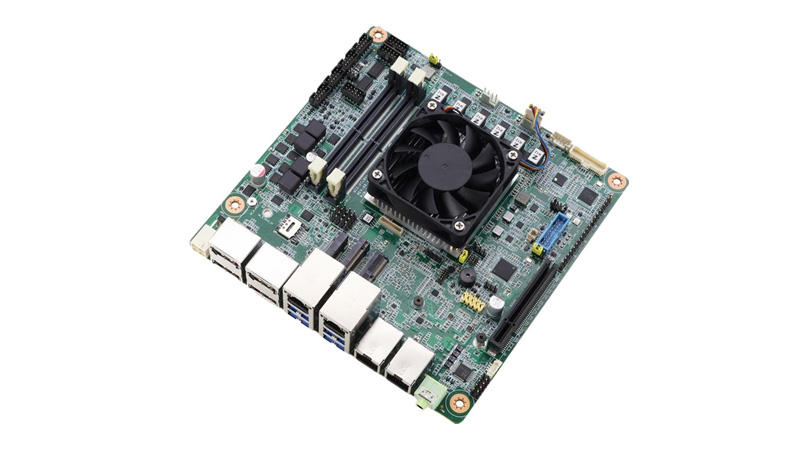

AAEON MIX-PTLWV1 Mini-ITX motherboard equipped with an Intel Core Ultra Series 3 Processor and its integrated cooling fan

AAEON MIX-PTLWV1 Mini-ITX motherboard with  Intel Core Ultra Series 3 SoC; features integrated cooling fan

AAEON MIX-PTLWV1 Specifications:

• SoC: Intel Core Ultra Series 3 Processors (PTL) with a 15W to 25W TDP; Intel Arc B390 GPU or Intel Graphics, depending on the specific CPU SKU
• System Memory: Up to 128GB dual-channel DDR5 at 6400 MHz (1DPC) via 2x C/SO-DIMM sockets
• Storage:
  • 1x M.2 2280 M-Key socket (PCIe Gen 4 x4, NVMe)
  • 256Mbit Flash ROM for AMI BIOS
• Display I/O
  • 4x DisplayPort 1.4 up to 4096 x 2160 @ 60Hz on the rear panel
  • Internal 40-pin LVDS/eDP connector
    • LVDS up to 1920 x 1080 @ 60Hz (Dual Channel 18/24-bit) as default
    • Co-layed eDP 1.4 up to 4096 x 2160 @ 120Hz (BOM optional)
  • Backlight and Tcon voltage selection headers (3.3V/5V/12V) and 1x LVDS Inverter
  • Quad independent display support
• Audio
  • 1x Line-out audio jack on rear I/O
  • 1x 4-pin internal speaker header (supports 2W/4ohm)
  • Realtek ALC897 High Definition Audio codec
• Networking
  • Up to 4x LAN ports total
    • 1x 2.5GbE RJ45 port via Intel Ethernet Controller I226-LM
    • 1x 2.5GbE RJ45 port via Intel Ethernet Controller I226-V
    • Optional 2x 10GbE RJ45 ports via Intel Ethernet Controller E610-XAT2 (BOM optional)
  • Cellular support via 1x M.2 3042/3052 B-Key socket (PCIe x1 / USB 3.2 Gen 1) equipped with a Nano SIM slot
  • Wireless connectivity via 1x M.2 2230 E-Key socket (PCIe 4.0 x1 / USB 2.0 / CNVi)
• USB
  • 4x USB 3.2 Gen 1 (5Gbps) Type-A ports on the rear panel
  • 2x USB 3.2 Gen 1 interfaces via an internal 2×10-pin header
• Serial & Expansion
  • 1x open-edge PCIe Gen 5 [x8] slot (availability depends on CPU SKU)
  • 1x RS-232/422/485 box header (5V/12V/RI optional)
  • 5x RS-232 box headers
  • 8-bit programmable digital I/O (4-in / 4-out)
• Misc
  • Onboard TPM 2.0
  • Nuvoton NCT6126D Super I/O
  • Watchdog timer (1~255 steps)
  • Smart Fan Control with 1x 4-pin CPU fan and 1x 4-pin chassis fan connectors
  • Front panel header, Clear CMOS jumper, ATX/AT mode select, ME Disable jumper
• Power Supply – 12V-24V DC-in (±5%); includes Lithium battery for RTC
• Dimensions – 170 x 170 mm (Mini-ITX form factor)
• Temperature Range – Operating: 0°C to 60°C; Storage: -40°C to 85°C

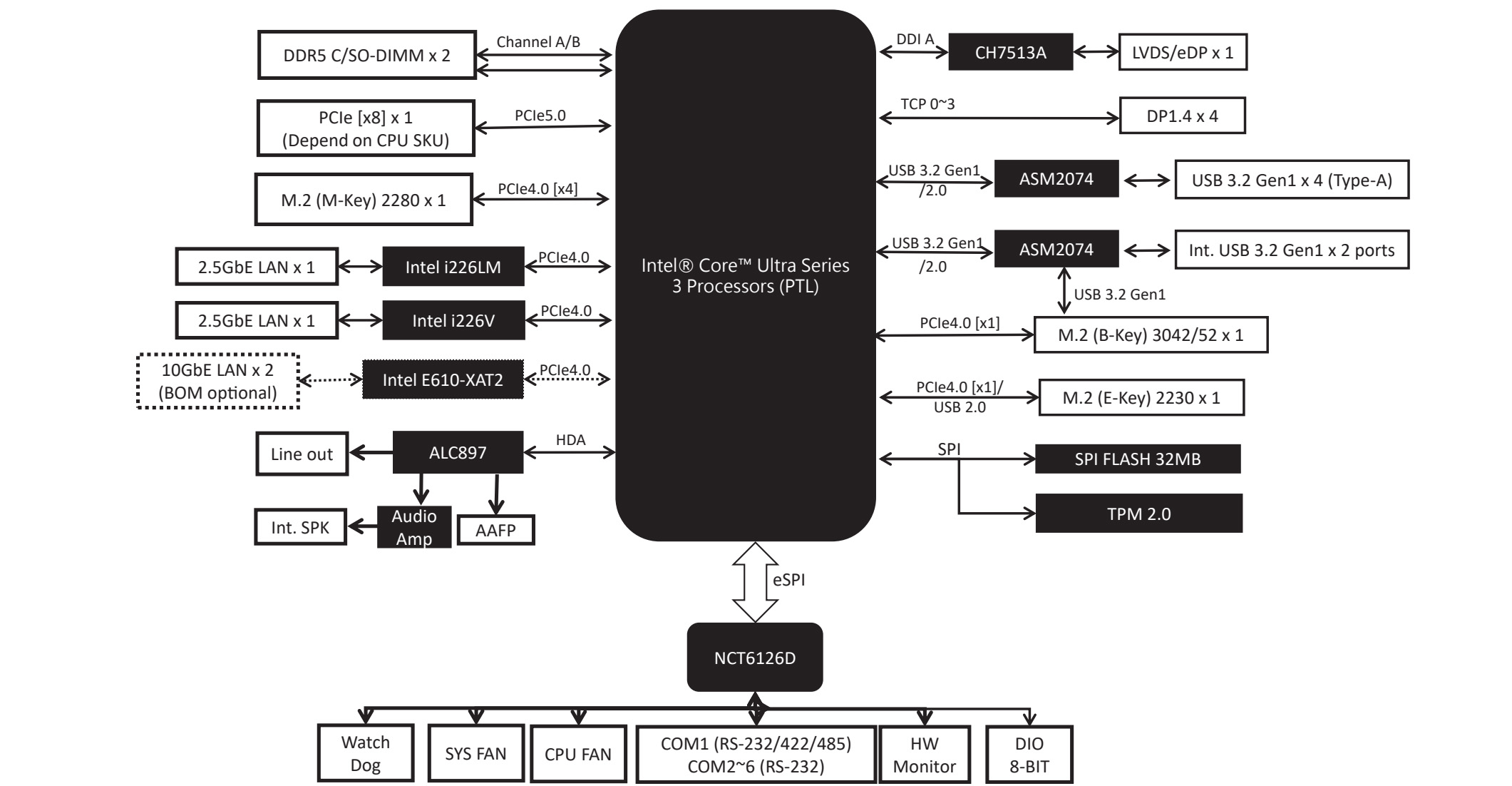

Hardware block diagram for the MIX-PTLWV1, illustrating the system architecture, component data lanes, and connectivity pathways

The MIX-PTLWV1 supports Windows 11 (64-bit) and Ubuntu 24.04 with Linux Kernel 6.8. The company provides drivers for the chipset, graphics, LAN, audio, serial I/O, NPU, IPU, Intel Management Engine, and other platform components, along with Linux utilities and WMI packages for system management and hardware support.

Previously, we wrote about the conga-TC1000r Rugged COM Express Module, which is powered by Intel Core Ultra Series 3 SoCs. You can check those out if you are looking for similar SoCs on a different facet.

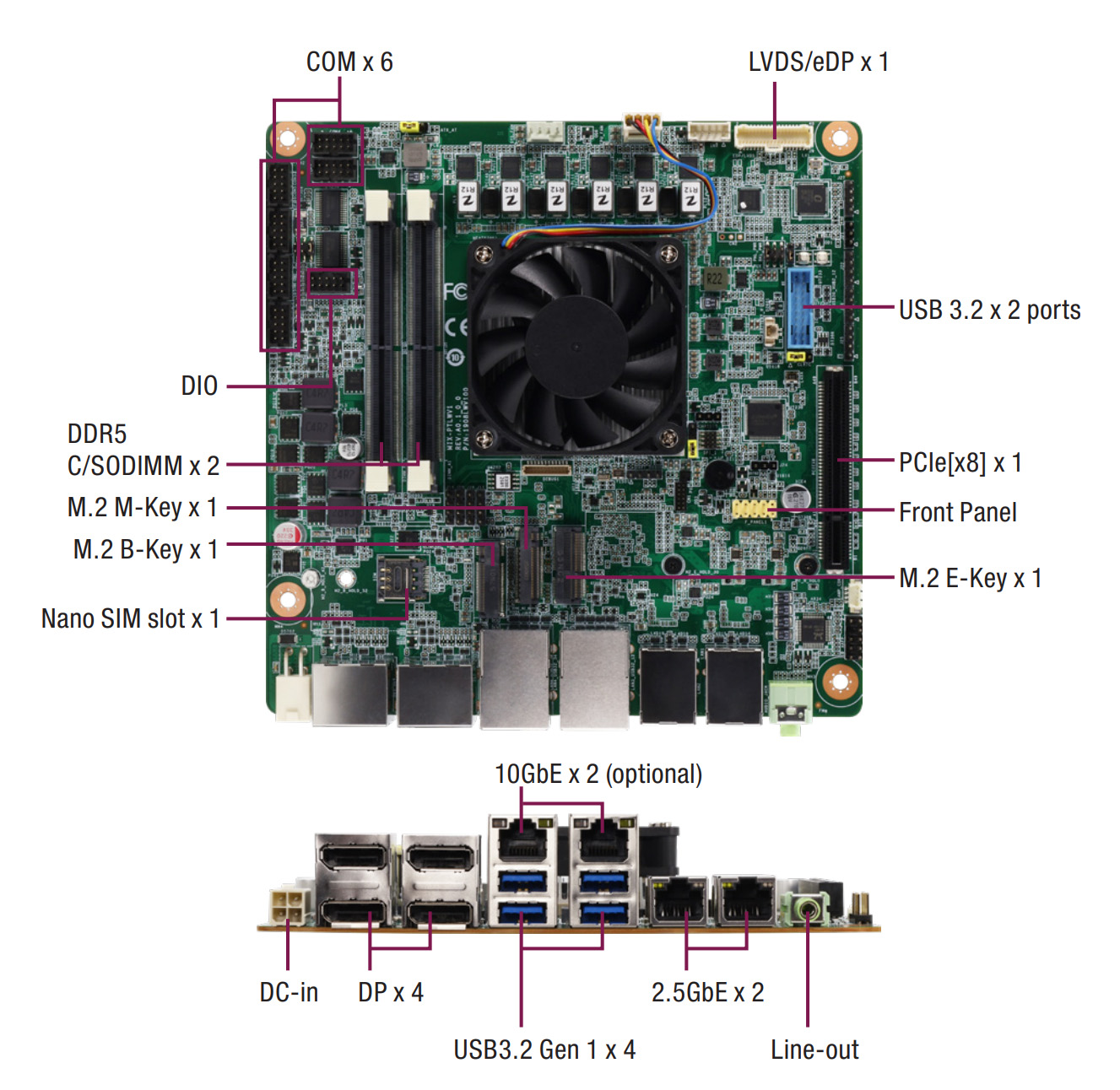

A detailed overview of the MIX-PTLWV1 motherboard highlights its internal headers, memory slots, expansion capabilities, and rear I/O ports

AAEON has not announced pricing for the MIX-PTLWV1 yet. The motherboard is currently listed as a preliminary product, and interested customers can contact AAEON or its authorized distributors for pricing, availability, and bulk purchasing information. It is available in the MIX-PTLWV1-A10-325-2L configuration, with optional accessories including a DB9 serial cable and a USB 3.2 bracket cable.
