ELSKY M128SE Industrial Motherboard: Intel Alder Lake/Raptor Lake CPU Support with Realtek ALC897 Audio

ELSKY M128SE Industrial Motherboard: Intel Alder Lake/Raptor Lake CPU Support with Realtek ALC897 Audio

1.045
Views
0 Comments

The ELSKY M128SE industrial motherboard is designed to meet modern computing demands, supporting Intel Alder Lake 12th Gen and Raptor Lake 13th Gen U/P/H series processors. Measuring just 146mm x 102mm, this compact board features a single NB-DDR4 SODIMM slot, enabling up to 32GB of DDR4 memory at various speeds. Its wide voltage input (12V-24V) supports CPUs with power consumption ranging from 55W to 115W, ensuring flexibility for various applications.

Display capabilities include dual HDMI 2.0 interfaces for 4K resolution and a versatile Type-C interface that handles both display output and data transfer. For networking, the motherboard offers dual Gigabit Ethernet ports with optional support for an additional network card, while wireless connectivity is enabled through an M.2 PCIe 3.0 interface compatible with WiFi and Bluetooth modules.

Storage options are comprehensive, with an NGFF slot supporting M.2 2280 SSDs (NVMe and SATA) and a SATA 3.0 port for traditional drives. Connectivity is further enhanced by two USB 3.2 Gen1 ports and two USB 2.0 ports. Audio is powered by the Realtek ALC897 HD audio codec, delivering high-quality sound for diverse use cases.

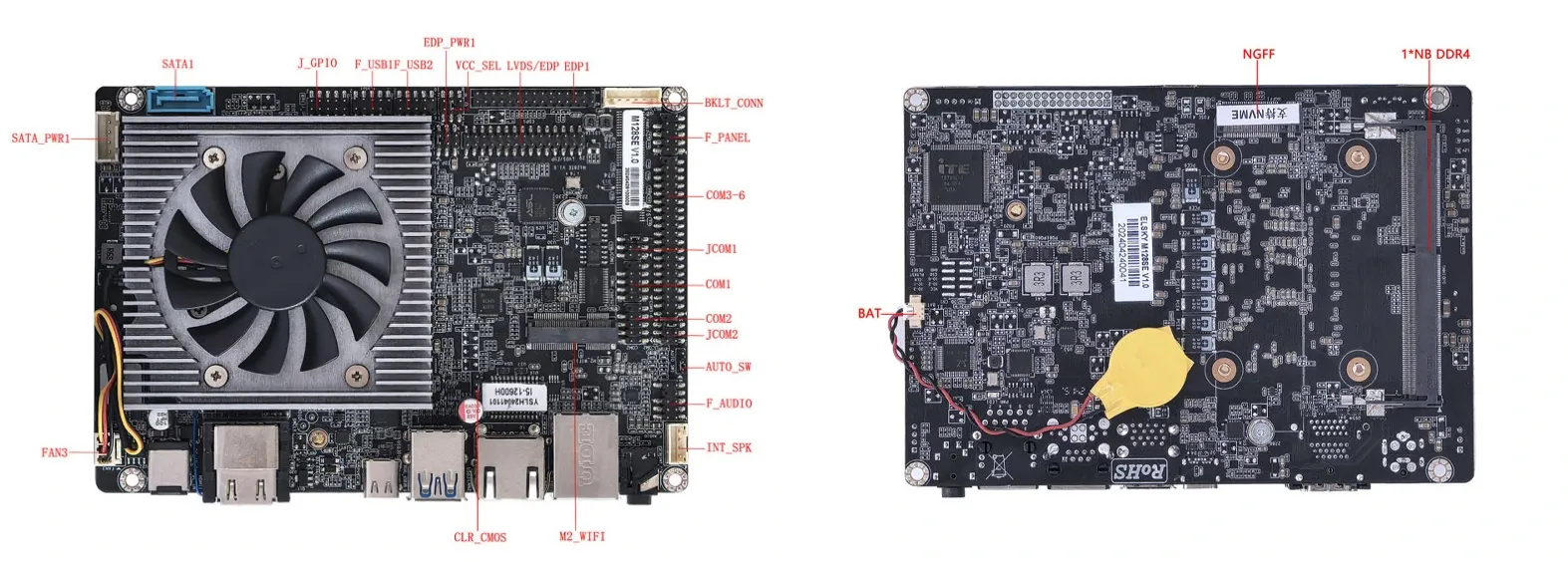

ELSKY M128SE industrial motherboard front and back

ELSKY M128SE industrial motherboard specifications:

  • Processor:
    • Intel Alder Lake 12th Gen and Raptor Lake 13th Gen U/P/H series CPUs
    • Maximum turbo power:
      • U-series: 55W (recommended 12V 7A PSU)
      • P-series: 64W (recommended 12V 7A PSU)
      • H-series: 115W (recommended 12V 10A PSU)
  • Memory: 1x NB-DDR4 SODIMM slot, supporting up to 32GB DDR4 at 2133/2400/2666/2933/3200MHz
  • Storage options:
    • 1x NGFF slot for M.2 2280 SSDs (PCIe 4.0, NVMe and SATA support)
    • 1x SATA 3.0 port
    • 1x SATA power pin (5V/12V output)
  • Display interfaces:
    • 2x HDMI 2.0 (4K @ 60Hz)
    • 1x Type-C (supports display and USB data transfer)
    • LVDS/EDP support:
      • LVDS: 1920×1080 @ 60Hz
      • EDP: 4K @ 60Hz (shared pins with LVDS)
  • Networking:
    • Dual Gigabit Ethernet ports:
      • Intel I219V + Realtek 8111H or Yutaiwei YT680 (optional)
    • 1x M.2 Key-E slot for WiFi/Bluetooth (PCIe 3.0)
    • Network wake-up and PXE diskless boot support
  • Audio:
    • Realtek ALC897 HD codec with 6-channel support
    • LINE_OUT and MIC_IN interfaces
    • Onboard dual-channel amplifier (8Ω/5W support)
  • USB connectivity:
    • Rear: 2x USB 3.2 Gen1 (5Gbps), 2x USB 2.0
    • Front: 4x USB 2.0 pins (via F_USB1 and F_USB2)
  • I/O expansion:
    • COM ports:
      • COM1 (RS232/RS422/RS485 selectable)
      • COM2-6 (RS232)
      • All COM ports support TTL and configurable 9th pin voltage (0V/5V/12V)
    • GPIO: 1x J_GPIO pin (10-pin)
    • 1x CPU fan pin with temperature control
  • Power input:
    • DC input: 12V~24V, default with 2.5mm DC head
    • Optional ATX (4-pin) power supply support
  • BIOS: AMI BIOS with timed startup and remote power on/off detection
  • Watchdog: 256-level hardware reset (0-255 seconds)
  • Environmental specs:
    • Operating temperature: -10°C to 60°C
    • Humidity: 5%~95% (non-condensing)
  • Dimensions: 146mm x 102mm x 26mm (excluding radiator)

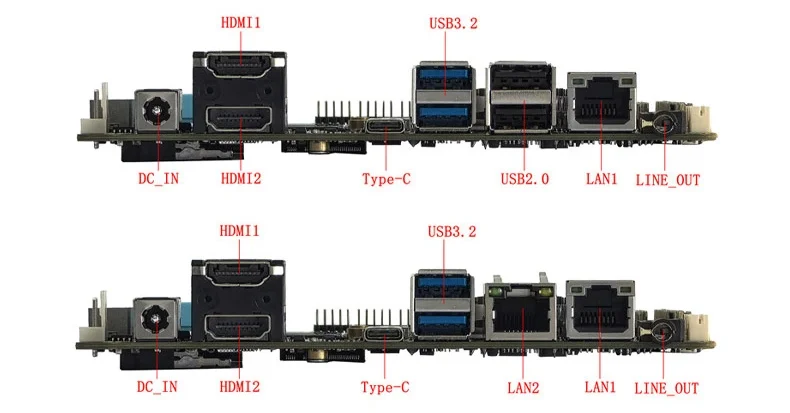

ELSKY M128SE industrial motherboard ports

The motherboard also offers extensive expansion and control features, including multiple COM ports, GPIO pins, CPU fan control, and a hardware watchdog for system reliability. It supports Windows 10, Windows 11, and Linux, making it ideal for home entertainment systems, industrial control, and professional workstations.

Previously, we covered several industrial motherboards, including the ECM-3455J, Advantech AIMB-233, Advantech AIMB-U233, Axiomtek IMB525R, Premio CT-MCL01, and more. Feel free to explore these articles if you’re interested in learning about these motherboards.

The ELSKY M128SE supports flexible installation options, including wall-mounted setups or integration into an 8U rack. It is available in four variants, with pricing depending on the processor configuration, ranging from $173.23 to $240.07. For more information, please visit the product page on Youyeetoo.
