HV Nixie DC-DC Switching Power Supply using MAX1771

HV Nixie DC-DC Switching Power Supply using MAX1771

1211
Views
0 Comments

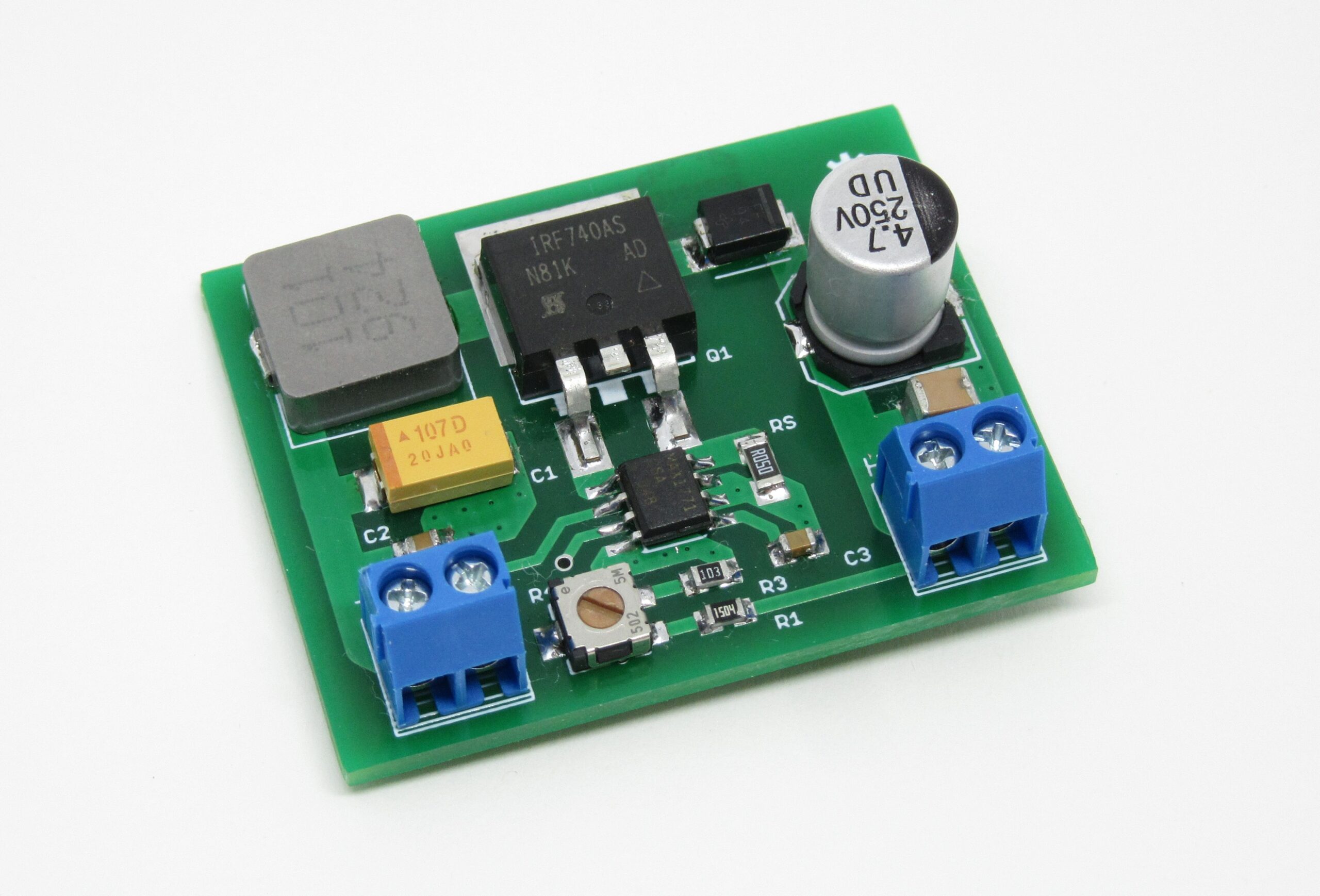

Nixie tubes need about ~180Vdc to light up and thus on most devices, a DC-DC converter is needed. Here we designed a simple DC-DC switching regulator capable of powering most of Nixie tubes. The board accepts 12Vdc input and gives an output of 150-250Vdc.

The module is based on the MAX1771 Step-Up DC-DC Controller. The controller works up to 300kHz switching frequency and that allows the usage of miniature surface mount components. In the default configuration, it accepts an input voltage from 2V to Vout and outputs 12V, but in this module, the output voltage is selected using the onboard potentiometer and it’s in the range 150-250Vdc.

HV Nixie DC-DC Switching Power Supply using MAX1771 – [Link]
