iWave iG-RainboW-G69M TI AM62Lx OSM SoM with Raspberry Pi-Size Carrier Board

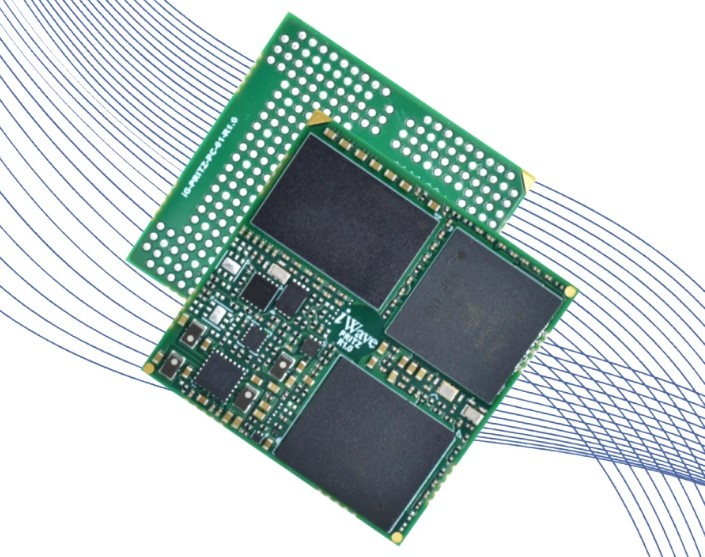

iG-RainboW-G69M—TI AM62Lx SoC

Built around the TI AM62Lx SoC, the iWave Systems iG-RainboW-G69M is a 30x30mm LGA form factor OSM Size-SF System on Module (SoM) with two 64-bit Arm Cortex-A53 cores operating at up to 1.25GHz. The CPU module, which is centered on the OSM v1.2 standard, supports dual 1Gb RGMII interfaces, 8GB eMMC (expandable), and 1GB LPDDR4 (expandable to 2GB). Through a combination of 332 LGA contacts exposing interfaces comprising RGB LCD and MIPI CSI display interfaces, dual gigabit Ethernet, I2S audio, USB 2.0 interfaces, and an assortment of low-speed I/Os, it is specifically designed for embedded and industrial applications.

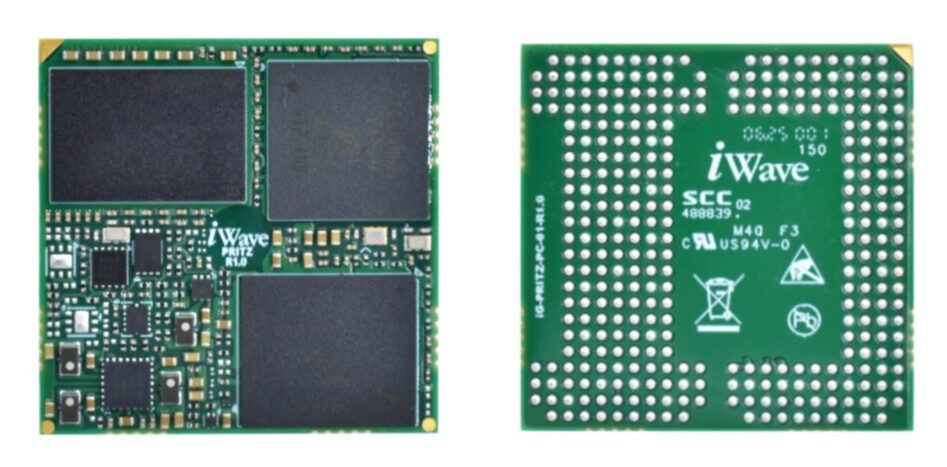

TI AM62Lx SoC top and bottom

iWave Systems iG-RainboW-G69M specifications:

• SoC: Texas Instruments AM62Lx
• CPU: Dual-core Arm Cortex-A53 @ up to 1.25 GHz (≈5600 DMIPS)
• Cache:
  • 32 KB L1 I-cache + 32 KB L1 D-cache per core
  • 256 KB shared L2 cache
• Memory:
  • 1 GB LPDDR4 onboard
  • Expandable up to 2 GB
• Storage:
  • 8 GB eMMC flash (expandable)
  • 32 Kbit EEPROM
  • 4-bit SD and SQPI support
• Display Interfaces:
  • 4-lane MIPI DSI
  • 18-bit RGB LCD
• Audio: I2S interface
• Networking:
  • Dual RGMII interfaces
  • Single RJ45 Mag-Jack Gigabit Ethernet connector
• USB:
  • 1× USB 2.0 OTG (micro-AB)
  • 1× USB 2.0 Host
• Analog: 2× ADC channels
• Low-Speed I/O:
  • 1× SPI
  • 2× I2C
  • 2× UART with flow control
  • 2× UART without flow control
  • 2× CAN bus
  • 2× PWM
  • 11× GPIOs
• Debug: Debug UART and JTAG
• Other Features: RTC controller
• Power:
  • 5 V / 2.5 A via LGA pins
  • On-module PMIC
• Form Factor:
  • OSM Size-SF
  • 332-pin LGA
  • 30 × 30 mm
• Operating Temperature: -40 °C to +85 °C (industrial)

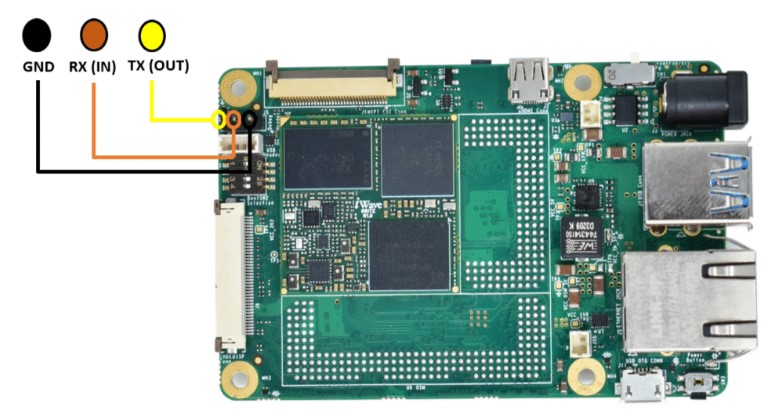

Raspberry Pi TI AM62Lx OSM Carrier Board

Raspberry Pi TI AM62Lx OSM Carrier Board Specifications:

• Supported SoM: iG-RainboW-G69M (TI AM62Lx–based OSM)
• Storage: MicroSD card slot
• Display Interfaces:
  • 50-pin 18-bit RGB LCD connector
  • Optional Micro-HDMI output
  • Optional LVDS display connector
• Camera Interface: Optional MIPI CSI connector
• Networking:
  • Gigabit Ethernet PHY
  • RJ45 Mag-Jack connector
• USB:
  • 2× USB 3.0 Type-A ports
  • 1× Micro-USB 2.0 OTG port
  • USB expansion header
• Expansion:
  • 3× 100-pin expansion connectors
  • Supports RGMII, MIPI-DSI, UART, SPI, CAN, PWM, I2S, I2C, JTAG, and GPIOs
• Debug:
  • 3-pin Debug UART header
  • JTAG via 100-pin expansion connector
• Miscellaneous:
  • Power and Reset buttons
  • Power ON/OFF switch
  • Boot mode selection switch
  • RTC battery header
  • Fan header
• Power Supply: 12 V / 2 A via DC jack
• Form Factor:
  • Credit-card size
  • 85 × 56 mm
• Operating Temperature: -40 °C to +85 °C (industrial)

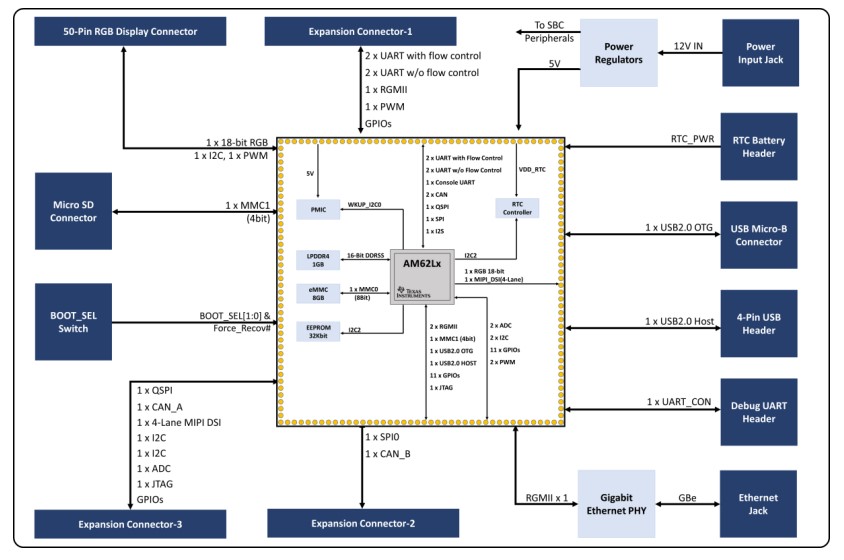

iWave-Systems-iG-G69M-SBC-block-diagram

In terms of software support, the iG-RainboW-G69M TI AM62Lx SBC supports Linux 6.12.13 or higher-level operating system versions.

The company has not disclosed any information regarding the pricing and availability. Additional details can be found on the product pages for the SoM and the SBC and on the documentation website.

Images used courtesy of iwave-global
