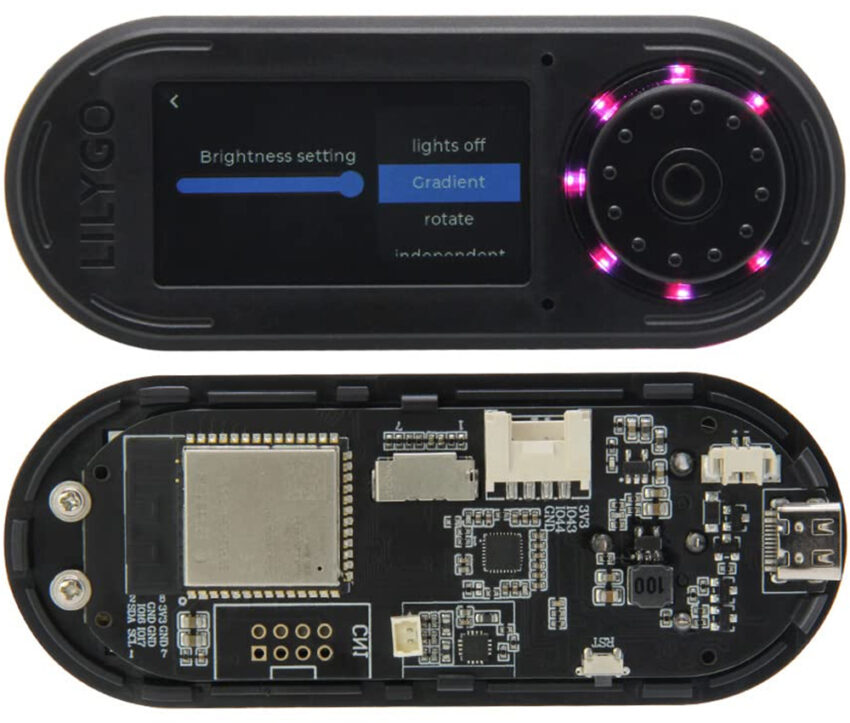

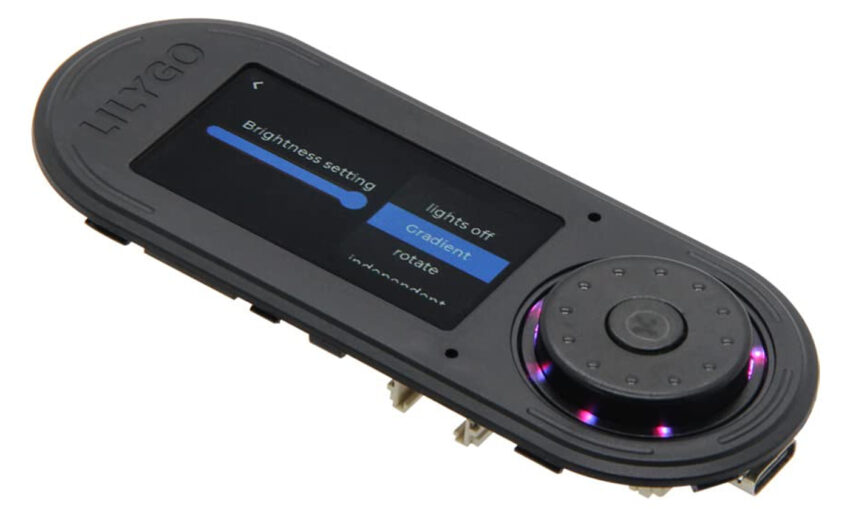

Lilygo has recently launched the T-Embed, an IoT-embedded panel designed for programmable development, featuring a compact design with ABS and PC material. The ESP32-S3 MCU powers it and supports Wi-Fi and Bluetooth 5, including Bluetooth mesh. The panel includes a 1.9-inch IPS color TFT LCD (ST7789 model) with 170×320 resolution, offering clear visual output at 350 cd/m2 brightness. It also has dual microphones, a speaker (8 ohms at 1W), a microSD, and a rotary encoder with a confirmation key. This device has an RGB ring light, a GROVER connector, a GPIO interface, and a Type-C USB port.

Additionally, it has a battery charging and discharging protection circuit. This device is perfect for building internet-connected devices (IoT and programmable devices). It is good for people who want to create IoT projects with screens and buttons. It is straightforward with drawings and code examples, so it is good for smart devices or IoT projects.

We have previously covered some similar ESP32-S3-based IoT products, such as Lilygo’s T-TWR REV2.1, Lilygo’s T-Encoder pro, Waveshare Matrix Dev Board, and many more. If you are interested in this topic, feel free to check those out. If you need any technical support, you can connect with their tech team through their GitHub.

IoT embedded panel both

T-Embed with IoT Embedded Panel Specifications:

  • MCU: ESP32-S3 dual-core Xtensa LX7 processor with Wi-Fi 4 802.11 b/g/n, Bluetooth 5 and Bluetooth mesh support
  • Memory:
    • 4 to 16MB QSPI flash
    • up to 8MB PSRAM
  • Display: 1.9-inch IPS color TFT LCD (ST7789 driver)
    • Resolution: 170(H)RGB x 320(V)
    • Brightness: 350 cd/m² (TYP)
  • Rotary Encoder with integrated confirmation key
    • Detents: 24
    • Pulses/Rotation: 12 PULSE/360°
  • Audio:
    • Microphones: 2x microphones
    • Speaker: 8 ohm @ 1W
  • Lighting: 7x RGB ring lights
  • GPIO: 2.54mm x 8pin GPIO interface
  • Expansion: 1x GROVER connector
  • Storage: TF card holder
  • USB: 1 x Type-C port
  • Misc: Reset button
  • Power Supply: 1.25mm LiPo battery (2-pin connector) interface with charge and discharge protection circuit
  • Dimensions: 95.4 x 36.40 mm
  • Enclosure: ABS+PC material (optional translucent version)
IoT embedded panel pin diagram

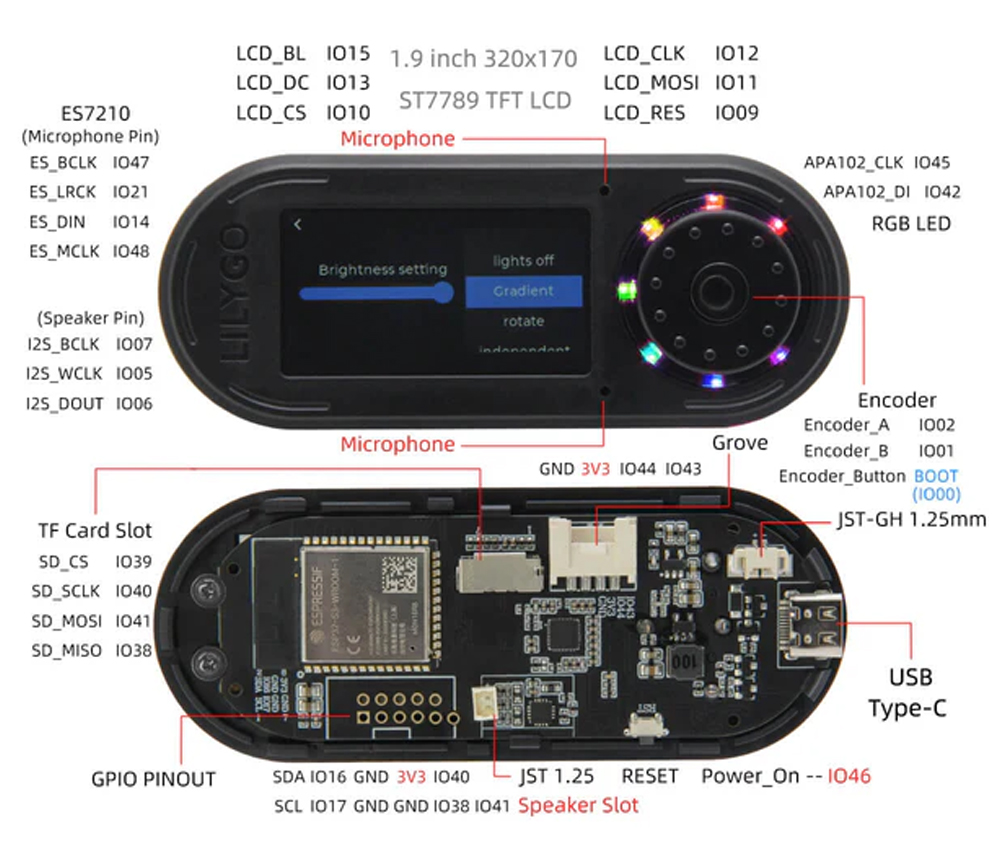

Liligo T-Embed with ESP32-S3 Pin Diagram

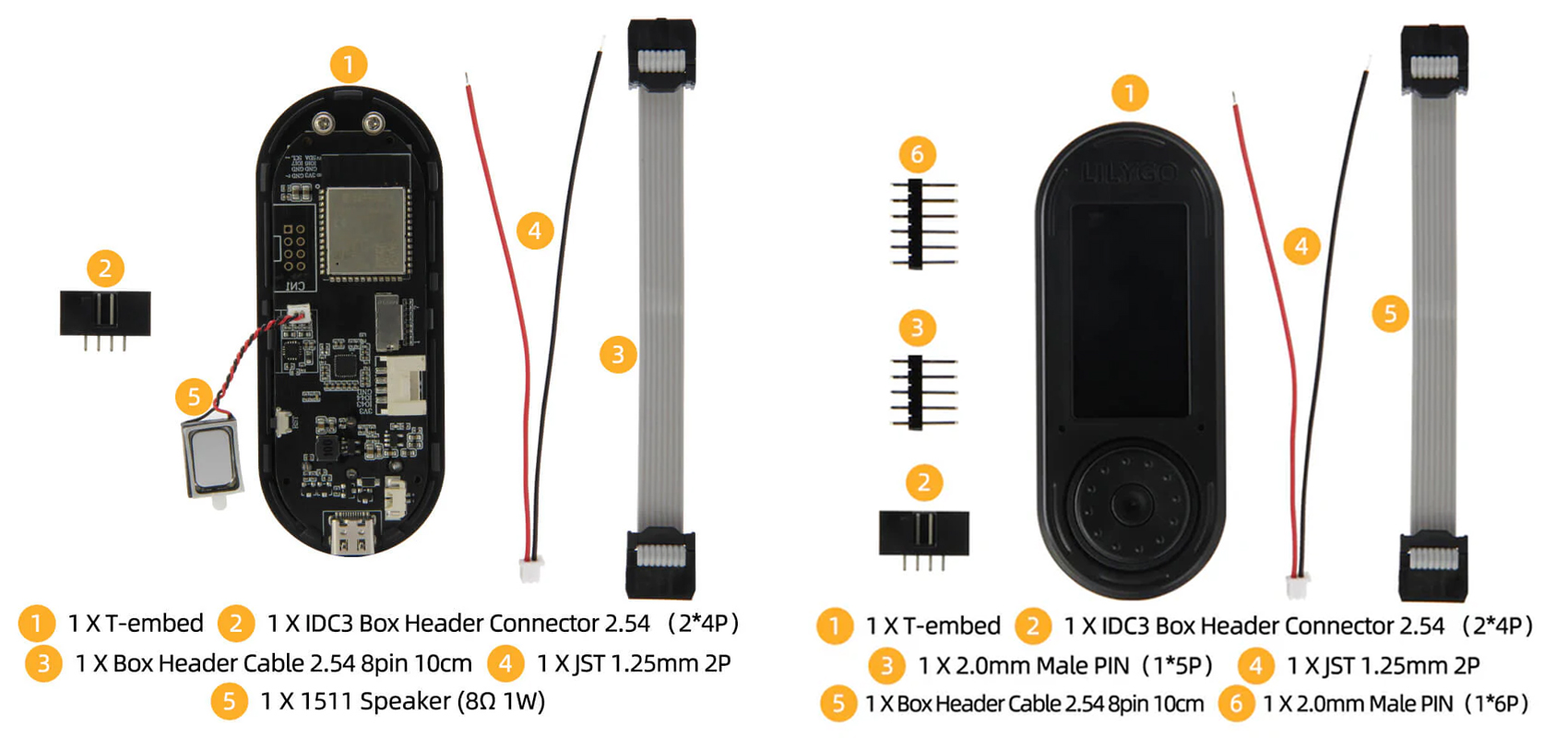

The T-Embed with shell version includes several accessories to enhance connectivity and integration. These accessories include a 1x IDC3 Box Header Connector (2.54mm, 24P), a 1x 2.0mm Male Pin (15P), a 1x JST 1.25mm 2P connector, a 1x Box Header Cable (2.54mm, 8pin, 10cm in length), and an additional 1x 2.0mm Male Pin (1*6P). Please note that batteries are not included in the package.

IoT embedded panel package
Only T-Embed (Left), T-Embed with Shell (Right)

The Lilygo’s T-Embed is available in AliExpress for $28.48 and on Amazon for $28.90. It is also available in the company’s official store for $28.56. For technical support, visit the link for details on T-Embed and T-Embed Shell.
