MSI MS-CF17: 3.5-inch SBC with Intel 13th Gen Raptor Lake-P for Industrial and Embedded Applications

MSI MS-CF17: 3.5-inch SBC with Intel 13th Gen Raptor Lake-P for Industrial and Embedded Applications

1.043
Views
0 Comments

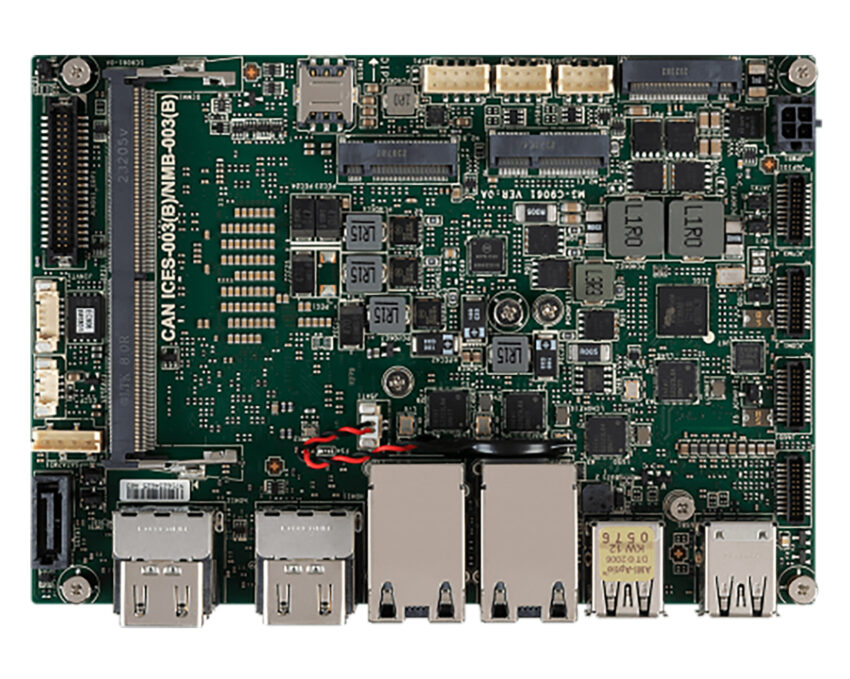

The MSI IPC has recently released the MSI MS-CF17, a 3.5-inch SBC (Single Board Computer) Powered by Intel Raptor Lake 13th Gen processor. This provides high-performance industrial and embedded applications capable of operating in wide temperature ranges. It is designed for fanless, ultra-low-power, it supports up to 32GB of DDR5 memory, and can output four independent displays via HDMI and LVDS/eDP. It is equipped with four 2.5GbE LAN ports, making it ideal for networking-related heavy tasks. The board provides expansion options through multiple M.2 slots (B, E, M keys) and a SATA 3.0 port for storage.

Its connectivity is enhanced with four USB 3.2 Gen 2 ports, four USB 2.0 ports, four RS-485 COM ports, DIO, audio support, and onboard TPM 2.0 for security. Its wide voltage DC-IN (12-24V) with OCP and OVP makes it suitable for various power environments. The MS-CF17 is used in industrial automation, embedded systems, and applications requiring high performance in rugged conditions.

Previously, we have covered some similar SBCs like the IBASE IB961 3.5-inch SBC, the IB962 3.5-inch SBC, the JEtway F35-ADN1, and much more. Feel free to check those out if you are interested in the topic.

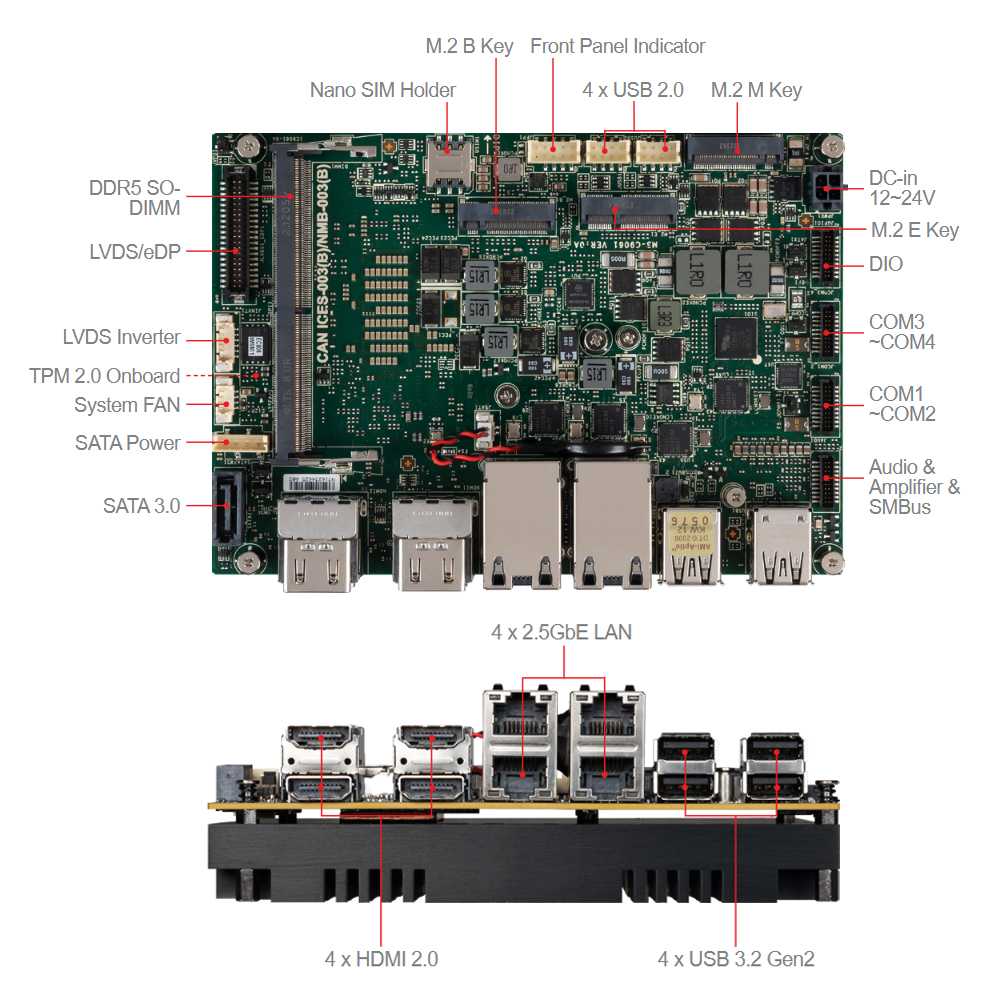

3.5-inch SBC Intel Raptor Lake 03

MSI MS-CF17 3.5-inch SBC Specifications:

  • Processor:
    • Intel 13th Gen Raptor Lake-P U Series (Embedded & Industrial SKUs)
    • Options:
      • Embedded SKU: Core i7-1365UE, i5-1345UE, i5-1335UE, i3-1315UE, U300E (28W TDP)
      • Industrial SKU: Core i7-1365URE, i5-1345URE, i3-1315URE (28W TDP)
    • Performance:
      • P-Cores: 4.3 GHz ~ 4.9 GHz
      • E-Cores: 3.2 GHz ~ 3.7 GHz
    • L2 Cache: 8M ~ 12M (depending on CPU)
  • Memory:
    • 1x DDR5 5200 MHz SO-DIMM slot (single-channel), up to 32GB
  • Storage:
    • 1x SATA 3.0 port
    • 1x M.2 M key (PCIe Gen4 x4 NVMe) slot (2280 size)
  • Display Interfaces:
    • 4x HDMI 2.0 ports (up to 4096 x 2340 @ 60Hz)
    • 1x LVDS (up to 1920 x 1200 @ 60Hz)
    • 1x eDP (shared with LVDS, up to 4096 x 2160 @ 60Hz)
    • Supports quadruple independent displays
  • Graphics:
    • Intel Iris Xe Graphics (for i5 SKU)
    • Intel UHD Graphics (for i3 SKU)
  • Networking:
    • Embedded SKU: 4x Intel I226-LM 2.5GbE LAN (RJ-45)
    • Industrial SKU: 4x Intel I226-IT 2.5GbE LAN (RJ-45)
  • Audio:
    • Realtek ALC897 HD Audio Codec (co-lay ALC888S)
  • Expansion Slots:
    • 1x M.2 B key (PCIe x1, USB 2.0, with NANO SIM holder, 2242/3042)
    • 1x M.2 E key (PCIe x1, USB 2.0, with CNVi, 2230)
  • USB Ports:
    • 4x USB 3.2 Gen 2 ports (rear)
    • 4x USB 2.0 ports (internal)
  • Serial Ports: 4x COM ports (RS-232/422/485) with support for 0V/5V/12V and auto flow control
  • GPIO: 16-bit GPIO (8 GPI, 8 GPO, 5V logic)
  • Security: Onboard Infineon SLB9672 TPM 2.0
  • Power Supply: Wide Voltage DC Input: 12~24V (with OCP & OVP protection)
  • Cooling:
    • Fanless design
    • Supports standard thermal solution for TDP up to 15W (with 0.7m/s airflow)
  • Operating Temperature:
    • Embedded SKU: 0°C ~ 60°C
    • Industrial SKU: -40°C ~ 70°C (optional -40°C ~ 85°C)
  • Operating Humidity: 10% ~ 90% (non-condensing)
  • Dimensions: 146 x 102 mm (3.5-inch form factor)
  • Weight: 670 g
  • Certifications: FCC, CE, RCM, VCCI, BSMI, UKCA, IC

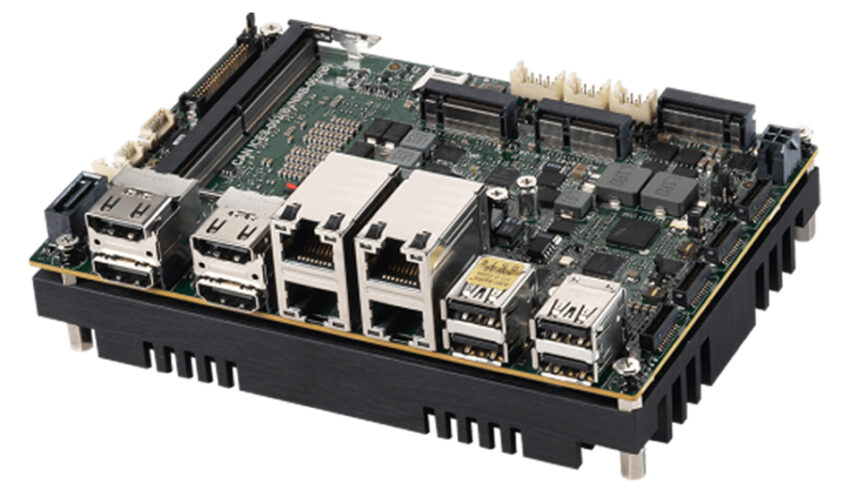

3.5-inch SBC Intel Raptor Lake 02

As far as I understand, the MSI MS-CF17  is a great SBC for industries to make high-performance computing in compact form factors. Its flexibility, reliability, and adaptability are very useful in industrial automation, IoT, embedded applications, and edge computing tasks. Because of its powerful features, durability, and security make it a unique product among other SBCs. As per the datasheet, the MS-CF17 is compatible with Microsoft Windows 10 IoT Enterprise 2021 LTSC (64-bit, 21H2) and Windows 11 IoT Enterprise (64-bit, 22H2, Pre-scan), as well as Linux (Support by request).

You can find the details on the Company’s official product page, Made-In-China’s product page, and ROSCH Computer’s product page. MSI has not announced pricing details for this SBC however, you may find the additional information here.
