MYIR MYC-CZU3EG-V3 SoM Powered by AMD Zynq UltraScale+ MPSoC

MYC-CZU3EG-V3 System-On-Module

MYIR has officially launched the MYC-CZU3EG-V3, its latest System-on-Module, which utilizes the AMD Zynq UltraScale MPSoC (XCZU3EG). The MYC-CZU3EG-V3 offers a quad-core ARM Cortex-A53 64-bit application processor with a maximum clock speed of 1.2GHz, a dual-core real-time ARM Cortex-R5F processor running at 600MHz, an embedded GPU (Mali400 MP2) and 16nm FinFET+ programmable logic device in addition to 4GB of DDR4 SDRAM, 8GB of onboard eMMC storage and 64MB of QSPI Flash default memory configuration, while integrating an Ethernet PHY, a USB PHY and a power module to support the minimum requirements for embedded control and processing functionality.

The highly efficient and integrated SoM is equipped with Ultrascale FPGA resources along with power management and clock generation functionality for efficient application development for high-performance applications in industries that include automation, machine vision, edge computing environments, aerospace systems, and telecommunications networks to facilitate standalone operations of the SoM.

Previously, we covered several MYIR System-on-Module and development board products, including the MYC-YR3562, MYC-YR3506, MYC-LT536 SOM and dev board, the Nuvoton NuMicro MA35D1-based SOM, and more. Feel free to check them out if you’re interested in these products.

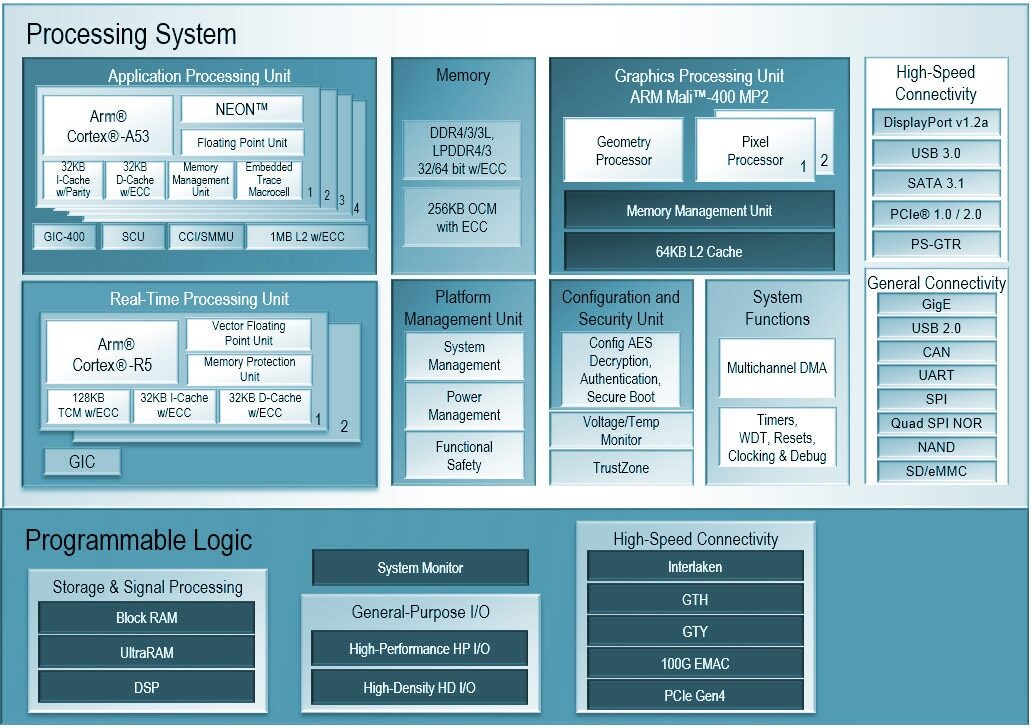

AMD Zynq UltraScale+ MPSoC EG Processor Block Diagram

MYC-CZU3EG-V3 SoM specifications:

• MPSoC: AMD Zynq UltraScale+ XCZU3EG-1SFVC784 MPSoC (ZU3EG, 784 Pin Package) MPSoC with quad-core Arm Cortex-A53 processor @ 1.2 GHz, dual-core Cortex-R5 processor @ 600 MHz, Arm Mali-400MP2 GPU, and 16nm FinFET+ FPGA fabric (154K logic cells, 7.6 Mb memory, 360 DSP slices)
• System Memory: 4GB DDR4 SDRAM (64-bit, 2400 MHz)
• Storage: 8GB onboard eMMC Flash, 64MB QSPI Flash
• On-module chips:
  • Gigabit Ethernet PHY (YT8531)
  • USB PHY (USB3320C-EZK)
  • Intel Power Module
  • Clock Generator
• 2x Samtec 0.5mm pitch 160-pin Razor Beam High-Speed headers
  • Networking: Gigabit Ethernet PHY (YT8531), 4x PCIe Gen2, SATA 3.1
  • USB: USB 2.0 and USB 3.0 interface
• Expansion: GPIO, 2x CAN 2.0B, 2x UART, 2x SPI, 2x I²C
• Misc: 4x status LEDs (2x Yellow and 2x Green), watchdog
• Power supply: 3.3V DC-IN
• Dimensions: 60 x 52 mm (14-layer PCB design)
• Temperature Range: 0~+70℃ (commercial grade); -40～+85℃ (industrial grade)

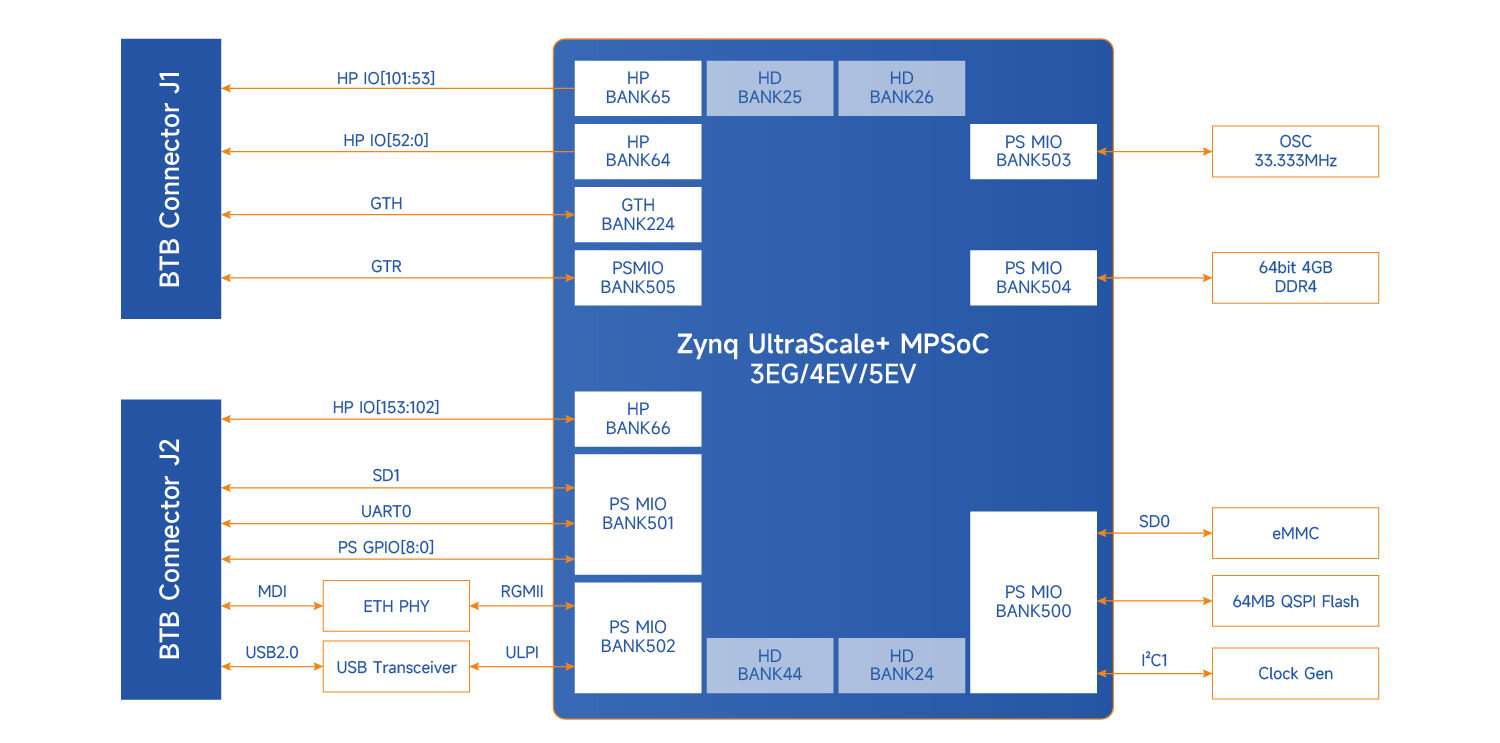

MYC-CZU3EG-V3 SoM Functional Block Diagram

MYIR makes available a widely applicable and highly customizable development board for prototyping and evaluation purposes, referred to as the “MYD-CZU3EG-V3 Development Board.” The MYD-CZU3EG-V3 acts as a general evaluation and prototyping board for various applications, especially ones based on the “MYC-CZU3EG-V3,” and comes with an array of external peripherals and connections such as USB 3.0, Gigabit Ethernet, DisplayPort, PCIe, SATA, CAN, HDMI, LCD, FMC connectors, and Arduino headers, in conjunction with an optional “7in capacitive touch LCD module.” It targets engineers who require developing various projects based on the “AMD Zynq UltraScale+ family.” It comes with an “Active Heatsink Preinstalled,” meaning the SoM comes with a heatsink installed out of the box.

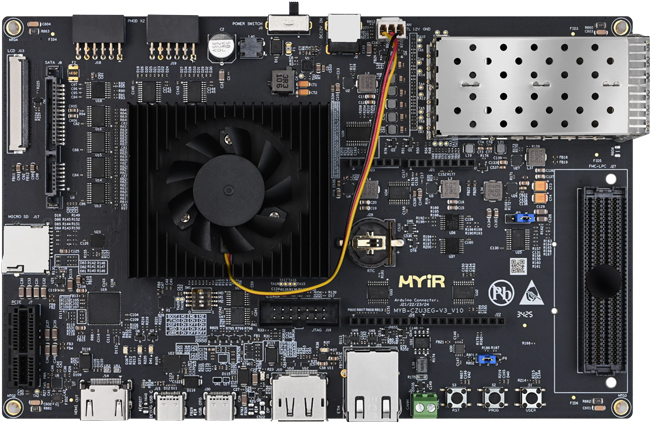

MYD-CZU3EG-V3 Development Board (delivered with installed active heatsink on MYC-CZU3EG-V3 SOM by default)

MYD-CZU3EG-V3 Development Board specifications:

• Sockets for MYC-CZU3EG CPU module
• PS Unit (Arm Cortex A53/R5 processors)
  • Storage: 1x microSD card, 1x SATA interface
  • Video Output: 1x DisplayPort (DP)
  • Networking: Gigabit Ethernet (10/100/1000Mbps)
  • USB: 1x USB 3.0 Type-C interface, 1x micro USB to UART port
  • Debugging: 2.54mm pitch 14-pin JTAG interface (PS, PL reused)
  • Expansion: 1x PCIe interface, 1x CAN terminal block
  • Misc: 1x user button, 1x system reset button, 1x ps-programming button; battery for RTC
• PL Unit (FPGA fabric):
  • Video Output / Display I/F:
    • 1x HDMI interface (signals reused with LCD/TSP interface)
    • LCD/TSP interface (24-bit RGB, supports resistive and capacitive touch screen panels)
  • 1x AMD standard LPFMC interface
  • 4x SFP transceiver interfaces (up to 10Gpbs, reserved, only for Zynq UltraScale+ EV Devices)
  • Two-channel PMoD
  • ARDUINO headers
  • Misc: 1x blue LED for power, 1x red LED for FPGA programming, 1x green user LED
• Power Supply: 12V DC
• Dimensions: 195.33 x 123.95mm (6-layer PCB design)
• Temperature Range: 0~70 Celsius (commercial grade)

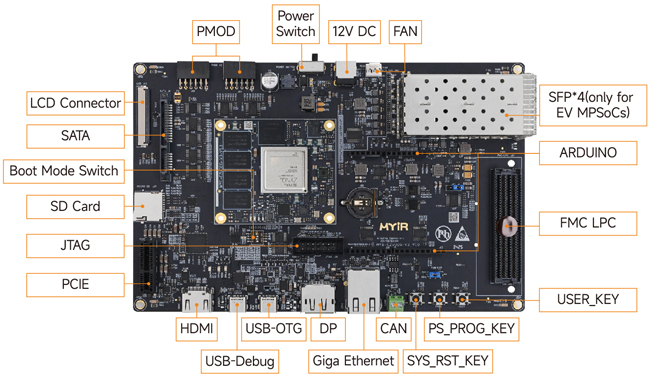

MYD-CZU3EG-V3 Development Board Interface Diagram

MYIR SoM and Dev Board can be used with an “out-of-box” running environment based on a ready-to-run Linux 6.6.40 operating system with a foundation based on the PetaLinux 2024.2 OS kernel. The platforms are ready to boot the U-Boot 2024.01 OS kernel as well as a customized kernel. Both platforms support the software development environment based on the heterogeneous software development tools provided by the “AMD Vitis” environment.

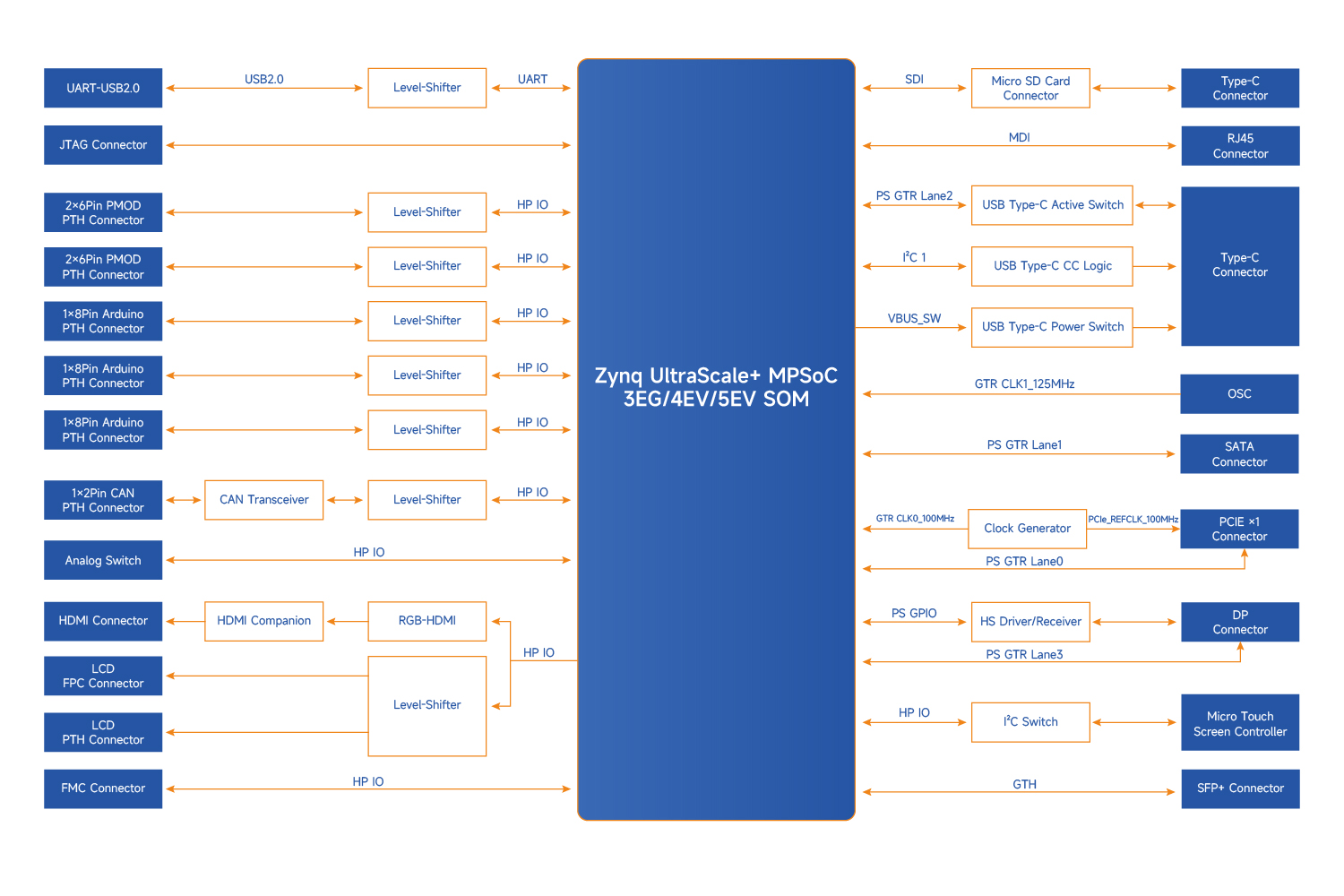

MYD-CZU3EG-V3 Dev Board Functional Block Diagram

MYIR offers prices starting at $319 and $339 respectively for the commercial and industrial grades of the MYC-CZU3EG-V3 SoM. The MYD-CZU3EG-V3 dev board starts at $429 and $449 respectively for the commercial and industrial grades. Discounts are given with bulk orders. More information can be found in the MYIR product page.
