NANO-6064-ASL: Nano-ITX Industrial Embedded Board

NANO-6064-ASL: Nano-ITX Industrial Embedded Board

1.167
Views
0 Comments

The industrial setting often calls for advanced SoCs and Dev boards that can operate at a wide range of temperatures. In this context,  NANO-6064-ASL provides a processing platform that not only can handle industrial temperatures ranging from -40°C to 85°C but also performs at minimal power consumption. Featuring the most recent Intel Atom® x7000RE series processors, NANO-6064-ASL is well-suited for developing efficient IoT solutions in medical, retail, and digital signage. Intel Atom x7000RE Series CPUs are an advanced choice for industrial, communication, and edge computing applications. These processors can perform more tasks at once with less power consumption with up to 8 Gracemont cores, which helps them run faster. They also have better abilities for both the main computing part (CPU) and the graphics part (GPU).

Features

  • Intel Atom® x7000RE series SoC
  • DDR4 3200 MT/s non-ECC SO-DIMM up to 16GB
  • Triple displays by DP, HDMI and LVDS
  • High-speed I/O via dual 2.5GbE and four USB 3.2 Gen2
  • Multiple expansions with M.2 E Key and M.2 B Key
  • Support real-time performance: Intel® TSN, TCC (selected SKUs)
  • Support onboard TPM 2.0
  • Support a wide -40°C to 85°C industrial temperature range

NANO-6064-ASL Specifications:

The NANO-6064-ASL integrates an Intel Atomx7000RE Series Processor, delivering efficient performance within a power range of up to 12W. Managed by an AMI UEFI BIOS, it supports a single non-ECC DDR4 SO-DIMM slot, expandable up to 16GB. It also offers In-Band ECC support. Storage options include SATA III, M.2 B Key 2280 (SATA III), and a micro SD socket. Hardware features comprise a programmable watchdog timer and system monitoring capabilities for voltage, fan speed, and temperature. The interface is expandable thanks to M.2 E Key 2230 and M.2 B Key 3052+2280 (shared with M.2 2280 SATAIII socket).

The I/O interface features an HDA controller integrated into the Intel SoC, Realtek ALC897 HDA codec which supports 7.1 channel high-definition audio playback and recording, dual Intel 2.5GbE Controllers (I226-IT), and a single RS-232/422/485 port. USB connectivity includes two USB 3.2 Gen2 ports on the rear I/O and two USB 3.2 Gen1 ports accessible via onboard pin headers. Notably, one USB 3.2 Gen1 port shares connectivity with the M.2 B key socket. Additional features encompass onboard TPM 2.0, 8x GPIO, and support for Real-time Performance features on selected SKUs. On the other hand, the Intel UHD Graphics Gen12 controller, including LVDS, HDMI, and DP ports facilitates display. Mechanically, it measures 120mm(L) x 120mm(W) and operates with a DC 12V input. What’s more, is that the board doesn’t get affected by changes in humidity.

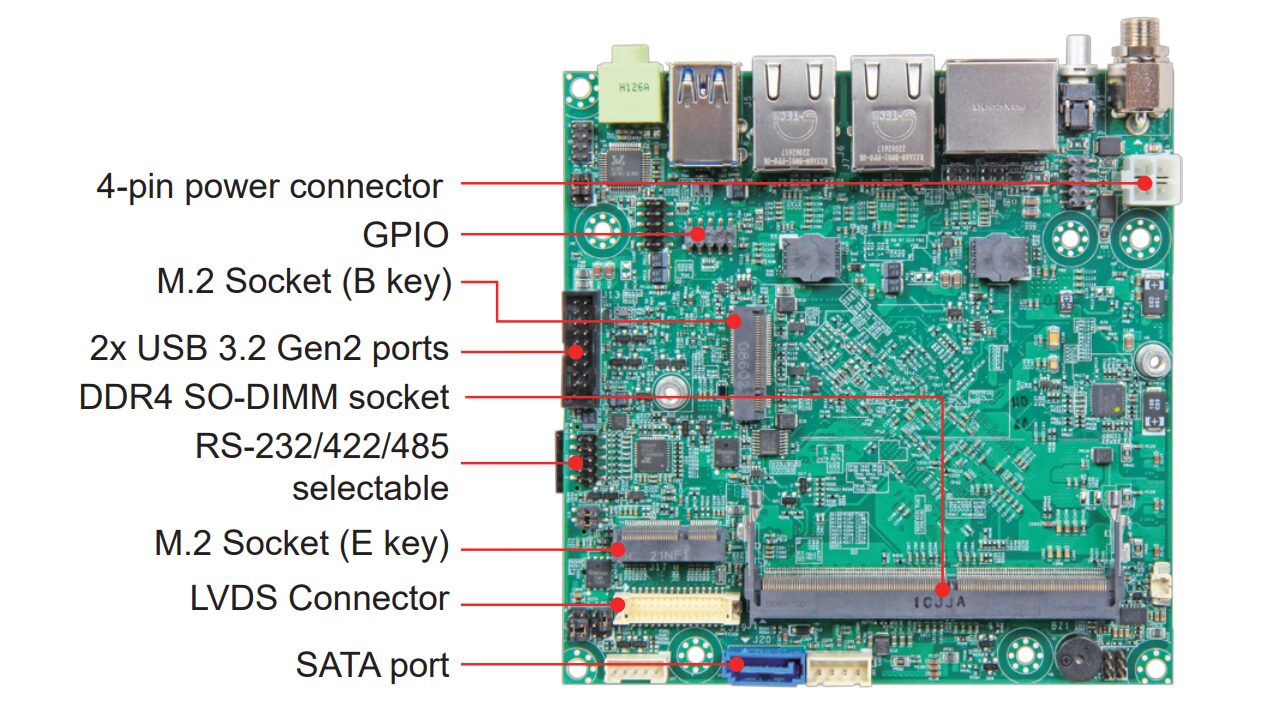

NANO-6064-ASL features

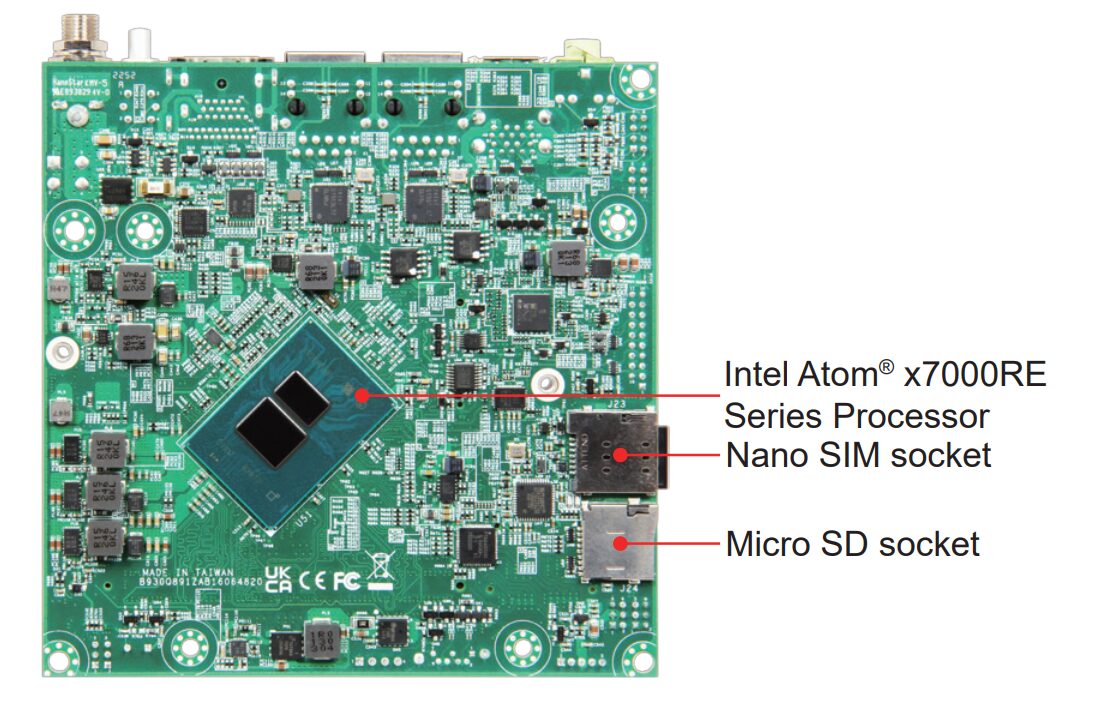

  NANO-6064-ASL Development Board

NANO-6064-ASL Architecture and Features:

With up to 16GB DDR4:3200MT/s non-ECC SO-DIMM support, it ensures smooth multitasking and efficient operation. Users can also enjoy versatile display options via HDMI, DP, and LVDS connections, facilitating multiple display setups. High-speed I/O capabilities are provided through dual 2.5GbE LAN ports and four USB 3.2 ports, enhancing connectivity and data transfer. Expansion options are available with M.2 E Key and B Key slots, accommodating various add-on modules. Additionally, onboard TPM 2.0 support enhances security measures.

The NANO-6064-ASL is a new advanced industrial and IoT embedded board featured by Intel Atom®x7000RE Series processors with exceptional features like supporting M.2, microSD, SATA III, TPM, triple display support including HDMI,  DisplayPort, and LVDS. It is specifically designed for industrial use applications, featuring wider temperature ranges, dependable performance, and real-time capabilities via Intel TCC and TSN.
