8 Opto-isolated Relay board

3D_PCB_th

This is a 8 channel relay interface board using ULN2803. All the relays are opto-isolated using optocouplers and can be controlled directly using a microcontroller of any kind (Arduino , 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic) or a PC.

It’s easy to manufacture and have three pin screw terminals for easy connectivity.

Schematic

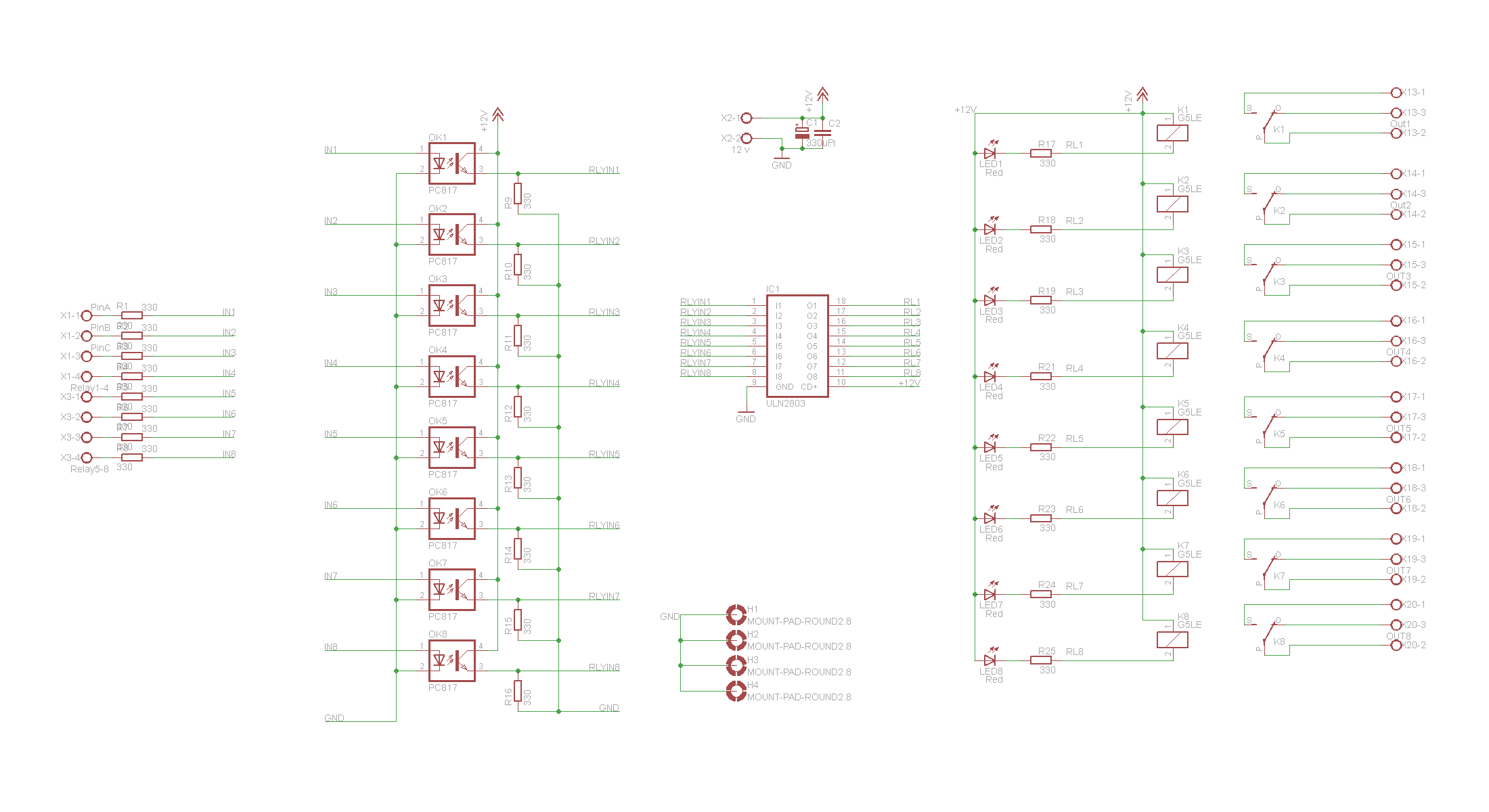

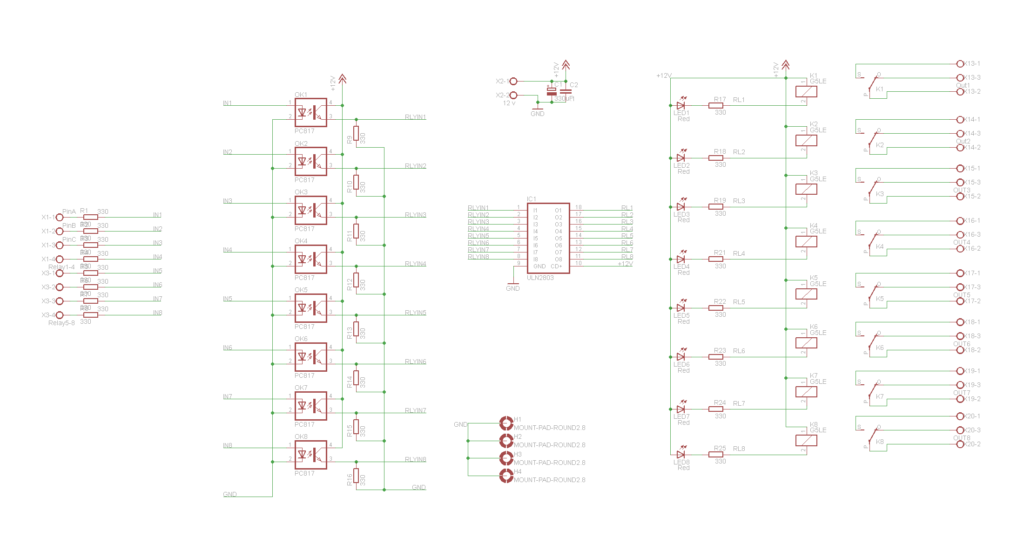

The full schematic is shown below

schematic

Photos

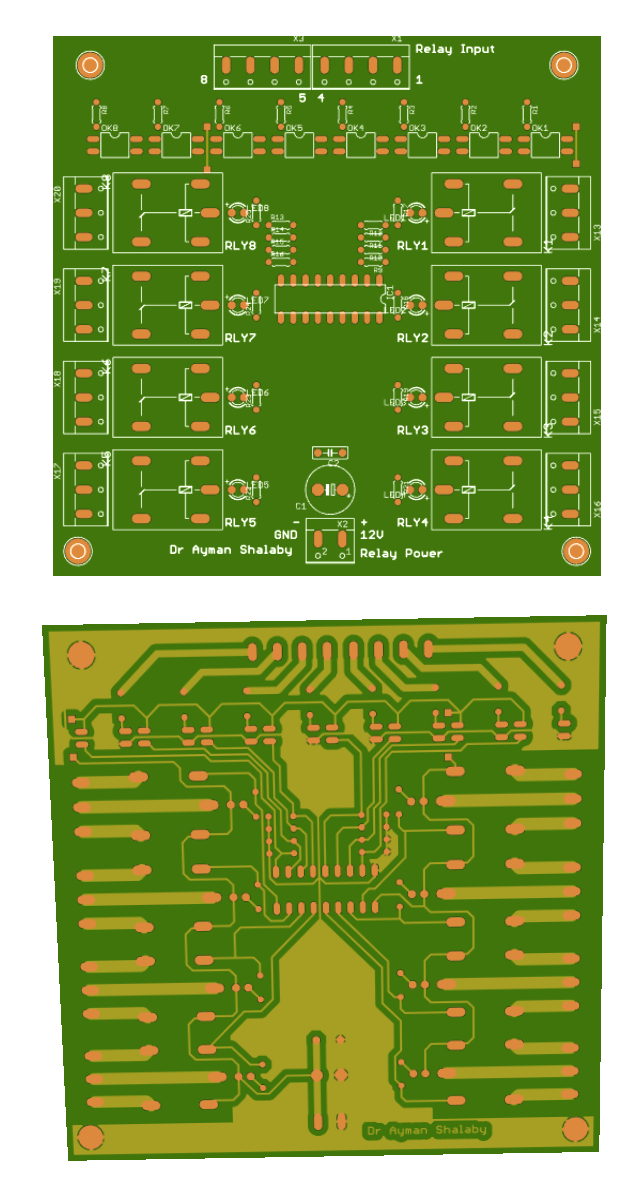

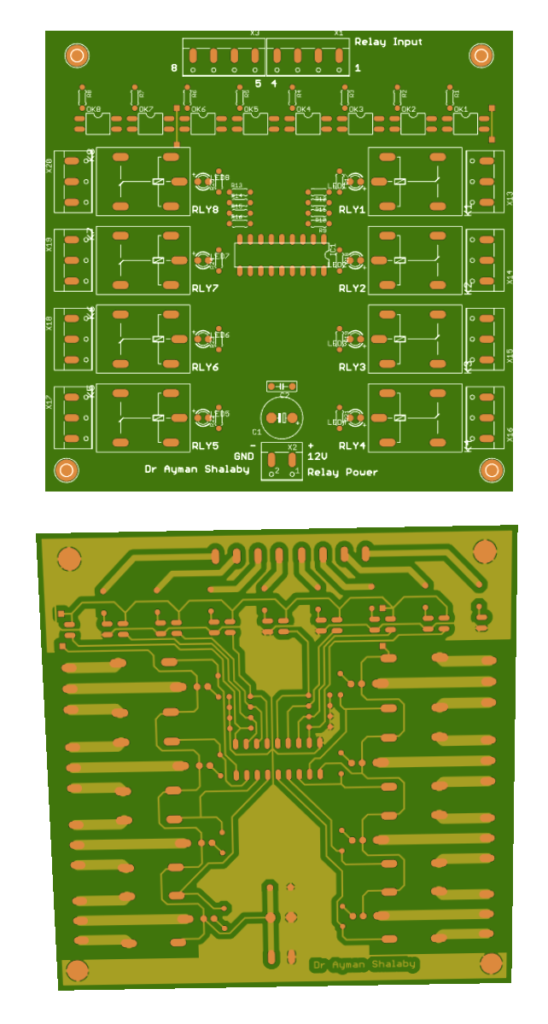

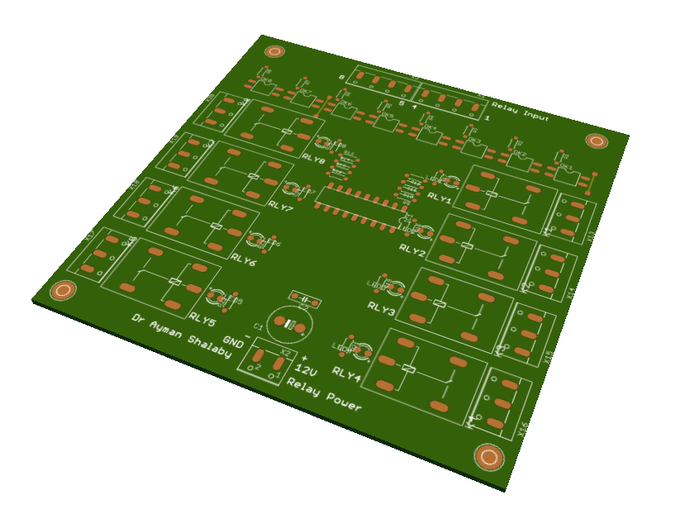

3D_PCB (1)

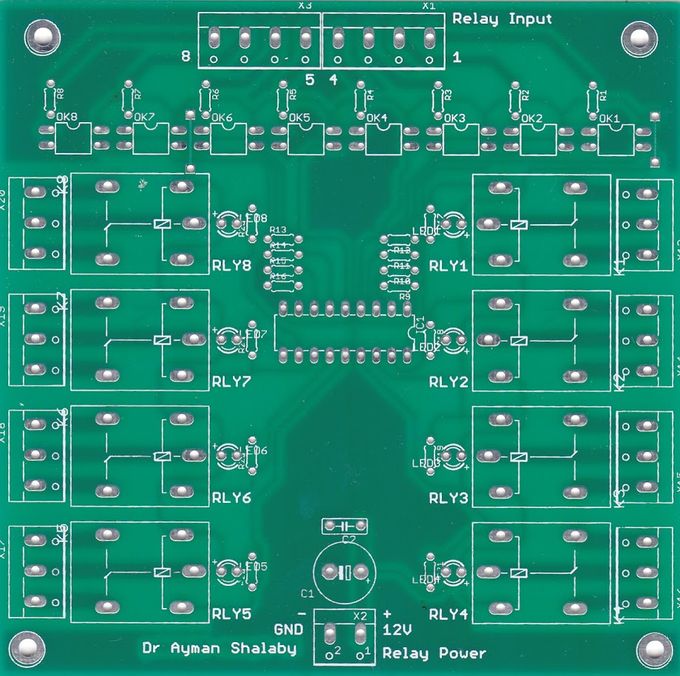

IMG_0001

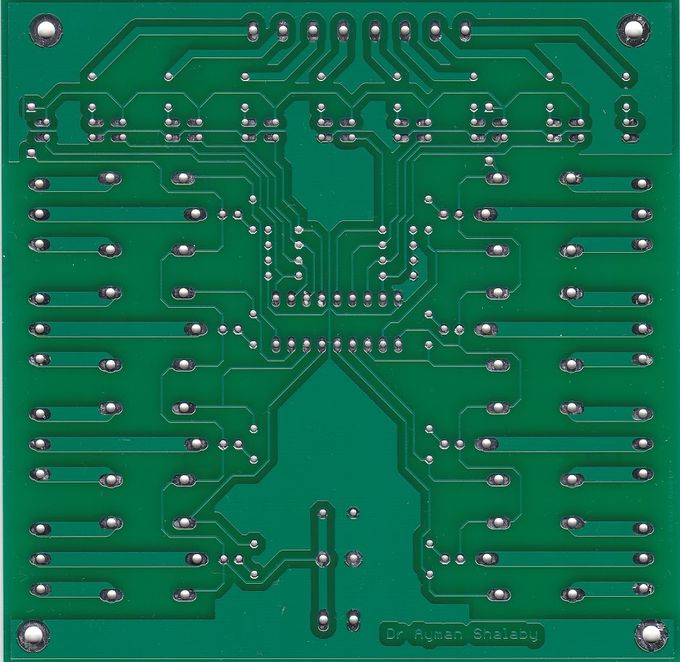

IMG_0002

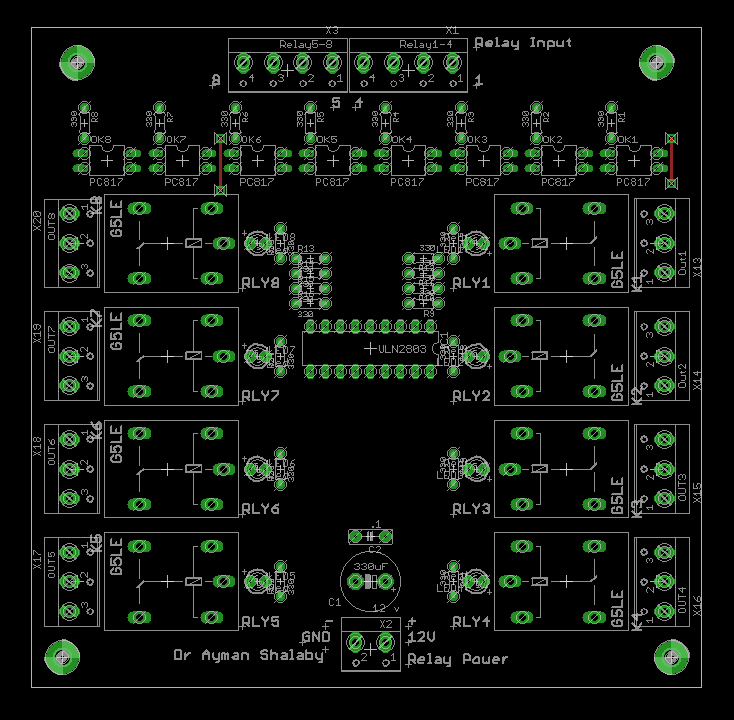

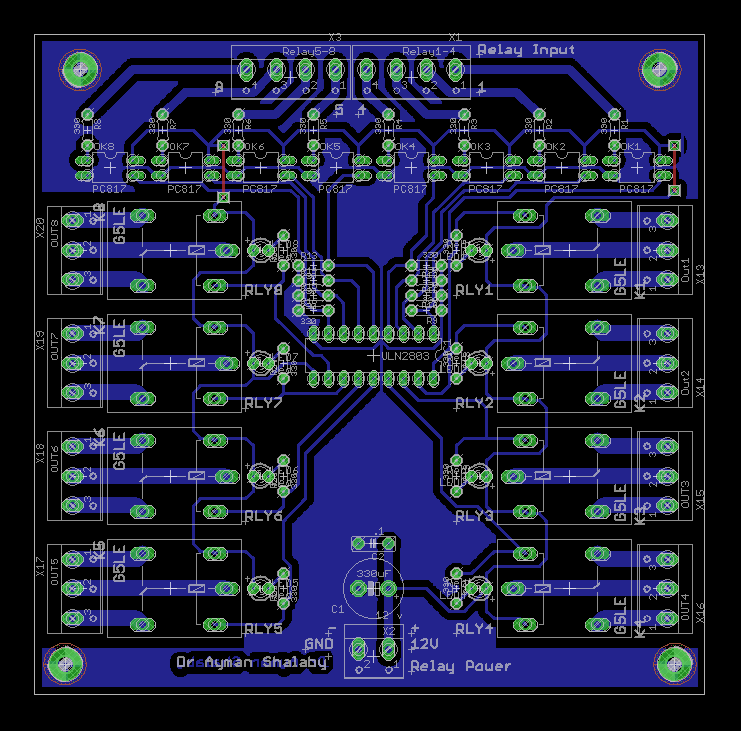

PCB

Subscribe
Notify of
guest
2 Comments
Inline Feedbacks
View all comments
ramialhalabi

What is the capacitance of c2?
