Dark Sensitive Switch – LED Light

  • Rajkumar Sharma
  • 25430
    Views
  • easy
  • Tested

Dark-Activated-LED-Light-PIC

Dark activated LED light is a simple project which operates a LED when the light falling on the LDR goes below a set point.  The circuit is built using LM393 comparator, LDR as light sensor, preset (potentiometer) for sensitivity adjustment, transistor to drive the LED. The project can also be considered for use in energy saving application.

Features

  • Input – 12 V @ 1A
  • LED 12V 500mA Maximum (6W)
  • Onboard Preset for Level Adjust
  • Operation LED Indicator
  • On Board Power LED
  • Header Connector for Power Supply and LED
  • PCB dimensions 55.45MM X 12.70 MM

Schematic

Dark-Activated-LED-Light-SCH

Parts List

Dark-Activated-LED-Light-BOM

Connections

Dark-Activated-LED-Light-Wiring

Photos

Dark-Activated-LED-Light-001

Dark-Activated-LED-Light-002

Videos

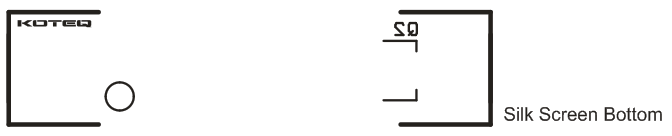

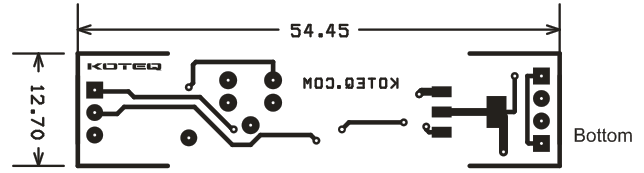

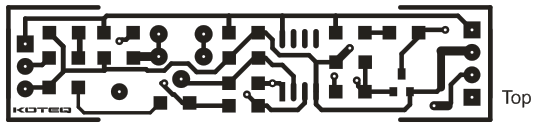

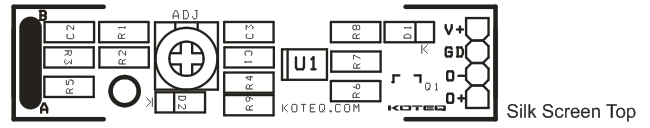

PCB

Comments
