Laser Diode Driver

  • Rajkumar Sharma
  • 11310
    Views
  • moderate
  • Tested

LASER DIODE DRIVER PIC

Laser Diode Driver project will help you safely drive (constant current) a 3 mW visible Laser Diode for your application.

  • Input supply – 2.5 to 6 VDC
  • Onboard preset to adjust the current flow to the Laser Diode
  • Power-On LED indicator
  • Header connector for easy input supply and LASER DIODE module connection
  • Laser diode is not included
  • Circuit is designed around Sanyo DL3148-025 LASER DIODE
  • PCB dimensions 37 mm x 42 mm

Schematic

LASER DIODE DRIVER SCHEMETIC

Parts List

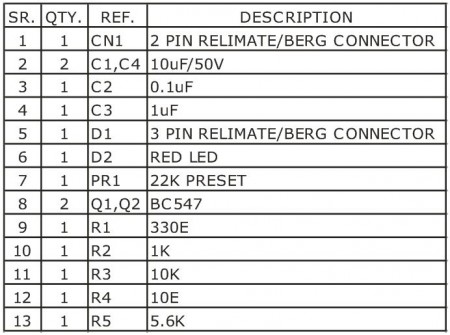

LASER DIODE DRIVER BOM

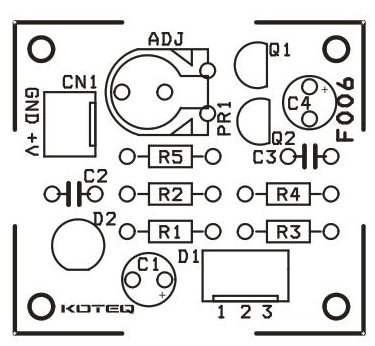

PCB
