One Channel Relay Driver

  • Rajkumar Sharma
  • 11019
    Views
  • easy
  • Tested

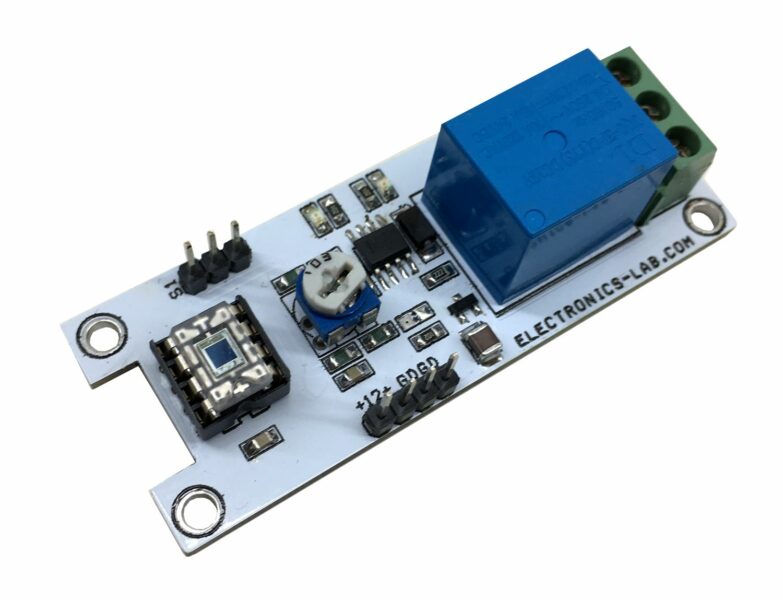

ONCE_CHANNEL_RELAY_DRIVER_PIC

This project is an one Channel Relay Driver suitable for a variety of projects.

Description

Single Channel Relay project  is a simple and convenient way to interface a relay for switching application in your project.

Specifications:

  • Input – 12 VDC @ 42 mA
  • Output – SPDT relay
  • Relay specification – 5 A @ 230 VAC
  • Trigger level – 2 ~ 15 VDC
  • Header pins for connecting power and trigger voltage
  • LED indicates relay status
  • Power Battery Terminal (PBT) for easy relay output connection
  • Four mounting holes of 3.2 mm each
  • PCB dimensions 27 mm x 69 mm

Schematic

ONCE_CHANNEL_RELAY_DRIVER_SCHEMATIC

Parts List

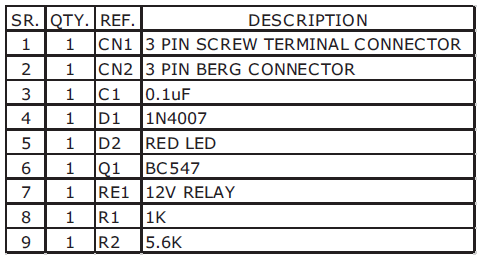

ONCE_CHANNEL_RELAY_DRIVER_BOM

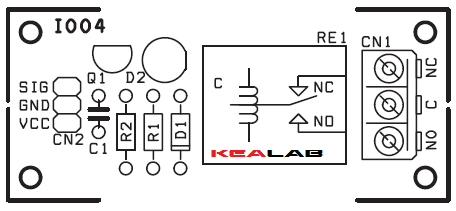

PCB
