RGB LED Disco Lights

  • Rajkumar Sharma
  • 12767
    Views
  • moderate
  • Tested

RGB_LED_Based_Disco_Lights_th

This project is a microcontroller based RGB LED lights effects.

Description

RGB LED disco light is a simple project designed around PIC16F72 microcontroller.

This firmware is a RGB driver, as name suggests it is used to derive or light red, green and blue LEDs in particular fashion. Its main feature is the pattern shown on LEDs. It is quite difficult to describe pattern in words but we want to specify that first it will derive red then green then blue three times and then a particular pattern is shown on LEDs and again the three LEDs light.

In this project we have used PIC 16F72 microcontroller. The various pin configurations are shown below:

  • OUTPUT: PORTC
  • Red Led: PORTC.F0
  • Green Led: PORTC.F1
  • Blue Led: PORTC.F2
  • External Oscillator (crystal: 4MHz)
  • Microcontroller: PIC 16F72
  • SUPPLY : 12-18V DC

Schematic

RGB_LED_Based_Disco_Lights_main_board_schematic

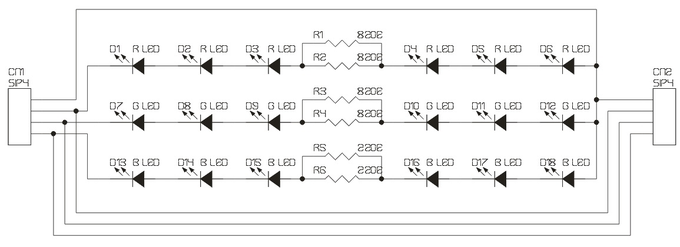

RGB_LED_Based_Disco_Lights_LED_Board_Schematic_th

Parts List

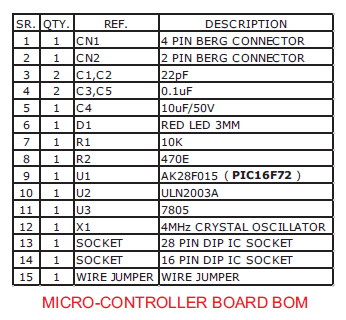

RGB_LED_Based_Disco_Lights_main_board_BOM

RGB_LED_Based_Disco_Lights_led_board_BOM

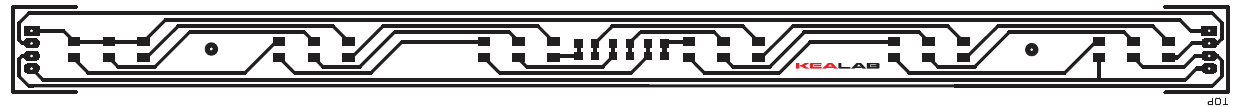

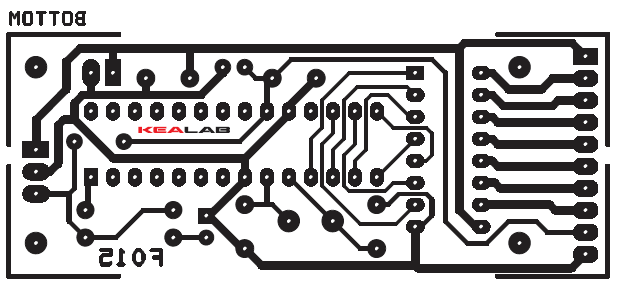

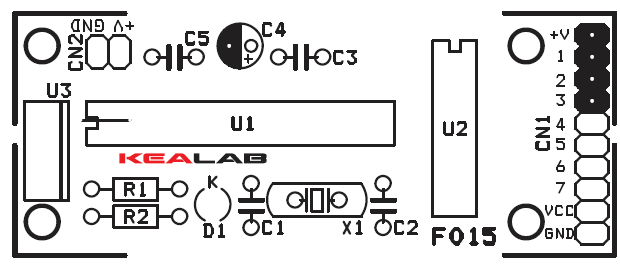

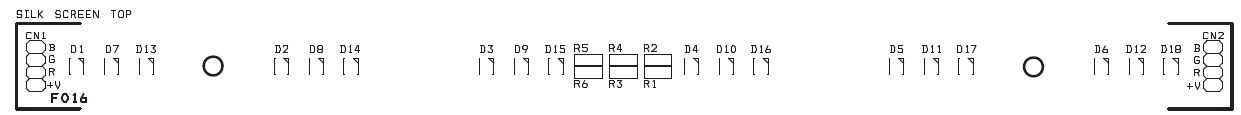

PCB
