Single Channel SMD Relay Driver

  • Rajkumar Sharma
  • 6741
    Views
  • easy
  • Tested

I040B

Single Channel Relay Board is a simple and convenient way to interface a relay for switching application in your project.

Specifications

  •     Input supply 12VDC @ 42 mA
  •     On Board 5V Regulator provides 5V output
  •     Output SPDT Relay
  •     Relay specification 5 A @ 230 VAC
  •     Trigger level 2 ~ 9 VDC
  •     Header connector for connecting power and trigger voltage
  •     Relay operations status LED
  •     Power LED
  •     Tiny Design
  •     Screw terminal connector for easy relay output connections

Schematic

SINGLE CHANNEL RELAY SCH

Parts List

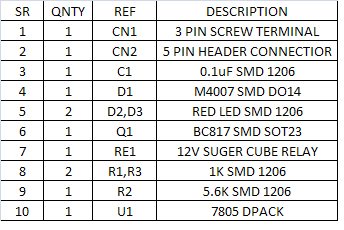

BOM

Photos

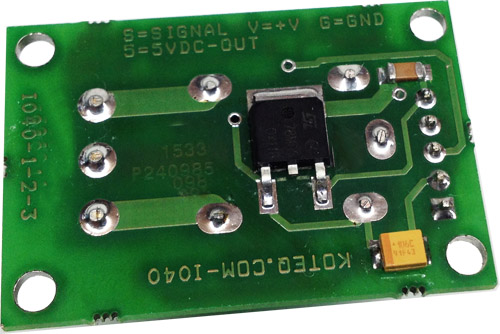

I040D

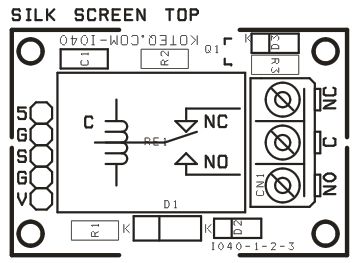

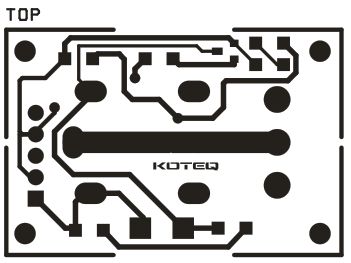

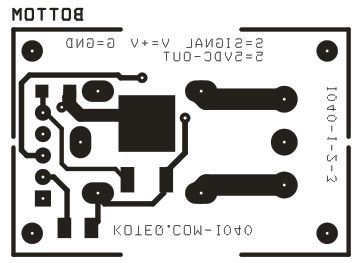

PCB
