Stereo Audio Processor for Home TV Audio

  • Rajkumar Sharma
  • 203 Views
  • easy
  • Tested
  • SKU: EL139576
  • Quote Now

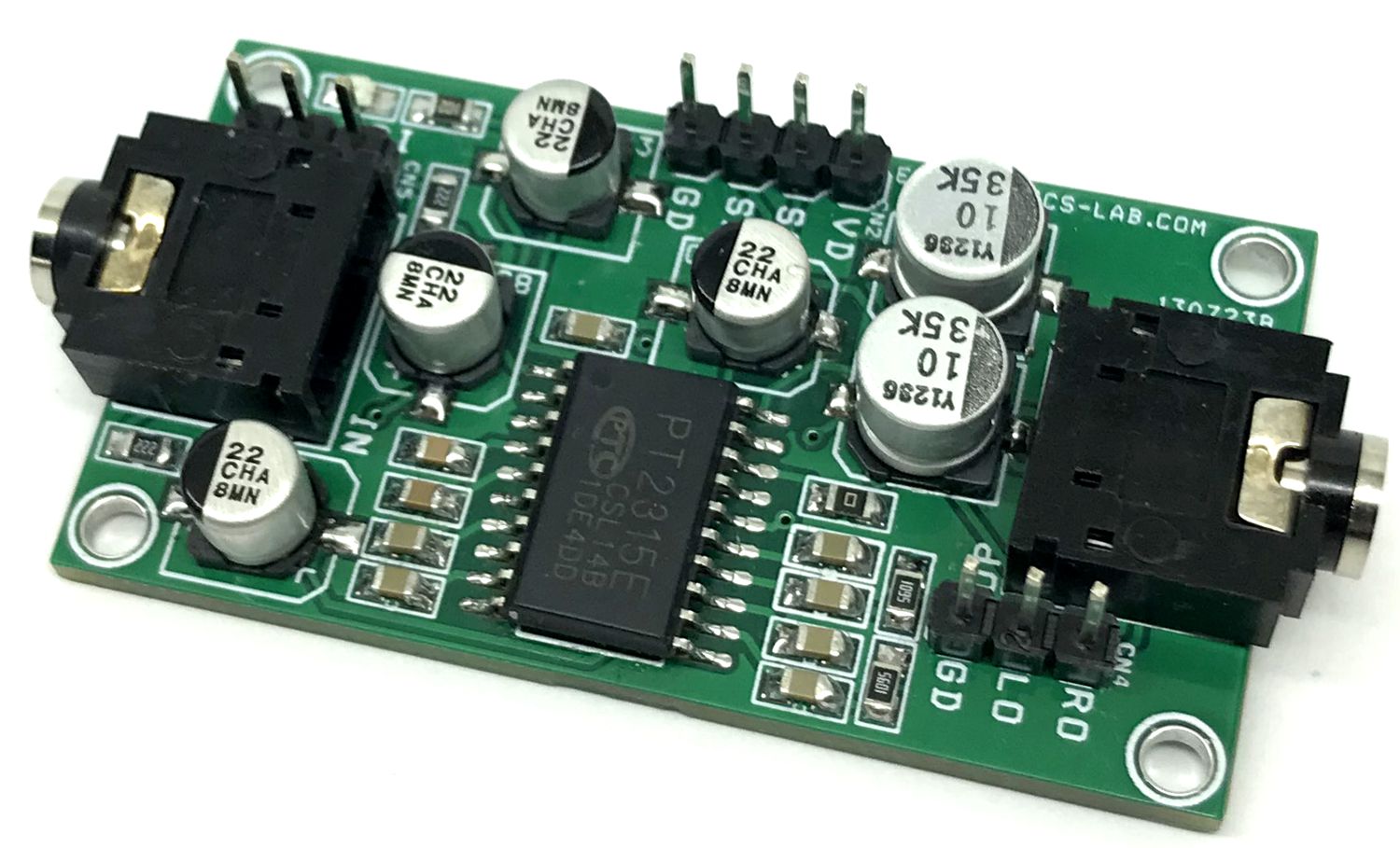

This PT2315E IC-based audio processor is designed for versatile applications and includes master volume control with low-frequency loudness compensation, speaker output attenuator, and tone control. It is a good solution for home audio signal processing. Due to the high-reliability requirement from the audio business, the PT2315E improves both audio performances and input surge current capability and these cause the PT2315E to be the best solution for the cost-effective audio systems.

Features

  • Power Supply 5V DC (Range 4V to 10V)
  • Master volume from 0 dB to -78.75dB in 1.25dB/step
  • Speaker attenuator for balance ranges from 0dB to -38.75dB in 1.25dB/step
  • Each channel output can be muted individually.
  • Low-frequency loudness compensation
  • All Controls using I2C Interface
  • Bass and Treble control, range from -14dB to +14dB in 2dB/step
  • Low harmonic distortion, low noise
  • PCB Dimensions 51.12 x 27.78 mm
  • 4 x 2.5 mm Mounting Holes

Connections and Other Details

  • CN1: 3.5MM Stereo EP Female Socket Audio Input
  • CN2: Pin 1 = VDD, Pin 2 – SCL, Pin 3 = SDA, Pin 4 = GND (I2C)
  • CN3: 3.5MM Stereo EP Female Socket Audio Input
  • CN4: Optional Audio Output Header Connector Pin1 = GND, Pin 2 = Audio Output Left Chnl, Pin 3 = Audio Output Right Chnl
  • CN5: Optional Audio Output Header Connector Pin1 = Audio Input Right Chnl, Pin 2 = Audio Input Left Chnl, Pin 3 = GND
  • D1: Power LED

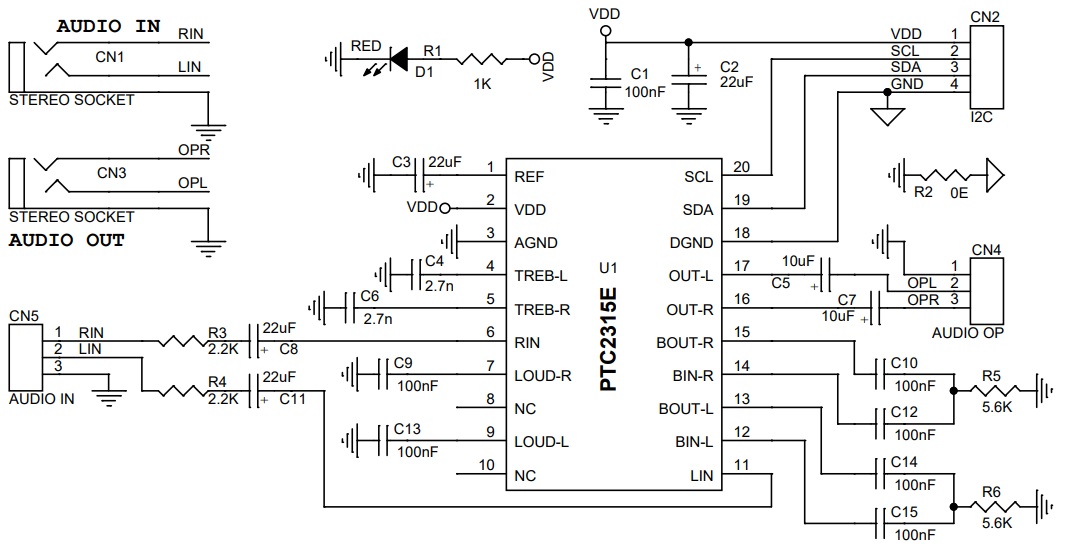

Schematic

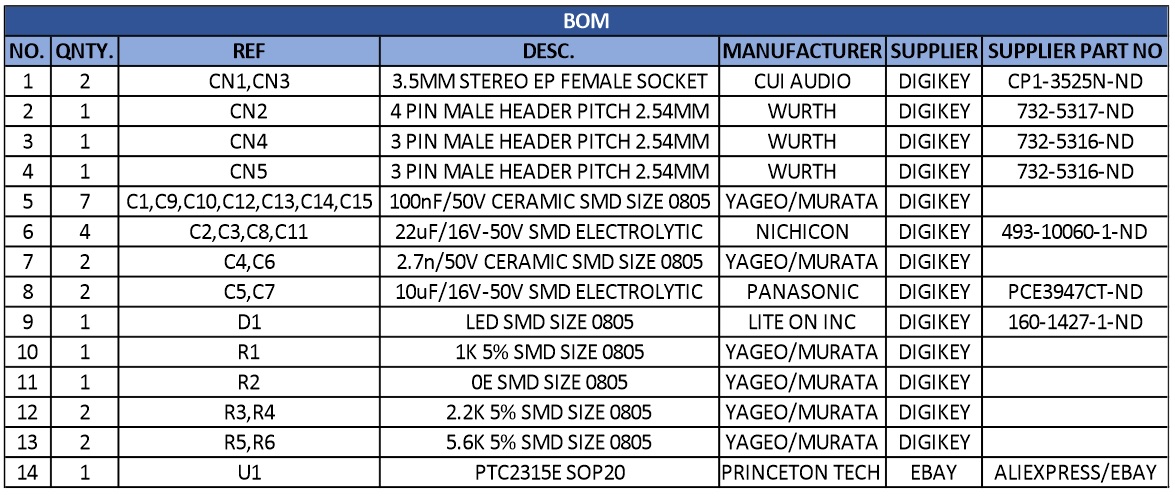

Parts List

NO.QNTY.REFDESC.MANUFACTURERSUPPLIERSUPPLIER PART NO
12CN1,CN33.5MM STEREO EP FEMALE SOCKETCUI AUDIODIGIKEYCP1-3525N-ND
21CN24 PIN MALE HEADER PITCH 2.54MMWURTHDIGIKEY732-5317-ND
31CN43 PIN MALE HEADER PITCH 2.54MMWURTHDIGIKEY732-5316-ND
41CN53 PIN MALE HEADER PITCH 2.54MMWURTHDIGIKEY732-5316-ND
57C1,C9,C10,C12,C13,C14,C15100nF/50V CERAMIC SMD SIZE 0805YAGEO/MURATADIGIKEY
64C2,C3,C8,C1122uF/16V-50V SMD ELECTROLYTICNICHICONDIGIKEY493-10060-1-ND
72C4,C62.7n/50V CERAMIC SMD SIZE 0805YAGEO/MURATADIGIKEY
82C5,C710uF/16V-50V SMD ELECTROLYTICPANASONICDIGIKEYPCE3947CT-ND
91D1LED SMD SIZE 0805LITE ON INCDIGIKEY160-1427-1-ND
101R11K 5% SMD SIZE 0805YAGEO/MURATADIGIKEY
111R20E SMD SIZE 0805YAGEO/MURATADIGIKEY
122R3,R42.2K 5% SMD SIZE 0805YAGEO/MURATADIGIKEY
132R5,R65.6K 5% SMD SIZE 0805YAGEO/MURATADIGIKEY
141U1PTC2315E SOP20PRINCETON TECH EBAYALIEXPRESS/EBAY

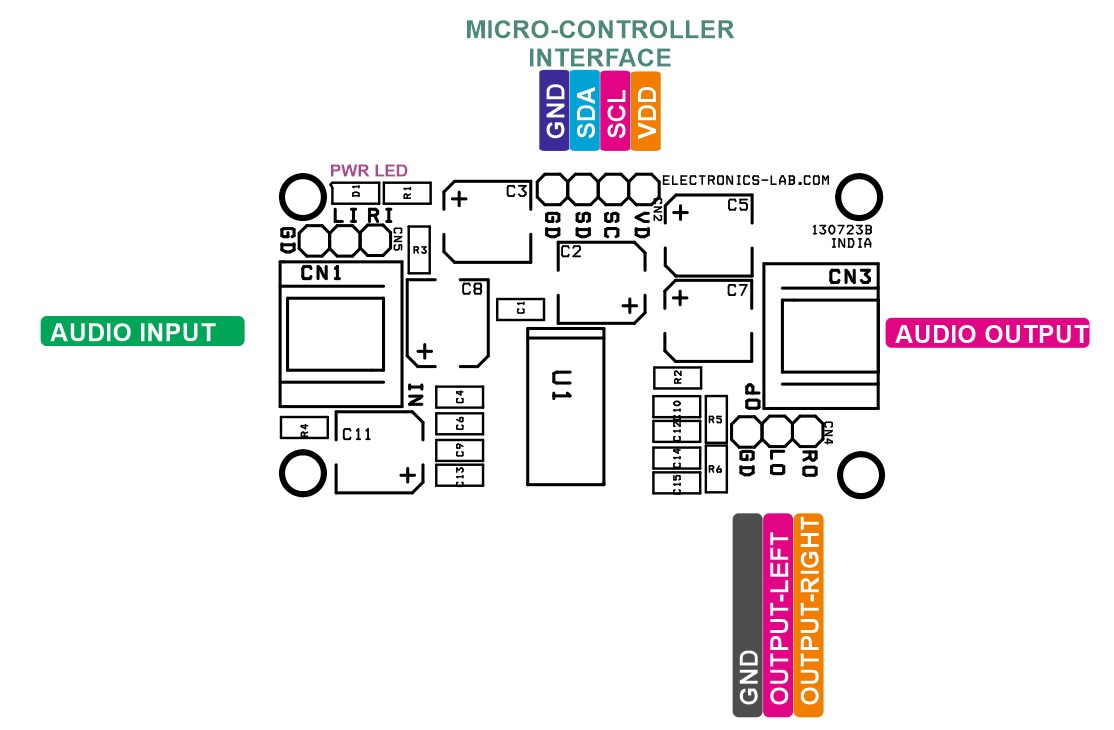

Connections

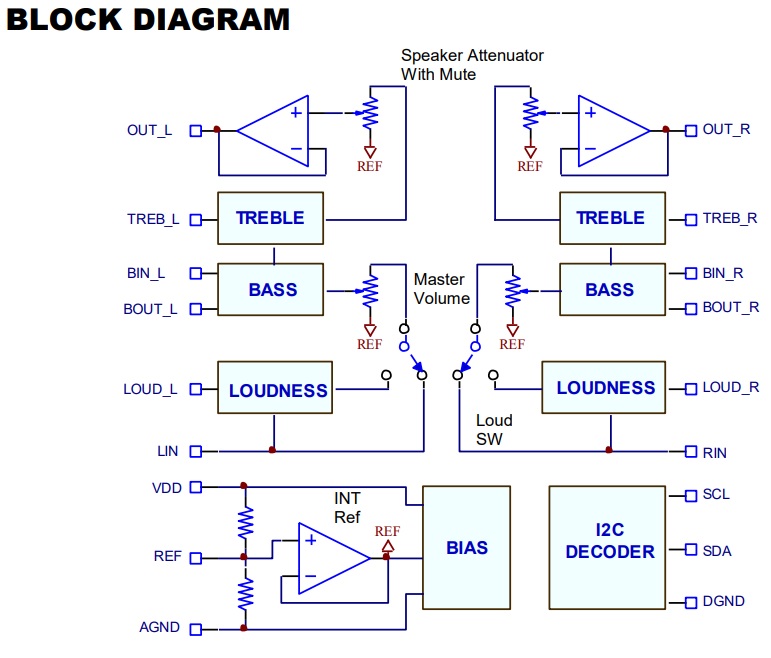

Block Diagram

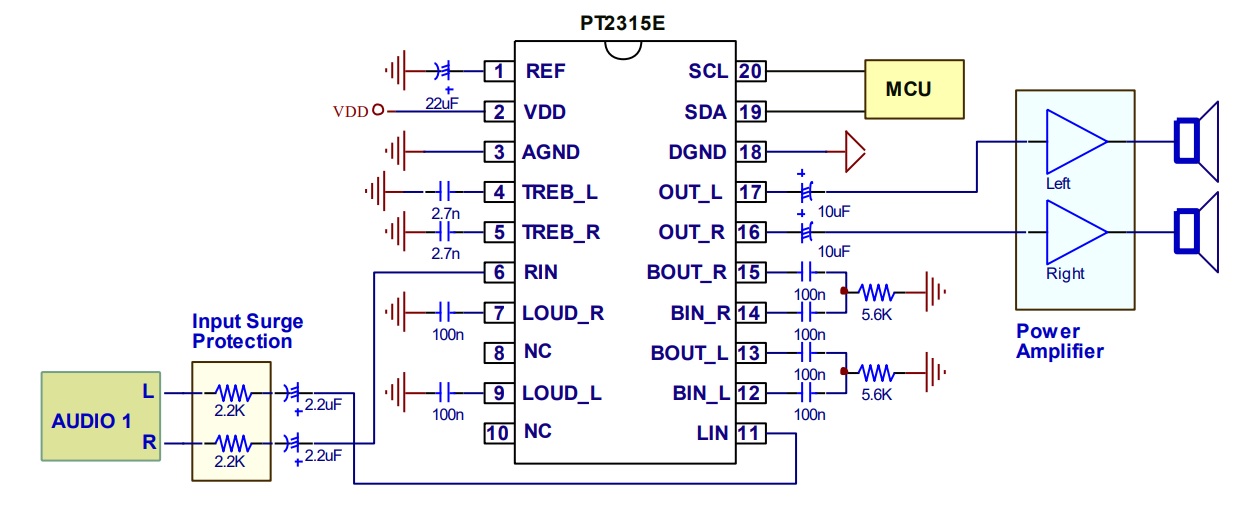

Application Schematic

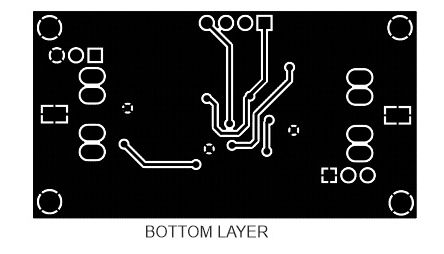

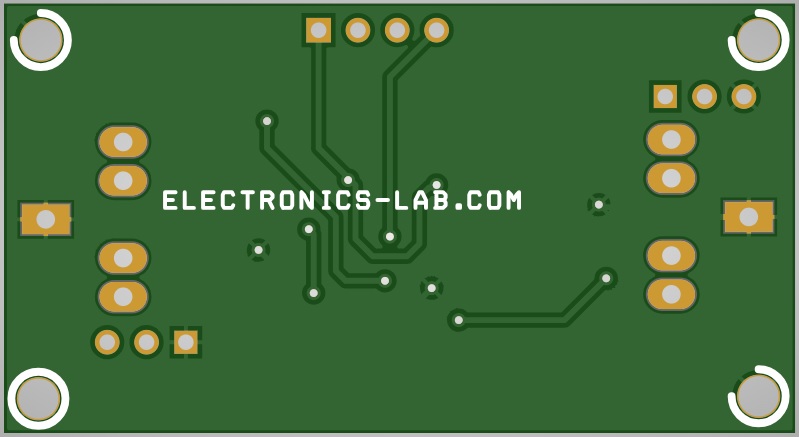

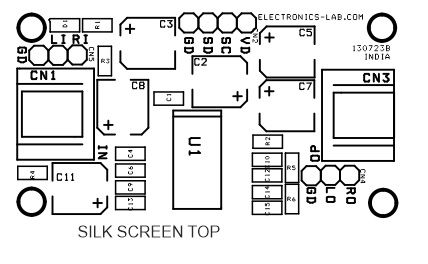

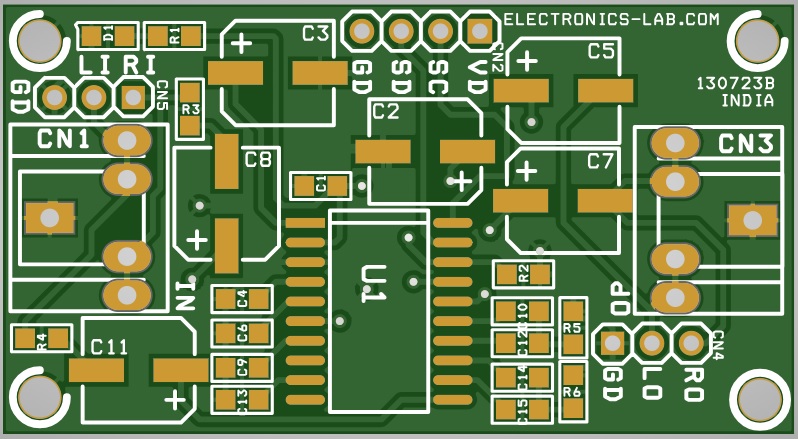

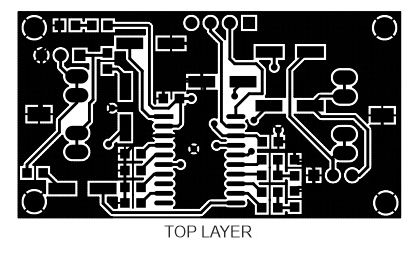

Gerber View

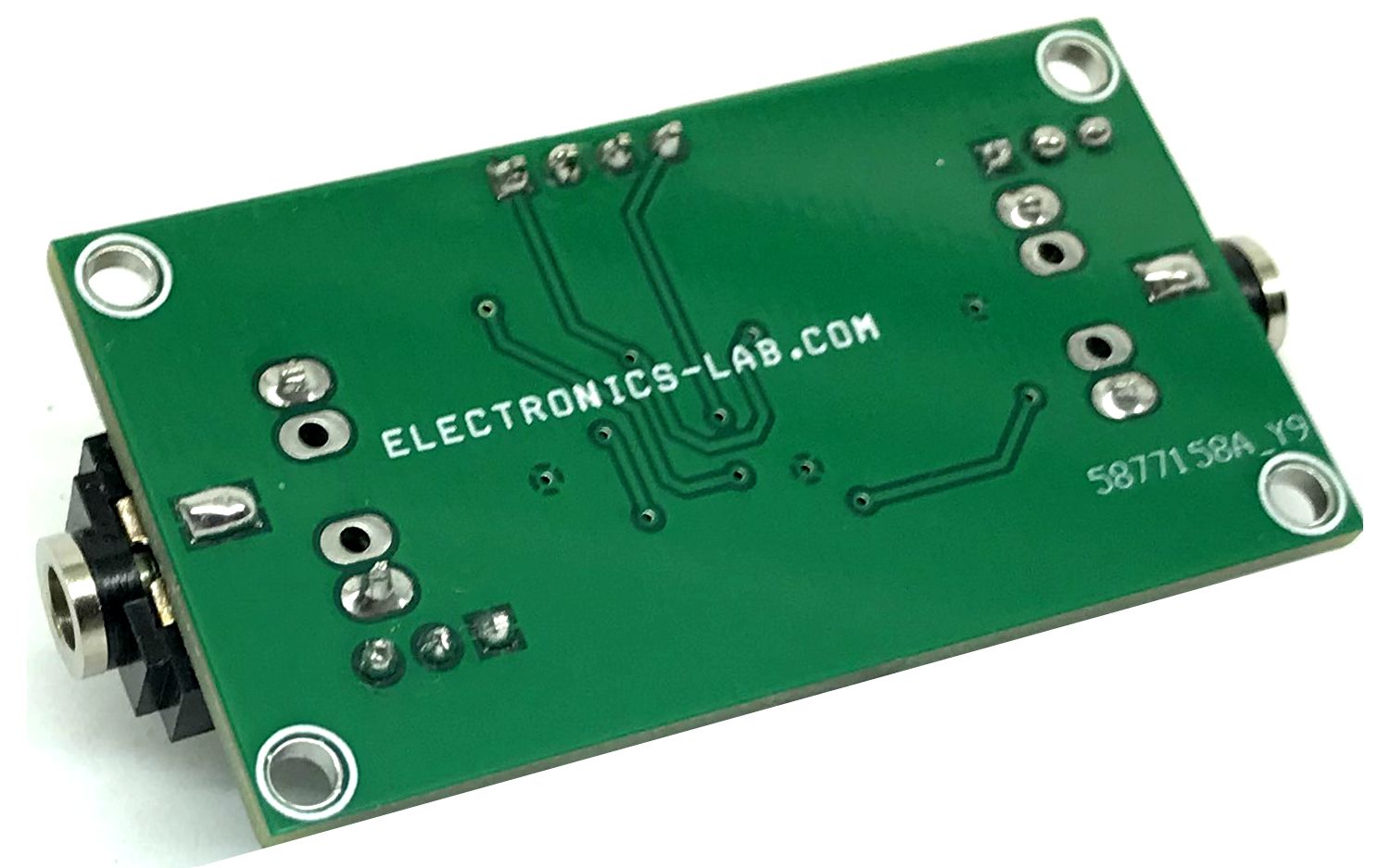

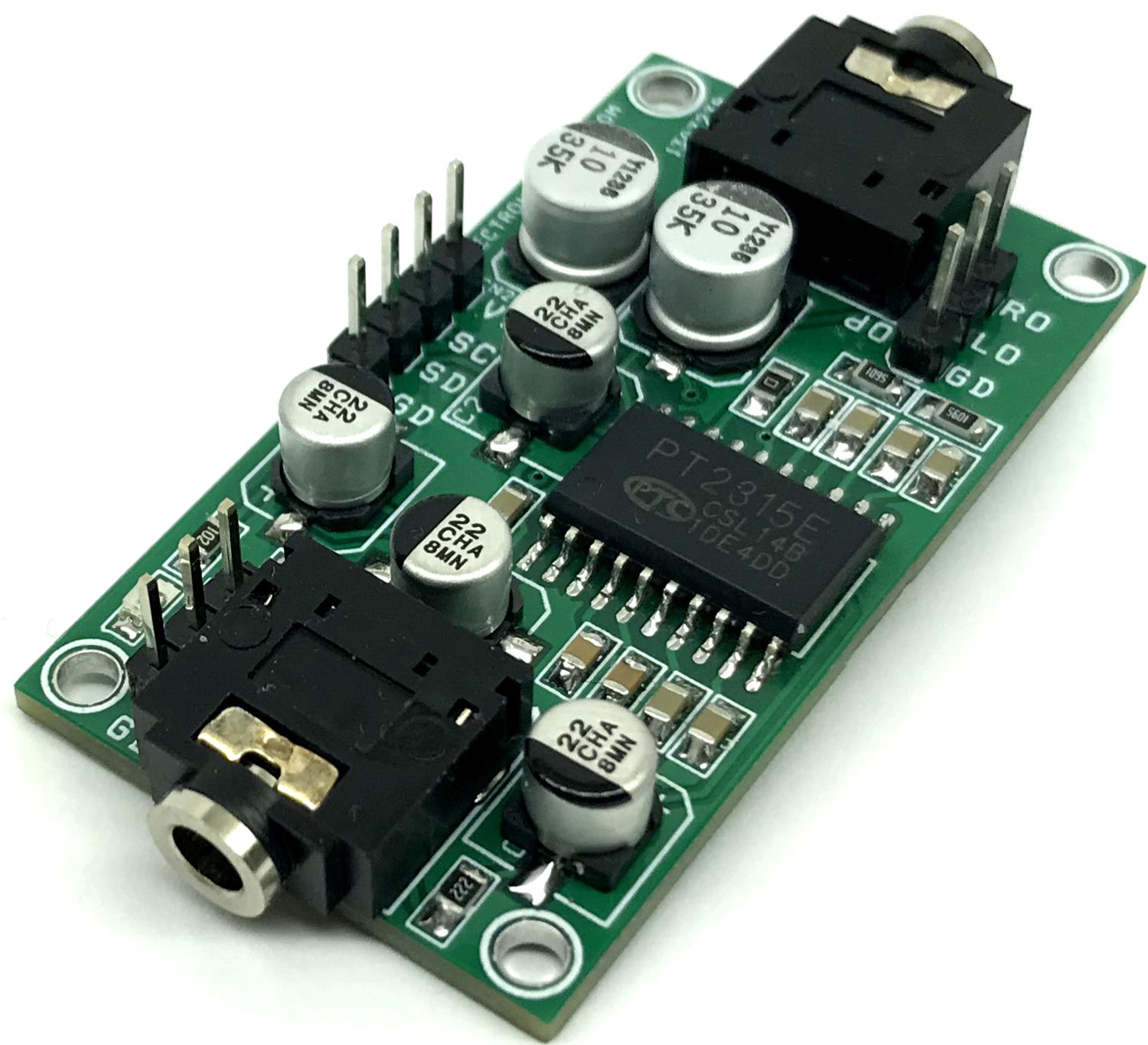

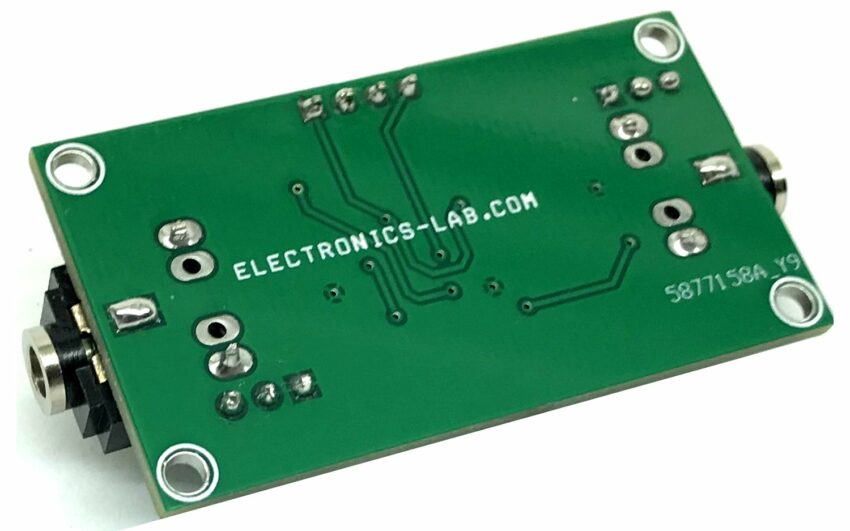

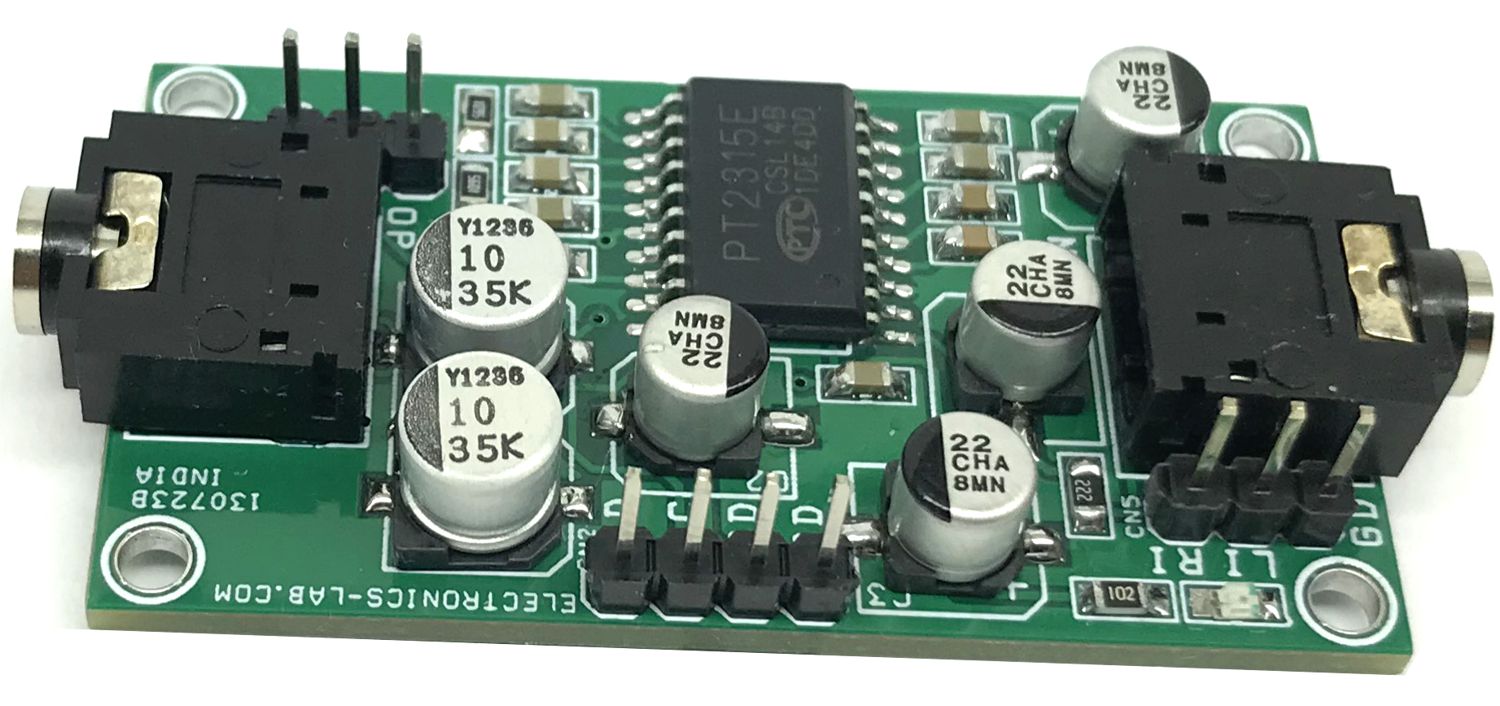

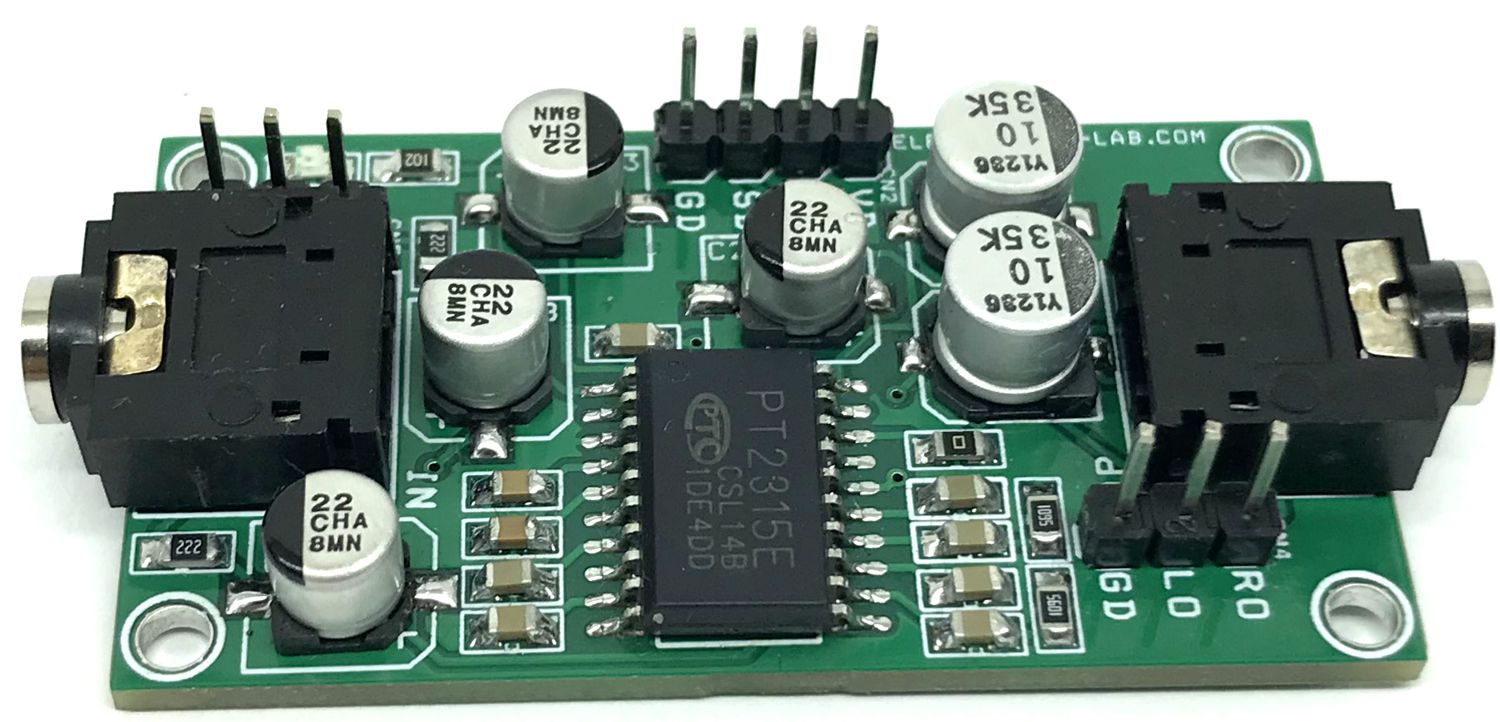

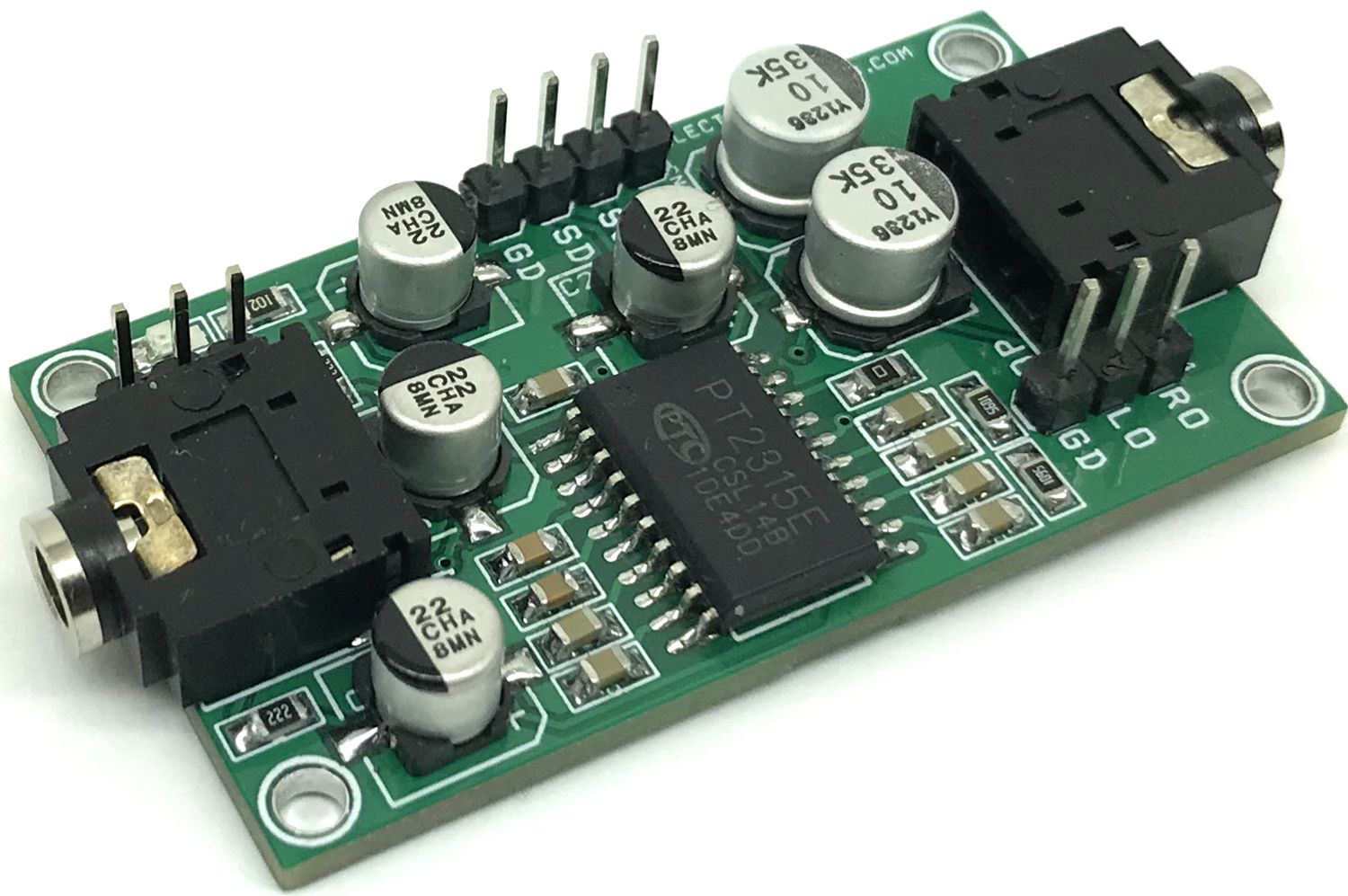

Photos

PT2315E Datasheet
