Waveshare Jetson Orin Nano/NX carrier board features dual Ethernet and M.2 slots

Waveshare JETSON-ORIN-IO-BASE-B Jetson Orin Nano and Orin NX Carrier Board

Waveshare has released the JETSON-ORIN-IO-BASE-B, a compact carrier board for the Jetson Orin Nano and Orin NX modules. It is designed for AI development in robotics, vision, and autonomous systems, offering practical connectivity and expansion options.

The board features dual Ethernet ports (2.5G + 1G), two M.2 Key M slots for NVMe SSDs, and an M.2 Key E slot for wireless expansion. It includes seven USB ports, two CSI camera interfaces, and a DisplayPort output supporting a 4K display. A Raspberry Pi-like color-coded 40-pin GPIO header with I²C, SPI, UART, and GPIO devices,  with a wide 9V–19V DC input. These features make this board suitable for various applications.

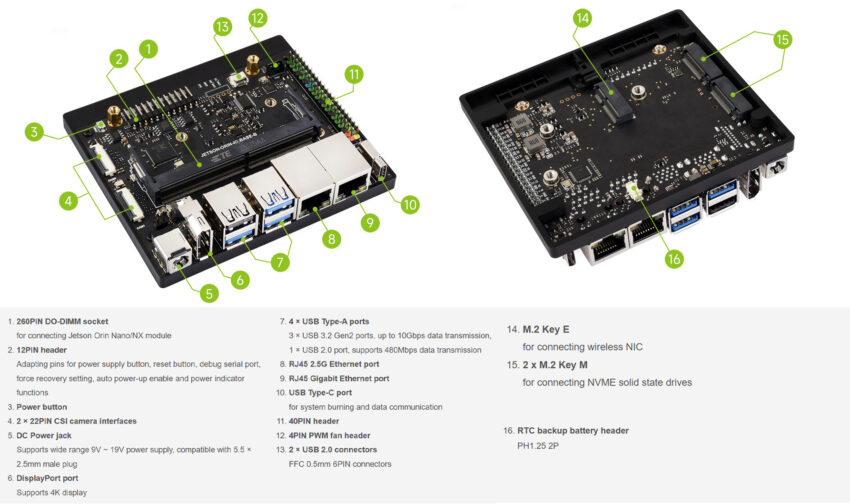

Jetson Orin Nano and Orin NX Carrier Board Hardware Overview

Waveshare JETSON-ORIN-IO-BASE-B Specifications:

• Compatible SoM: NVIDIA Jetson Orin Nano, Jetson Orin NX with up to 100 TOPS of AI performance
• Storage: 2 × M.2 Key-M slots (NVMe SSD support
• Video Output: 1x DisplayPort supports 4K video
• Camera: 2× 22-pin CSI 2-lane camera ports (adapter cable required for cameras)
• Networking
  •  2 × RJ45 2.5 Gbps port + 1 Gbps port (dual Ethernet onboard)
  • Optional Bluetooth and WiFi support via M.2 E-Key slot
• USB:
  • 4 × USB Type-A (3 × USB 3.2 Gen2 up to 10 Gbps, 1 × USB 2.0)
  • 1 × USB Type-C (system burning / data)
  • 2 × USB 2.0 FFC connectors
• Expansion: Color-coded 40-pin GPIO header (I²C, SPI, I²S, UART, GPIO etc.)
• Misc:
  • 12-pin control header (power/reset/debug/recovery/auto power-up/LED)
  • RTC backup battery header (PH1.25 2P)
  • 4-pin PWM fan header
  • Onboard power button, recovery/reset buttons
• Power Supply: Wide-range 9 V – 19 V via DC jack
• Dimensions: 103.00 mm x 90.50 mm

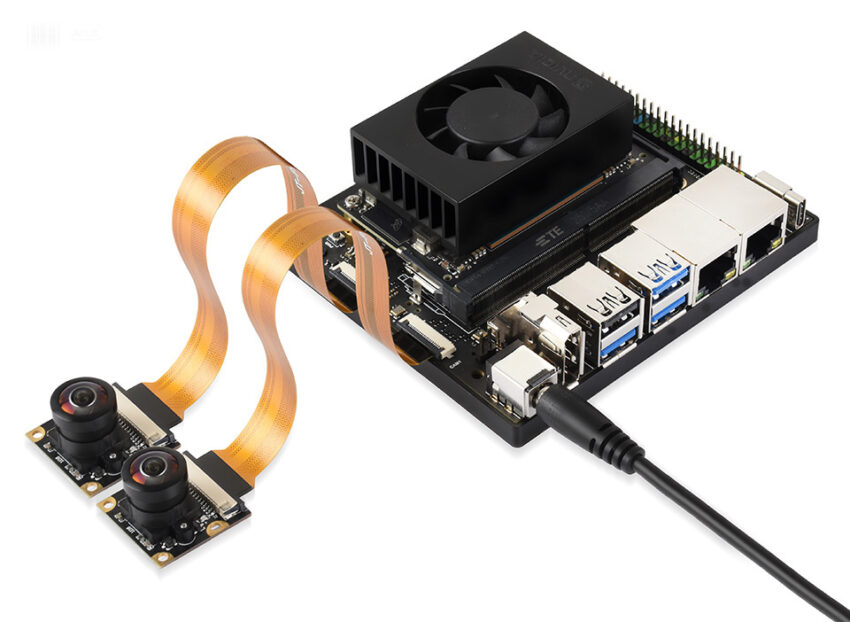

Camera modules for JETSON-ORIN-IO-BASE-B board

The Waveshare Jetson Orin Nano / NX Base Board works with NVIDIA JetPack SDK and supports Ubuntu 20.04 and 22.04 for system flashing. The system can be installed using NVIDIA SDK Manager or Waveshare’s flashing scripts. JetPack includes CUDA, cuDNN, TensorRT, and Multimedia API for AI and GPU tasks. Tools like VPI, VisionWorks, and jtop are also supported for setup and system monitoring. More information can be found on the company’s Wiki page.

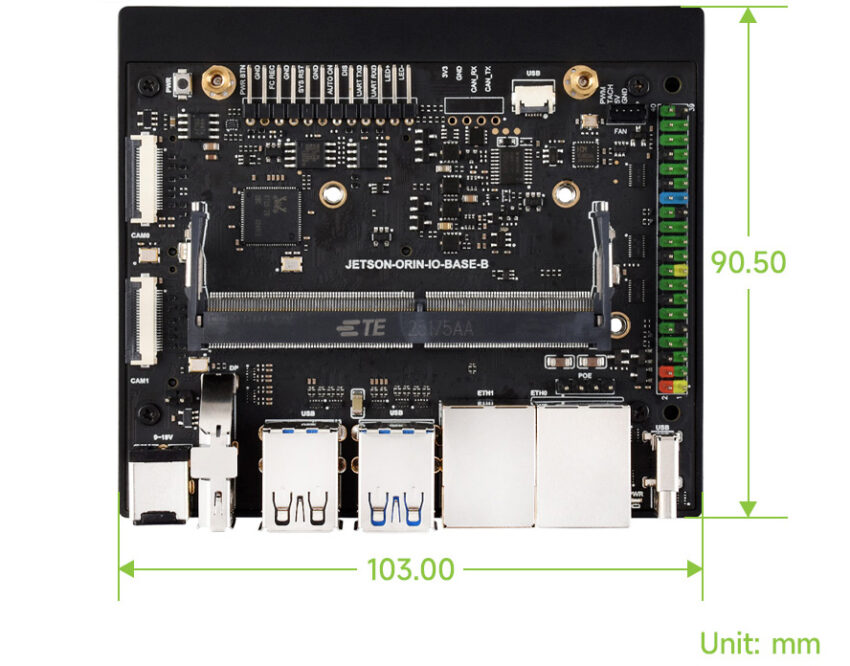

Camera modules for JETSON-ORIN-IO-BASE-B board Dimensions

The JETSON-ORIN-IO-BASE-B Jetson Orin carrier board is priced at $99.99 and can be purchased directly from the Waveshare online store. The package includes only the base board, and the Jetson Orin Nano or Orin NX module must be bought separately. Optional accessories such as NVMe SSDs, wireless NICs, and camera cables are also sold separately.

Waveshare offers worldwide shipping, a 15-day return policy, and a 12-month warranty.
