Shenzhen, China – June 11, 2019 – MYIR introduces a high-performance ARM SoM MYC-JX8MX CPU Module, which is built around the NXP i.MX 8M Quad processor featuring 1.3GHz quad ARM Cortex-A53 cores and a real-time ARM Cortex-M4 co-processor. The module runs Linux and is capable of working in extended temperature ranging from -30°C to 80°C.

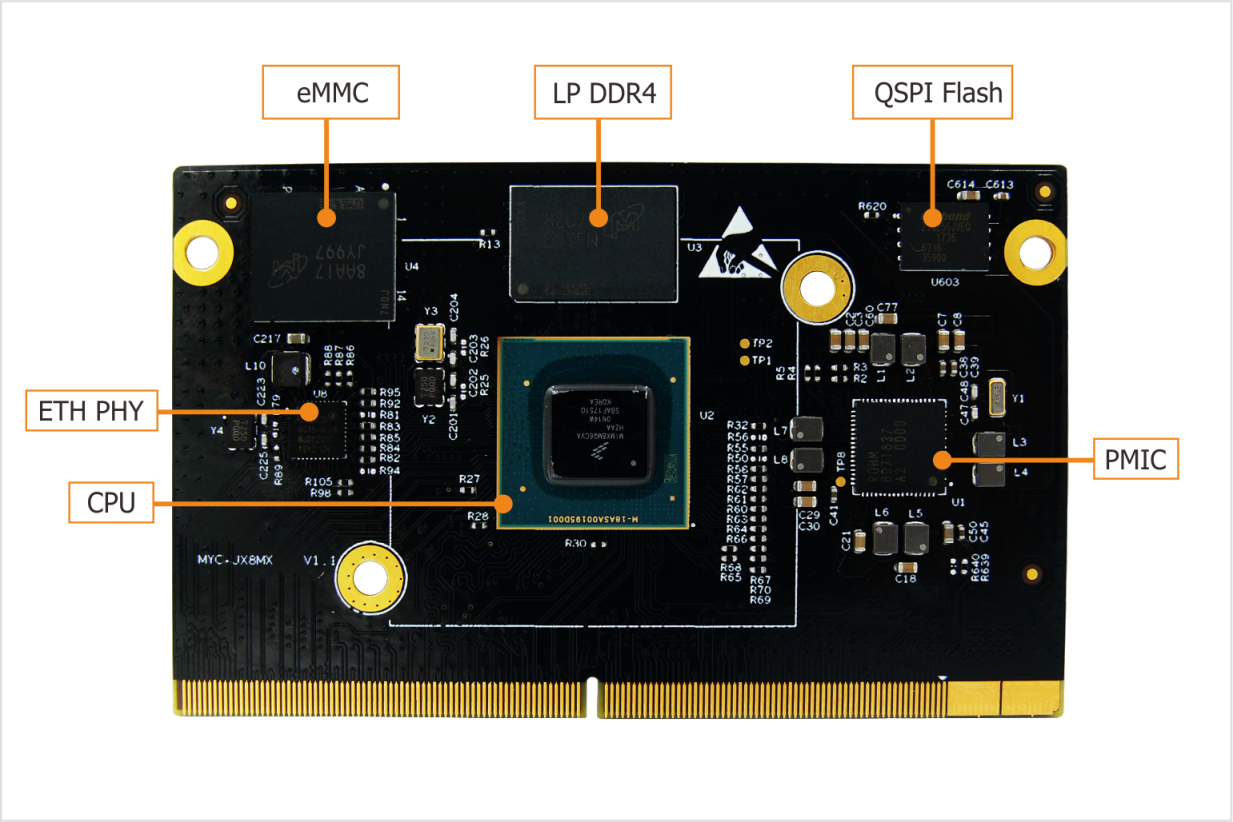

Measuring 82mm by 52mm, the MYC-JX8MX CPU Module has integrated 1GB/2GB LPDDR4, 8GB eMMC, 256Mbit QSPI Flash, Gigabit Ethernet PHY and PMIC on board. A large number of I/O signals are carried to or from the i.MX 8M CPU Module through one 0.5mm pitch 314-pin MXM 3.0 expansion connector, making it an excellent embedded solution for Scanning/Imaging, Building Automation and Smart Home, Human Machine Interface (HMI), Machine Vision and more other consumer and industrial applications which requires high multi-media performance.

MYC-JX8MX CPU Module (delivered with heat sink by default)

MYIR also offers a versatile platform MYD-JX8MX development board for evaluating the MYC-JX8MX CPU Module. It takes full features of the i.MX 8M processor and has brought out rich peripherals through connectors and headers such as 4 x USB 3.0 Host ports and 1 x USB 3.0 Host/Device port, Gigabit Ethernet, TF card slot, USB based Mini PCIe interface for 4G LTE Module, WiFi/BT, Audio In/Out, HDMI, 2 x MIPI-CSI, MIPI-DSI, 2 x LVDS display interfaces, PCIe 3.0 (x4) NVMe SSD Interface, etc. It is delivered with necessary cable accessories for customer to easily start development as soon as getting it out-of-box.

MYC-JX8MX block diagram

Features

Mechanical Parameters

  • Dimensions: 50mm x 82mm
  • PCB Layers: 10-layer design
  • Power supply: +5V/0.5A
  • Working temperature: -30~80 Celsius

Processor

  • NXP i.MX 8M Quad Processor based on 1.3GHz Quad ARM Cortex-A53 and 266MHz Cortex-M4 cores
    (MIMX8MQ6CVAHZAB by default)

Memory

  • 1GB / 2 GB LPDDR4 (supports up to 4GB LPDDR4)
  • 8GB eMMC Flash (supports up to 64GB eMMC)
  • 256Mbit QSPI Flash

Peripherals and Signals Routed to Pins

  • One 10/100/1000Mbps Ethernet PHY
  • Power Management IC (ROHM BD71837MWV)
  • 0.5mm pitch 314-pin MXM 3.0 Expansion Connector
    – 1 x 10/100/1000Mbps Ethernet
    – 3 x Serial ports
    – 3 x I2C
    – 2 x SPI
    – 4 x PWM
    – 3 x USB 3.0
    – 2 x PCIe
    – 6 x I2S / SAI
    – 2 x MIPI Camera Sensor Interface
    – 1 x JTAG
    – 1 x HDMI 2.0a output
    – Up to 108 GPIOs

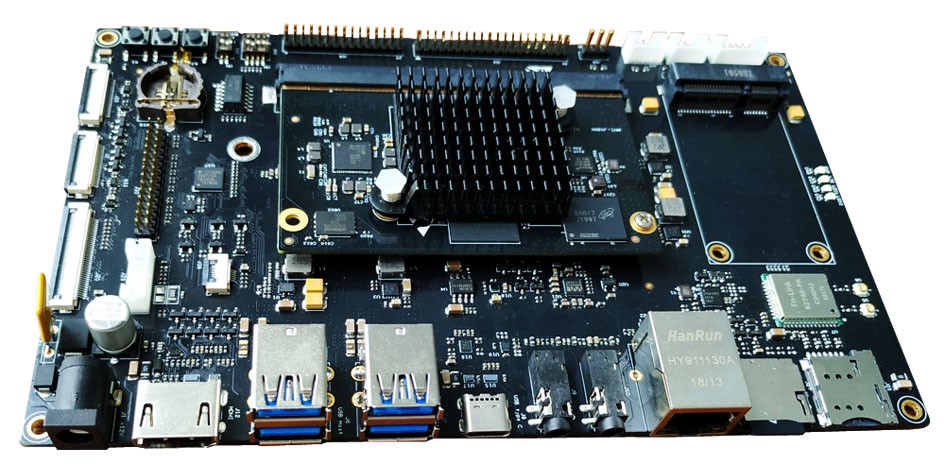

MYD-JX8MX Development Board

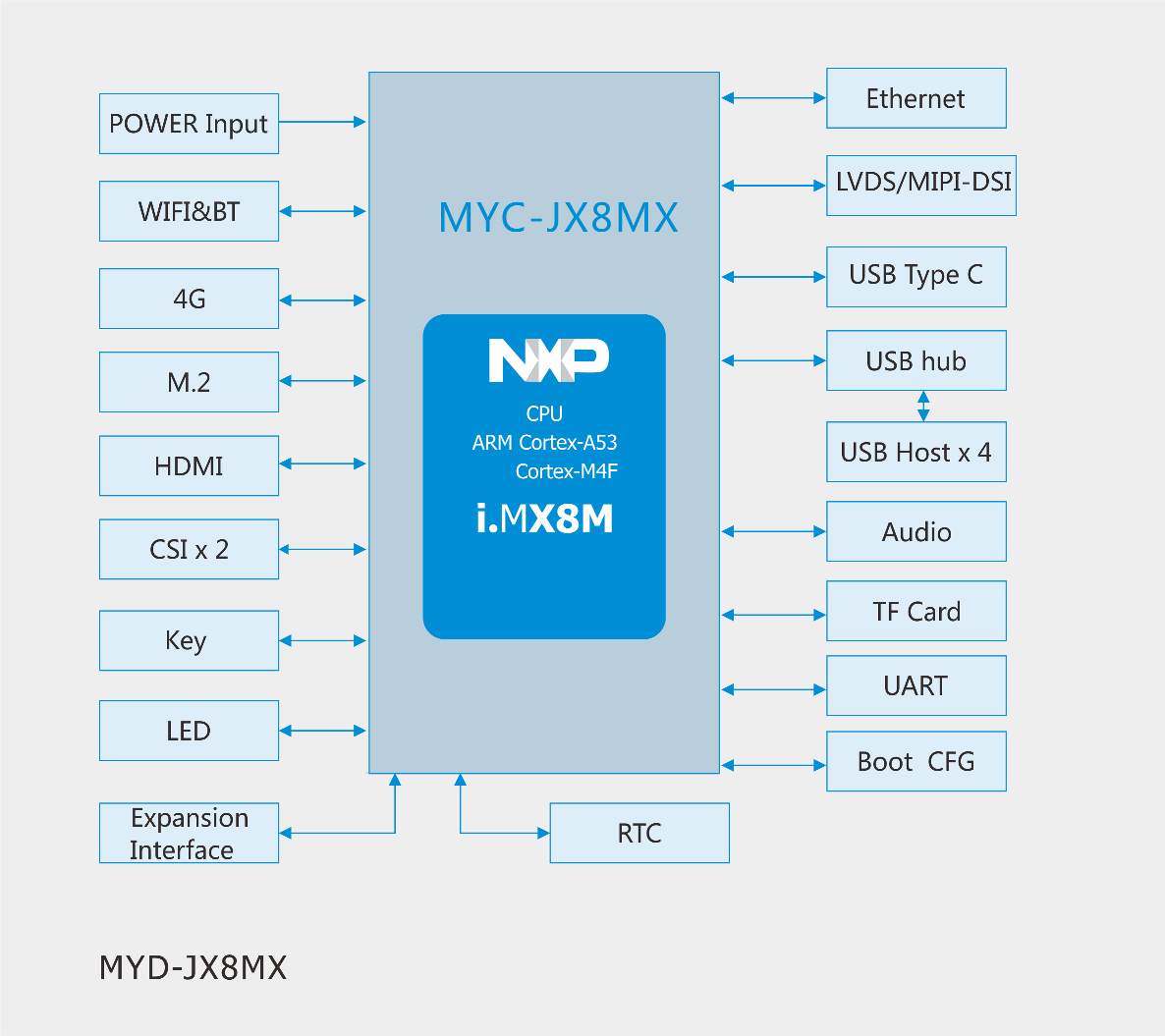

MYD-JX8MX block diagram

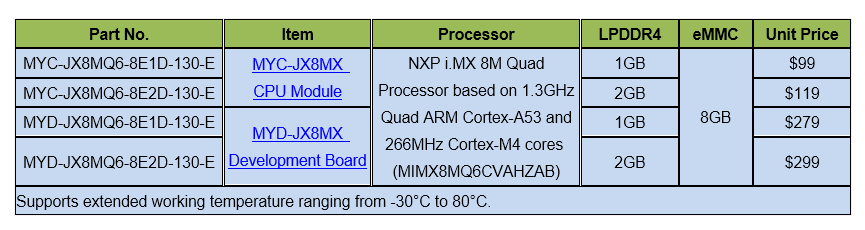

MYIR offers 1GB or 2GB RAM selections for the CPU modules and development boards which have very-high powered prices to compare.

More information about the new products can be found at:
