I²CDriver is an easy-to-use, open source tool for controlling I²C devices. It works with Windows, Mac, and Linux, and has a built-in color screen that shows a live “dashboard” of all the I²C activity. It uses a standard FTDI USB serial chip to talk to the PC, so no special drivers need to be installed. The board includes a separate 3.3 V supply with voltage and current monitoring.

I²C is Everywhere

It’s in every phone, in your embedded electronics, in every microcontroller, Raspberry Pi, and PC motherboard. It’s a mature technology – still going strong after 36 years. Because it’s everywhere, I²C is used by everyone from novices to embedded designers. But the common element of everyone’s I²C experience is struggle. Instead of being easy, I²C very often feels really difficult. Because there are so many ways for I²C to go wrong, things rarely “just work” and instead involve some painful debugging.

I²CDriver Makes I²C Much More Friendly

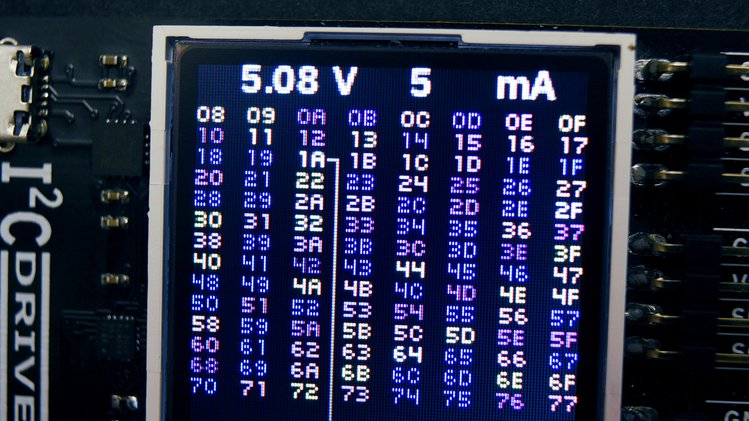

The heat map shows all 7-bit I²C addresses
The heat map shows all 7-bit I²C addresses

While other I²C tools might offer a couple of LEDs, I²CDriver has a clear logic-analyzer display of the signal lines plus a graphical decoding of the I²C traffic.

In addition, it continuously displays an address map of all attached I²C devices, so as you connect a device, it lights up on the map. You’ll never have to ask “is this thing even switched on?” again.

The current and voltage monitoring let you catch electrical problems early. The included color-coded wires make hookup a cinch; no pinout diagram is required. It includes a separate 3.3 V supply for your devices, a high-side current meter, and programmable pullup resistors for both I²C lines.

There are three I²C ports, so you can hook up multiple devices without any fuss.

Do More With I²CDriver

I²CDriver driving three 8x8 LED modules
I²CDriver driving three 8×8 LED modules

By controlling I²C hardware using the PC tools you’re most comfortable with, you can get devices doing what you want in a fraction of the development time. Calibrating devices like accelerometers, magnetometers, and gyroscopes is much simpler and faster when done directly on the PC through I²CDriver.

Features

  • Open hardware: the design, firmware and all tools are under BSD license
  • Live display: shows you exactly what it’s doing all the time
  • Fast transfer: sustained I²C transfers at 400 and 100 kHz
  • USB power monitoring: USB line voltage monitor to detect supply problems, to 0.01 V
  • Target power monitoring: target device high-side current measurement, to 5 mA
  • I²C pullups: programmable I²C pullup resistors, with automatic tuning
  • Three I²C ports: three identical I²C ports, each with power and I²C signals
  • Jumpers: color coded jumpers included in each pledge level
  • 3.3 output: output levels are 3.3 V, all are 5 V tolerant
  • Supports all I²C features: 7- and 10-bit I²C addressing, clock stretching, bus arbitration
  • Sturdy componentry: uses an FTDI USB serial adapter, and Silicon Labs automotive-grade EFM8 controller
  • Usage reporting: reports uptime, temperature, and running CRC of all traffic
  • Flexible control: GUI, command-line, C/C++, and Python 2/3 host software provided for Windows, Mac, and Linux

Specifications

  • Maximum power out current: up to 470 mA
  • Device current: up to 25 mA
  • Dimensions: 61 mm x 49 mm x 6 mm
  • Computer interface: USB 2.0, micro USB connector

The I²CDriver is live on www.crowdsupply.com and has 42 days to go.
