Newport GW6200 Networking Single Board Computer

Newport GW6200 Networking Single Board Computer

784
Views
0 Comments

High Performance Single Board Computer for Networking with 2x Mini-PCIe Sockets, 2x Gigabit Ethernet Ports, and USB 2.0/3.0

The GW6200 is a member of Gateworks 6th generation Newport family of single board computers targeted for a wide range of indoor and outdoor networking applications. The single board computer features the Cavium OcteonTX™ Dual Core ARMv8 SoC processor operating at 800MHz, 1GByte of DDR4 DRAM, and 8GBytes of eMMC System Flash. Two Mini-PCIe expansion sockets support a combination of 802.11abgn/ac wireless radios, LTE/4G/3G CDMA/GSM cellular modems, mSATA drives and other PCI Express peripherals. Additional peripherals include two Gigabit Ethernet ports and two USB 2.0/3.0 ports. The Gateworks System Controller provides embedded features such as real time clock, voltage and temperature monitor, fan control and monitor, serial EEPROM, and advanced power management with programmable board shut-down and wake-up for remote sensor applications. A wide-range DC input power supply provides up to 10W to the Mini-PCIe sockets for supporting the latest high-power radios and up to 10W to the USB 2.0/3.0 jacks for powering external devices. Power is applied through 2-pin connector or an Ethernet jack with either 802.3at or Passive Power over Ethernet. Both OpenWrt and Ubuntu Linux Board Support Packages are supported.

Features

  • Cavium OcteonTXTM Dual Core ARMv8 800MHz SoC Processor
  • 1GByte DDR4 SDRAM Memory and 8GBytes eMMC Flash Memory Standard
  • Micro-SD™ Flash Expansion Socket

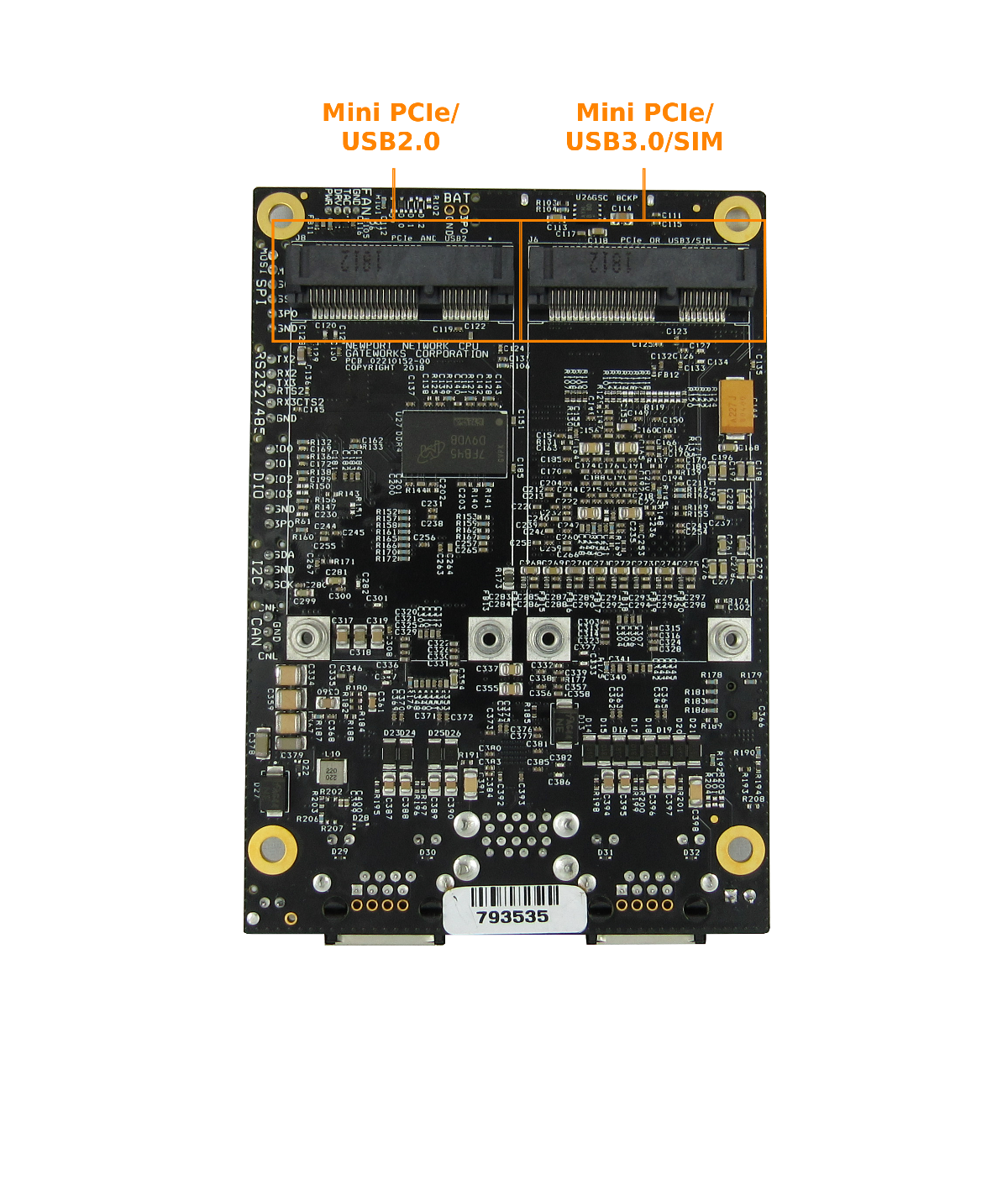

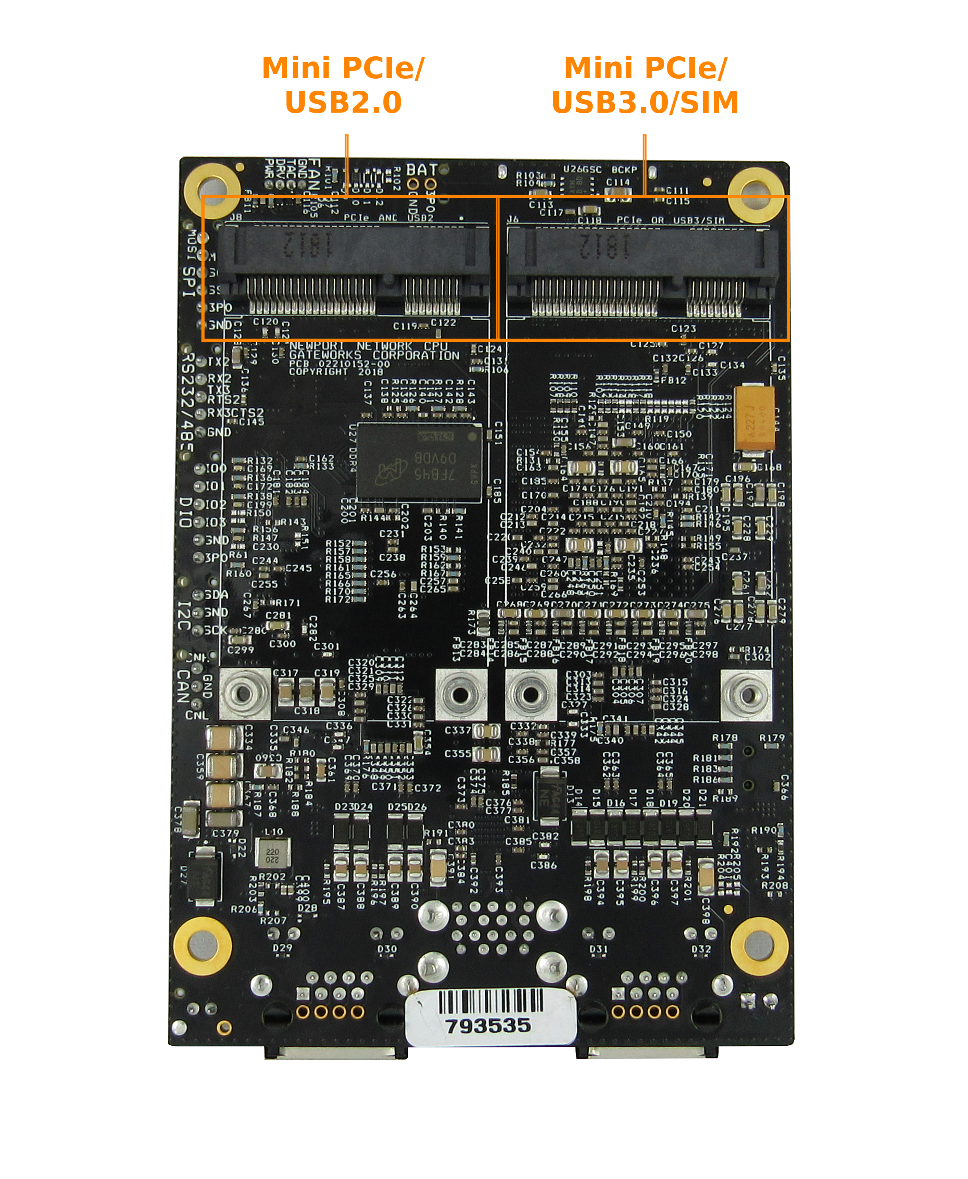

  • Two High-Power Mini-PCIe Sockets
  • Socket 1: PCIe or USB3.0, USB2.0, SIM Socket
  • Socket 2: PCIe or mSATA, USB2.0
  • Two Gigabit Ethernet Ports
  • Two USB 2.0/3.0 Ports up to 5Gbps Super Speed
  • Two RS232 or One RS232/422/485 Serial Port
  • Digital I/O, SPI, and I2C Expansion
  • Real Time Clock with Battery Backup
  • Voltage and Temperature Monitor
  • Serial Configuration EEPROM
  • Programmable Watchdog Timer
  • Programmable Fan Controller with Tachometer Support
  • Programmable Shut-Down and Wake-Up
  • Tamper Switch Support
  • Optional Ublox ZOE-MQ8 GNSS GPS Receiver with PPS Support
  • Optional Microchip MCP25625 2.0B CAN Bus Controller
  • 2-Pin Connector Input Voltage Range 8 to 60V
  • Ethernet Port Passive PoE Input Voltage Range 10 to 60V
  • Ethernet Port 802.3at PoE Input Voltage Range 37 to 57V
  • Input Voltage Reverse and Transient Protection
  • Typical Operating Power 5W@25C
  • -40C to +85C Operating Temperature
  • Form Factor Compatible with GW5200 Ventana Media SBC
  • OpenWrt and Ubuntu Board Support Packages
  • 1 Year Warranty

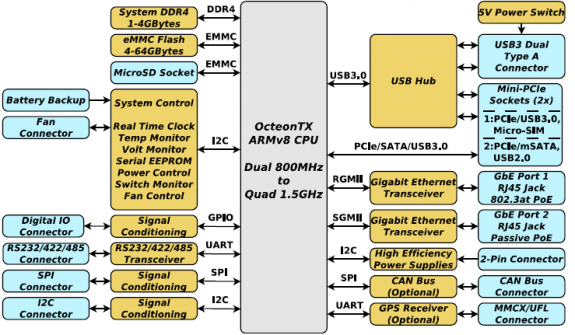

Block Diagram

more information and support material can be found on Gateworks Newport Family Support  page and product page.
