10W Stereo Audio Amplifier

Rajkumar Sharma      http://www.rajkumarsharma.com
16112
Project tested

10W_Stereo_Amplifier_PIC



This project is a 10W Stereo Audio Amplifier based on TDA1521 IC.

Description

The project built around Philips TDA1521 IC, The project provides high quality audio 2X10W Audio output. The device is especially designed for mains fed applications, (e.g. Stereo TV Sound and Stereo Radio). The circuit designed for asymmetrical power supply systems.

Specifications

  • It has few external components
  • Input muted during power on and off
  • Low offset voltage between output and ground
  • Excellent gain balance between channels
  • Short circuit proof IC
  • Thermally protected
  • Supply 18V DC @ 3.5A
  • Output Power 2X10W
  • Voltage Gain 30dB
  • Frequency response 20Hz-20Khz
  • Input impedance 20K Ohm
  • Output load 8 Ohm
  • Recommended power supply 18V @ 3Amps

Schematic

10W_Stereo_Amplifier_SCHEMATIC



Parts

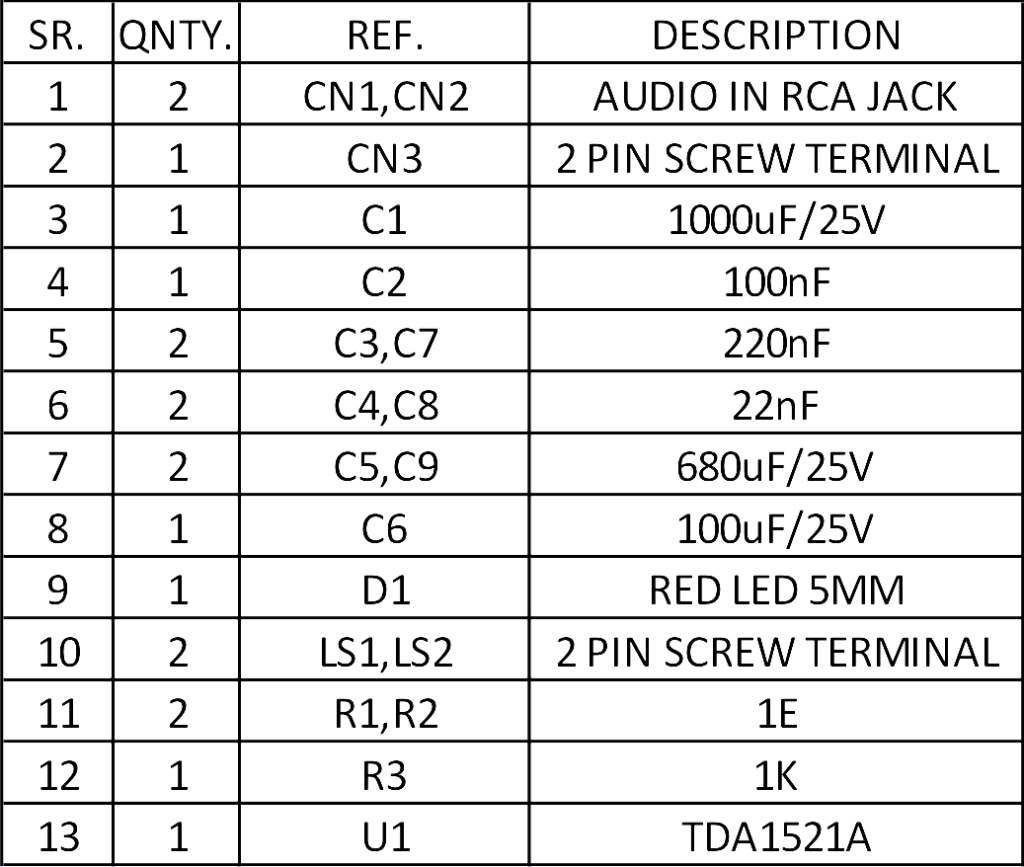

10W_Stereo_Amplifier_BOM

PCB

3 Response on “10W Stereo Audio Amplifier

  1. The TDA1521 is not available at both of the largest electronics parts distributors in north America. Is it obsolete?

  2. Indeed NXP TDA1521 is obsolete with no cross available. Take a look at Mouser Parts: 511-TDA2009A and 863-LA4625-E to see if they will work for the application. Mouser.com
