40 PIN & 28 PIN PIC18F USB Development Board

  • Rajkumar Sharma
  • 7895
    Views
  • medium
  • Tested

pic18f-development-board-using-pic-18f4550-18f2550-2

PIC18F USB Development Board will help you with your prototyping requirement with any 28/40-pin Microchip microcontroller supporting USB interface . The board has been tested using PIC18F4550 40 Pin & PIC18F2550 28 Pin Microcontroller.

Features

  • All ports terminating in separate Box Header with 5 VDC source option
  • ICSP connector for programming for the PIC’s with ICD support
  • Bridge in the input provides any polarity DC supply connection to the board
  • 20 MHz crystal source
  • Onboard +5V Voltage regulator
  • Four mounting holes of 3.2 mm each
  • PCB dimensions 77 mm x 87 mm

Schematic

pic18f-development-board-using-pic-18f4550-18f2550-2

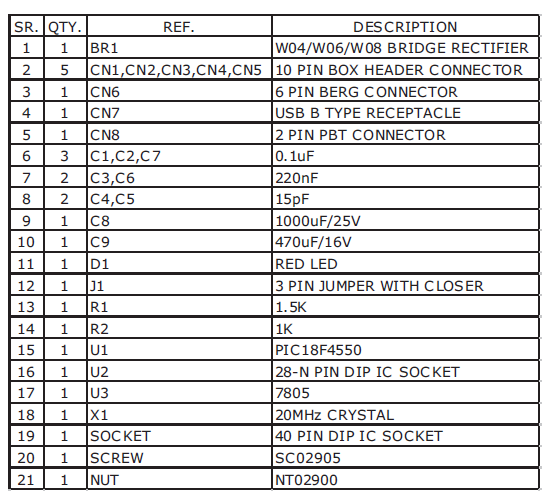

Parts List

pic18f-development-board-using-pic-18f4550-18f2550-1

Photos

pic18f-development-board-using-pic-18f4550-18f2550-1

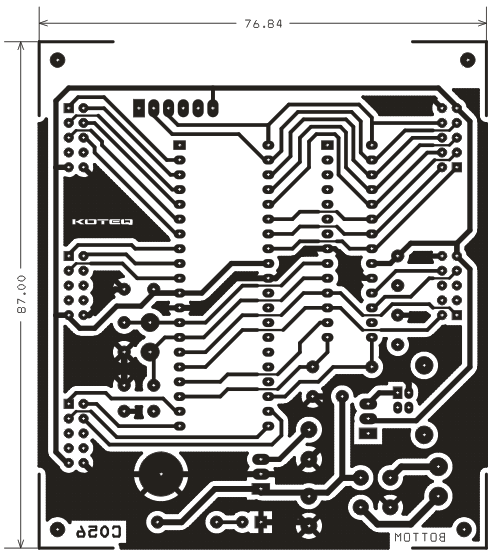

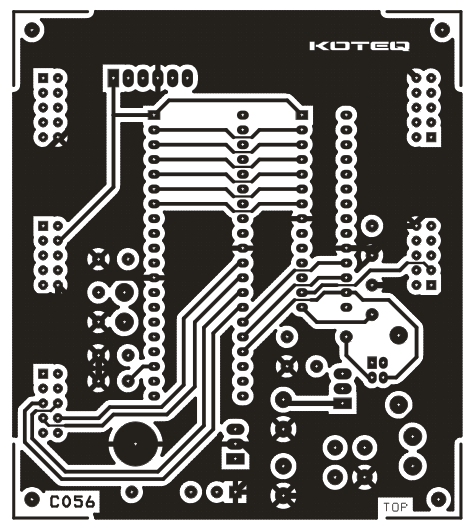

PCB
