8 Tact Switch board for microcontroller

  • Rajkumar Sharma
  • 4253
    Views
  • easy
  • Tested

8-tactile-switch-input-board-img1

8 Tactile Switch Input Board is a simple PCB offering easy connection of a standard 10-pin Box Header connector to 8 small type Tactile Switch with a jumper selectable pull-up / pull down of resistor network connected in parallel. Easy interface with PIC and Atmel Development board published on our website.

Specifications

  • PCB dimensions 37 mm x 87 mm
  • Easy interface with a microcontroller
  • Selectable Pull-up / pull down resistors

Schematic

8-tactile-switch-input-board-schematic

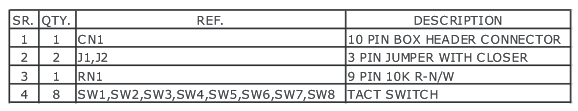

Parts List

8-tactile-switch-input-board-parts

Photos



PCB
