DS1307 Real Time Clock Module

  • Rajkumar Sharma
  • 12816
    Views
  • easy
  • Tested

C053



This project is a Real Time Clock based on SD1307 RTC

Description

RTC Add-On Board offers an easy way to interface a standard I2C RTC IC type DS1307, into your project.

Specifications

  •  5 VDC supply sourced through the interfacing Box Header connector.
  • Battery backup for the RTC board available on the PCB
  • Four mounting holes of 3.2 mm each
  • PCB dimensions 50 mm x 33 mm

Schematic

SCHEMATIC



Parts List

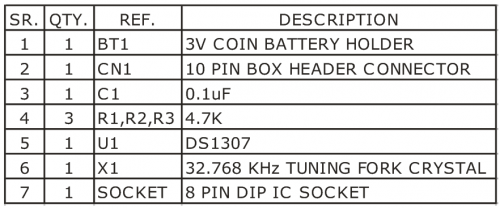

BOM

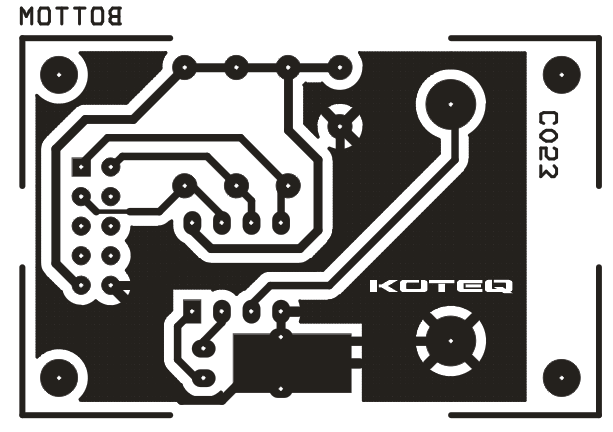

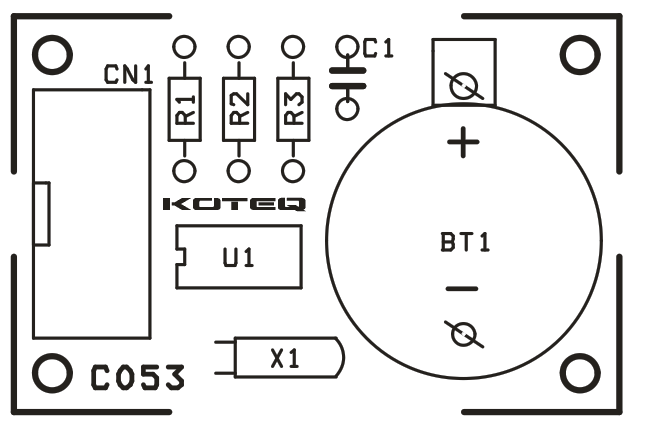

PCB
