PIC16F 28/40 Pin Development Board

pic16f-28-40-pin-development-board-img1

PIC16F 28/40-pin Development Board will help you with your prototyping requirement with any of Microchip’s 28/40-pin of 16F PIC microcontrollers.

Specifications

  • All ports terminating in separate box header connector with 5 VDC source option
  • ICSP connector for programming for the PIC’s with ICD support
  • Jumper selectable onboard pull-up resistors for Port A.4 pin on the microcontroller
  • Bridge in the input provides any polarity DC supply connection to the board
  • 20 MHz crystal source
  • Onboard +5V voltage regulator
  • Four mounting holes of 3.2 mm each
  • PCB dimensions 77 mm x 82 mm

Schematic

pic16f-28-40-pin-development-board-schematic

Parts List

pic16f-28-40-pin-development-board-parts

Photos

pic16f-28-40-pin-development-board-img2

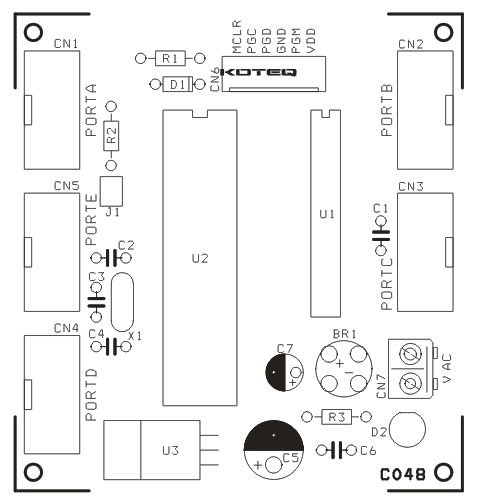

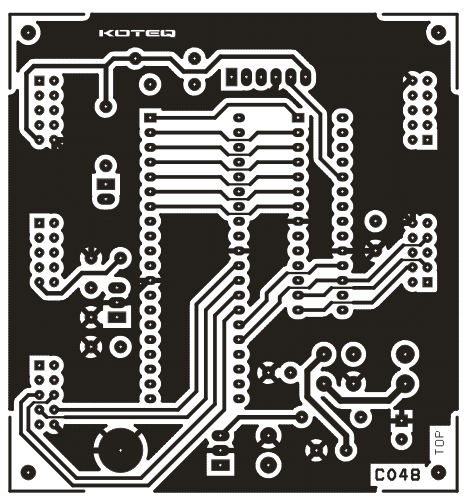

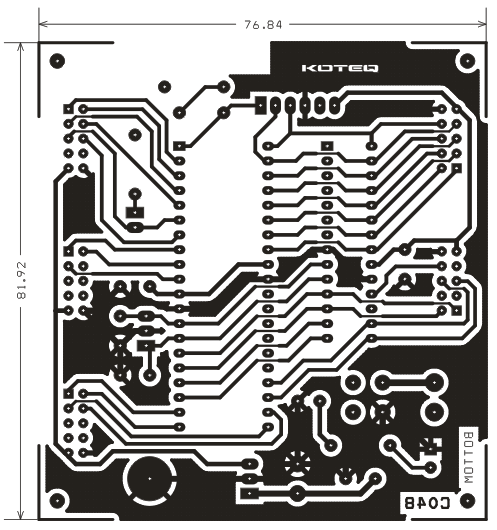

PCB
