Solid state relay switch

  • Rajkumar Sharma
  • 12648
    Views
  • moderate
  • Tested


Description

Solid State Relay Switch is a simple kit which will help you control (ON / OFF) a single high power circuit from a low power drive.

  • Load – 24 to 240 VAC @ 500 W
  • Trigger voltage – 2 to 5 VDC (TTL) @ 10 mA
  • Input isolated with use of Optocoupler
  • Power Battery Terminal (PBT) for easy input 230 VAC mains and load connection
  • Terminal pins for connecting input trigger signal
  • Heatsink for TRIAC
  • Four mounting holes of 3.2 mm each
  • PCB dimensions 29 mm x 74 mm

Schematic

schematic

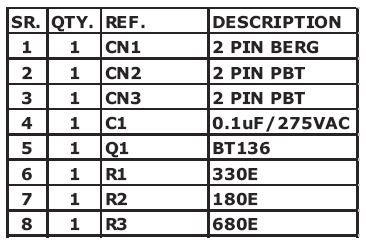

Parts List

parts

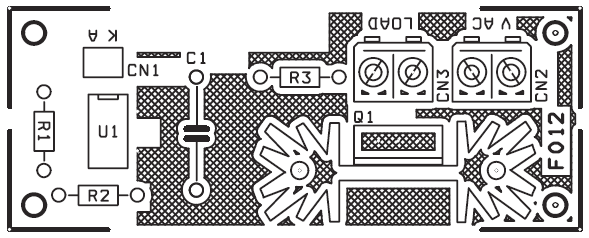

PCB
