Sound to Light Effect

  • Rajkumar Sharma
  • 11351
    Views
  • easy
  • Tested

SOUND-TO-LIGHT-EFFECT-PIC

This PROJECTS  will turn your favorite music into light effects, a microphone picks up the sound and gives  light effects with 6 Red LEDs, ideal for creating fun atmosphere at parties & discos. Supply 9V-12V DC.

Features

  • Supply 9V-12V DC (PP3 9V Battery)
  • On Board Preset for Gain Adjust
  • 6 On Board LEDs
  • On Board Condenser Microphone
  • SMD based small Board
  • PCB Dimension 45.72 X 28.58 MM
  • CN1 Supply Input
  • PR1 Sensitivity Adjust

Schematic

SOUND-TO-LIGHT-EFFECT-SCHEMATIC

Parts List

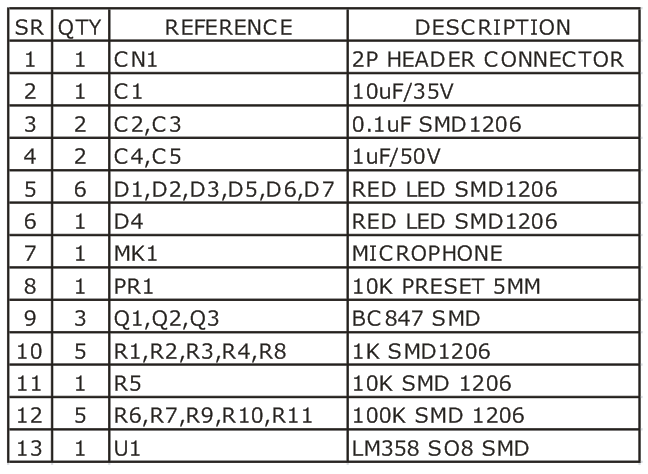

SOUND-TO-LIGHT-EFFECT-BOM

Video

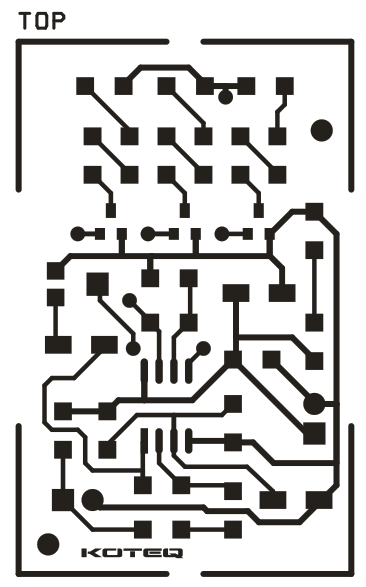

PCB
