Diodes Incorporated AP22816/17/18 Power Distribution Load Switches

Diodes Incorporated AP22816/17/18 1A/1.5A/2A Power Distribution Load Switches are single-channel, current-limited, integrated high-side power switches optimized for Universal Serial Bus (USB) and other hot-swap applications. The AP22816/17/18 are available with both polarities of enable input and comply with USB standards.

The Diodes Inc AP22816/17/18 Power Distribution Load Switches feature a 1A, 1.5A, or 2A output current, fast short-circuit response time, and an integrated output discharge function to ensure completely controlled discharging of the output voltage capacitor. The switches offer a complete protection solution with reverse current blocking, overcurrent, overtemperature, and short-circuit protection, as well as controlled rise time and undervoltage lockout functionality. The 6ms deglitch capability on the open-drain flag output prevents false overcurrent reporting and requires no external components.

The AP22816/17/18 Switches are available in the standard Green and RoHS compliant TSOT25 and MSOP-8 packages.

Features

• Input voltage range of 2.7V to 5.5V
• Logic level Enable pin available with active-high or active-low versions
• Protections:
  • 2kV HBM, 500V CDM ESD Protection
  • Overcurrent protection with auto-recovery
  • Short-circuit protection with auto-recovery
  • Overtemperature protection with auto-recovery
  • Output reverse current / voltage protection
• 75mΩ On-resistance
• Built-in soft-start with 0.6ms typical rise time
• Fault report (FLG) with blanking time (6ms Typ.)
• Thermally efficient low profile package
• Level 1 per J-STD-020 moisture sensitivity
• Finish–matte tin-plated leads, solderable per MILSTD-202, Method 208 terminals
• Totally lead-free and fully RoHS compliant
• Halogen and antimony free

Application Circuit

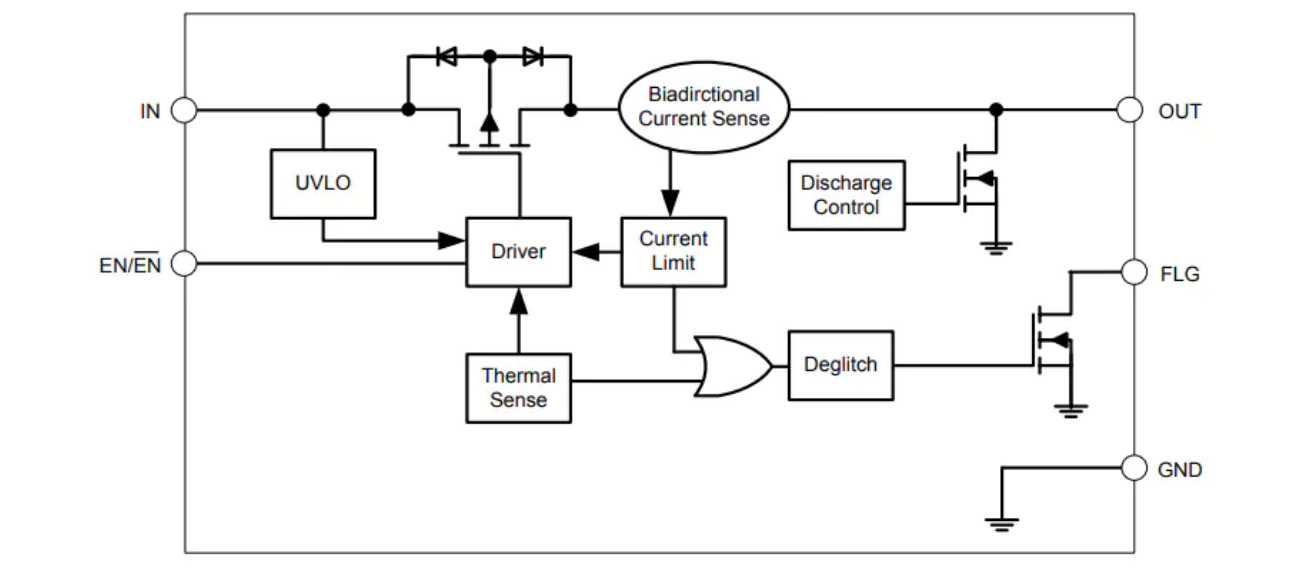

Block Diagram
