Forlinx OK536-C industrial-grade SBC Features Allwinner T536 SoC with XuanTie E907 RISC-V MCU and 2TOPS NPU

Forlinx has launched the OK536-C SBC that is powered by the Allwinner T536 industrial-grade processor. The board is built with a modular design that incorporates the FET536-C SoM via a 320-pin interface. The SoM contains a 1.6GHz quad-core Cortex-A55 CPU and a 600MHz XuanTie E907 64-bit RISC-V MCU, allowing for both general-purpose computing and real-time control. It is supported by features like a 2TOPS NPU, secure boot, full-path ECC, AMP, LocalBus, Linux RT, FreeRTOS, and bare-metal system compatibility.

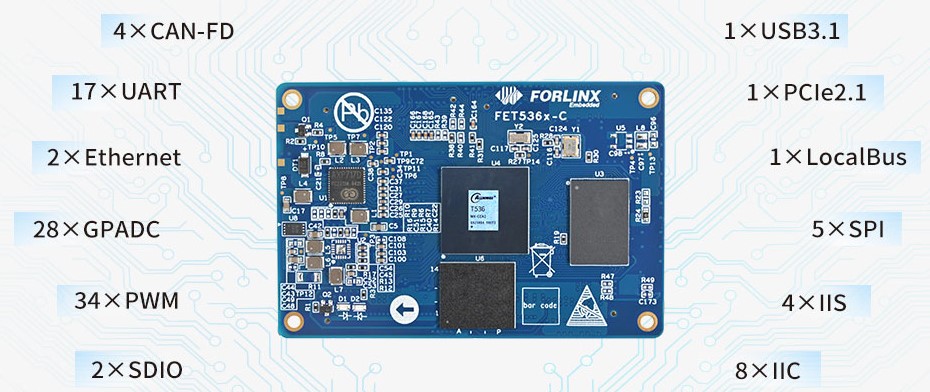

The FET536-C SoM is constructed using industrial-grade components and can operate from -40°C to +85°C. It is equipped with 1GB or 2GB LPDDR4 RAM and 8GB or 16GB eMMC storage. The module is powered at 5V and has dimensions of 45mm x 68mm. Four 80-pin board-to-board connectors offer access to a broad set of I/Os via an optimized pin layout.

The carrier board extends connectivity by providing interfaces like USB, SDIO, UART, SPI, CAN-FD, Ethernet, ADC, and parallel LocalBus. LocalBus provides support for 16-bit at 100MHz or 32-bit at 50MHz data transfer to facilitate communication between the ARM processor and the FPGA. The system can be applied in data concentrators, DTUs, EV charging systems, transportation, robotics, and industrial control.

Forlinx FET536-C SoM Specifications:

• Processor:
  • Allwinner T536 SoC with quad-core Cortex-A55 @ 1.6GHz
  • 64-bit XuanTie E907 RISC-V MCU @ 600MHz
  • 2 TOPS NPU for AI acceleration
• Video Processing:
  • Decoding:
    • MJPEG up to 4K @ 15fps
    • JPEG up to 1080p @ 60fps
  • Encoding:
    • H.264 BP/MP/HP up to 4K @ 25fps
    • MJPEG up to 4K @ 15fps
    • JPEG up to 8K x 8K
• Memory and Storage:
  • 1GB or 2GB LPDDR4 RAM
  • 8GB or 16GB eMMC flash
  • MicroSD card slot
  • Optional EEPROM via I²C or SPI
• Display and Camera Interfaces:
  • 1x parallel CSI (8/10/12/16-bit, ITU-BT.656/1120)
  • Up to 4-lane MIPI CSI (supports 8MP @ 30fps RAW12 2F-WDR)
  • 1x DE/SYNC RGB LCD (up to 1920×1200 @ 60fps)
  • Up to 2x LVDS (dual link 1920×1080 or single l ink 1366×768 @ 60fps)
  • 1x 4-lane MIPI DSI (up to 1920×1200 @ 60fps)
• Audio:
  • 3.5mm headphone jack (via built-in codec)
  • Up to 4x I²S (8kHz–384kHz)
  • 1x DMIC (up to 8 channels, 8kHz–48kHz)
  • 1x OWA IN/OUT (single-line audio)
• USB:
  • 1x USB 3.1 OTG (5Gbps)
  • 1x USB 2.0 DRD (480Mbps, dual-role)
  • 1x USB 2.0 Host (480Mbps)
• Networking and Wireless:
  • Up to 2x GMAC (10/100/1000Mbps, RMII/RGMII)
  • Wi-Fi/Bluetooth/IEEE 802.15.4 via external PCIe or USB modules
• wifiExpansion:
  • PCIe 2.1 (1-lane, 5Gbps, RC & EP supported)
  • LocalBus (8/16/32-bit, up to 100MHz)
  • 4x CAN-FD (CAN2.0B compatible)
  • 2x RS485, 2x SDIO
  • 5x SPI, 17x UART, 8x TWI (I²C)
  • GPADC (up to 28 channels), LRADC (1x), TPADC (1x)
  • Up to 196 GPIOs, 34x PWM (0–24MHz or 0–100MHz output)
• Misc.: 1x LEDC
• Dimension: 45mm × 68mm module dimensions
• Power Supply: DC 5V
• Operating Temperature: -40℃~+85℃

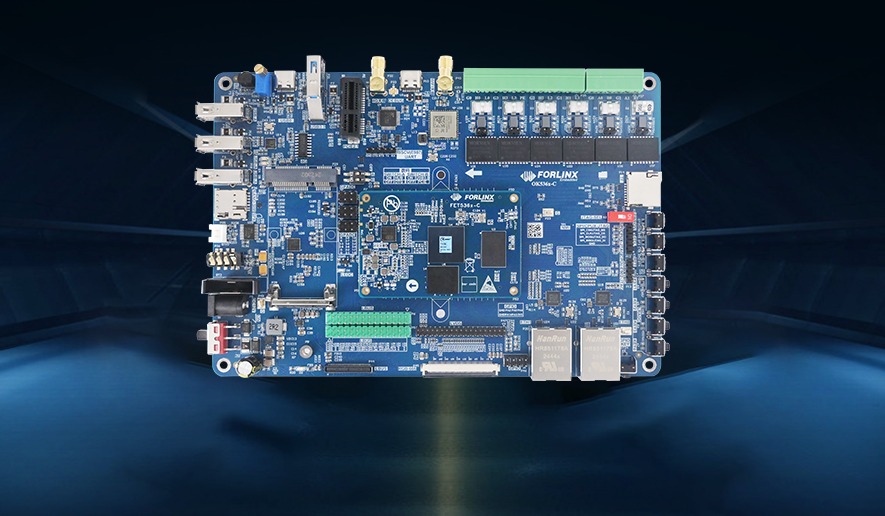

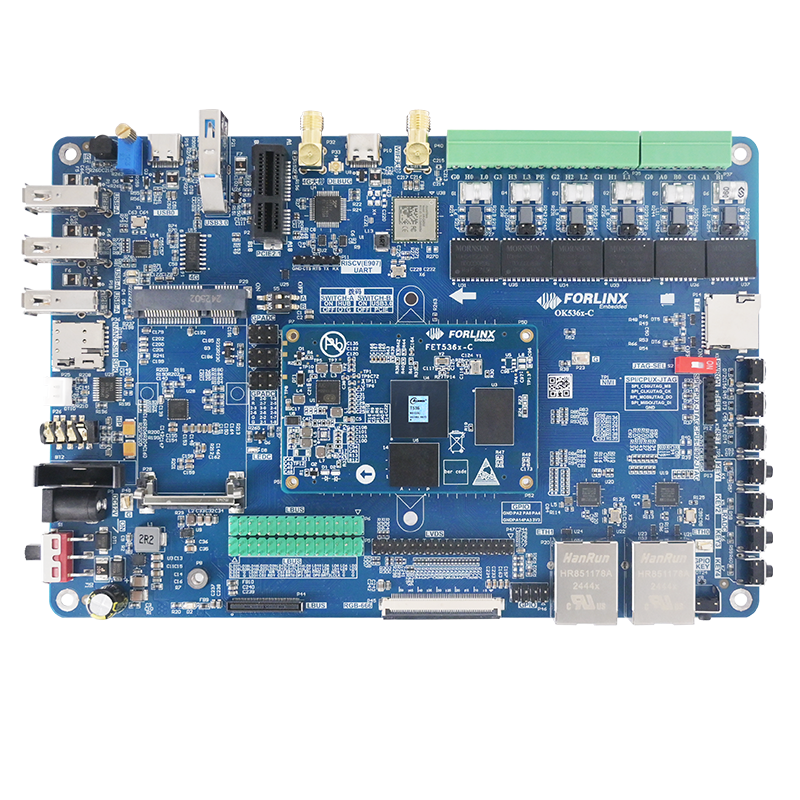

Forlinx OK536-C SBC Specifications:

• Display Interfaces:
  • 1x LCD (RGB666 18-bit, up to RGB888 24-bit, 1080p @ 60fps)
  • 1x LVDS (Dual Octal, 1080p @ 60fps)
  • 1x 4-lane MIPI DSI (up to 1920×1200, 1080p @ 60fps)
• Camera Interfaces:
  • 3x MIPI CSI (via optional FIT-CAM_E module)
    • 1x 4-lane MCSI
    • 2x 2-lane MCSI
• Audio:
  • 1x four-section headphone jack with built-in headphone and microphone support
  • 1x mono speaker connector
• Storage: 1x MicroSD 3.0 card slot
• USB:
  • 1x USB 3.0
  • 1x USB Type-C
  • 3x USB 2.0 Host Type-A (480Mbps)
• Networking and Wireless:
  • 2x Ethernet (10/100/1000Mbps, RJ45)
  • On-board AW-CM358SM module with dual-band 2.4GHz/5GHz Wi-Fi and Bluetooth 5.0
• Expansion:
  • PCIe 2.1 (multiplexed with USB 3.0 pins)
  • LocalBus (8/16/32-bit)
  • 4x CAN-FD
  • 2x RS485
  • 1x PWM
  • 5x GPIO
  • 14x GPADC
  • 1x 4G SIM card slot
• Misc.:
  • Multiple function keys: Reset, Flash, LEDC, IR switch, GPIO key
  • 4x LRADC keys
  • 1x PWR/PWRON switch
  • 1x RTC with onboard CR2032 battery
• Power supply: 12V DC input

Forlinx FET536-C SoM runs on Linux 5.10. Security features include built-in Trustzone and Secure Boot to ensure system security and data encryption. Full-path ECC technology to provide error checking and correction for data transmission from the CPU to DDR, ensuring data integrity and preventing illegal tampering.

Previously, we covered the Forlinx OK6254-C single board computer, which is compatible with the FET6254-C SoM based on the quad-core Sitara AM6254 processor from Texas Instruments. We also looked at the MYC-LT536, a compact System-on-Module built around the Allwinner T536 processor. Feel free to check them out if you’re interested in similar products.

Forlinx has not published pricing details for the FET536-C SoM or its carrier board, OK536-C. More information is available on the official product page.
