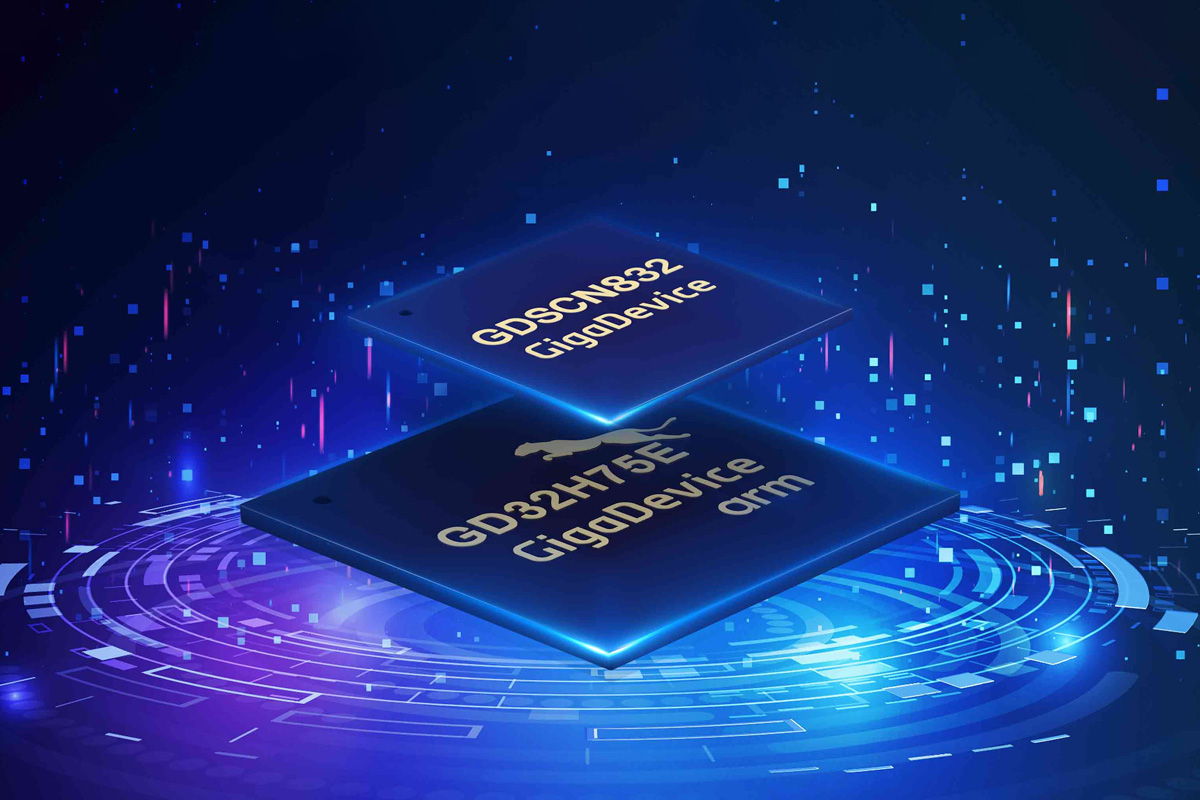

GigaDevice GD32H7 Cortex-M7 MCU with Integrates EtherCAT SubDevice Controller for Industrial Automation

The GigaDevice GD32H75E Cortex-M7 MCU is a 600 MHz Arm Cortex-M7 microcontroller designed for industrial automation and control. The main feature of this MCU is that it integrates an EtherCAT SubDevice Controller and offers 1024 KB SRAM, 3840 KB flash with security protection, dual Ethernet PHY support, USB Full Speed and High-Speed interfaces, and a comprehensive range of peripherals including SPI, I2C, UART, ADCs, and DACs.

The MCU supports real-time industrial communication with features like 8 Fieldbus Memory Management Units (FMMUs), distributed clock synchronization, and high-performance motion control with digital filter modules and trigonometric math units. Packaged in BGA240 configurations, it operates within a -40°C to +105°C range for harsh environments. All these features make this device useful for applications like servo control, variable frequency drives, industrial PLCs, and communication modules.

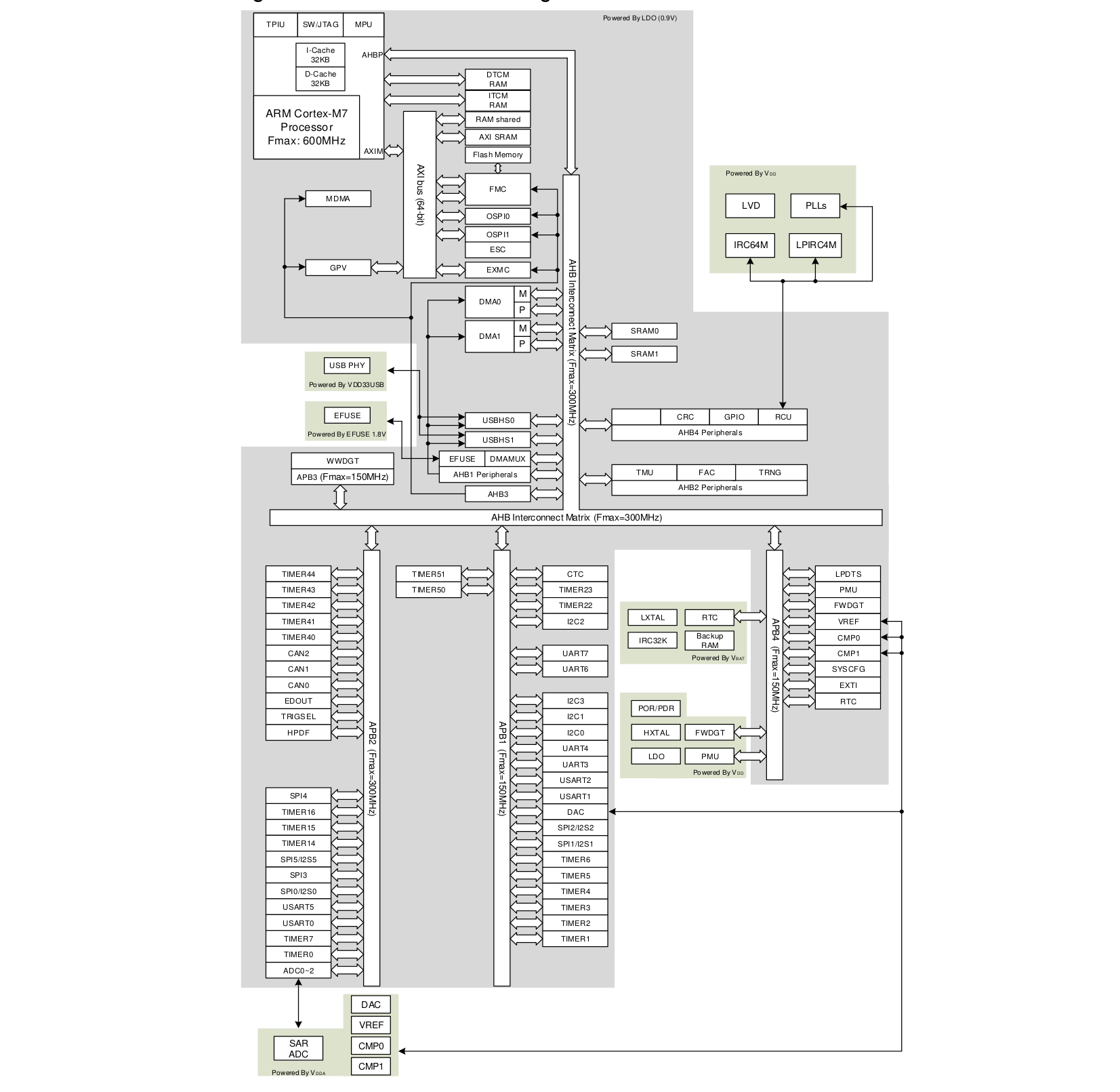

GigaDevice GD32H75E Cortex-M7 MCU Spcifications

• CPU:
  • 600 MHz Arm Cortex-M7 32-bit processor
• Memory & Storage:
  • 512 KB AXI SRAM
  • 512 KB ITCM/DTCM/AXI shared memory
  • 3840 KB on-chip Flash with security protection
  • External memory controller (EXMC) for SRAM, PSRAM, ROM, and NOR Flash
• EtherCAT Features:
  • Integrated EtherCAT SubDevice Controller (ESC)
  • 2x internal Ethernet PHYs (YMJ6 models)
  • 1x external MII PHY interface
  • 8 Fieldbus Memory Management Units (FMMUs)
  • 8 KB DPRAM
  • Distributed clock (64-bit) for <1 µs synchronization
• Motion Control Features:
  • Encoder divide output controller (EDOUT)
  • High-performance digital filter module (HPDF) for Σ-Δ modulators
• Analog:
  • 2x 14-bit ADCs (4 MSPS, up to 22 channels)
  • 1x 12-bit ADC (5.3 MSPS, up to 15 channels)
  • 12-bit DAC and 2x comparators
• Connectivity:
  • 6x SPI, 1x OSPI, 4x I2C
  • 4x USART, 4x UART, 3x CAN-FD
  • 4x I2S (multiplexed with SPI)
  • 1x USB 2.0 OTG FS, 1x USB 2.0 OTG HS
  • 116x GPIO pins
• Timers:
  • 10x general-purpose 16-bit timers
  • 2x 16-bit PWM advanced timers
  • 4x 32-bit general-purpose timers
  • 2x 32-bit and 2x 64-bit basic timers
  • Real-Time Clock (RTC)
• Power Supply:
  • 1.71V to 3.6V
• Package:
  • Package options with 240 BGA pins
• Temperature Range:
  • Industrial grade: -40°C to +85°C (Grade 6)
  • Extended industrial grade: -40°C to +105°C (Grade 7)

The free GigaDevice GD32 IDE, GD-LINK, and GD32 All-In-One Programmer support the GD32H75E Cortex-M7 MCU. It also works with Arm KEIL, IAR, and SEGGER tools. Additional resources are available on the GD32MCU website.

The GD32H75E is available in two BGA240 package models—one with two internal Ethernet PHYs and another in bypass mode—to suit different application requirements. More information about this can be found in GigaDevices datasheets, user manuals (TRMs), and application notes for the GD32H75E EtherCAT MCU and the GDSCN832 EtherCAT sub-device controller.

The new GigaDevice GD32H75E Cortex-M7 MCU is currently sampling right now and is expected to enter mass production in Q2 2025. Additional information can be found on the company’s press release page.
