Jetway has recently announced the JPIC-ADN1 Pico-ITX SBC, equipped with Intel N-series processors, such as the Intel Processor N97 or N200, designed for low-power, high-efficiency applications. It supports up to 32GB of DDR5 memory, features onboard Intel UHD Graphics, and provides dual display options via HDMI and LVDS/eDP. It is made for industrial and IoT use, offering flexible connectivity with USB-3.2, USB-2.0, GbE LAN, and serial ports. This also includes M.2 expansion slots, a Nano SIM card slot for IoT applications, and supports multiple operating systems like Windows 10, Windows 11, and Linux. With an operating temperature range of -20°C to 60°C, it is well-suited for IoT gateways, smart factories, and machine control applications. Additionally, it includes features like Intel PTT (fTPM) for enhanced security, watchdog timer, GPIO, and multiple power modes.

JPIC-ADN1 Pico-ITX SBC Sub

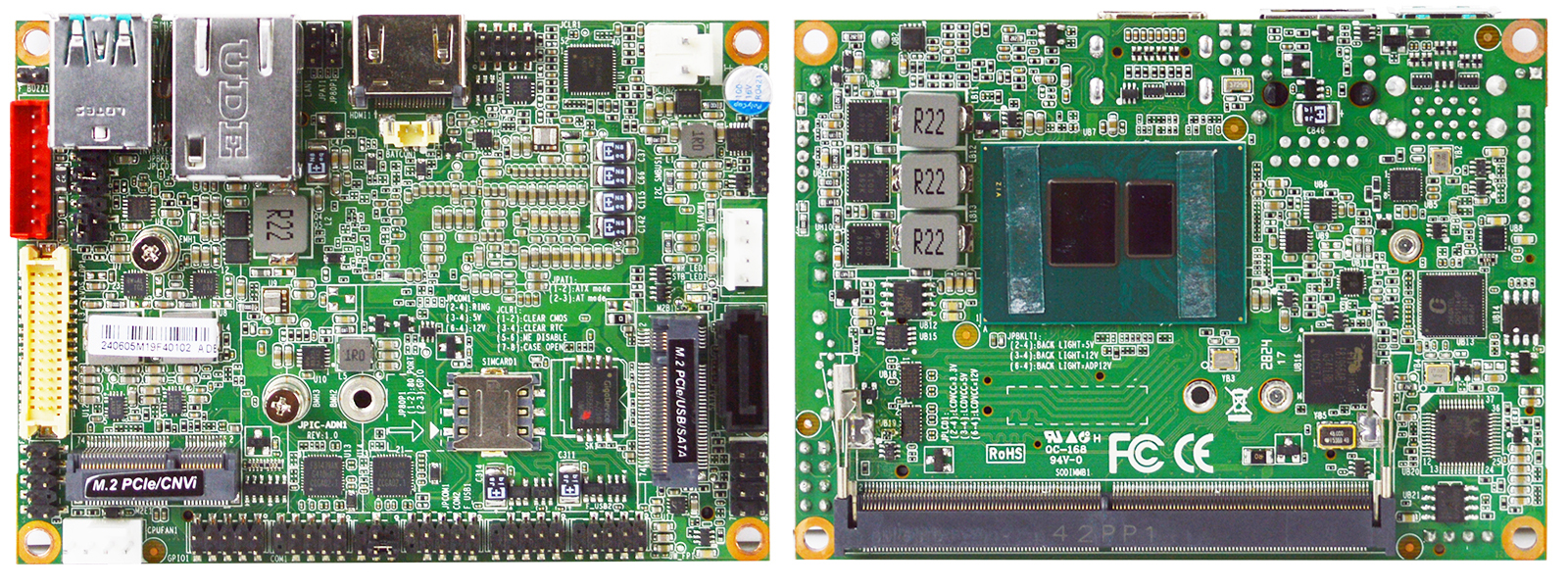

JPIC-ADN1 Pico-ITX SBC Front and Back view

Previously, we have written about similar SBCs equipped with Intel N-series processors including the MSI MS-CF16, the QBIP-N97A, the Hard kernel’s ODROID-H4, H4+, and many more. Feel free to check those out, if you want to know more about these SBCs.

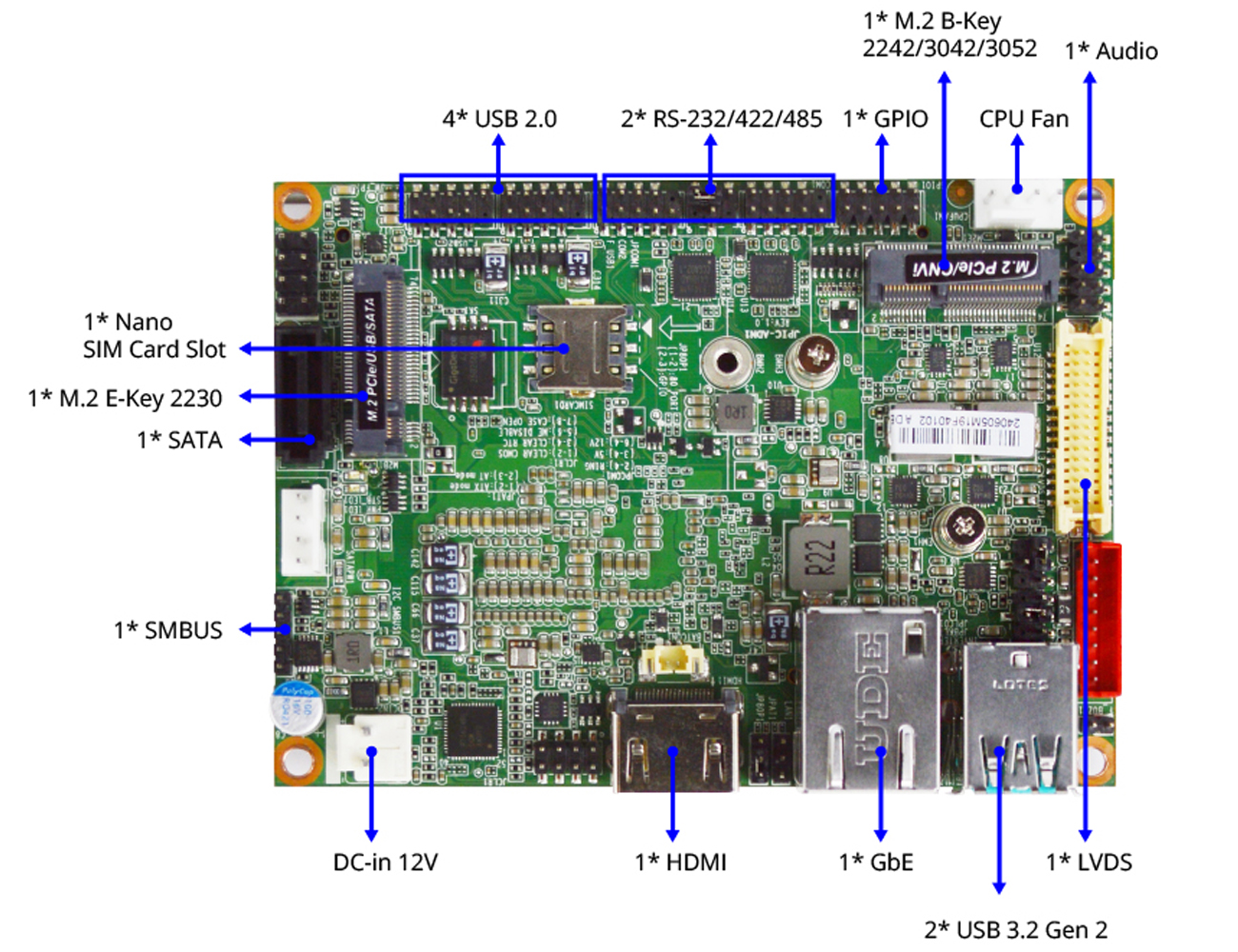

JPIC-ADN1 Pico-ITX SBC IO Diagram
Jetway JPIC-ADN1 IO Diagram

Jetway JPIC-ADN1 Pico-ITX SBC Specifications:

  • SoC:
    • Intel Processor N97 (Alder Lake-N, 12W TDP)
    • Intel Processor N200 (Alder Lake-N, 6W TDP) up to 3.7 GHz (Turbo boost) with 6MB cache
  • Graphics:
    • Intel UHD Graphics for Intel Processor N97
    • 32EU Intel HD graphics @ up to 750 MHz for Intel Processor N200
  • Display:
    • 1x HDMI 2.0b (up to 4096×2160 @ 60Hz)
    • 1x 24-bit dual-channel LVDS / eDP (up to 1920×1080 @ 60Hz)
    • Dual display support
  • Memory:
    • 1x DDR5 4800MHz SO-DIMM, up to 32GB
  • Storage:
    • 1x SATA3 connector
    • 1x SATA power connector
  • Expansion Slots:
    • 1x M.2 B+M Key (2242/3042/3052 for USB3/SATA/PCIe Gen3 x2)
    • 1x M.2 E Key (2230 for USB2.0/PCIe 3.0 x1)
    • 1x Nano SIM card slot
  • Networking: 1x Gigabit Ethernet (Realtek® RTL8111H)
  • USB Ports:
    • 2x USB 3.2 Gen 2 (10Gbps)
    • 4x USB 2.0 via internal header
  • Serial Ports: 2x RS-232/422/485 via internal header
  • Audio:
    • Realtek ALC897 codec
    • Internal headers for line-out and mic-in
  • Internal I/O:
    • 8-bit GPIO header
    • SMBUS
    • 1x 4-pin CPU fan connector (PWM mode)
  • LED and Buttons:
    • HDD Active LED
    • power LED
    • power on/off
    • reset
  • Security: Intel PTT (f TPM)
  • Miscellaneous:
    • Watchdog timer (255 levels)
    • RTC with lithium battery
    • Chassis intrusion header
    • AT/ATX mode selection header
    • UEFI BIOS
    • Wake on LAN
  • Power:
    • 12V DC-in via 2-pin header
    • AT/ATX power (Default) mode
  • Environmental:
    • Operating temperature: -20°C to 60°C
    • Storage temperature: -20°C to 85°C
    • Humidity: 10% to 90% @ 40°C (non-condensing)
  • Dimensions: 100.0mm x 72.0mm

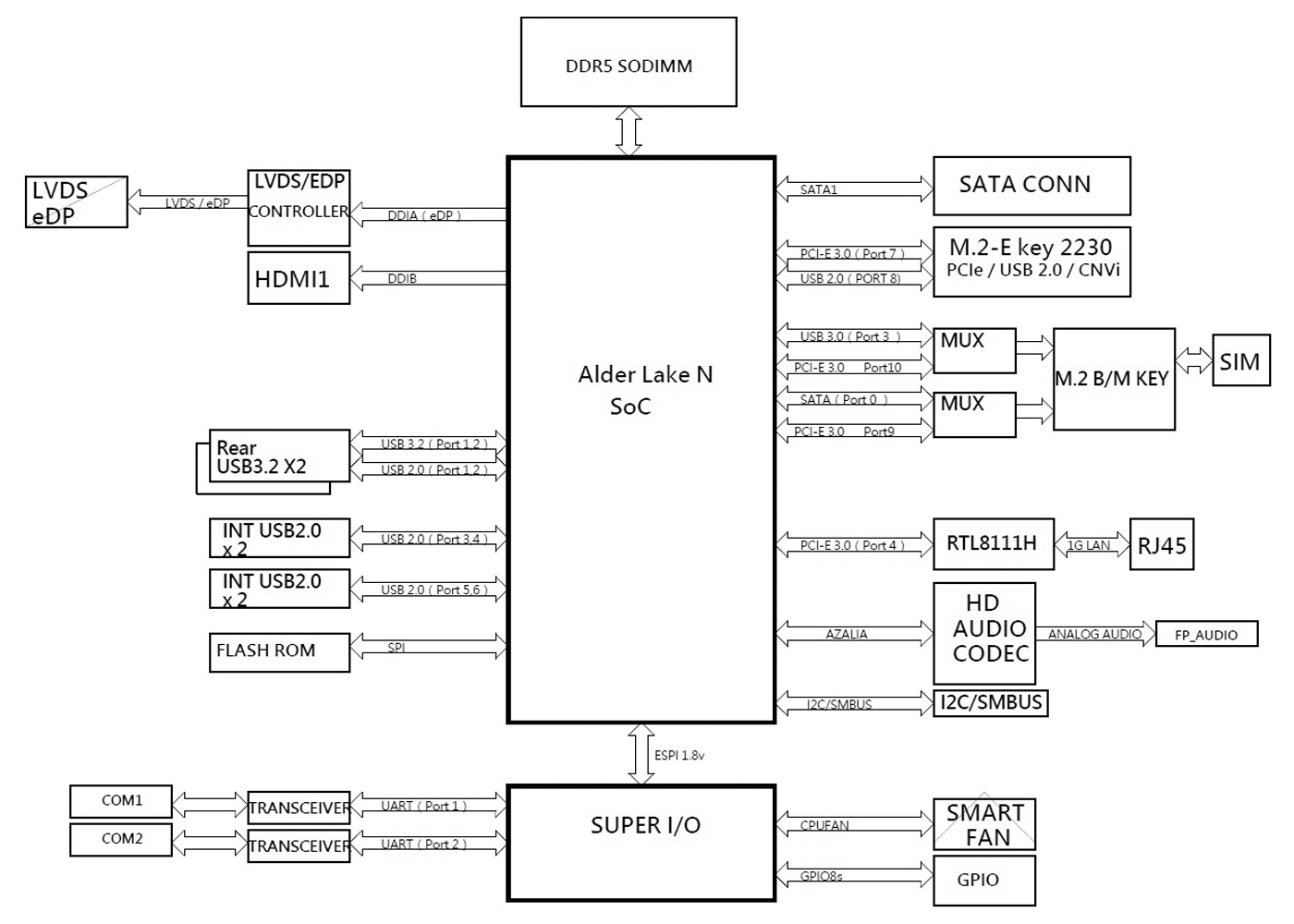

JPIC-ADN1 Pico-ITX SBC Block Diagram
JPIC-ADN1 Block Diagram

However, while reviewing this SBC, I noticed that it is far better than the other intel N-97-based SBCs, such as Asus N97T-IM-A, GIGAIPC Pico-N97A, and an upgraded version of Jetway F35-ADN1. Pricing details for the Jetway JPIC-ADN1 Pico-ITX SBC have not been released yet. For further information, including drivers and ordering, visit the company’s product page.
