KYOCERA AVX Launches Web-Based Antenna Selection Tool

Wireless connectivity has crept into nearly every corner of electronics design, and RF engineering has followed it there, from a specialty concern into an almost universal requirement. Antenna choice and PCB placement sit at the center of that shift: get either wrong, and a design can suffer from signal attenuation, impedance mismatches, shortened range, or batteries that drain faster than expected. KYOCERA AVX is aiming to head off those pitfalls with the Antenna Integrator Studio, a new web-based tool built to guide engineers through antenna selection and placement before a single trace gets routed.

Turning Guesswork Into a Guided Process

Evaluating antenna options has traditionally meant manually placing and testing candidates on a digital board layout, a time-consuming process that does not guarantee the best result. The Antenna Integrator Studio compresses that workflow into a handful of inputs: PCB dimensions, the number of antennas required, target frequency bands, and whether the priority is efficiency or cost. Clicking “Analyze” returns a set of suitable antennas with their optimal positions on the board, along with interactive charts showing efficiency, return loss, peak gain, and radiation patterns across the relevant bands.

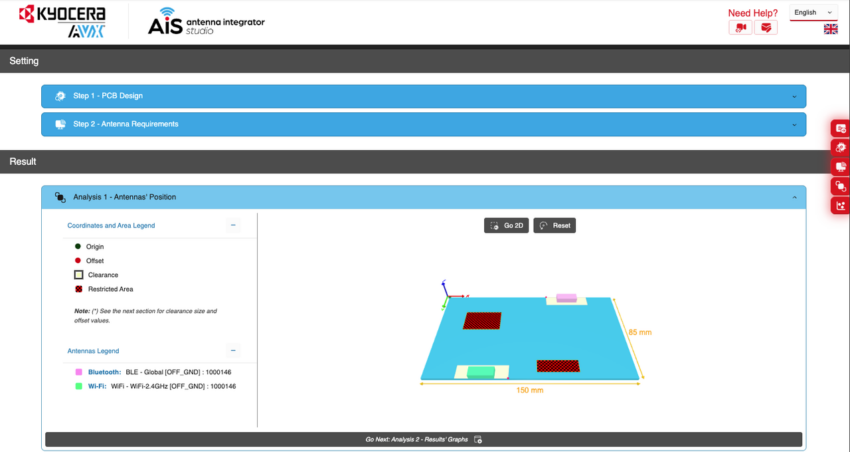

Example output from the Antenna Integrator Studio, mapping Bluetooth and Wi-Fi antenna placement on a simulated PCB layout. Image used courtesy of the Antenna Integrator Studio

From Digital Model to Physical Sample

Once a configuration looks promising, engineers can download DXF and 3D files and carry the design directly into their PCB layout software, sidestepping the redrawing that often accompanies a move from simulation to implementation. The platform also streamlines sample ordering, letting engineers move from analysis to prototyping without leaving the tool, and a roughly four-minute video walkthrough covers the workflow end-to-end for anyone who wants a guided tour before diving in. This first release draws on thousands of simulations of board-mounted embedded antennas, and KYOCERA AVX has indicated that future versions will expand both the feature set and the antenna technologies on offer.

For engineers juggling tight space, performance, and environmental constraints—a familiar combination in consumer electronics, automotive, medical, IIoT, telecommunications, and high-speed networking projects—a tool that surfaces antenna and placement options before hardware gets committed could shave real time off the design cycle. Whether the goal is squeezing extra efficiency out of a compact wearable or hitting a cost target for a high-volume sensor node, having simulated performance data on hand before prototyping begins is a shortcut that tends to pay for itself.
