Microchip Technology AT24CSWx Serial EEPROMs

Microchip Technology AT24CSWx Serial EEPROMs

1.082
Views
0 Comments

Microchip Technology AT24CSWx Serial EEPROMs are designed to be I2C compatible (two-wire) with a security register and software write protection. These EEPROMs feature bidirectional data transfer protocol and filtered inputs for noise suppression. The AT24CSWx EEPROMs operate at a 1.7V to 3.6V voltage range, 1mA ultra-low active current, 0.8µA standby current, and -40°C to 85°C temperature range. The AT24CSW01X / AT24CSW02X EEPROMs provide 8-Byte page write mode and AT24CSW04X / AT24CSW08X EEPROMs offer 16-Byte page write mode with partial page writing. These EEPROMs are available in 5-lead SOT23 and 4-ball ultra-thin WLCSP packages.

Features

  • Random and sequential read modes
  • Within 5ms self-timed write cycle
  • >4000V ESD protection
  • Software write protection of the EEPROM array:
    • Five configuration options
    • Protection settings can be made permanent
  • Bidirectional data transfer protocol
  • Schmitt triggers and filtered inputs for noise suppression
  • I2C-compatible (two-wire) serial interface:
    • 100kHz standard mode, 1.7V to 3.6V
    • 400kHz fast mode, 1.7V to 3.6V
    • 1MHz fast mode plus (FM+), 1.7V to 3.6V
  • AT24CSW01X / AT24CSW02X:
    • 8-Byte page write mode
  • AT24CSW04X / AT24CSW08X:
    • 16-Byte page write mode

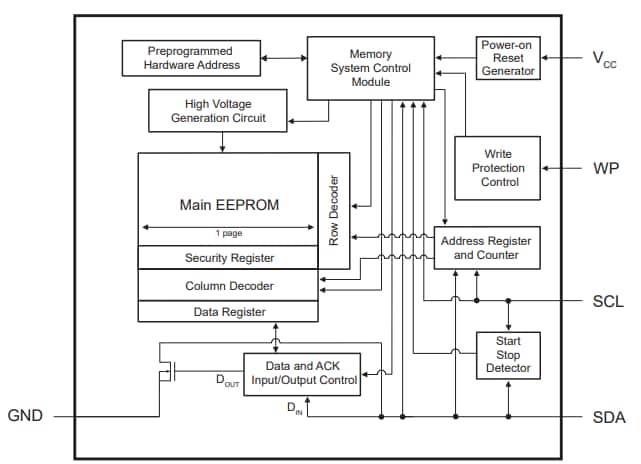

Block Diagram

more information: www.microchip.com
