NJR (New Japan Radio) NJG1817ME4-TE1 10W High Power SPDT Switch

NJR (New Japan Radio) NJG1817ME4-TE1 10W High Power SPDT Switch

745
Views
0 Comments

NJR (New Japan Radio) NJG1817ME4-TE1 10W High Power SPDT Switch offers a high power handling capability of 40dBm. This SPDT switch also offers high linearity and low insertion loss up to 6GHz. The high-power SPDT switch features a high switching speed that is enough capable of 5G communications. This high-power SPDT switch operates from 2V to 5V of control voltage range and 150ns typical high switching speed. The NJG1817ME4 switch is RoHS compliant and halogen-free with MSL1. This high-power SPDT switch is suitable in commercial radio applications and transmits/receive switching, antenna switching, and other switching applications.

Features

  • High power handling capability of 40dBm
  • High switching speed
  • The NJG1817ME4 switch is RoHS compliant and halogen-free with MSL1

Specifications

  • 2V to 5V control voltage range
  • 150ns typical high switching speed
  • Low insertion loss:
    • 0.35dBtyp @3.85GHz, VCTL(H)=3.3V
    • 0.40dBtyp @4.7GHz, VCTL(H)=3.3V
    • 0.45dBtyp @6GHz, VCTL(H)=3.3V
  • High insertion loss:
    • 27dBtyp @3.85GHz, VCTL(H)=3.3V
    • 27dBtyp @4.7GHz, VCTL(H)=3.3V
    • 25dBtyp @6GHz, VCTL(H)=3.3V

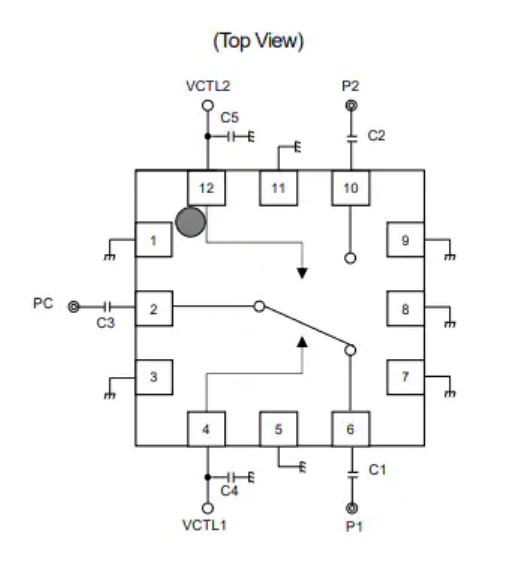

Application Circuit

more information: https://www.njr.com/electronic_device/PDF/NJG1817ME4_E.pdf
