315Mhz RF Remote Receiver with On Board Relay – Arduino Compatible

  • Rajkumar Sharma
  • 468 Views
  • easy
  • Tested

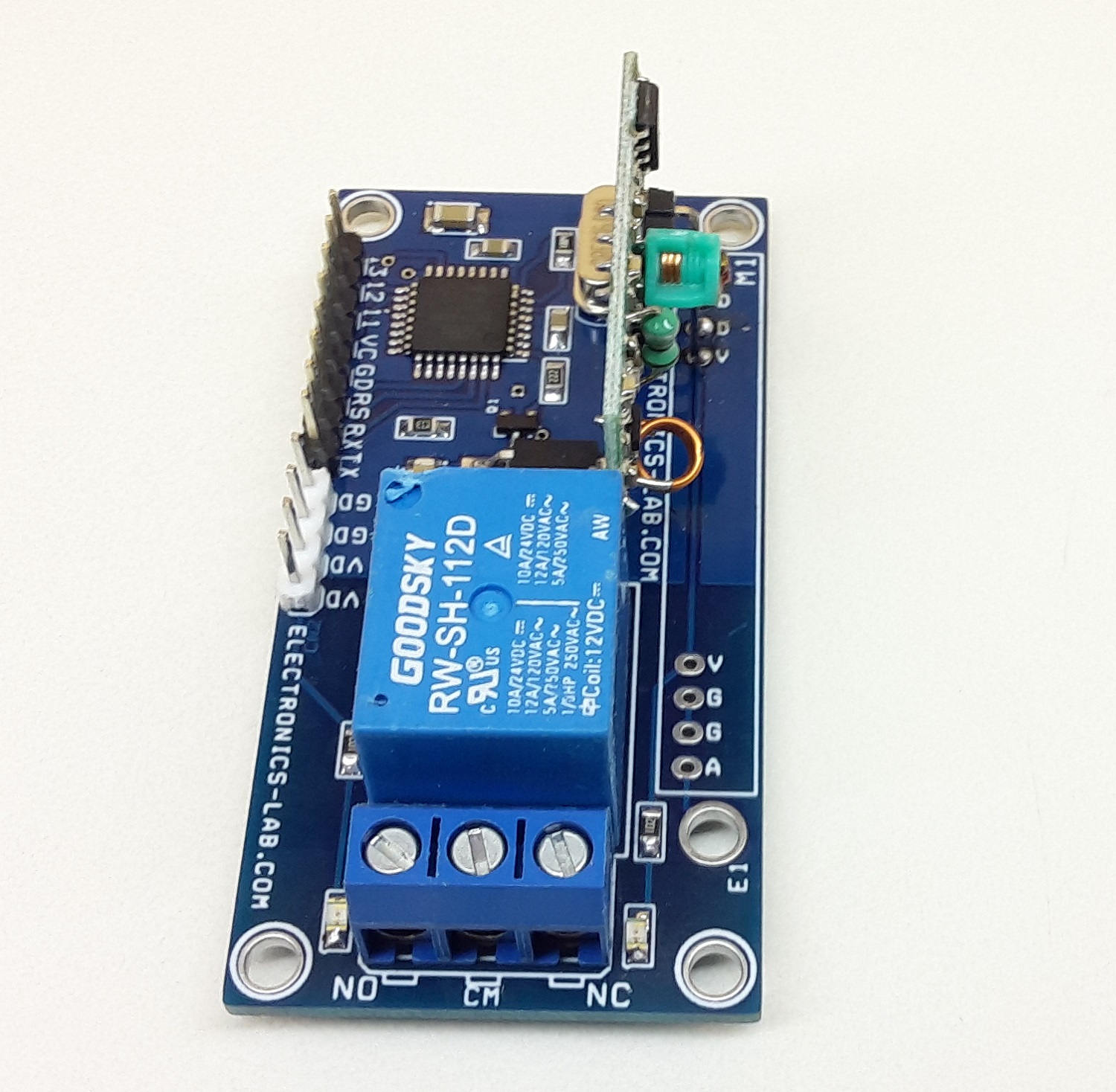

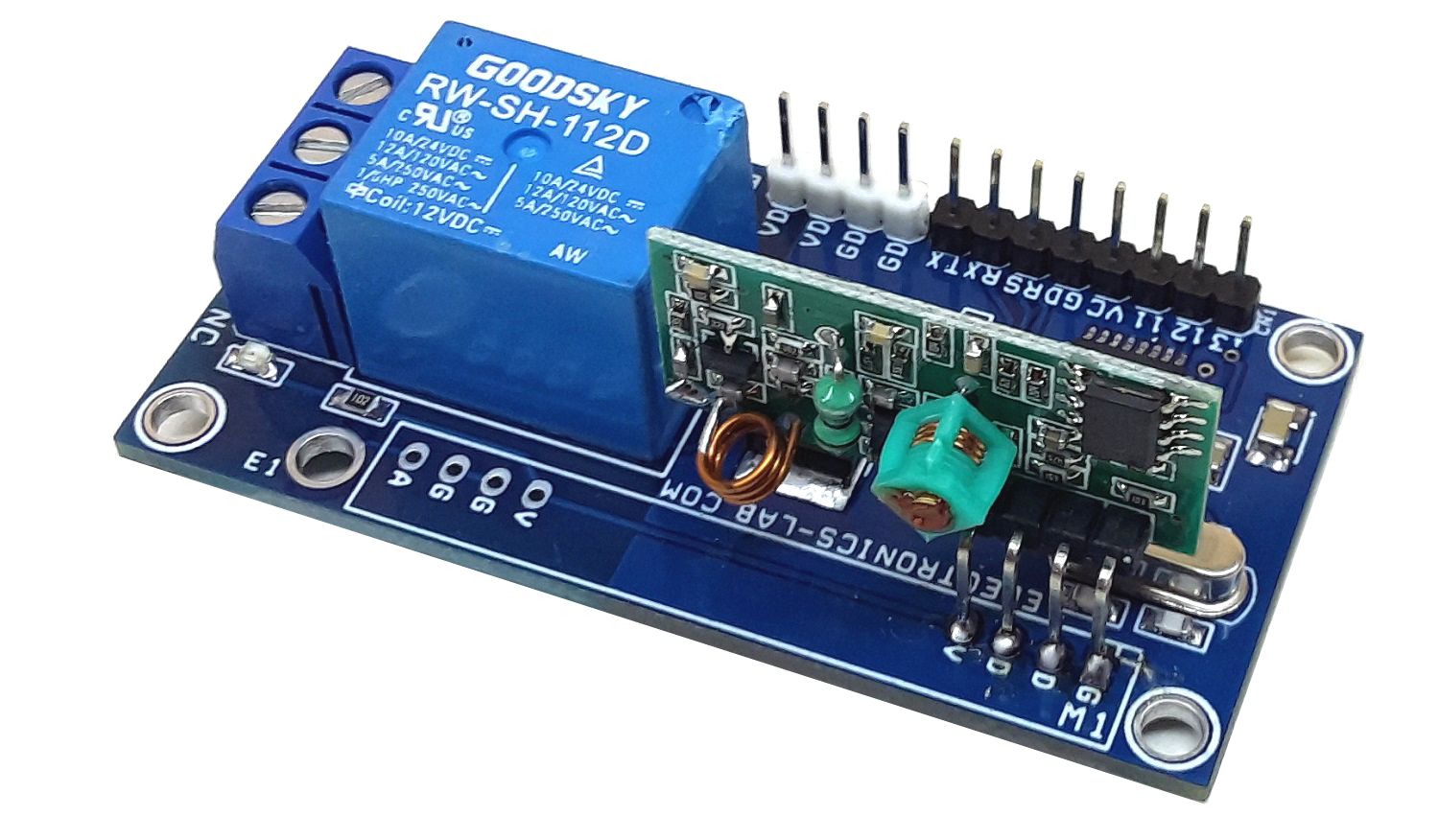

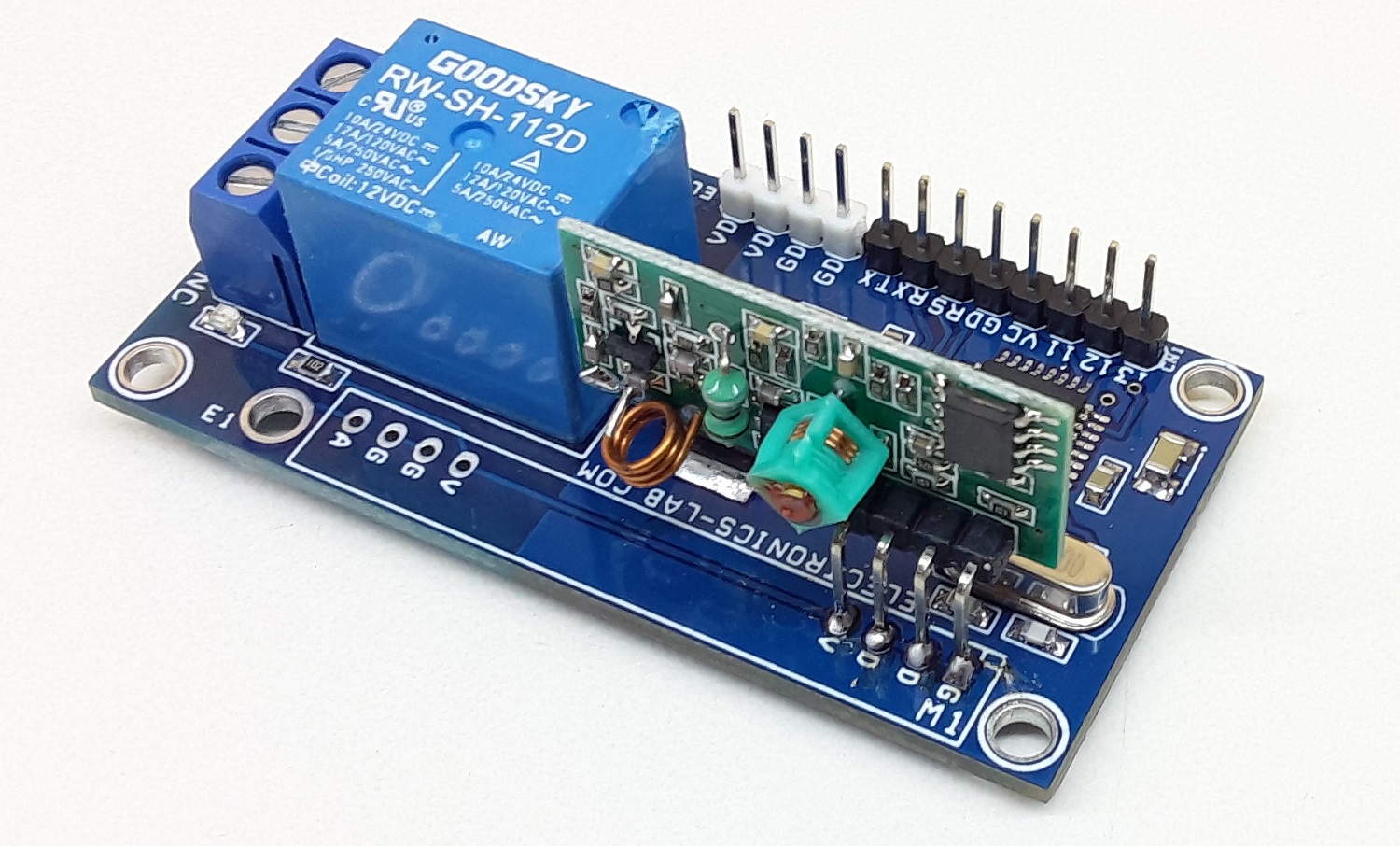

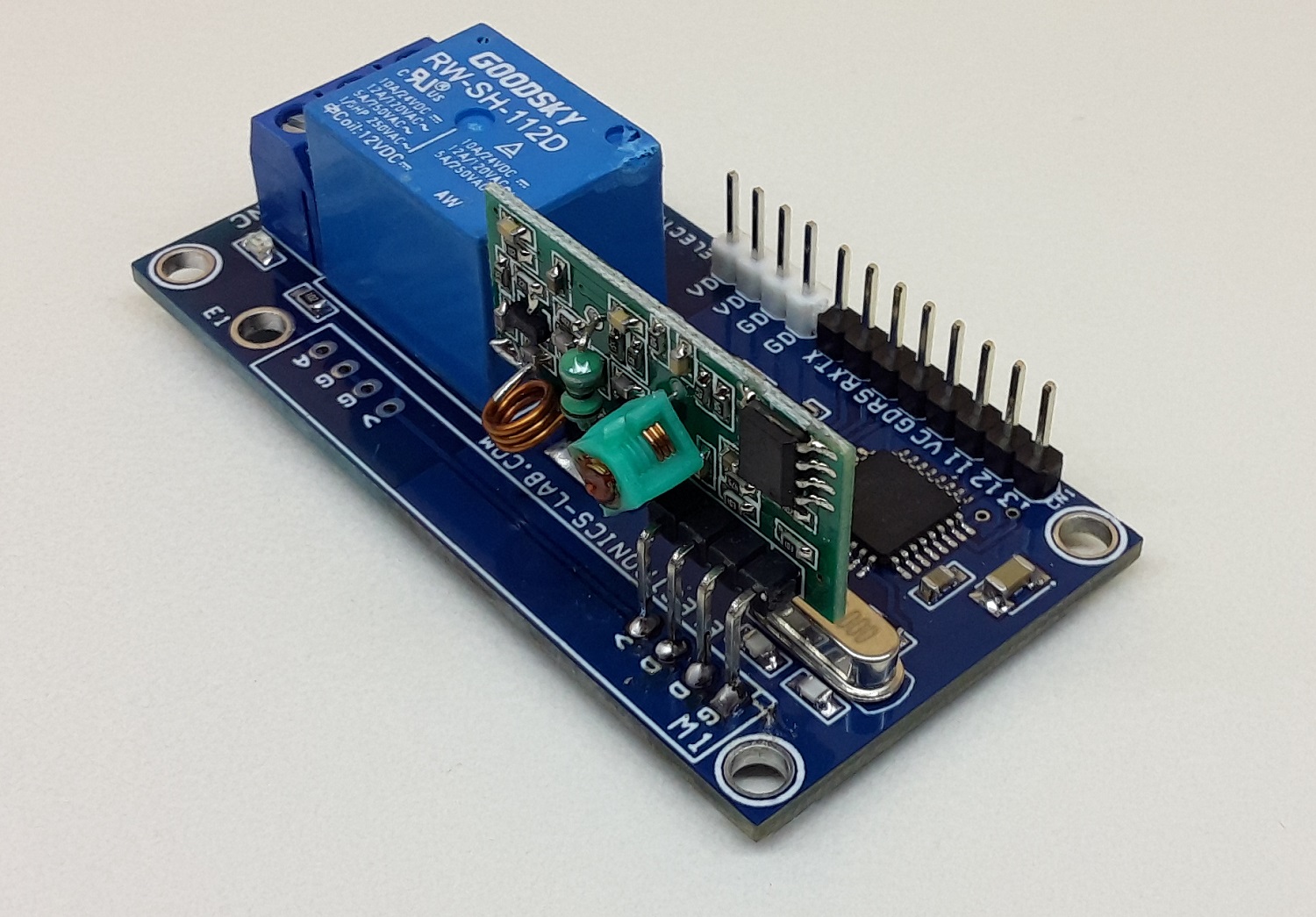

This is one channel RF Receiver with an onboard Relay. The project can be used for ON/OFF control of AC or DC loads using an RF remote. It’s an Arduino compatible Receiver project that consists of, Atmega328 microcontroller, 315MHz RF Receiver, 12v Relay, 5V Regulator, etc.

Arduino Pins Receiver: D3 Relay, D11 Data in from AM 315Mhz Receiver.

Features

  • Supply 12V DC @ 50mA When Relay is ON
  • Relay Contacts 10A @ 24V DC, 5Amps @ 250V AC
  • PCB dimensions: 64.77 x 32.86 mm

Applications

RF Remote ON/OFF Fans, Lights, Home Appliances, Door control. This receiver is compatible with 4 Channel 315Mhz RF Remote Transmitter and 2 Channel 315Mhz RF Remote Transmitter.

Arduino Code

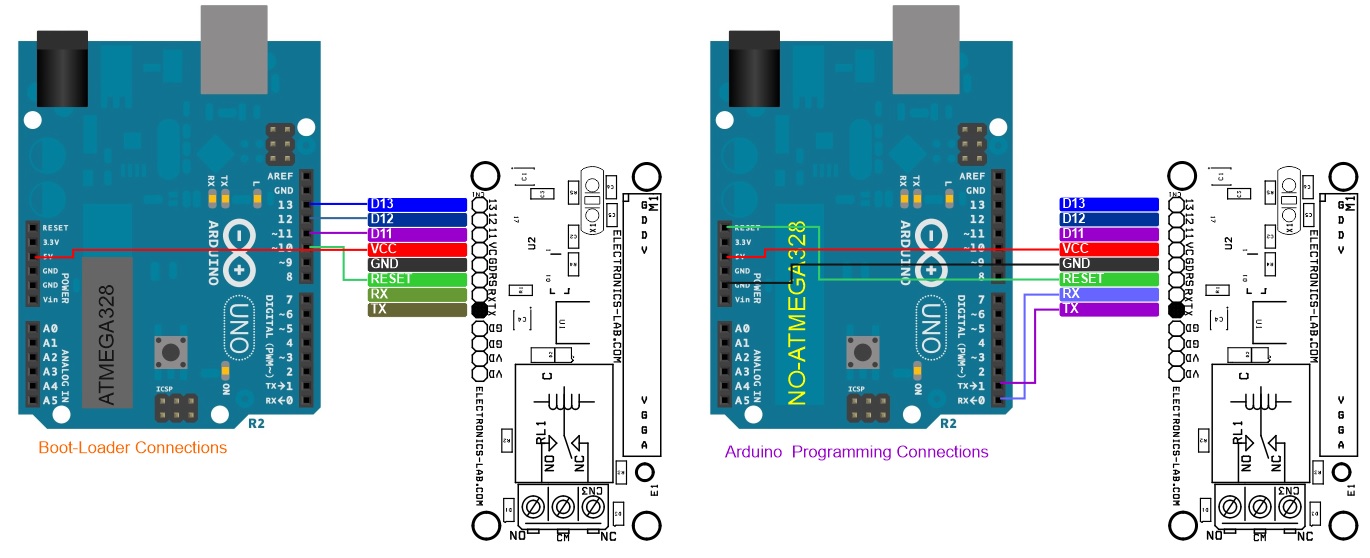

Arduino Code provided as a download. The code is compatible with our 315Mhz Transmitter project, it toggles the Relay when the switch is pressed. A new Atmega328 chip requires Bootloader and Arduino firmware programming, check link bellow to learn more about programming the new Atmega328. PCB has an onboard programming port.

https://www.arduino.cc/en/Tutorial/BuiltInExamples/ArduinoToBreadboard

XY-MK-5V Receiver Module Specs

  • Receiver Model: XY-MK-5V
  • Transmitting Frequency: 433.92MHz, 315MHz, 330MHz
  • Operating Voltage: 5V
  • Receiving Sensitivity: 105dB
  • Modulation Type: OOK
  • Current Consumption in Standby: 4mA

more information: https://www.componentsinfo.com/fs1000a-433mhz-rf-transmitter-xy-mk-5v-receiver-module-explanation-pinout/

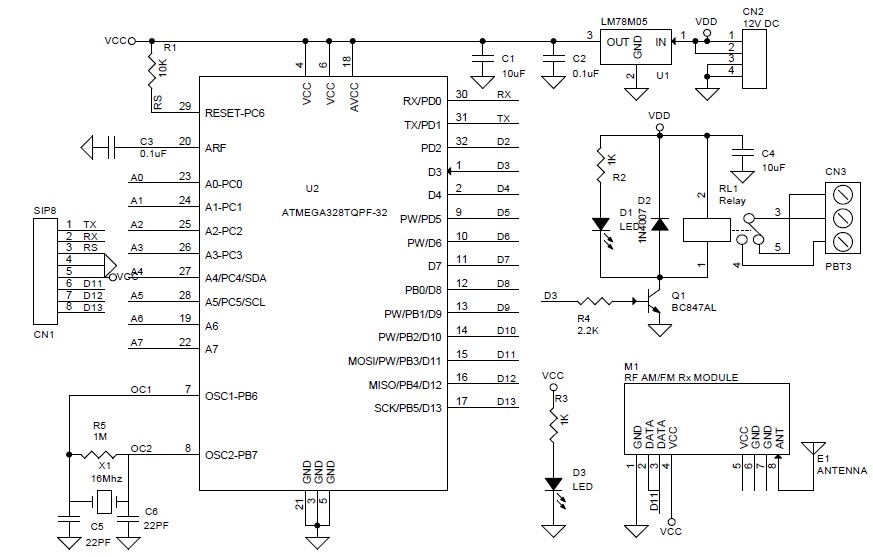

Schematic

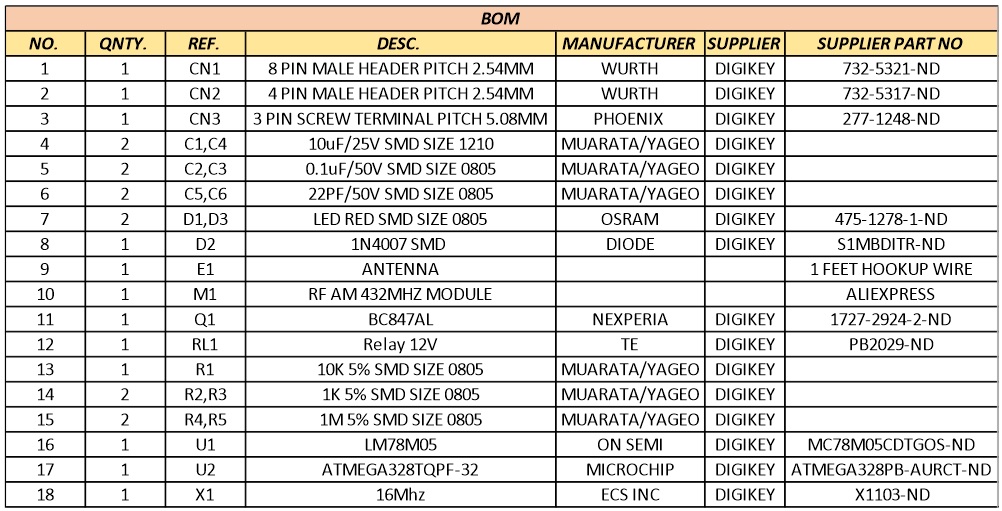

Parts List

NO.QNTY.REF.DESC.MANUFACTURERSUPPLIERSUPPLIER PART NO
11CN18 PIN MALE HEADER PITCH 2.54MMWURTHDIGIKEY732-5321-ND
21CN24 PIN MALE HEADER PITCH 2.54MMWURTHDIGIKEY732-5317-ND
31CN33 PIN SCREW TERMINAL PITCH 5.08MMPHOENIX DIGIKEY277-1248-ND
42C1,C410uF/25V SMD SIZE 1210MUARATA/YAGEODIGIKEY
52C2,C30.1uF/50V SMD SIZE 0805MUARATA/YAGEODIGIKEY
62C5,C622PF/50V SMD SIZE 0805MUARATA/YAGEODIGIKEY
72D1,D3LED RED SMD SIZE 0805OSRAMDIGIKEY475-1278-1-ND
81D21N4007 SMD DIODEDIGIKEYS1MBDITR-ND
91E1ANTENNA1 FEET HOOKUP WIRE
101M1RF AM 315MHZ RX MODULEXY-MK-5V ALIEXPRESS
111Q1BC847ALNEXPERIADIGIKEY1727-2924-2-ND
121RL1Relay 12VTEDIGIKEYPB2029-ND
131R110K 5% SMD SIZE 0805MUARATA/YAGEODIGIKEY
142R2,R31K 5% SMD SIZE 0805MUARATA/YAGEODIGIKEY
152R4,R51M 5% SMD SIZE 0805MUARATA/YAGEODIGIKEY
161U1LM78M05ON SEMIDIGIKEYMC78M05CDTGOS-ND
171U2ATMEGA328TQPF-32MICROCHIPDIGIKEYATMEGA328PB-AURCT-ND
181X116MhzECS INCDIGIKEY X1103-ND

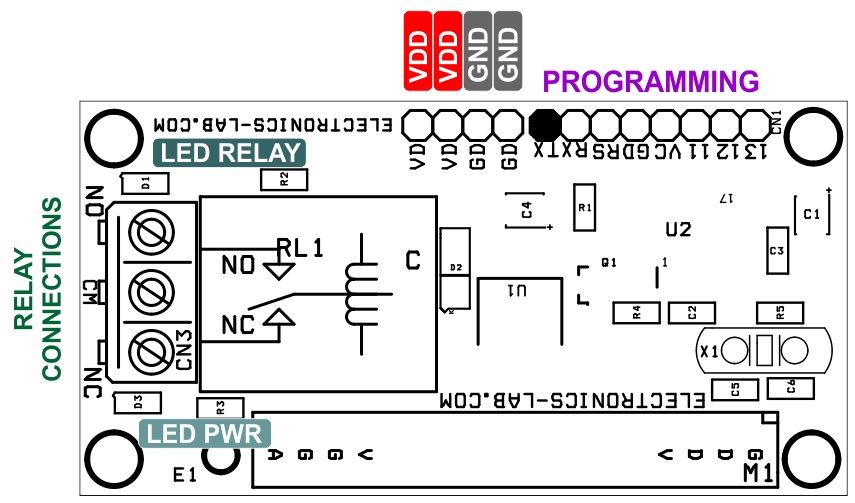

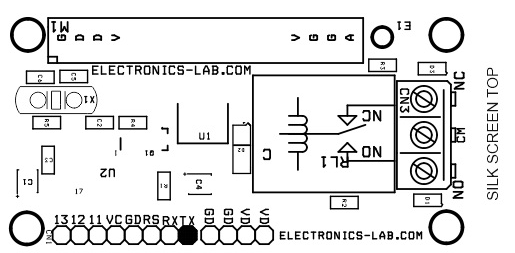

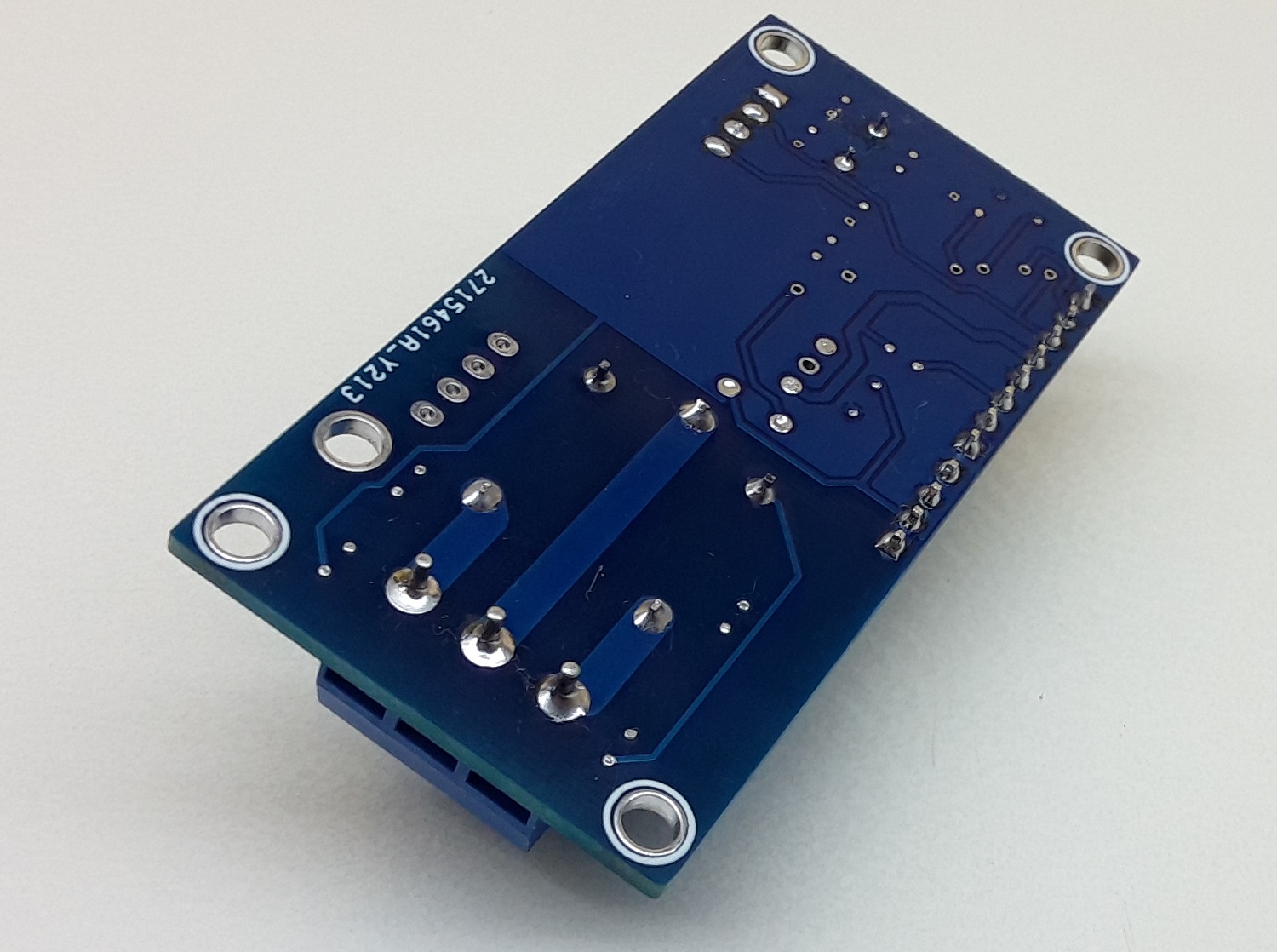

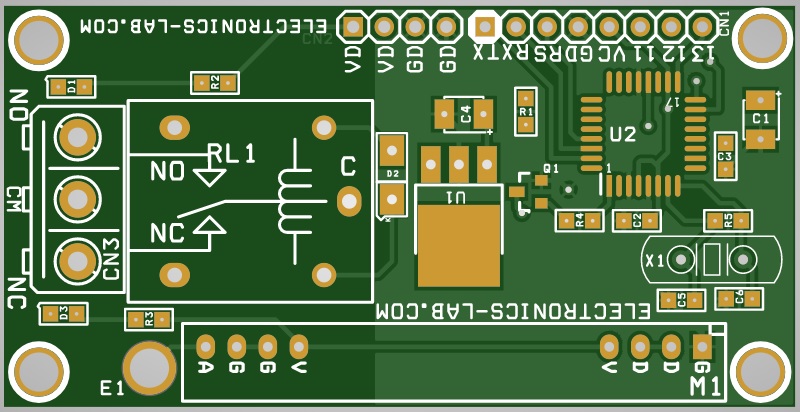

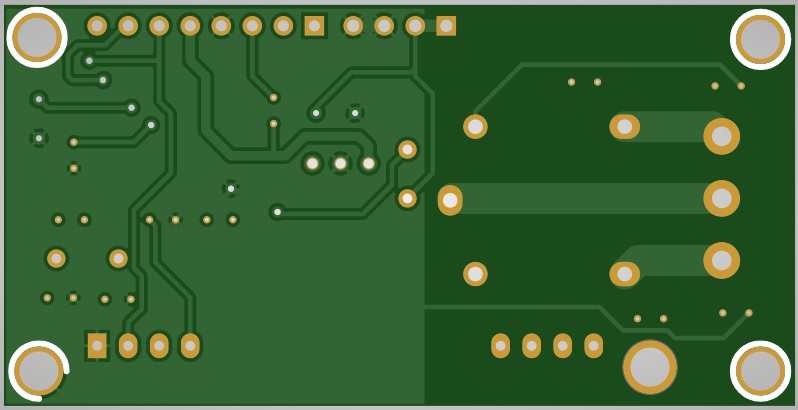

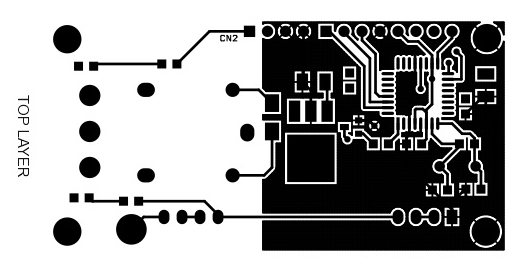

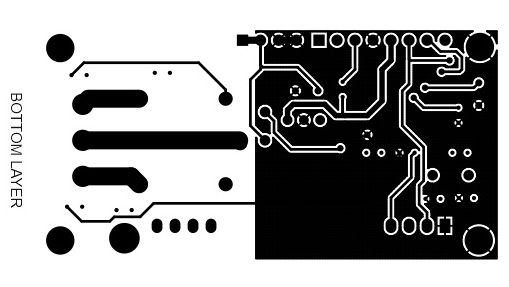

Connections
