LCD Adapter Board

  • Rajkumar Sharma
  • 10235
    Views
  • easy
  • Tested

PIC003



Simple LCD adapter board offers an easy way to interface a standard 16X2 LCD to your project.

Specifications

  • Very Tiny PTH PCB
  • Onboard Preset to set the Contrast
  • Easy interface with 10 PIN Box Header Connector

Schematic

SCHEMATIC_LCD_MODULE



Parts

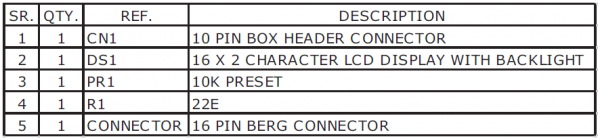

BOM



Photos

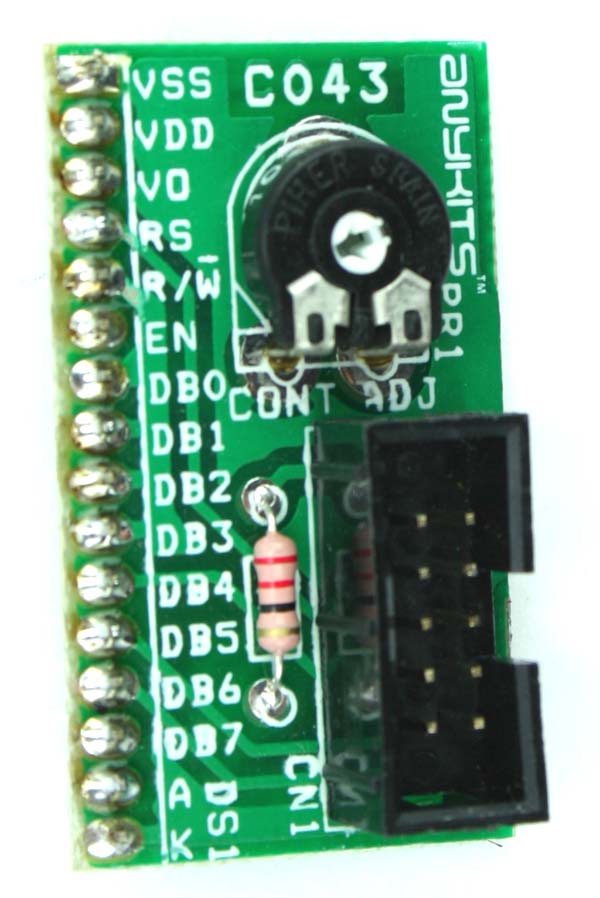

PIC001

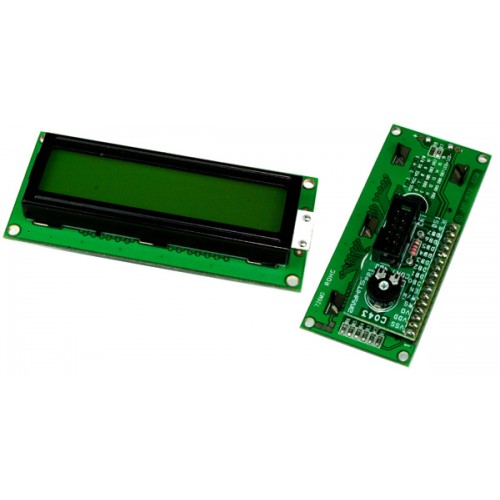

PIC002

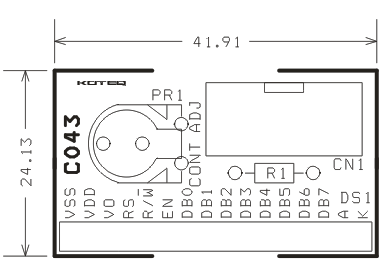

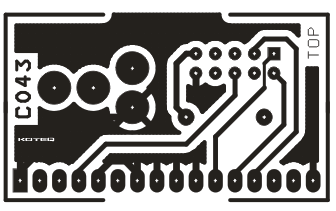

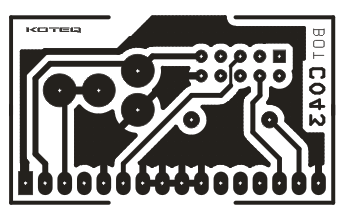

PCB
