Waveshare ESP32-P4 Smart 86 Box Features WiFi 6, Ethernet, and touchscreen, fits into 86×86 mm junction box

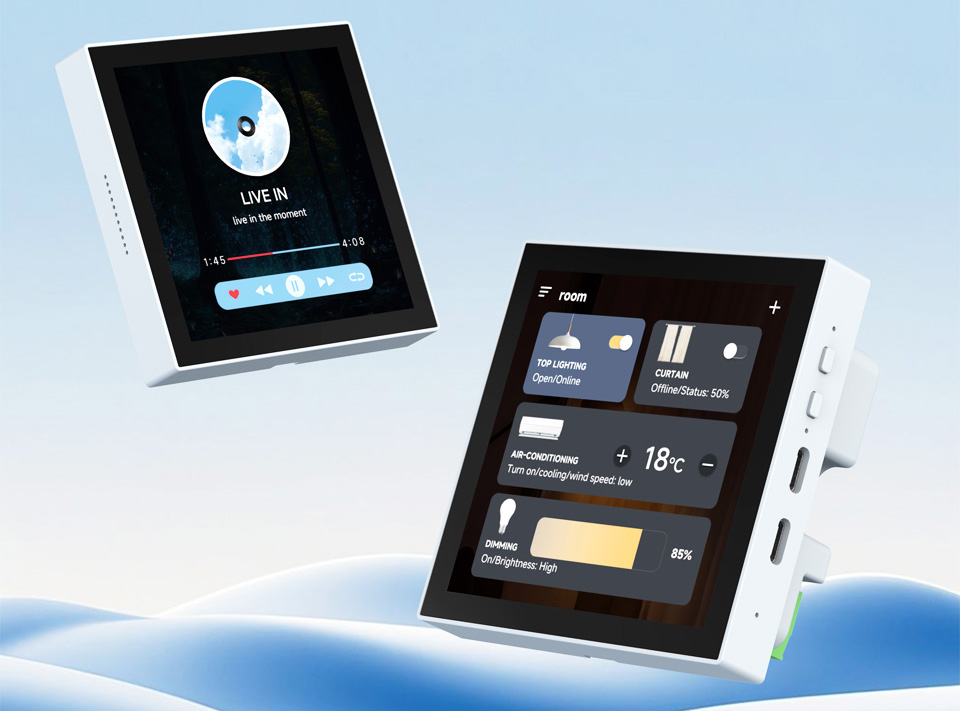

Waveshare’s ESP32-P4 Smart 86 Box is a touchscreen controller designed for Smart Home and Industrial IoT applications, with a compact 86×86 mm form factor that fits standard junction boxes.

The device is available in two variants – the ESP32-P4-WIFI6-Touch-LCD-4B with a 4-inch 720×720 touchscreen, ESP32-P4 module, MIPI CSI camera connector, and 28-pin GPIO header; and the ESP32-P4-86-Panel-ETH-2RO, which adds RS485, 2x relays, 10/100Mbps Ethernet, and 6V-30V DC input. It includes 32MB Flash, 32MB PSRAM, a microSD slot, a USB-C port, an ES8311 audio codec, a microphone, a speaker header, and RTC battery support. Applications include a smart home control panel for managing lights, HVAC, curtains, and security systems, or as an industrial HMI for machine control through RS-485 and relays.

ESP32-P4 Smart 86 Box Specifications

• Main SoC: ESP32-P4-Core module with ESP32-P4NRW32 dual-core RISC-V processor @ 400 MHz
  • AI instruction support and single-precision FPU
  • Low-power RISC-V core @ up to 40 MHz
• Graphics & Video:
  • 2D PPA graphics engine
  • H.264 and JPEG codec acceleration
• Memory:
  • 768KB L2 memory
  • 32KB low-power SRAM
  • 8KB TCM
  • 32MB PSRAM
• Storage:
  • 128KB high-performance ROM
  • 16KB low-power ROM
  • 32MB NOR Flash
  • microSD card slot
• Display:
  • 4-inch square LCD (MIPI DSI RGB) with 720×720 resolution
  • 5-point capacitive touchscreen
  • Camera Interface (model-dependent):
    • 15-pin MIPI CSI connector (ESP32-P4-WIFI6-Touch-LCD-4B)
• Audio:
  • ES8311 low-power audio codec

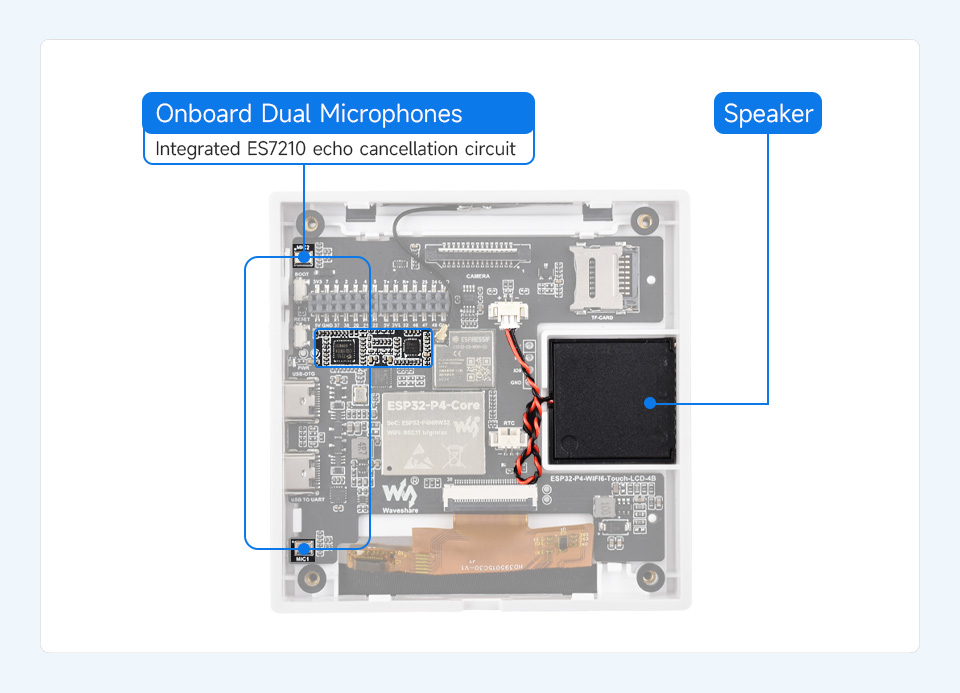

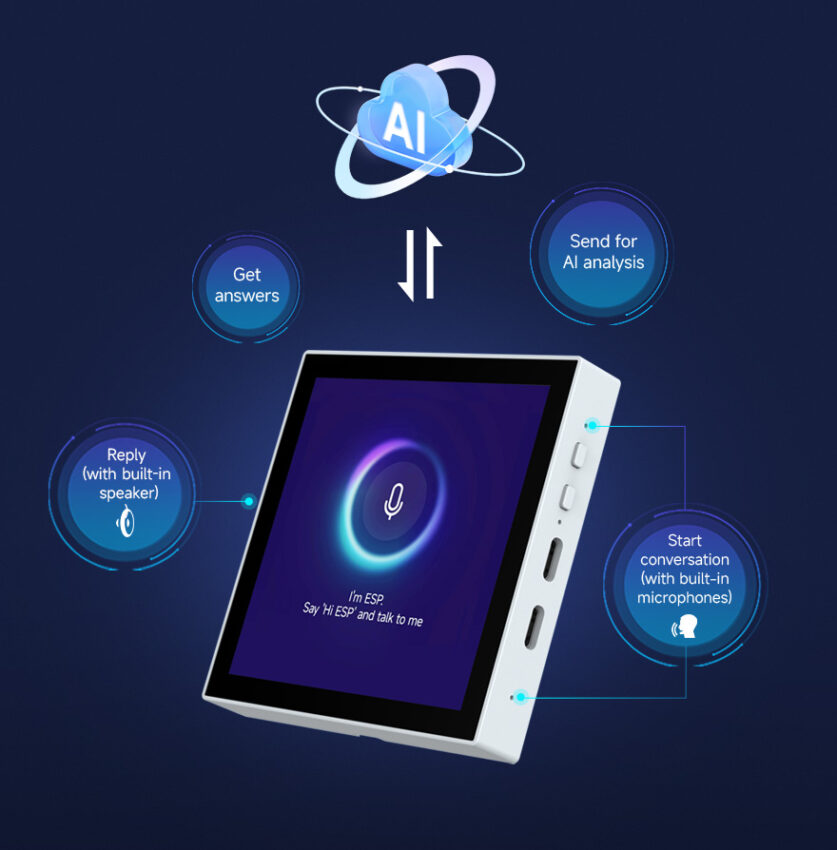

  • Onboard microphone with echo cancellation (ES7210)
  • 2-pin header for 8Ω 2W speaker
• Networking:
  • 10/100M Ethernet (ESP32-P4-86-Panel-ETH-2RO only)
  • Wi-Fi 6 and Bluetooth 5 via ESP32-C6-MINI-1U-H8 module (SDIO)
• USB:
  • USB 2.0 Type-C OTG
  • USB Type-C for UART/debug/power
• I/O & Expansion:
  • 28-pin GPIO header (WIFI6-Touch model)

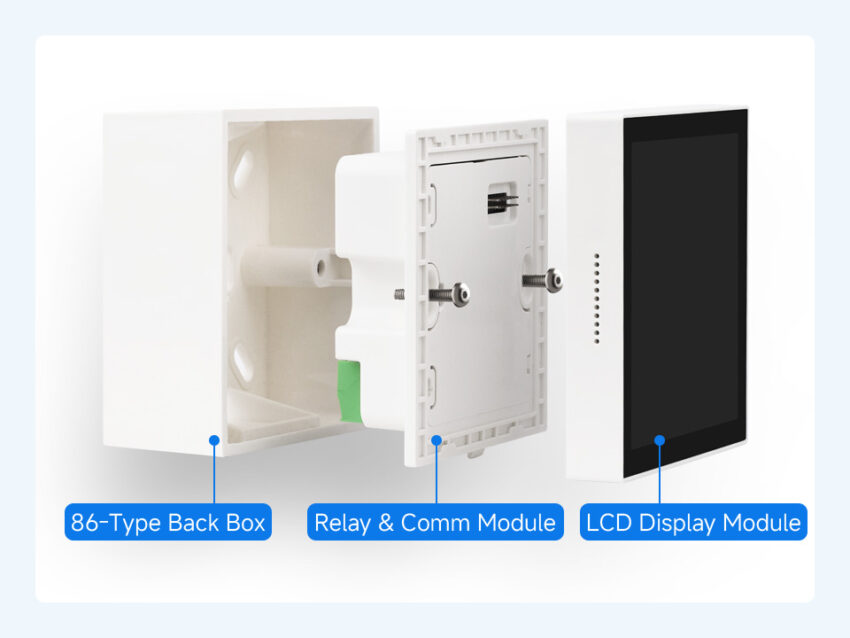

  • RS485 interface and 2x relays (ETH-2RO model)
  • Relays (ETH-2RO model):
    • 2x mechanical relays rated at 10A 250V AC / 30V DC
    • Opto-isolated
• Miscellaneous:
  • BOOT and RESET buttons
  • LED indicators for power and relays
  • RTC battery connector
• Power Input:
  • 5V via USB-C
  • 6V–30V DC via terminal block (ETH-2RO model only)
• Dimensions:
  • 86.5 x 86.5 x 14 mm (Touch-LCD-4B)
  • 86.5 x 86.5 x 30.5 mm (ETH-2RO)

The ESP32-P4 Smart 86 Box supports ESP-IDF (with VSCode or Eclipse), Arduino IDE, and the LVGL graphics library. It can be used as a USB display or run ESP-Phone firmware for an Android-like UI, with documentation available on Waveshare’s wiki.

While writing, it kind of reminds me of LILYGO T-Panel, a compact module that works as both a display and a control center for smart devices.

Waveshare sells the ESP32-P4-WIFI6-Touch-LCD-4B for $39.99 and the ETH-2RO model for $49.99 on its store page. Prices on AliExpress are $49.99 and $63.99, respectively.
