ACS714-30A Current Sensor module

acs714-30a-current-sensor-module-img

The Allegro ACS714-30A provides economical and precise solution for AC or DC current sensing in automotive systems. The device package allows for easy implementation by the customer. Typical applications include motor control, load detection and management, switched-mode power supplies, and overcurrent protection.

Features

  • Supply 5V DC
  • Output 66mV/1Amp

Schematic

acs714-30a-current-sensor-module-schematic

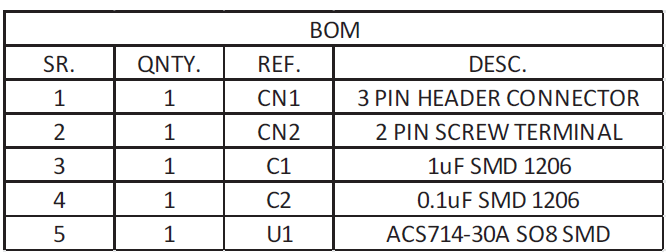

Parts List

acs714-30a-current-sensor-module-bom

Video

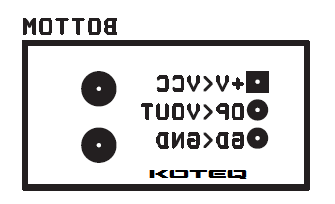

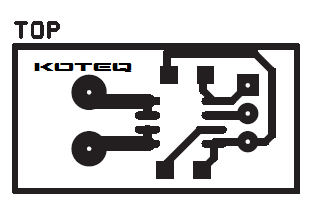

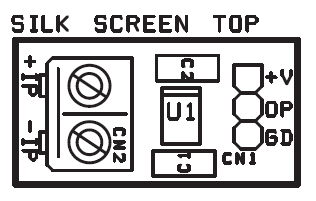

PCB
