Bargraph Voltmeter 0-5V DC range – PIC16F686

  • Rajkumar Sharma
  • 10970
    Views
  • moderate
  • Tested

BAR-GRAPH-VOLT-METER-RANGE-0-5V-DC-001

Tiny Bar-Graph displays provide a Red color bright, easy to read display of Voltage range of 0 to 5V.  This Bar-Graph has 20 segments in single color and display 0 to 5V DC. The Barograph Voltage monitor is based on PIC microcontroller with 10 Bit resolution ADC.  This high performance measurement provides unique capabilities and can be used in various applications. The Bar can display 0 to 5V with 20 LED with 0.25V (Approx.)   resolutions.  Each LED output provided with Solder- jumper for output set point can be configured for control, alarm, Relay.

Features

  • Supply 7.5 V to 18V DC (Direct 5V Input Possible)
  • Test Voltage Input 0 to 5V
  • Output Display 20 Color RED SMD LEDs
  • Compact Board with SMD Components
  • Supply input Header Connecter
  • On Board 5V Regulator
  • Resolution 0.25V Approx.
  • Onboard Trimport to Calibrate The Display Range.
  • Solder Jumper on each LED for Output Control, Alarm, and Relay
  • PCB Dimensions 75.88 X 26.69 MM

Calibration: Apply 7V to 18V DC supply, Apply accurate 5V at Input pin, Turn PR1 Trimport CCW/CW so all LED glow.

Schematic

BAR-GRAPH-VOLT-METER-RANGE-0-5V-DC-SCH

Parts List

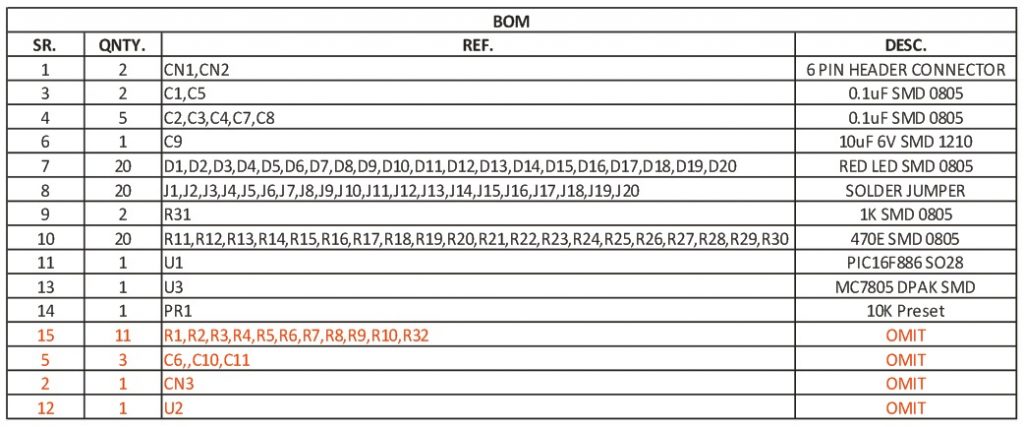

BAR-GRAPH-VOLT-METER-RANGE-0-5V-DC-BOM

Connections

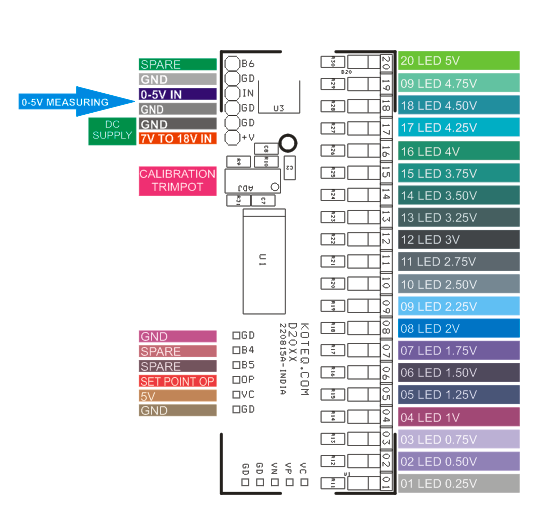

BAR-GRAPH-VOLT-METER-RANGE-0-5V-DC-DIAGRAM001

Jumpers

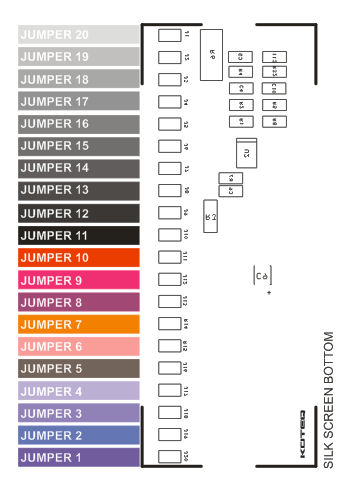

BAR-GRAPH-VOLT-METER-RANGE-0-5V-DC-JUMPPER-DIAGRAM

Photos

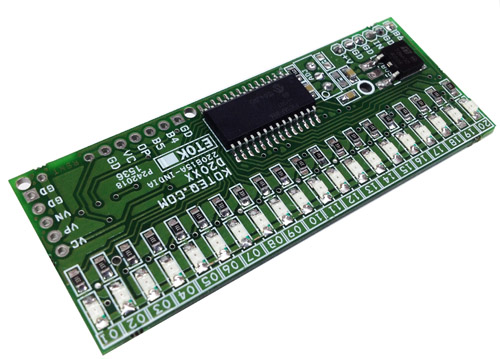

BAR-GRAPH-VOLT-METER-RANGE-0-5V-DC-002

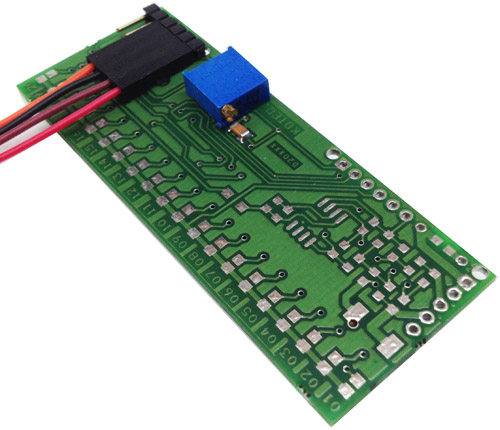

BAR-GRAPH-VOLT-METER-RANGE-0-5V-DC-D024A

Video

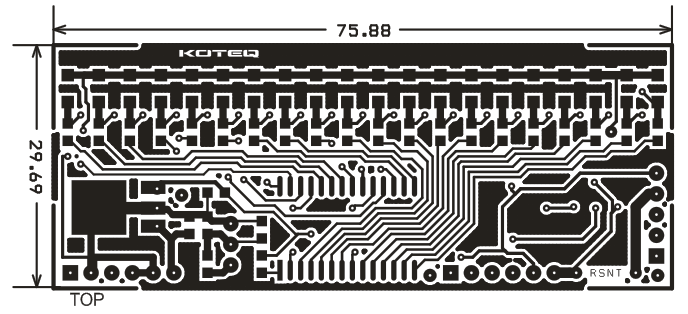

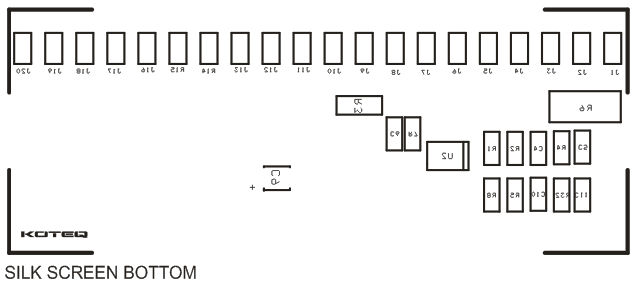

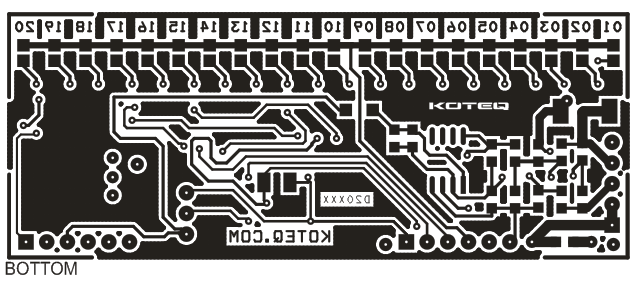

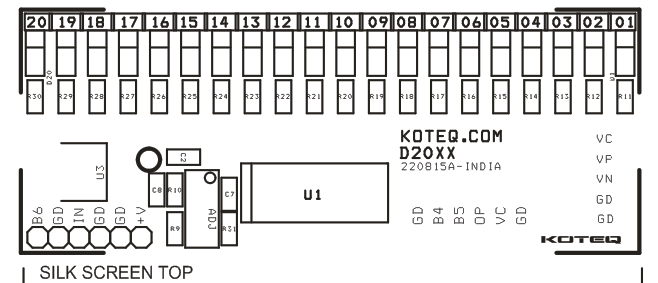

PCB

Comments

  • Charlie

    I’m looking for something similar to measure 0-12vdc. The form factor must be approximately 2.5x1cm

    2 years ago
    • admin

      Your form factor is too small to fit the required components. Otherwise you can measure 12V with this board by modifying the input voltage divider.

      2 years ago
  • kamran

    I’m looking for something similar to measure 4-20 mA and 0-20mA

    Thank you

    1 year ago
