AMS AG TMF8805 ToF 1D time-of-flight sensor

AMS AG TMF8805 ToF 1D time-of-flight sensor

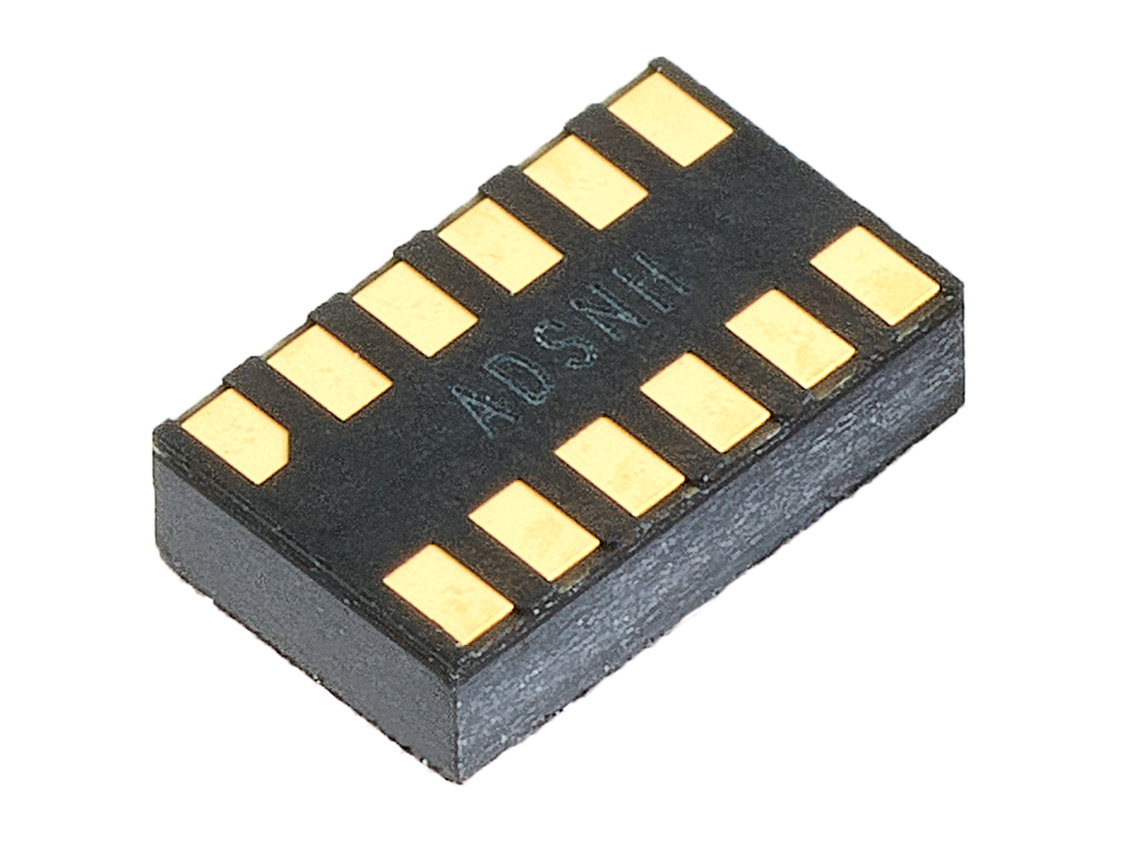

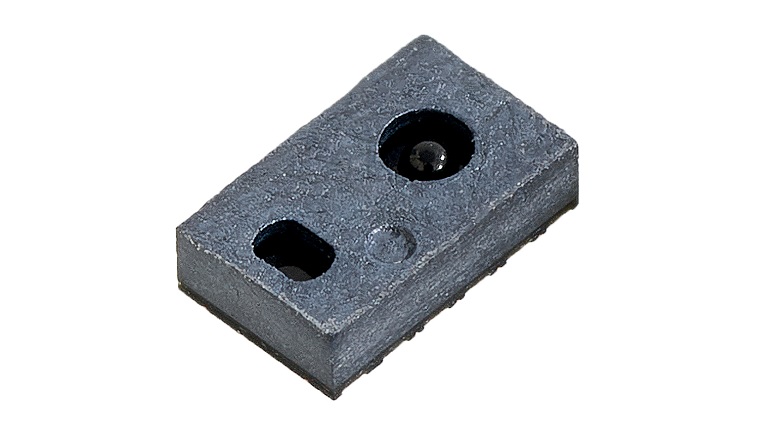

The TMF8805 is a time-of-flight (TOF) sensor in a single modular package with associated VCSEL

The TMF8805 is a time-of-flight (TOF) sensor in a single modular package with associated VCSEL. The TOF device is based on SPAD, TDC, and histogram technology. The device achieves a 2500 mm detection range.

Key features

  • Direct ToF technology with high sensitivity SPAD detection
  • 20…2500 mm distance sensing at 30 Hz
  • On-chip histogram processing
  • Industry’s smallest modular OLGA 2.2 x 3.6 x 1.0 mm package

Additional features

  • Fast Time-to-Digital Converter (TDC) architecture
  • Sub-nanosecond light pulse
  • 940nm VCSEL Class 1 Eye Safety
  • High-performance on-chip sunlight rejection filter and algorithm

Additional Benefits

  • Delivers high SNR, wide dynamic range, and no multi-path reflections
  • Enables dark and sunlight environment distance measurement within ±5%
  • Provides best-in-class resolution ranging mode detection sensing
  • Enables accurate distance measurements
  • Provides high accuracy, greater distance between cover glass, dynamic cover glass calibration, dirt or smudge removal and crosstalk compensation
  • Eye-safety circuitry stops VCSEL driver if VCSEL fault occurs
  • Optical filters with algorithm support enable high ambient light resilience
  • Reduce board space requirements, enables low-profile system designs in restricted space Industrial Designs

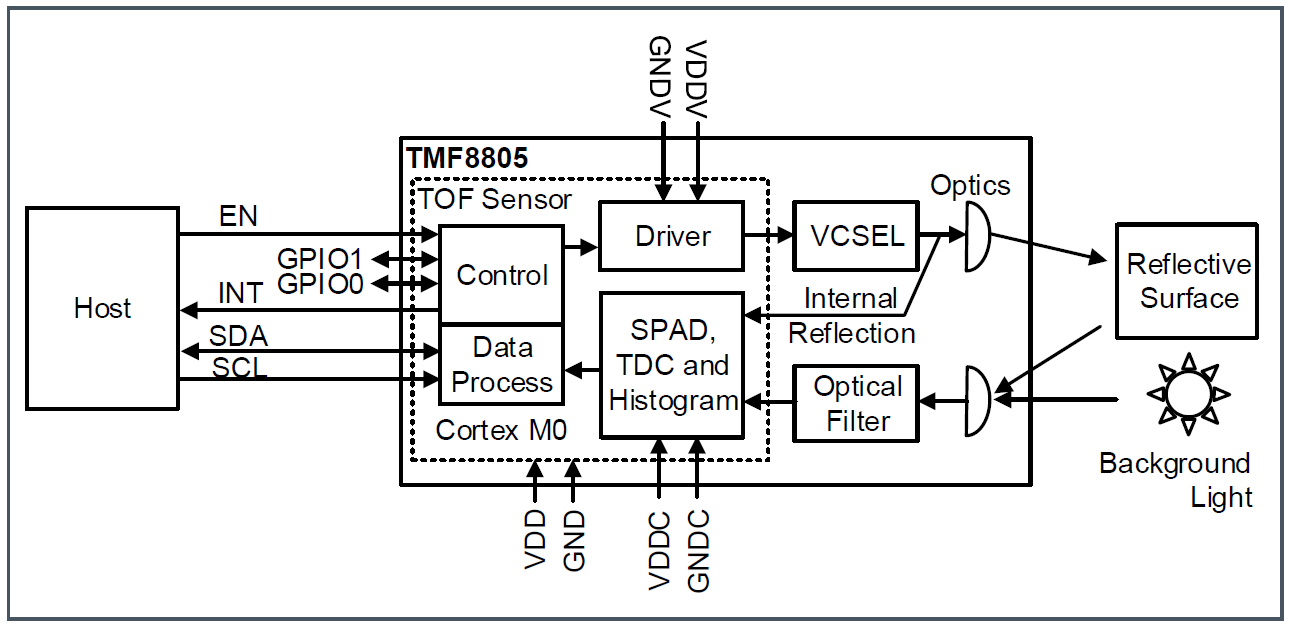

Internal Diagram
