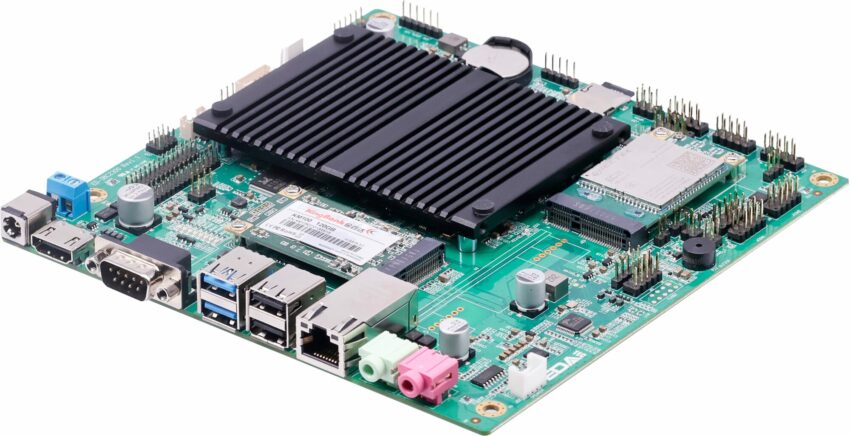

ED-SBC2300 Industrial SBC with Broadcom BCM2711 SoC, Cortex-A72, and Flexible Connectivity Options

The ED-SBC2300 series is a Mini-ITX industrial single-board computer (SBC) built around the Raspberry Pi Compute Module 4 (CM4) and the Broadcom BCM2711 quad-core Cortex-A72 (ARM v8) SoC clocked at 1.5GHz. Designed for industrial control and IoT applications, it features a fanless design. It offers flexible configurations to meet various user needs, with options for 1GB, 2GB, 4GB, or 8GB LPDDR4 RAM and 8GB, 16GB, or 32GB eMMC storage.

This SBC supports dual-display setups via HDMI+LVDS or HDMI+eDP interfaces and allows storage expansion through Micro SD cards and mSATA SSDs. Networking capabilities include dual LAN ports (optional) supporting up to 1Gbps, along with integrated 2.4GHz/5GHz dual-band Wi-Fi, Bluetooth, and 4G LTE. The wide input voltage range of DC 9V~36V and PoE power supply options enhance its adaptability in industrial environments.

I/O interfaces include 2x USB 3.0, 5x USB 2.0, 2x RS485, and 7x RS232, accommodating a variety of industrial peripherals. Additional features such as an integrated RTC, EEPROM, and a crypto authentication chip ensure reliable operation and data security. With its robust design and connectivity options, the ED-SBC2300 series is well-suited for industrial automation, IoT devices, and other embedded systems requiring high performance and flexible integration.

ED-SBC2300 industrial SBC specifications:

• Processor and Graphics
  • Broadcom BCM2711, quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
  • Video Processing Unit (VPU):
    • H.265 (HEVC) up to 4Kp60 decode
    • H.264 up to 1080p60 decode, 1080p30 encode
  • GPU: OpenGL ES 3.1 and Vulkan 1.0
• Memory and Storage
  • LPDDR4-3200 SDRAM: Options for 1GB, 2GB, 4GB, or 8GB
  • Storage options:
    • 8GB, 16GB, 32GB eMMC
    • Micro SD card support for expansion
    • Optional mSATA SSD
• Connectivity and Rear I/O
  • HDMI 2.1 (Type-A) supporting 4K 60Hz
  • USB ports:
    • 2x USB 3.0 (5Gbps)
    • 2x USB 2.0 or 1x 1000M Ethernet port (varies by model)
  • 1x 1000M Ethernet port with optional PoE (up to 60W, IEEE 802.3bt standard)
  • RS232 port with DB9 male connector
  • Optional audio interfaces (ED-SBC2320/ED-SBC2321):
    • 3.5mm audio output (Line-out)
    • 3.5mm microphone input
  • Micro SD card slot
  • SIM card slot for 4G connectivity
• Expansion I/O
  • USB 2.0 ports:
    • ED-SBC2310/ED-SBC2320: 3 ports
    • ED-SBC2311/ED-SBC2321: 5 ports
  • RS232 and RS485 expansion headers
  • 6-Pin GPIO header for custom applications
  • mSATA and Mini PCIe connectors for additional storage and 4G modules
• Display Options (Optional)
  • LVDS and eDP display interfaces (1080p 60Hz, exclusive selection)
  • Adjustable voltage and brightness settings for LVDS/eDP displays
  • Resolution presets for LVDS (up to 1920×1080)
• Wireless and Cellular (Optional)
  • Dual-band Wi-Fi (2.4GHz/5GHz) supporting IEEE 802.11 a/b/g/n/ac
  • Bluetooth 5.0
  • 4G LTE support with region-specific modules (EC20/EC25 series)
• Other Features
  • RTC with CR2032 battery support
  • Integrated buzzer for alerts
  • EEPROM (4KB) for device settings
  • Optional stereo speaker output
• Power supply
  • Input voltage: 9V–36V DC
  • Maximum power consumption: 60W
• Dimensions: 170mm x 170mm (Mini-ITX form factor)
• Weight: 100g
• Operating temperature: -25°C to 50°C
• Storage temperature: -25°C to 60°C
• Humidity: 5% to 95% non-condensing
• Certifications: FCC, CE (various standards)

The system supports Raspberry Pi OS in Desktop and Lite versions, available in 32-bit and 64-bit distributions, offering flexibility for lightweight tasks or full desktop functionality. Hardware details and OS installation guidance are available on the documentation page, supporting various use cases like development, multimedia, and industrial applications.

We have previously covered several Mini-ITX SBCs, including the Radxa Orion O6, DFI RPS101/RPS103, Turing Pi 2.5, MI1001, ASUS N97T-IM-A, and more. Feel free to explore these products if you’re interested.

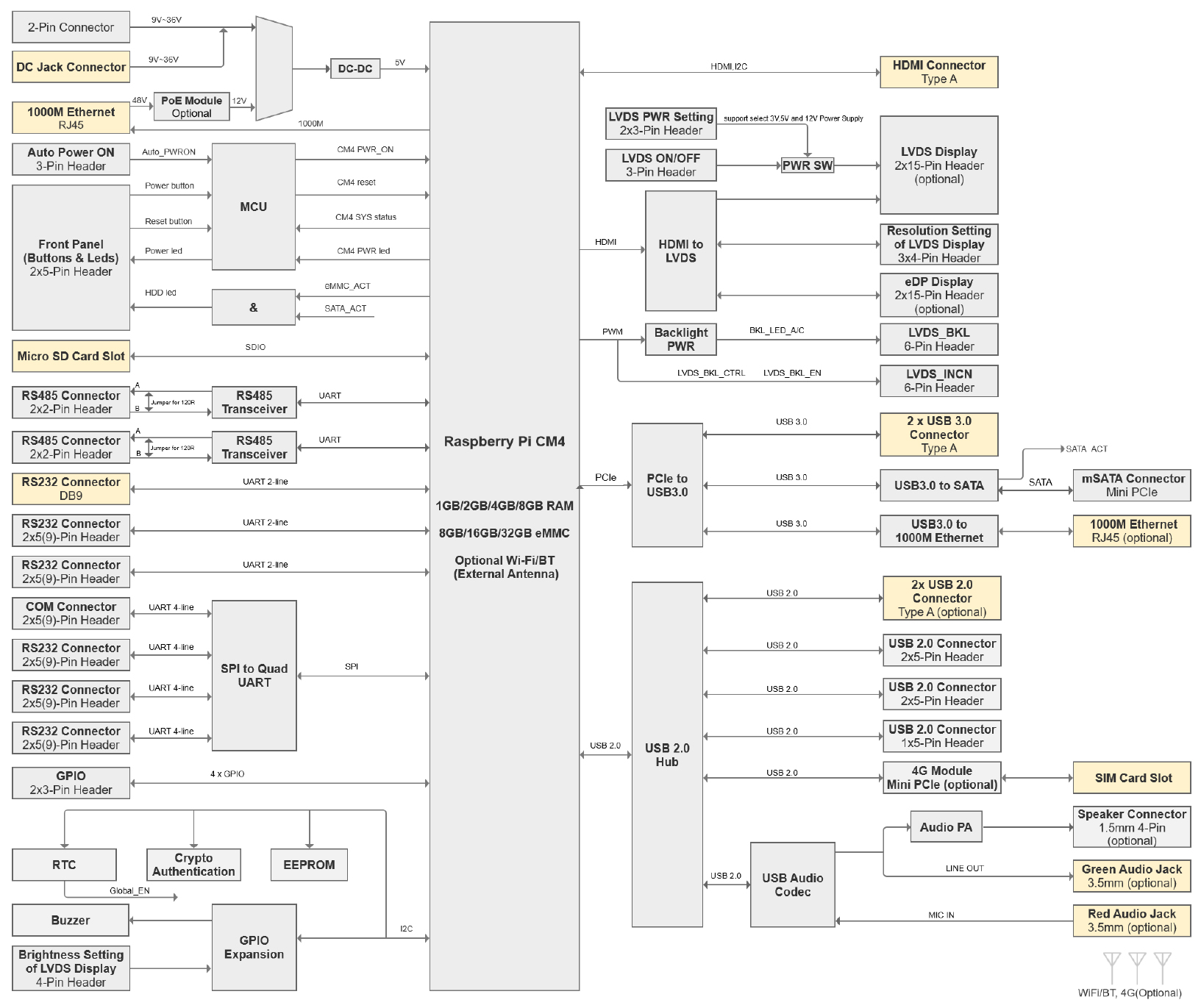

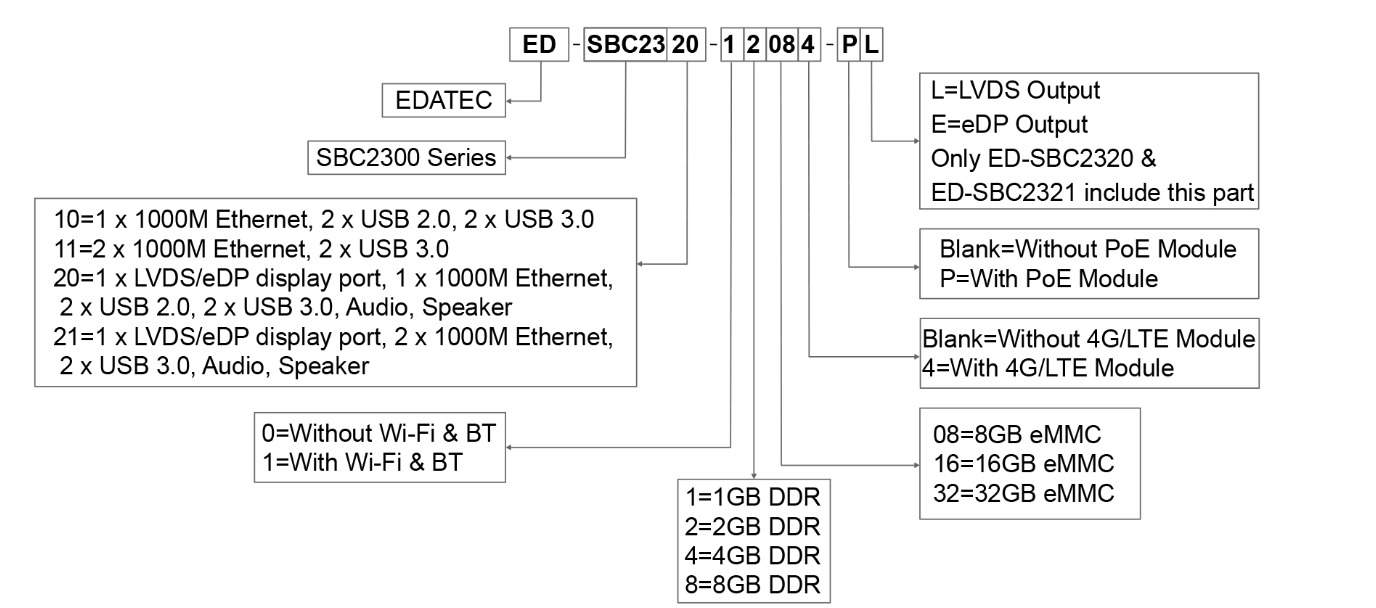

The EDATEC ED-SBC2300 series includes the following models: ED-SBC2310 (1 x 1000M Ethernet, 2 x USB 2.0, 2 x USB 3.0), ED-SBC2311 (2 x 1000M Ethernet, 2 x USB 3.0), ED-SBC2320 (1 x 1000M Ethernet, 2 x USB 2.0, 2 x USB 3.0, 1 x LVDS display port, Audio, Speaker), and ED-SBC2321 (2 x 1000M Ethernet, 2 x USB 3.0, 1 x LVDS display port, Audio, Speaker). Pricing details are not disclosed at the time of writing. For more information, please visit the product page. Order information is available below.
