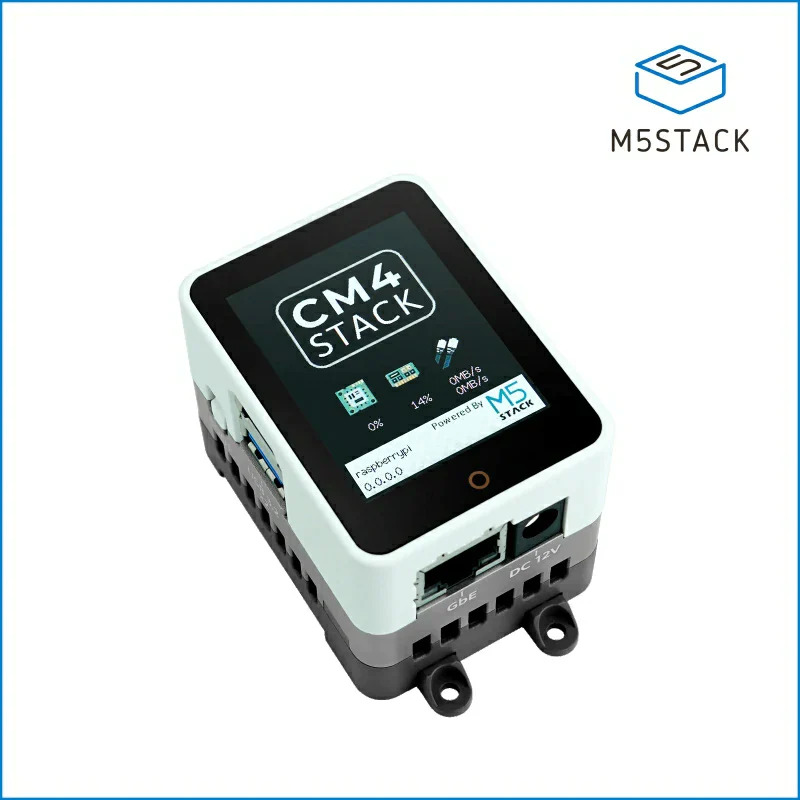

M5Stack has designed CM4Stack, a development kit based on the Raspberry Pi Compute Module 4 for industrial automation and smart home applications. M5Stack has always been developing IoT boards and modules for increased adoption among maker communication and professional embedded hardware and software engineers.

The CM4Stack host board includes a capacitive touch display with a resolution of 320×240 pixels. This 2-inch IPS LCD screen is a high-quality display that can display high-quality images and videos. The capacitive touch screen allows for intuitive and responsive touch functions, which makes it ideal for projects that require user interaction.

The M5Stack can be installed using DIN rail, wall hanging, and screw fixing methods. The DIN rail method is commonly used in industrial automation applications, where devices are mounted on DIN rails for easy installation and maintenance. M5Stack’s DIN rail mounting option allows it to be easily integrated into industrial control systems and other similar applications.

Specifications of M5Stack CM4Stack development kit

  • Board: Compute Module 4 featuring Broadcom BCM2711
  • Connectivity: IEEE802.11b/g/n/ac Wi-Fi 2.4GHz and 5GHz
  • Display: 2-inch LCD screen with touch function and ST7789V2 controller
  • Interface: Connector for an external antenna
  • Port: USB Type-C, Serial port, Gigabit Ethernet, USB3.2, HDMI
  • Power: 12V/3A DC power input connector
  • Heat sink: DIN-rail mounted heat sink with a built-in cooling fan
  • Button: Download button for entering download mode
  • Security: Cryptographic authentication IC for secure communication
  • Dimensions: 59x46x44 mm
  • Weight: 118.8 grams

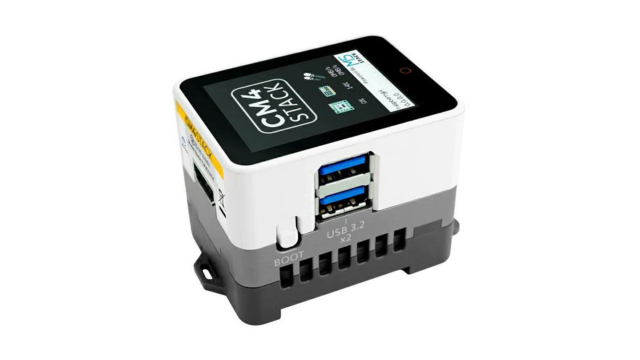

M5Stack CM4Stack Development Kit Hardware Overview

The security authentication chip AW32901ID-KEY (ATECC608B) is a hardware-based secure cryptographic coprocessor that is designed to provide advanced security features to embedded systems. The chip is integrated into the M5Stack, and it offers a range of security capabilities, including secure data storage and transmission.

Features

  • High-performance embedded system: built-in multiple powerful chips and interfaces, equipped with a 2.0-inch LCD screen and touch function, capable of displaying high-quality videos and images.
  • Multiple interfaces and functions: including antenna interface, 2W speaker, HDMI interface, USB-C (2.0) interface, USB3.2 interface, Gigabit Ethernet interface (RJ45), I2C interface, serial port, and DC power input port, supporting various peripheral devices and data transmission methods.
  • Security performance: equipped with a security authentication chip AW32901ID-KEY (ATECC608B), capable of secure data transmission and storage.
  • Clock function: equipped with RTC chip BM8563, capable of clock function.
  • Heat dissipation design: equipped with a heat dissipation base and heat dissipation fan to ensure stable system operation for a long time.

The M5Stack has been designed with a heat dissipation system to ensure stable system operation for a long time. It also features a heat-dissipation fan that provides additional cooling for the device. The development kit is optimized to provide maximum cooling efficiency without generating excessive noise.

M5Stack’s CM4Stack development kit is currently sold out on the official website where it is priced at $199.00. The kit includes a CM4Stack board with a power adapter, Hex key, instruction manual, base snap, and a screw holder.
