New VCNL36826S For Hand-Held Equipment Where Miniature Size Is Critical

New VCNL36826S For Hand-Held Equipment Where Miniature Size Is Critical

1.055
Views
0 Comments

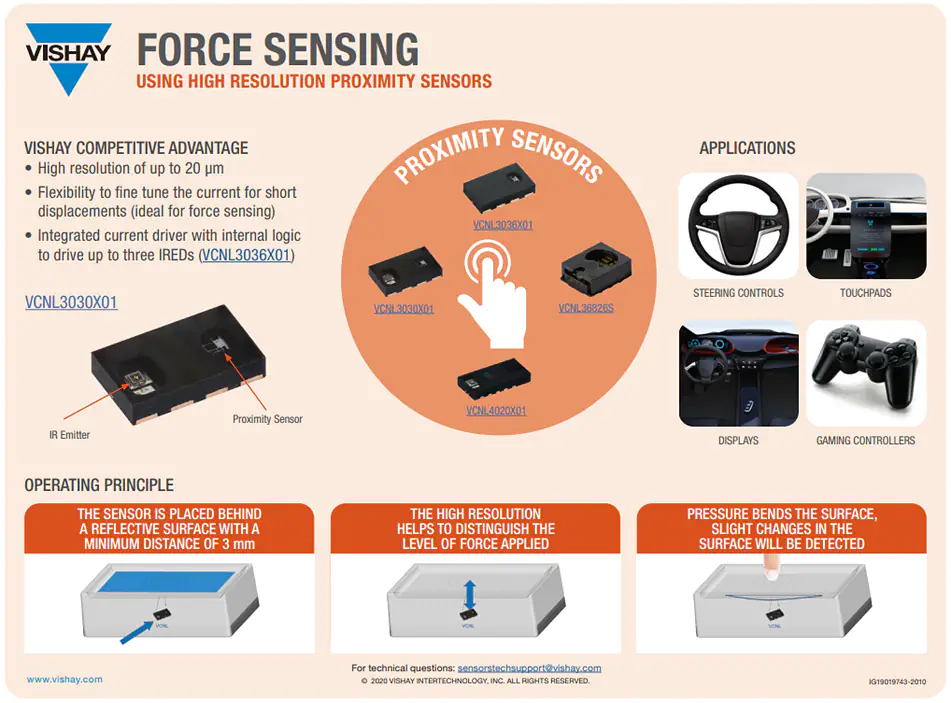

Vishay VCNL36826S VCSEL Integrated Proximity Sensor combines a high-power vertical-cavity surface-emitting laser (VCSEL), a photodiode for proximity measurement, and a signal processing IC in a single package with a 12-bit ADC. The device provides proximity sensing to minimize accidental touch inputs. With a range up to 20cm (7.9″), this stand-alone component simplifies the use and design-in of a proximity sensor as no mechanical barriers are required to optically isolate the emitter from the detector. The VCNL36826S is offered in a miniature, surface mount, 2.5mm x 2.05mm leadless package (LLP) with a low 1mm profile. The device is designed to meet the low-height requirements of smartphones, mobile phones, digital cameras, and tablet PC applications.

With the standard I2C bus serial digital interface, access to the “proximity signal” is easy to attain. The programmable interrupt function offers wake-up functionality for the microcontroller when a proximity change occurs. This reduces processing overhead by eliminating the need for continuous polling

Features

  • Surface-mount package type
  • 2.55mm x 2.05mm x 1.0mm (L x W x H) dimensions
  • Integrated modules
    • VCSEL
    • Proximity sensor (PS)
    • Signal conditioning IC
  • Interrupt function
  • Small light hole opening design
  • Low power consumption I2C (SMBus-compatible interface)
  • I2C bus output type
  • -40°C to +85°C temperature compensation
  • 168-hour floor life, MSL 3, according to J-STD-020

Specifications

  • 2.62V to 3.8V supply voltage
  • 100µA to 300µA supply current
  • 1µA (typical) shutdown current
  • 940nm peak wavelength of VCSEL
  • 20mA VCSEL driving current
  • 60° PS view angle

more information: https://www.vishay.com/ppg?84964
