STMicroelectronics STEVAL-MKI109D Evaluation Board Supports All ST MEMS Sensors with STM32 MCU

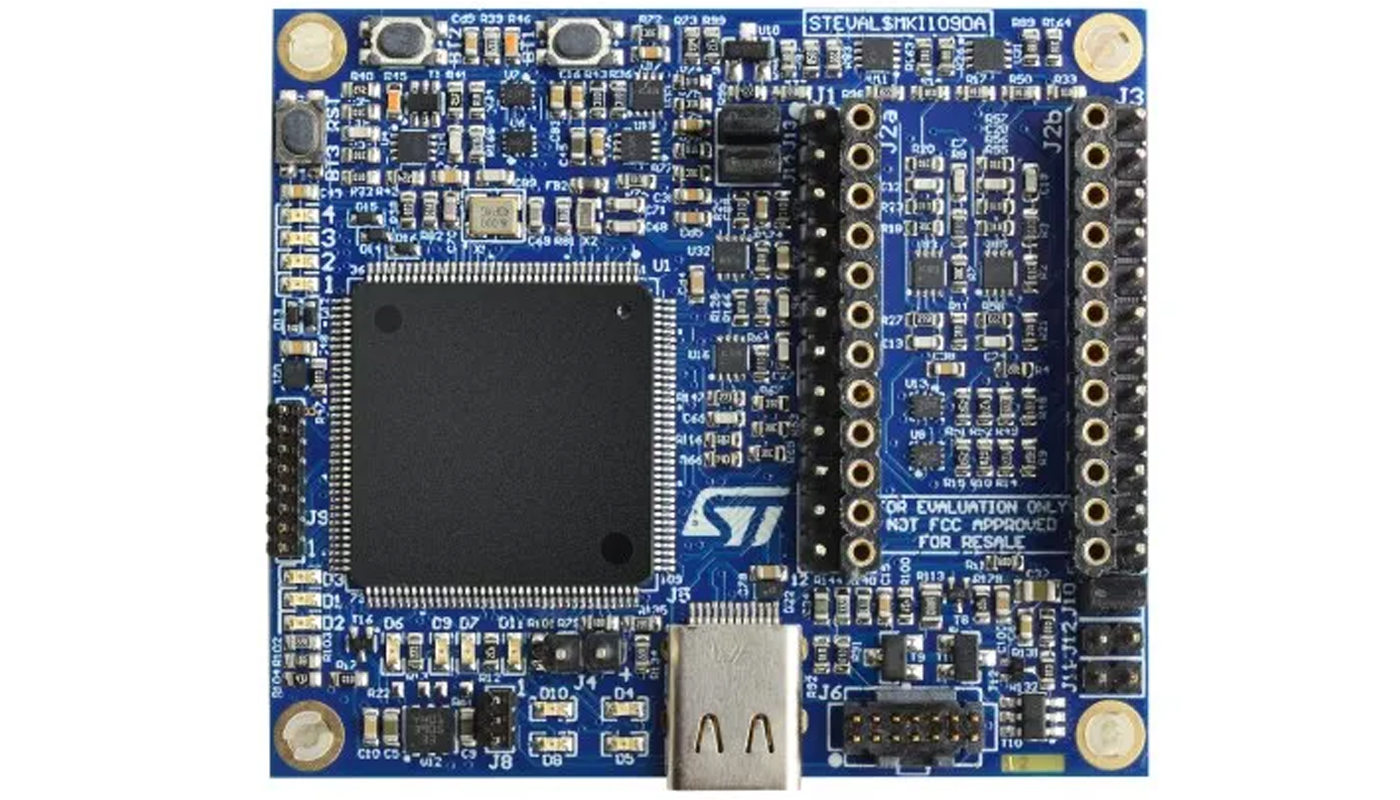

The STEVAL-MKI109D is a professional evaluation board designed for testing and optimizing ST MEMS sensors. It serves as a plug-and-play tool compatible with ST MEMS DIL24 adapter boards and supports multiple communication interfaces like I²C, I3C, SPI, and TDM.

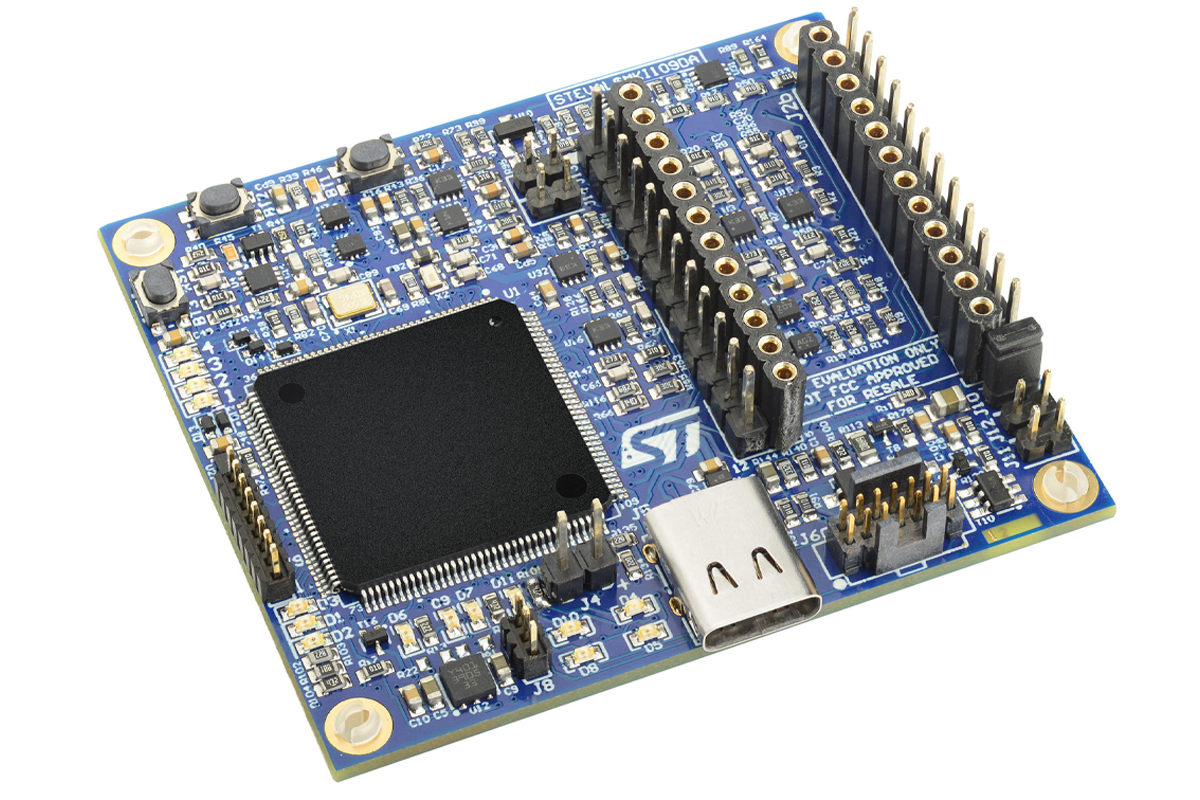

The board is powered by the STM32H563ZI microcontroller. DSP and FPU capabilities are included, making it ideal for advanced data processing tasks such as optical (OIS) and electronic (EIS) image stabilization. It features software-adjustable power circuitry, allowing users to set sensor supply voltages between 0V and 3.6V, while also providing onboard current measurement for accurate monitoring. With USB firmware update support, an SD card slot, and a USB Type-C connector, it ensures a user-friendly experience for sensor evaluation.

Additionally, the STEVAL-MKI109D works seamlessly with the MEMS-Studio GUI, allowing engineers to monitor sensor data and optimize performance and commonly used in automotive, consumer electronics, and industrial applications, where accurate sensor data processing is crucial.

Previously, STMicroelectronics launched the STEVAL-L6986IV1 evaluation board with dual isolated output. We have also covered other evaluation boards including the NXP LPC860-MAX, the ON Semiconductor NCN51xxASGEVB, the Milk-V DuoModule 01, and many more.

STMicroelectronics STEVAL-MKI109D Evaluation Board Specifications:

• MCU: STM32H563ZI Arm Cortex-M33 @ 250 MHz with 2MB Flash, 640KB RAM
• Sensor Interface: Supports I²C, I3C, SPI, and TDM for high data rate communication
• USB:
  • USB Type-C for power and data transfer
  • Firmware update via USB
• Connectivity and Expansion:
  • Compatible with ST MEMS DIL24 adapter boards
  • SD card slot for data logging (SD card not included)
• Misc:
  • User LEDs linked to INT1 to INT4 of the adapter
  • BT3 button for STM32 reset
  • BT2 button for entering DFU mode
  • BT1 general-purpose button connected to STM32 GPIOs
  • Onboard J6 connector for STM32 programming and debugging
  • Onboard J9 connector for general-purpose SPI/I²C bus
  • Onboard J7 connector for auxiliary SPI/I²C/GPIOs (not soldered)
• Power Management:
  • Software-adjustable sensor supply voltage (0V to 3.6V)
  • Onboard power monitoring for voltage and current measurements
• Compliance and Certifications: RoHS compliant, CE certified

It also includes Unico-GUI, Unicleo-GUI, and AlgoBuilder, making it easy to set up sensors, view data in real-time, update firmware, and analyze performance. Users can explore different operating modes, fine-tune power settings, and integrate embedded AI features—all without coding. It is also compatible with all ST MEMS DIL24 adapter boards, supporting accelerometers, gyroscopes, IMUs, barometric pressure sensors, and presence detection modules.

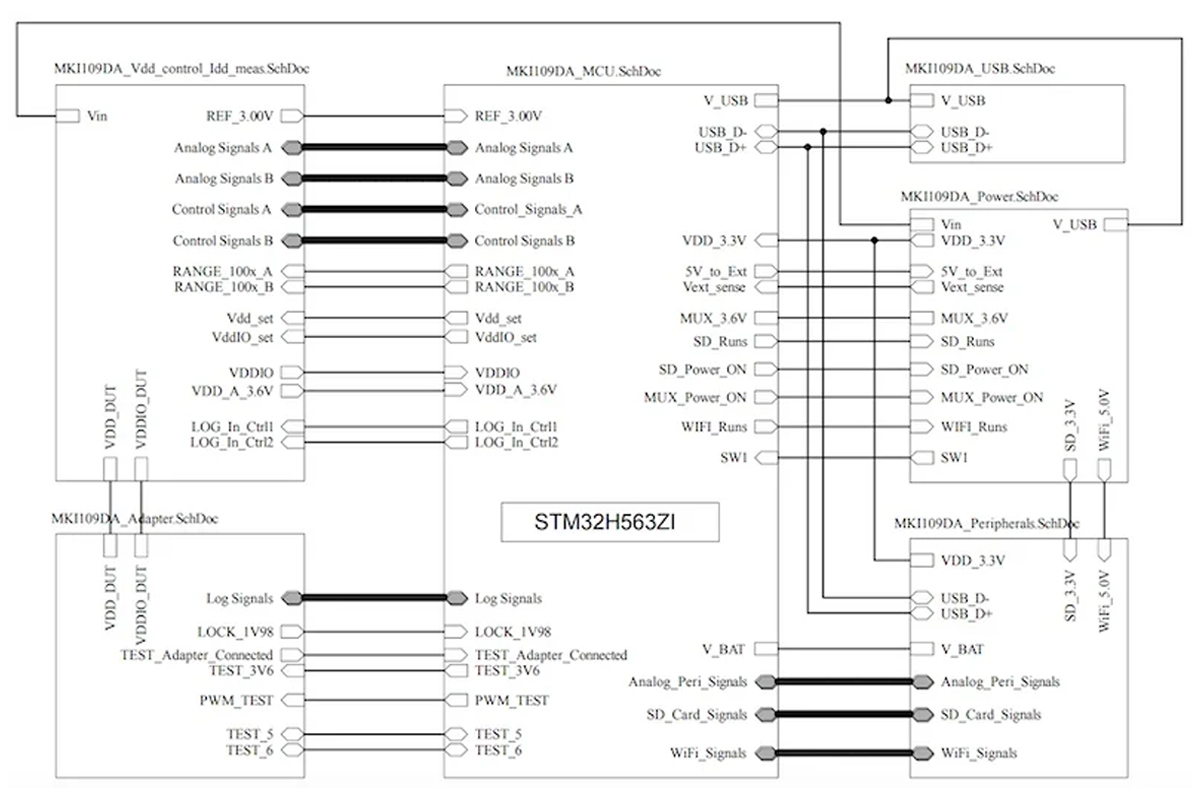

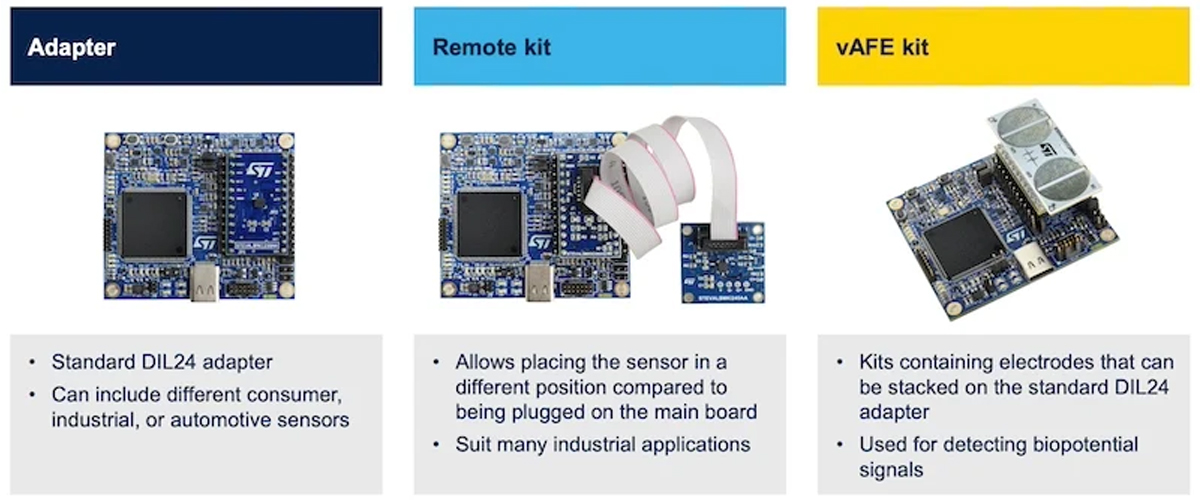

ST makes different MEMS sensors like motion sensors, pressure sensors, biosensors, and microphones for cars, gadgets, and industrial use. These sensors work in phones, smartwatches, and driver assistance systems. Each one comes on a DIL24 board, so it’s easy to connect to the STEVAL-MKI109D, and there’s also a remote kit if you need to place the sensor away from the board.

The STEVAL-MKI109D MEMS sensor evaluation board is available for $104.13 on ST’s eStore. You can find more details on the official product page and announcement.
