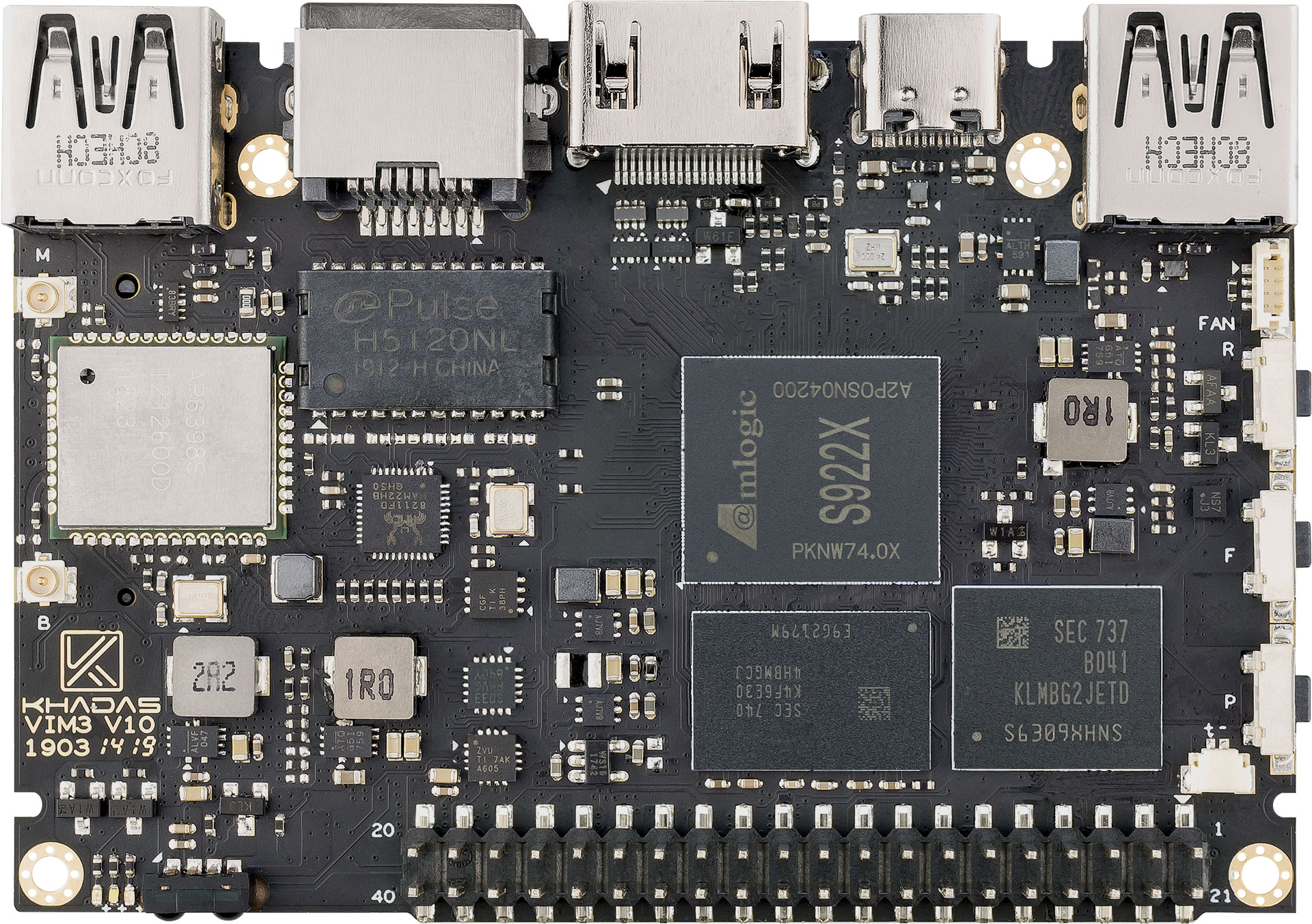

The VIM3 SBC is the latest iteration of the popular Khadas VIM series, that will be equipped with the new Amlogic S922X SoC. It is designed with the same form-factor as our popular VIM2 and VIM1, with up to 4GB of LPDDR4/4X RAM and 32GB of EMMC storage; this makes it compatible with existing accessories.

3 models of VIM3 are planned for release, however specifications for only the first model are available at this time. They will announce the exact launch date, and information about the other models in email updates.

Khadas VIM3 preliminary specifications:

  • SoC – Amlogic S922X hexa-core processor with 4x Arm Cortex-A73 and 2x Cortex A53 cores, Arm Mali-G52 MP4 GPU, built-in Cortex-M4 core for “always-on” processing
  • MCU – STMicro STM8S003 with Programmable EEPROM for power management, customizations, and boot media configuration
  • System Memory & StorageVIM3 Basic – 2GB LPDDR4/4X RAM, 16GB eMMC 5.1 flash
  • VIM3 Pro – 4GB LPDDR4/4X RAM, 32GB eMMC 5.1 flash
  • Common – 16MB SPI flash, microSD card slot supporting up to UHS-I SDR104, support for M.2 2280 NVMe SSD (see Expansion section)
  • Video Output & Display InterfaceHDMI2.1 transmitter with 3D, Dynamic HDR, CEC, and HDCP 2.2 support
  • 4-lane MIPI-DSI interface up to 1920 x 1080
  • 10-pin 0.5mm Pitch FPC Connector for touch panel
  • Video4K UHD H.265 75fps 10-bit video decoder & low latency 1080p H.265 / H.264 60fps decoder
  • Supports multi-video decoding up to 4Kx2K@60fps + 1x1080P@60fps
  • Dolby Vision and HDR10, HDR10+, HLG, and PRIME HDR video processing
  • ConnectivityGigabit Ethernet with WoL support
  • 802.11a/b/g/n/ac WiFI 5, 2X2 MIMO with RSDB and Bluetooth 5.0 via Ampak AP6398S module
  • USB – 2x USB 3.0 ports, 1x USB 2.0 OTG port with USB PD support
  • Sensor – KXTJ3-1057 3-axis digital accelerometer
  • ExpansionM.2 Socket with single lane PCIe 2.0, USB 2.0, I2S, I2C, ADC, 100M Ethernet PHY interface, GPIO, MCU_PA2
  • 40-pins 2.54mm pitch header exposing:CPU signals – USB, I2C, I2S, SPDIF, UART, PWM, ADC
  • MCU signals – SWIM, NRST, PA1
  • Misc – 2x IR receivers, RTC & battery header, 4-pin cooling fan header with PWM speed control, 3x LED’s, power, Func and reset buttons, XPWR pads for an external power button
  • Power Supply – 5V to 20V via USB-C port or pogo pads
  • Dimensions – 82.0 x 58.0 x 11.5 mm (4x M2 mounting holes)
  • Weight – Around 30 grams
  • Certifications – CE, RoHS

Khadas VIM3 comes with some extra features compared to ODROID-N2 including built-in eMMC storage (instead of external flash), an M.2 socket supporting NVMe SSD, built-in WiFi and Bluetooth, a MIPI-DSI connector, and a few other features like an accelerometer and larger SPI flash. VIM3 is also quite smaller compared to ODROID-N2.

Khadas VIM3 is coming soon, and pricing has not been announced yet. More details may be found in the “launch page
