DFRobot’s 14-inch ultra-thin IPS bar capacitive touchscreen display with a 3.5:1 aspect ratio and 4K resolution. It supports ten-point capacitive touch input and features dual display interfaces: Type-C and HDMI. Compatible with 4K-capable systems such as the LattePanda Sigma, LattePanda 3 Delta, Raspberry Pi 4B, and Raspberry Pi 5, it delivers high-definition visuals and detailed display output.

Its bar-shaped design provides an elongated layout optimized for specific applications. The unique aspect ratio, combined with 4K resolution, ensures precise and clear visual presentations, making it suitable for applications requiring a clean and intuitive display interface.

The screen is ideal for retail countertops and shelf advertising scenarios, where its vibrant and high-resolution display highlights product details. It is also well-suited for measurement instruments, whose shape allows for organized data visualization. Additionally, it enhances smart terminal devices by providing seamless interaction and precise content delivery in self-service applications.

DFRobot’s 14-inch ultra-thin IPS bar specifications:

  • Display:
    • 14-inch IPS LCD panel with a resolution of 3840 × 1100
    • 3.5:1 bar-shaped aspect ratio for unique visual presentations
    • 170° wide viewing angle (horizontal and vertical)
    • 72% NTSC color gamut and 300 cd/m² brightness
    • Anti-fingerprint coating and ≥6H surface hardness
  • Touchscreen:
    • 10-point capacitive touch support
    • Optical bonding technology for enhanced durability and dust resistance
  • Interfaces:
    • Type-C and Mini HDMI for video transmission
    • Full-featured Type-C port supporting video, audio, touch signals, and reverse PD power supply (5V~20V)
    • Dual-channel audio output via MX1.25-2P interface
    • Blind insertion support for Type-C connections
  • Misc:
    • 1200:1 contrast ratio and ≥86% transmittance
    • 60 Hz refresh rate for smooth visuals
  • Overall dimensions: 369.5 mm × 288.6 mm × 5.1 mm (WxHxD)
  • Driver Board:
    • Dimensions: 125 mm × 93 mm × 9.6 mm
    • Mounting hole compatibility for Raspberry Pi (58 mm × 49 mm) and LattePanda Delta 3 (118 mm × 71 mm)
  • Touch Board:
    • Dimensions: 50 mm × 26 mm × 4.8 mm
    • Interface: MX1.25-4P
  • Weight: 709 g (including packaging)

The Type-C interface simplifies setup by supporting video, audio, and touch signals through a single cable, reducing desk clutter and ensuring a cleaner workspace. Additionally, it supports reverse PD power delivery, allowing the screen to receive power through the same cable used for data transmission, enhancing convenience and efficiency for users.

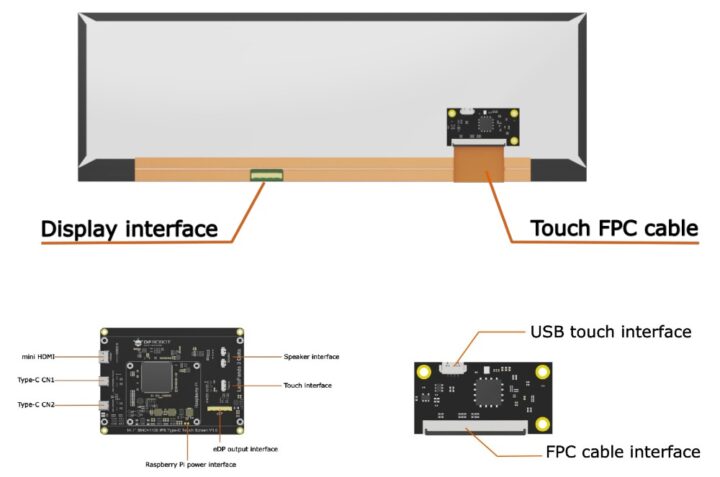

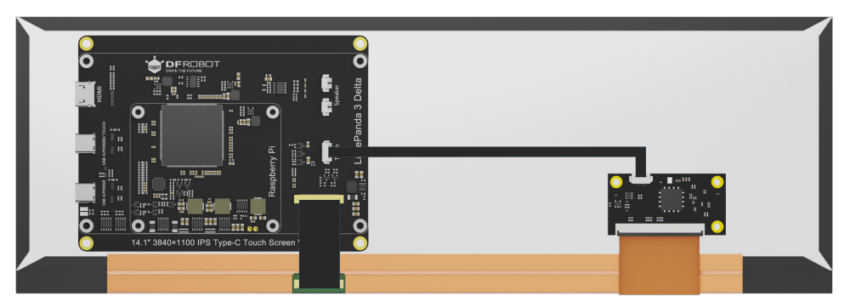

Interface Diagram of 14-inch 4K Bar Touch Display

The LattePanda 3 Delta uses a full-featured Type-C interface to handle audio/video, touch, and power signals with a single cable, simplifying the connection process. The display driver board provides reverse power to the 3 Delta through the same cable. Both Type-C ports on the driver board offer identical functionality, eliminating the need to distinguish between data and power ports and supporting blind insertion for added ease of use.

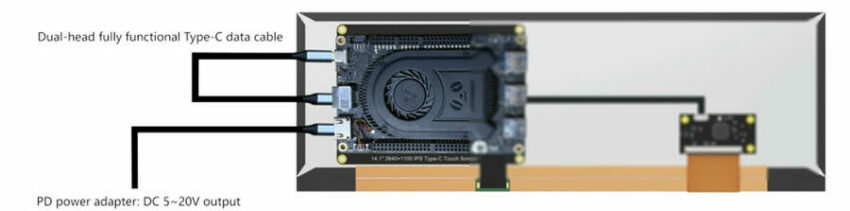

Wiring Diagram of LattePanda Single Board Computer and 14-inch 4K Bar Touch Display

To connect the Raspberry Pi 4B, use the provided “Micro HDMI to Mini HDMI cable” for the display signal and a USB data cable from the Raspberry Pi to the USB-C CN4 port (labeled “TOUCH”) on the display driver board to enable touch functionality. The 2-pin spring-loaded power interface on the driver board can power the display using the Raspberry Pi, but for high-power operations, the Raspberry Pi should be powered separately through its USB interface.

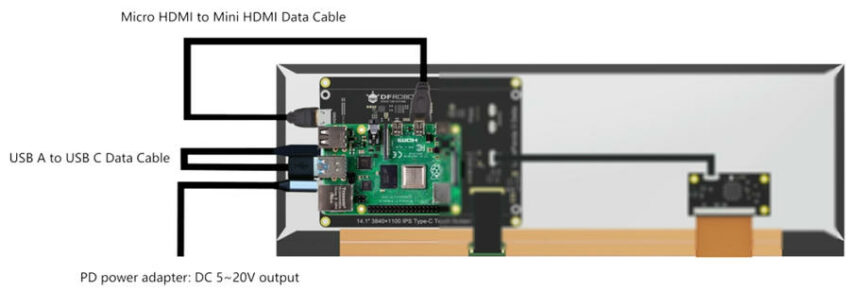

Wiring Diagram of Raspberry Pi Single Board Computer and 14-inch 4K Bar Touch Display

Previously, we covered the 11.6-inch IPS In-Cell Display by Waveshare, highlighting its in-cell technology. However, the 14-inch IPS bar display is the first product we’ve featured with such a large screen size. Feel free to explore this product if it piques your interest.

DFRobot offers a comprehensive wiki tutorial covering various methods to connect the display. The 14-inch 4K IPS bar touch display is currently available on the DFRobot official store for $249 and is expected to be listed on the company’s Amazon store soon.
